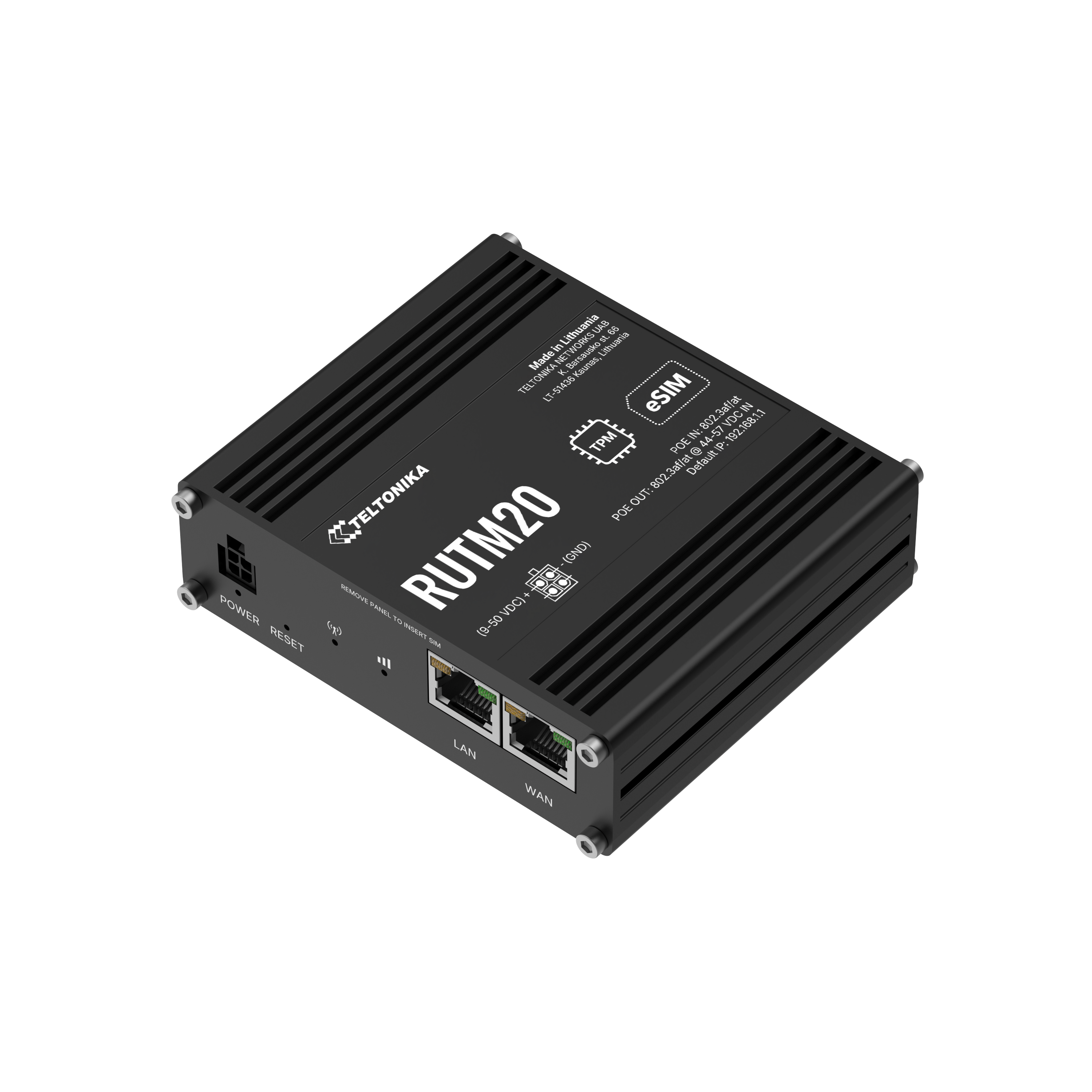

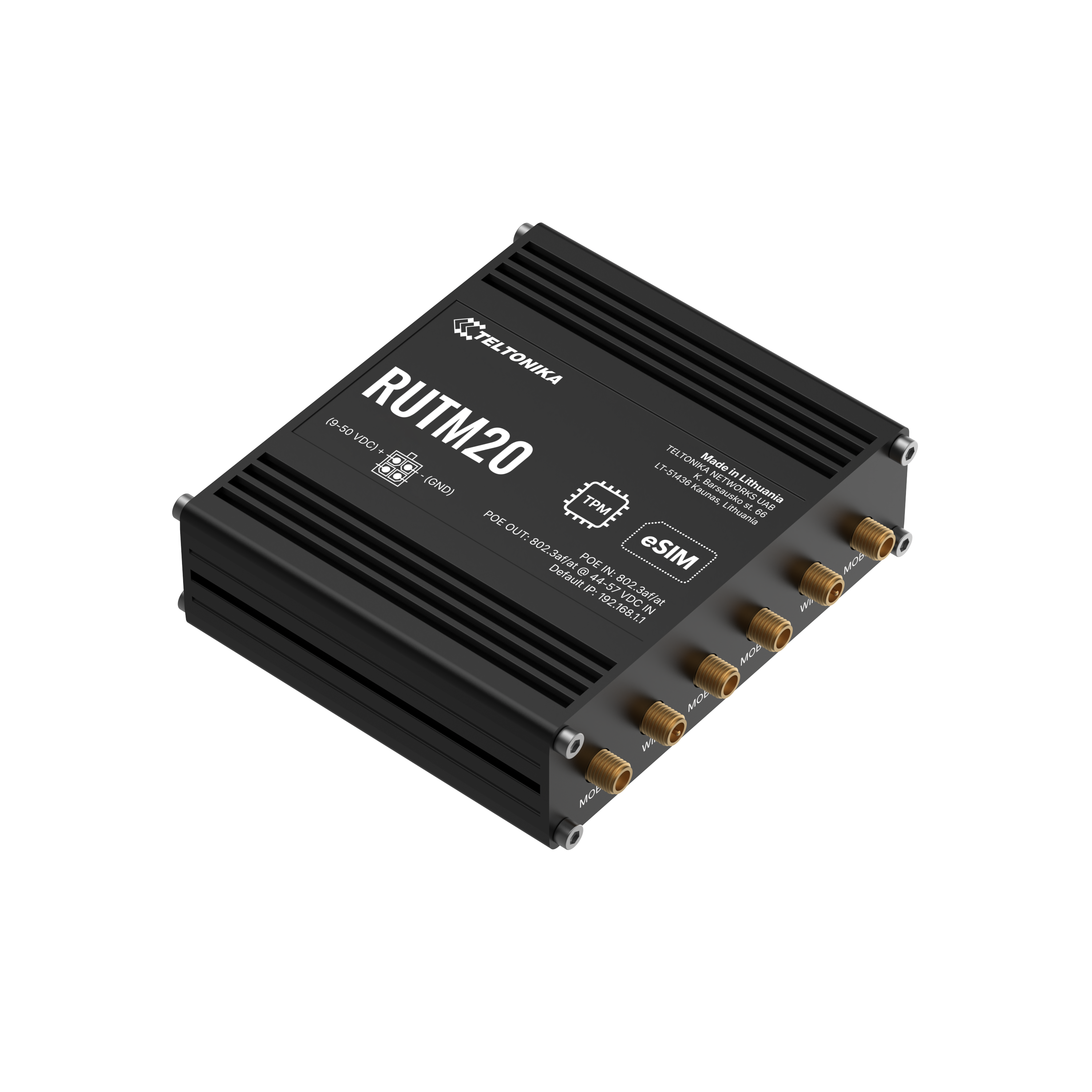

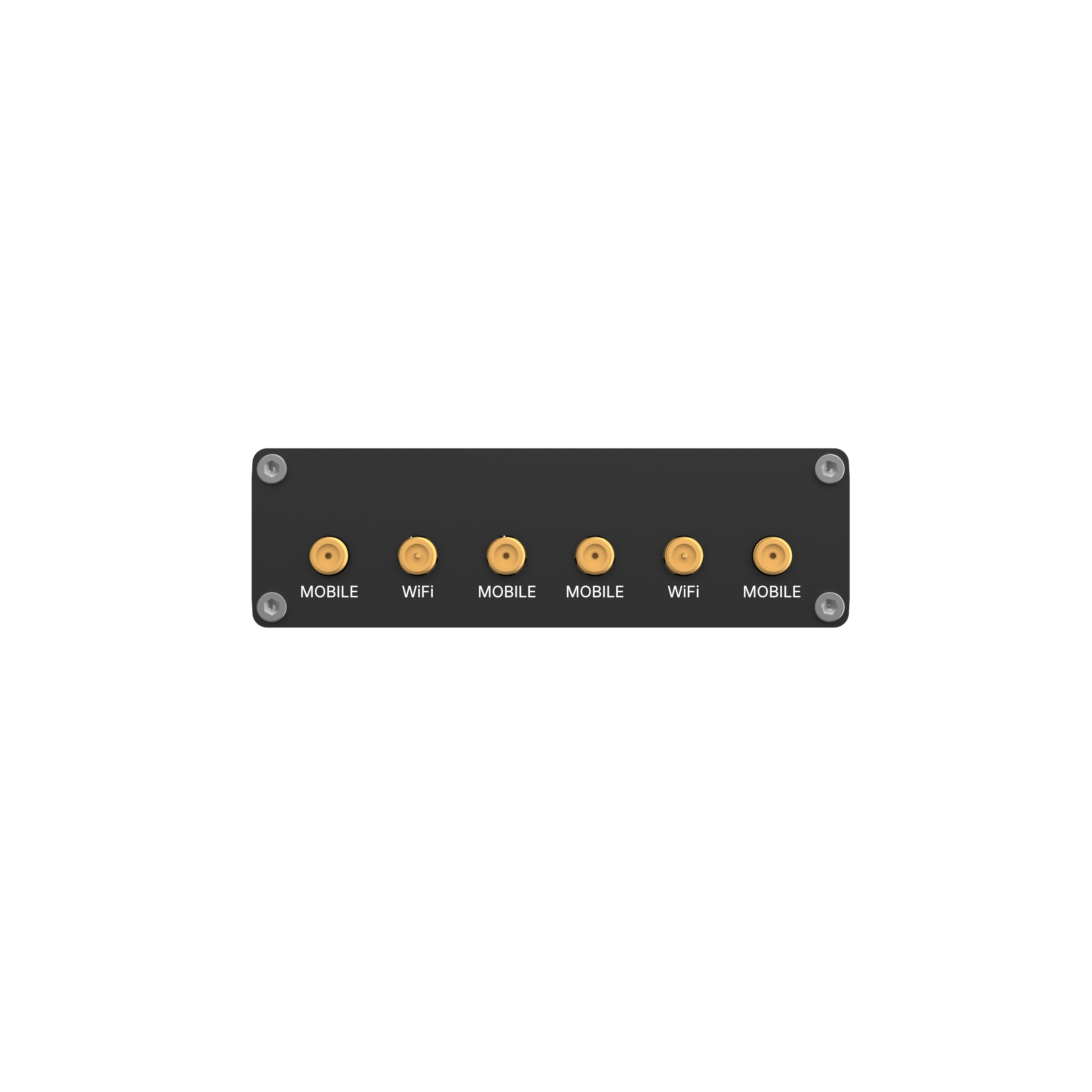

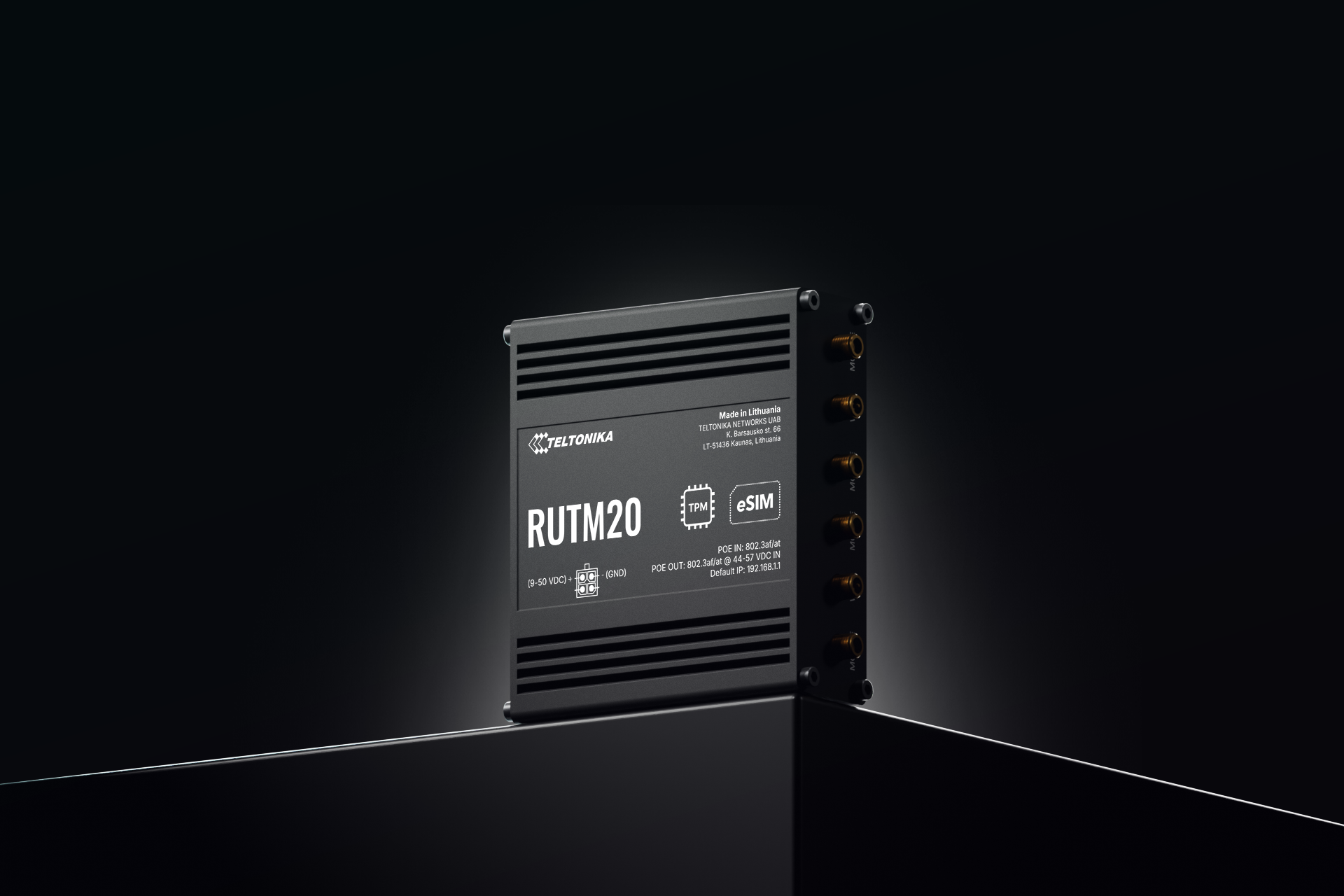

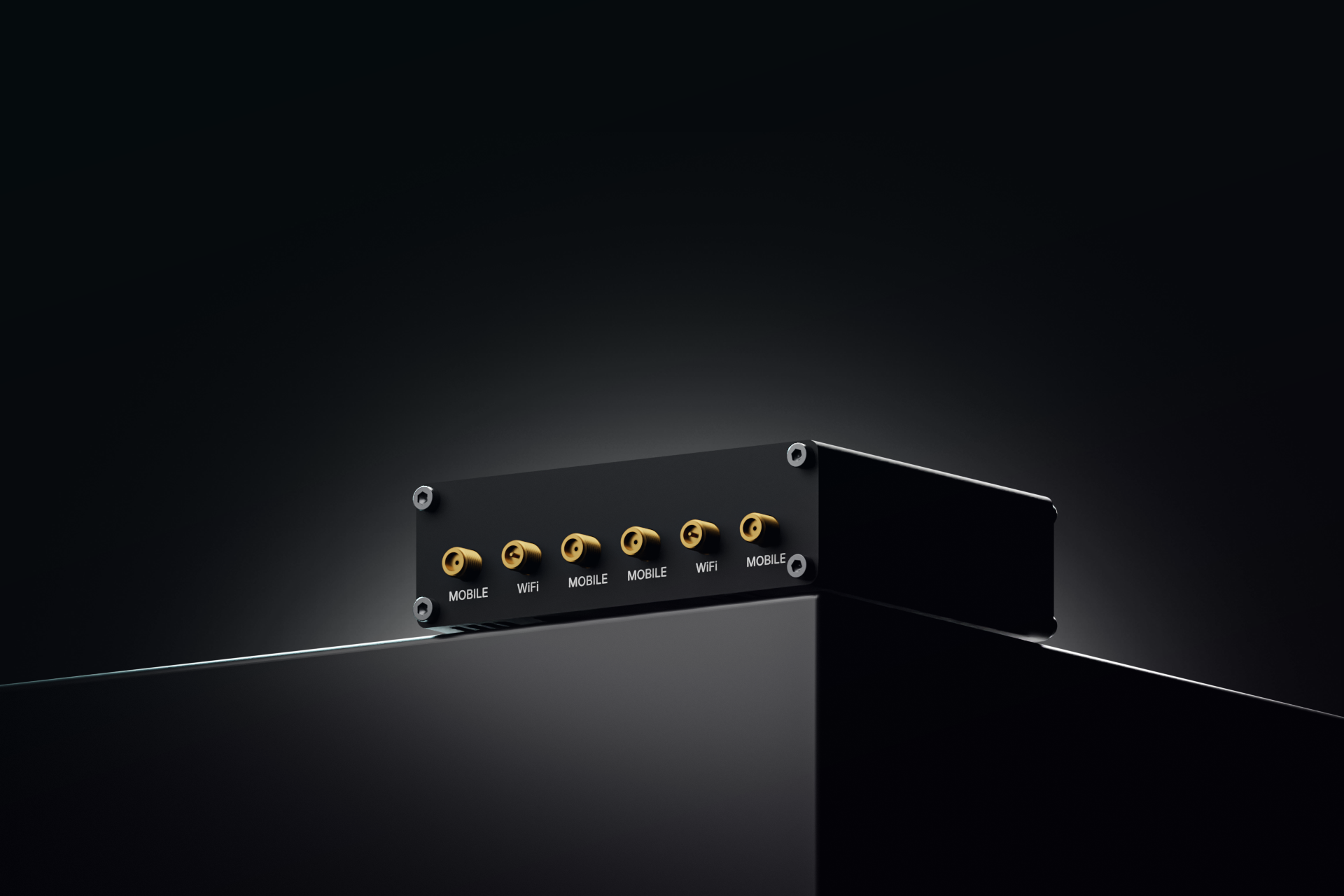

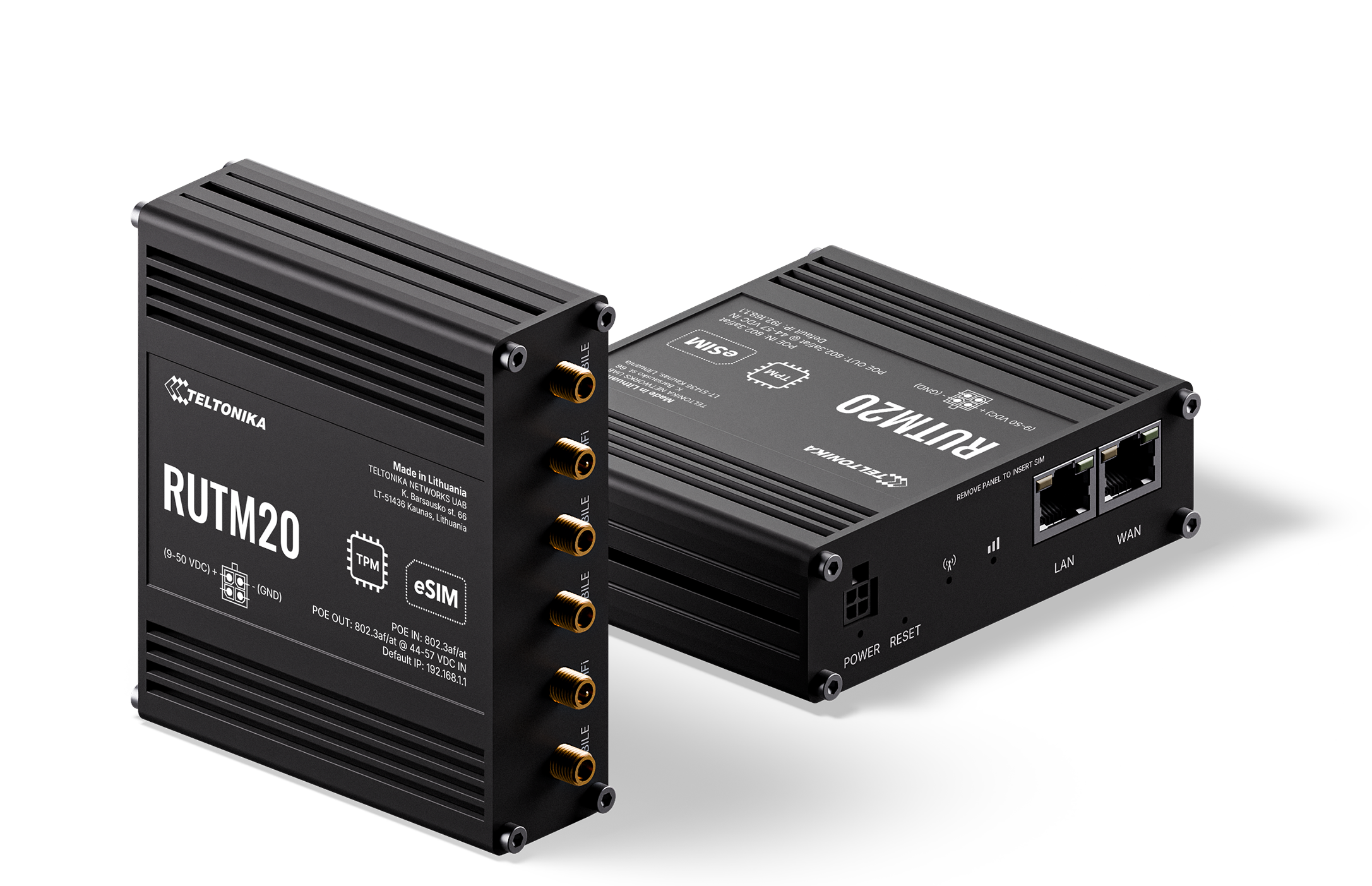

Teltonika RUTM20100500 Compact 5G Wi-Fi PoE Router

Name: Teltonika RUTM20 Compact 5G Router with Wi-Fi and PoE
Brand: TELTONIKA NETWORKS
SKU: RUTM20100500
Price: 386.76 USD
Availability: BackOrder

Teltonika Networks RUTM20 compact 5G cellular router

Bring cellular connectivity to compact POS installations, surveillance equipment and transport systems with the Teltonika RUTM20100500 RUTM20. Its Telit FN990A28 modem supports North America, EMEA and APAC, with 5G Sub-6 GHz standalone and non-standalone operation plus LTE and 3G connectivity. Two physical 2FF SIM slots and an integrated consumer eSIM provide carrier options, with storage for up to 7 eSIM profiles. Automatic SIM switching can respond to weak signal, usage limits, roaming, network rejection or a failed data connection. Data plans are separate. Connect wired equipment through one Gigabit Ethernet WAN port and one Gigabit Ethernet LAN port. The WAN port accepts IEEE 802.3af/at PoE, and the LAN port provides active PoE output up to 30 W when the input power conditions support it. This arrangement lets the router receive power over Ethernet and power a downstream device. Dual-band Wi-Fi 5 supports rates up to 867 Mbps, MU-MIMO and up to 150 simultaneous connections. Access point and station modes, wireless mesh and fast roaming support different local network layouts. Run secure remote connections through WireGuard, OpenVPN, IPsec, Tailscale or ZeroTier, with firewall rules and VLAN separation controlling access between devices. RutOS supports wired, mobile and Wi-Fi WAN failover, load balancing and dynamic routing. Modbus TCP, OPC UA, BACnet/IP, DNP3 and MQTT functions connect industrial equipment to monitoring applications. A dual-core 880 MHz processor, 256 MB DDR3 memory and separate NOR and NAND flash support the platform. Teltonika RMS, SNMP, TR-069 and the Web API provide remote administration paths.

Ideal For

Compact retail POS installations requiring cellular connectivity, local Wi-Fi and automatic carrier failover.
Surveillance installations connecting an Ethernet camera through a router with PoE output and a 5G uplink.
Industrial monitoring sites forwarding Modbus TCP or OPC UA data to applications through MQTT or HTTPS.
Space-constrained transport equipment requiring cellular WAN connectivity and remotely managed carrier profiles.

Why This Product

1Compact footprint targets space-limited IoT installations.
2Global Telit modem variant supports North America, EMEA and APAC.
3Dual physical SIM slots and integrated eSIM combine local SIM access with remote profile management.
4PoE input on WAN and active PoE output on LAN support Ethernet-powered router and downstream-device installations.

VPN

DMVPN	DMVPN Phase 2 and Phase 3 with dual-hub support
IPsec	IPsec with XFRM, IKEv1/IKEv2 and 14 encryption methods
OpenVPN	Concurrent OpenVPN clients and server with 27 encryption methods, including AES up to 256 bits
Tunnel Functions	Client/server tunnel options and encrypted GRE and L2TP transport
Additional Encrypted Connectivity	TLS proxy support and Tailscale encrypted point-to-point connectivity

Power

PoE Input Port	1 PoE input on the WAN port
PoE Output Port	1 PoE output on the LAN port
Active PoE Input	IEEE 802.3af/at PoE input, Alternatives A and B
Active PoE Output	IEEE 802.3af/at PoE output, Alternative A
Passive PoE Input	18–50 V DC passive PoE input, Modes A and B
Maximum PoE Output	Up to 30 W at the PSE; available output depends on input power
PoE Output Power Conditions	Active PoE output requires suitable PoE input or power through the 4-pin connector above 44 V

Design

Form Factor

Compact router for space-constrained IoT installations

System

CPU	MediaTek dual-core MIPS1004Kc processor
RAM	256 MB DDR3 RAM
NOR Flash	16 MB serial NOR flash
NAND Flash	256 MB serial NAND flash
CPU Frequency	880 MHz
Operating System	RutOS, based on OpenWrt Linux
Software Development	SDK, scripting, additional software packages and firmware/interface customization

Network

DHCP	DHCP server and relay with static and dynamic address allocation
Routing	Static, dynamic and policy-based routing
DNS Services	Encrypted DNS proxy and DDNS support for more than 77 providers
VoIP Passthrough	H.323 and SIP ALG NAT helpers
Connection Monitoring	Link inspection and automatic reboot functions
Network Administration	Port configuration, topology visualization, traffic diagnostics, SSH filesystem mounting and initial VRF support
Traffic Prioritization	Traffic priority by source, destination, service, protocol or port
Captive Portal Controls	Captive portal authentication, user controls and 9 customizable themes
IP And Network Protocols	IPv4/IPv6 networking with routing, addressing, management and application protocol support

Cellular

Modem	Telit FN990A28 global cellular modem
Messaging	SMS automation and forwarding, SMPP, and USSD sending and reading
SIM Slots	2 physical 2FF SIM slots and 1 integrated eSIM
LTE Upload	LTE Cat 18 upload up to 211 Mbps
3GPP Release	3GPP Release 16
LTE Download	LTE Cat 19 download up to 1.6 Gbps
3G Data Rates	3G download up to 42 Mbps; upload up to 5.7 Mbps
Cellular Type	5G Sub-6 GHz SA/NSA with LTE and 3G connectivity
ESIM Profiles	Consumer eSIM with up to 7 profiles; profile download and removal; data plans excluded
5G Upload Rates	5G SA/NSA maximum upload rates: 900/550 Mbps; 2 × 2 MIMO
Variant Regions	North America, EMEA and APAC
5G Download Rates	5G SA/NSA maximum download rates: 2.5/3.4 Gbps; 4 × 4 MIMO
Cellular Management	Automatic APN, band locking, operator controls, multiple PDNs, SIM PIN management and idle protection
Cellular Diagnostics	SIM, operator, radio signal, carrier aggregation, traffic and cell diagnostics
Mobile Network Modes	Mobile bridge, mobile WAN IP passthrough and framed routing
Automatic SIM Switching	Automatic SIM switching by signal, usage, roaming, network availability or connection failure

Features

Site Manager	Central management of TAP access points and Teltonika managed switches, including grouping, firmware updates, status, reboot schedules, SSID configuration and VLAN assignment
Load Balancing	Internet traffic balancing across multiple WAN connections
Failover Support	Automatic network failover using mobile, wired, Wi-Fi WAN and VRRP options
Integrated Firewall	Integrated firewall with port forwarding, traffic rules and custom rules

Identity

UPC	4779051847181
Brand	Teltonika Networks
Model	RUTM20
HS Code	851762
HTS Code	8517.62.00
Manufacturer Part Number	RUTM20100500

Security

TPM	TPM 2.0 identification and authentication module
VLAN	Port-based and tagged VLAN separation
802.1X	IEEE 802.1X port-based network access control client and server
VPN Supported	Multiple VPN and encrypted tunnel options, including WireGuard, IPsec and OpenVPN
Authentication	Key, certificate, TACACS+ and RADIUS authentication
Firewall And NAT	Configurable firewall, DMZ and NAT controls with statistics and rule counters
Attack Prevention	Denial-of-service, port scan and login attack prevention
Certificate Management	Certificate creation and management tools
Access And Usage Controls	Management access restrictions, website filtering and SIM data quotas

Shipping

Shipping Weight

1.32 lb shipping weight

Wireless

Frequency Band	Dual-band Wi-Fi
Wi-Fi Security	Personal and enterprise Wi-Fi authentication, WPA3, OWE, EAP-TLS with PKCS#12 certificates and protected management frames
Wireless Modes	Access point, station and wireless mesh operation
Guest Connectivity	QR-based network access, hotspot landing-page forwarding, captive portal and Hotspot 2.0
Maximum Wi-Fi Data Rate	Wi-Fi data transmission rates up to 867 Mbps
Simultaneous Connections	Up to 150 simultaneous Wi-Fi connections
Wireless Access Controls	Client isolation, hidden SSID, MAC access controls and configurable automatic reconnection
Wireless Connectivity Features	MU-MIMO, fast roaming, BSS transition management, radio resource measurement and Relayd

Management

Diagnostics	Local and remote logging, troubleshooting and firmware availability notifications
IoT Platforms	IoT monitoring and cloud integration with ThingWorx, Cumulocity, Azure and AWS
Remote Management	Local and remote administration through RMS, browser, CLI and management protocols
Monitoring And Control	Messaging, call-triggered controls, alerts, MQTT and protocol-based device monitoring
Firmware And Configuration	Remote firmware updates, configuration backups, bulk RMS updates and factory reset
Cloud Provisioning And Actions	Cloud provisioning, remote API actions, reboot and firmware management integrations

Connectivity

Port Count	2 Ethernet ports total: 1 WAN and 1 LAN
Wi-Fi Standard	Wi-Fi 5 with IEEE 802.11b/g/n/ac Wave 2 support
Ethernet Technology	10/100/1,000 Mbps Gigabit Ethernet
Broadband Transmission Technology	Cellular, wired Ethernet and Wi-Fi WAN connectivity
Ethernet Standards And Negotiation	IEEE 802.3, 802.3u and 802.3az with automatic MDI/MDIX

Router Ports

LAN Ports	1 × 10/100/1,000 Mbps Ethernet LAN port
WAN Ports	1 × 10/100/1,000 Mbps Ethernet WAN port

Industrial Protocols

DNP3	DNP3 station and outstation operation over TCP
BACnet	BACnet/IP routing with multiple interfaces, network number assignment and BBMD BDT entries
Modbus	Modbus TCP client/server with custom file-backed register blocks
OPC UA	OPC UA client and server over TCP
DLMS/COSEM	DLMS/COSEM client for utility meter data exchange over TCP
Data To Server	Collect parameters from multiple protocols and forward them to a server
Modbus Data Formats	8-, 16- and 32-bit data formats with configurable byte order, plus HEX and ASCII
Modbus MQTT Gateway	Send Modbus server commands and receive data through an MQTT broker

Purchasing this for your business?

Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

RUTM20 Wiki — Datasheet, Manuals & Firmware

Frequently Asked Questions

What is the difference between RUTM20 and RUTM20100500?▾

RUTM20 is the product model; RUTM20100500 is its ordering code. This configuration uses the Telit FN990A28 modem for North America, EMEA and APAC. It combines compact 5G routing with dual physical SIM slots, integrated eSIM, Wi-Fi 5 and Gigabit Ethernet.

Can the RUTM20 receive PoE power and power a connected device?▾

Yes. The WAN port accepts IEEE 802.3af/at PoE and 18–50 V DC passive PoE. The LAN port supports IEEE 802.3af/at output up to 30 W at the PSE. Available output depends on the input power source and voltage.

Does the RUTM20 support eSIM and automatic carrier switching?▾

Yes. It has 2 physical 2FF SIM slots and an integrated consumer eSIM supporting up to 7 profiles. Automatic switching can respond to weak signal, data or SMS limits, roaming, unavailable networks or connection failure. Cellular data plans are not included.

Which VPN and industrial protocols does the RUTM20 support?▾

VPN options include WireGuard, OpenVPN, IPsec, Tailscale and ZeroTier. Industrial functions include Modbus TCP client/server, OPC UA client/server, BACnet/IP routing, DNP3 and DLMS/COSEM. The Modbus MQTT gateway and Data to Server functions connect equipment data to MQTT or HTTP/HTTPS applications.
