| Standards | EN 300 328, EN 301 511, EN 301 908-1/-2/-13 |
| Teltonika Networks Web Api | Teltonika Networks Web API (beta) |
| Teltonika Networks Web Api Beta Support | Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com |
| Gre | GRE tunnel, GRE over IPsec |
| Sstp | SSTP client |
| Tinc | Tinc client and server with encryption, authentication and compression |
| Dmvpn | Scalable IPsec VPNs, Phase 2 and 3, Dual Hub |
| Ipsec | XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, DES, AES128/192/256, AES-GCM variants) |
| Openvpn | Multiple clients and a server simultaneously, 27 encryption methods |
| Stunnel | TLS encryption proxy for existing clients and servers |
| Zerotier | ZeroTier VPN client |
| Pptp L2tp | Simultaneous client/server, L2TPv3, L2TP over IPsec |
| Wireguard | WireGuard client and server |
| Openvpn Encryption | 27 ciphers including DES, 3DES, Blowfish, CAST5, RC2 and AES-128/192/256 in CBC, CFB, OFB and GCM modes |
| Supported Modes | Station, Outstation |
| Supported Connection | TCP |
| Connector | 4-pin industrial DC power socket |
| Poe Passive | Passive PoE via LAN1 (Mode B, 9-30 VDC), not 802.3af/at/bt compatible |
| Power Consumption | < 6.5 W max |
| Input Voltage Range | 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10 µs max |
| Supported Modes | Router |
| Configuration Options | Multiple BACnet/IP interfaces, network number assignment, preconfigured BDT entries for BBMD |
| Supported Connection Types | IP |
| Apn | Auto APN |
| Sms | SMS status and configuration, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, scheduled SMS, autoreply, SMPP |
| Ussd | Send and read USSD messages |
| Bridge | Bridge between mobile ISP and LAN device |
| Status | IMSI, ICCID, operator, network type, band, RSSI, SINR, RSRP, RSRQ, EC/IO, RSCP, data usage, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC |
| Passthrough | Mobile WAN IP passed to LAN device |
| 3gpp Release | Release 10/11 depending on the hardware version |
| Multiple Pdn | Different PDNs for multiple network access and services |
| Mobile Module | 4G LTE Cat 4 up to 150/50 Mbps; 3G up to 21/5.76 Mbps; 2G up to 236.8/236.8 kbps |
| Band Management | Band lock, used band status display |
| Block Allow List | Operator block/allow list by country or operator |
| Sim Pin Code Management | Set, change or disable SIM PIN |
| Supported Modes | Server, Client |
| Custom Registers | Custom register block requests read/write to a file on the router |
| Supported Data Formats | 8-bit INT/UINT; 16-bit INT/UINT; 32-bit float/INT/UINT (ABCD, DCBA, CDAB, BADC); HEX; ASCII |
| Supported Connection Types | TCP |
| Supported Modes | Client, Server |
| Supported Connection Types | TCP |
| Standards | CE (EN IEC 62368-1, EN IEC 62311, EN 50665), RCM, CB, UL/CSA 62368-1 |
| Mpn | RUT241033000 |
| Upc | 4779051840151 |
| Brand | Teltonika Networks |

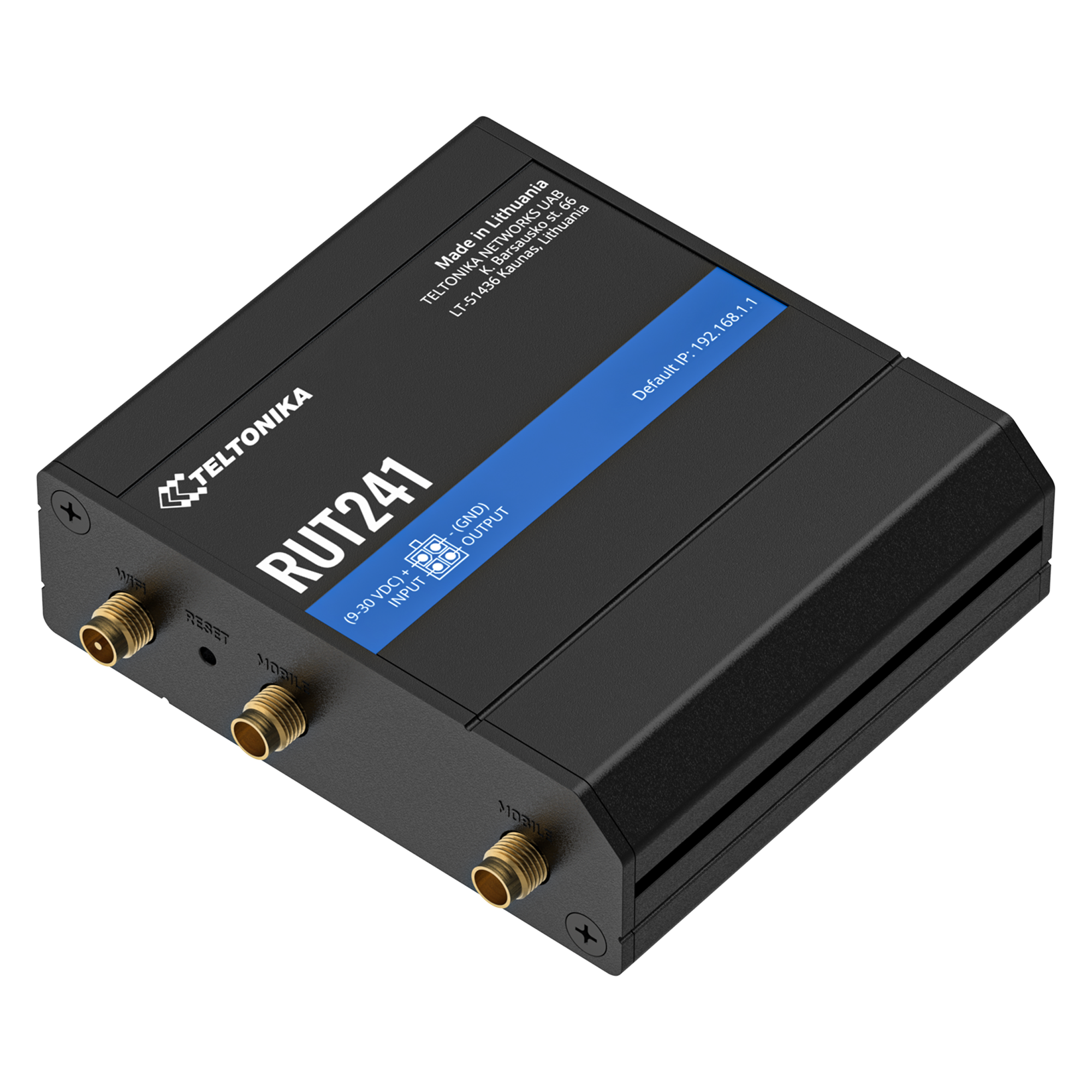

| Model | RUT241 |
| Package | Standard package with Universal PSU |
| Hardware Version | RUT241 *3**** / Global (non-eSIM) |
| Ddns | More than 77 providers, others configurable manually |
| Dhcp | Static/dynamic allocation, DHCP relay, server configuration, static leases with MAC wildcards |
| Sshfs | Mount remote file system via SSH |
| Hotspot | Captive portal, internal/external RADIUS, MAC auth, SMS and SSO authentication, landing pages, walled garden, user groups and limits, 9 customisable themes |
| Routing | Static, dynamic (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), policy-based routing |
| Firewall | Port forward, traffic rules, custom rules, TTL target customisation |
| Dns Over Https | DNS over HTTPS proxy |
| Load Balancing | Balance traffic over multiple WAN connections |
| Network Backup | Wi-Fi WAN, Mobile, VRRP, Wired, each usable as automatic failover |
| Port Management | View, enable/disable ports, auto-configuration, speed settings |
| Network Topology | Visual network topology map |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP(S), SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN |
| Traffic Management | Real-time monitoring, signal charts, usage history |
| Firewall Status Page | Firewall statistics, rules and rule counters |
| Connection Monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection |
| Voip Passthrough Support | H.323 and SIP-ALG NAT helpers |
| Qos Smart Queue Management | Priority queuing by source/destination, service, protocol or port; WMM, 802.11e |
| Contents | RUT241, 9 W PSU, 2 x LTE antennas, 1 x Wi-Fi antenna, 1.5 m Ethernet cable, SIM adapter kit, Quick Start Guide |
| Shipping Weight | 1.19 lb |
| Lan | 1 x LAN 10/100 Mbps, IEEE 802.3/802.3u, auto MDI/MDIX |
| Wan | 1 x WAN 10/100 Mbps, IEEE 802.3/802.3u/802.3az, auto MDI/MDIX |
| Vlan | Port and tag-based VLAN separation |
| 802 1x | Port-based network access control server |
| Firewall | Preconfigured rules via WebUI, unlimited CLI configuration, DMZ, NAT, NAT-T, NAT64 |
| Web Filter | Website block list and allow list |
| Access Control | Access control for SSH, Web interface, CLI and Telnet |
| Authentication | PSK, digital and X.509 certificates, TACACS+, internal/external RADIUS, login attempt blocking, password generator |
| Attack Prevention | DDoS prevention (SYN flood, SSH, HTTP/HTTPS) and port scan prevention |
| Certificate Manager | Create CA, server, client, Let's Encrypt and SCEP certificates |
| Mobile Quota Control | Mobile data limit, period, start time, warning limit, phone number |
| Ssid Essid | SSID stealth mode, MAC-based access control |
| Travelmate | Forward hotspot landing page to connected device |
| Wifi Users | Up to 50 simultaneous connections |
| Wifi Security | WPA2-Enterprise (PEAP), WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, client separation, EAP-TLS, 802.11w PMF |
| Wireless Mode | 802.11b/g/n (Wi-Fi 4), AP and STA modes |
| Wireless Mac Filter | Allowlist, blocklist |
| Wireless Qr Code Generator | QR code for password-free network join |
| Wireless Connectivity Features | 802.11s mesh, 802.11r fast roaming, Relayd, 802.11v, 802.11k |
| Dlms Support | DLMS utility meter data exchange |
| Supported Modes | Client |
| Supported Connection Types | TCP |
| Input | 1 x digital input (0-6 V low, 8-30 V high) |
| Events | Email, RMS, SMS |
| Output | 1 x digital open collector output, max 30 V, 300 mA |
| Io Juggler | I/O conditions trigger events |
| Modbus Mqtt Gateway | Send commands to and receive data from Modbus server via MQTT broker |
| Thingworx | Monitors WAN type and IP, operator, signal strength, network type |
| Aws Iot Core | AWS cloud interaction with AWS Jobs support |
| Azure Iot Hub | Data to Server integration, Direct method RutOS API calls, zero-touch provisioning via DPS |
| Cumulocity Cloud Of Things | Monitors device, WAN, cell ID, ICCID, IMEI, operator, signal; reboot and firmware upgrade actions |
| Hts | 8517.62.00 |
| Hs Code | 851762 |
| Protocol | HTTP(S), MQTT, Azure MQTT |
| Data To Server | Collect parameters from multiple sources and protocols and send to one server; custom Lua scripting |
| 2g | B2, B3, B5, B8 |
| 3g | B1, B2, B4, B5, B6, B8, B19 |
| Lte Fdd | 4G LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28 |
| Lte Tdd | 4G LTE-TDD: B38, B39, B40, B41 |
| Ios | 1 x DI, 1 x DO on 4-pin power connector |
| Sim | 1 x Mini SIM (2FF), 1.8 V/3 V, external holder |
| Power | 1 x 4-pin power connector |
| Reset | Reboot / user default / factory reset button |
| Antennas | 2 x SMA (LTE), 1 x RP-SMA (Wi-Fi) |
| Ethernet | 2 x RJ45, 10/100 Mbps |
| Status Leds | 3 x connection type, 5 x signal strength, 2 x LAN, 1 x power LED |
| Rms | Teltonika Remote Management System (RMS) |
| Sms | SMS status and configuration |
| Ssh | SSH v1, v2 |
| Call | Reboot, status, mobile data on/off, output on/off, answer/hang-up timer, Wi-Fi on/off |
| Fota | Firmware update from server, automatic notification |
| Mqtt | MQTT broker, MQTT publisher |
| Snmp | SNMP v1/v2/v3, SNMP Trap, brute force protection |
| Tr 069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| Web Ui | HTTP/HTTPS WebUI with status, configuration, FW update, CLI, troubleshooting, event/system/kernel logs |
| Json Rpc | Management API over HTTP/HTTPS |
| Operating Humidity | 10% to 90% non-condensing |
| Operating Temperature | -40 °C to 75 °C |
| Ingress Protection Rating | IP30 |
| Cs | EN 61000-4-6:2014 |
| Dip | EN 61000-4-11:2020 |
| Eft | EN 61000-4-4:2012 |
| Esd | EN 61000-4-2:2009 |
| Standards | EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 301 489-1/-17/-52 |
| Radiated Immunity | EN IEC 61000-4-3:2020 |
| Surge Immunity Ac Mains Power Port | EN 61000-4-5:2014 + A1:2017 |
| Rms | Bulk FW/configuration updates |
| Fota | Update FW |
| Web Ui | FW update from file or server, configuration profiles and backup |
| Keep Settings | Update FW without losing configuration |
| Factory Settings Reset | Full factory reset to default configuration |
| Package Manager | Install additional software packages |
| Operating System | RutOS (OpenWrt-based Linux OS) |
| Development Tools | SDK package with build environment |
| Gpl Customization | Custom branded firmware and WebUI |
| Supported Languages | Busybox shell, Lua, C, C++ |
| Weight | 125 g |
| Casing Material | Aluminium housing, plastic panels |
| Dimensions W H D | 83 x 25 x 74 mm |
| Mounting Options | DIN rail, wall, flat surface (additional kit required) |
| Cpu | Mediatek 580 MHz MIPS 24KEc |
| Ram | 128 MB DDR2 |
| Flash Storage | 16 MB SPI Flash |
| Operator | RUT241 series operator approvals: AT&T, Verizon (Global eSIM support), T-Mobile, UScellular |
| Regulatory | CE, UKCA, ANRT, Kenya, ICASA, FCC, IC, PTCRB, NOM, RCM, KC, Giteki, IMDA, E-mark, CB, UL/CSA Safety, RoHS, REACH, R118, ETA-WPC, MTCTE |
Business account holders on Cellular Gateways typically save 12% vs. retail pricing. Create a free account to see your price.
No. RUT241033000 is the Global hardware version without eSIM and uses one physical Mini SIM (2FF) slot. Teltonika offers eSIM versions of the RUT241 under separate order codes.
LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26 and B28, plus LTE-TDD B38, B39, B40 and B41. It also supports 3G on B1, B2, B4, B5, B6, B8 and B19, and 2G on B2, B3, B5 and B8.
It accepts 9 to 30 VDC through a 4-pin industrial power connector, and the universal 9 W PSU is included. It can also be powered by passive PoE through the LAN1 port (Mode B, 9-30 VDC). That PoE input is not compatible with IEEE 802.3af, 802.3at or 802.3bt.
Yes. DIN rail, wall and flat-surface mounting are supported, and each requires an additional mounting kit.
The router operates from -40 °C to 75 °C at 10% to 90% non-condensing humidity. It has an IP30 ingress protection rating.
