Taoglas Raptor X MA8006 6-in-1 Screw-Mount Antenna with 2x 5G/4G, 3x Wi-Fi and GNSS L1/L5, 5 m Cables

Name: Taoglas Raptor X MA8006 6-in-1 Screw-Mount Antenna with 2x 5G/4G, 3x Wi-Fi and GNSS L1/L5, 5 m Cables
Brand: TAOGLAS USA
SKU: MA8006.K.002
Price: 460.98 USD
Availability: InStock

TAOGLAS USA|

MPN: MA8006.K.002

In Stock

$460.98$534.47

Request for QuoteCall 224-955-1644 for Sales

Free 2-Day ShippingArrives by Monday, Oct 5

Authorized Dealer — Full manufacturer warranty

Business Pricing Available

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

Two wideband 5G/4G cellular MIMO elements covering 600-6000 MHz, 10 W max input
Three dual-band Wi-Fi MIMO antennas covering 2400-2500 MHz and 5150-5850 MHz
Dual-band GNSS L1/L5 (RHCP) with LNA: 32.3 dB high-band / 26.3 dB low-band gain
5 m cables; GNSS and 5G/4G leads terminated in SMA(M)

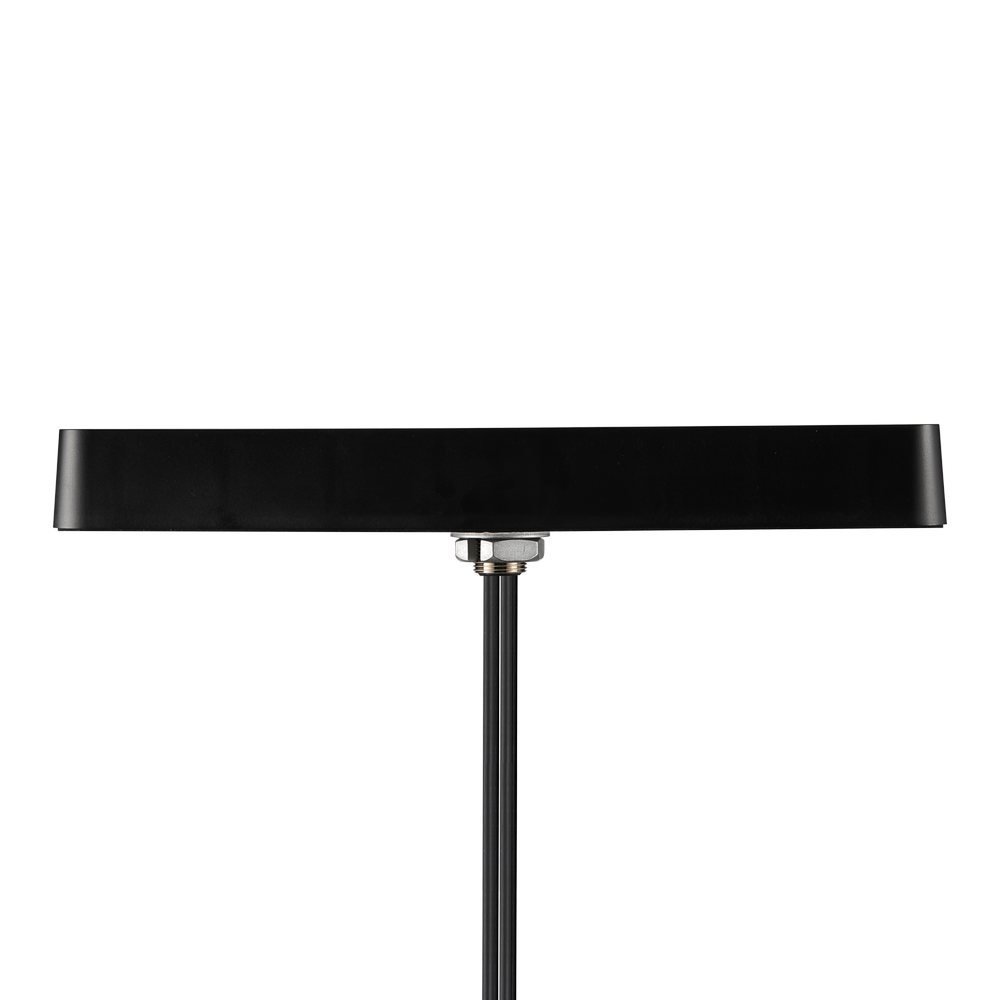

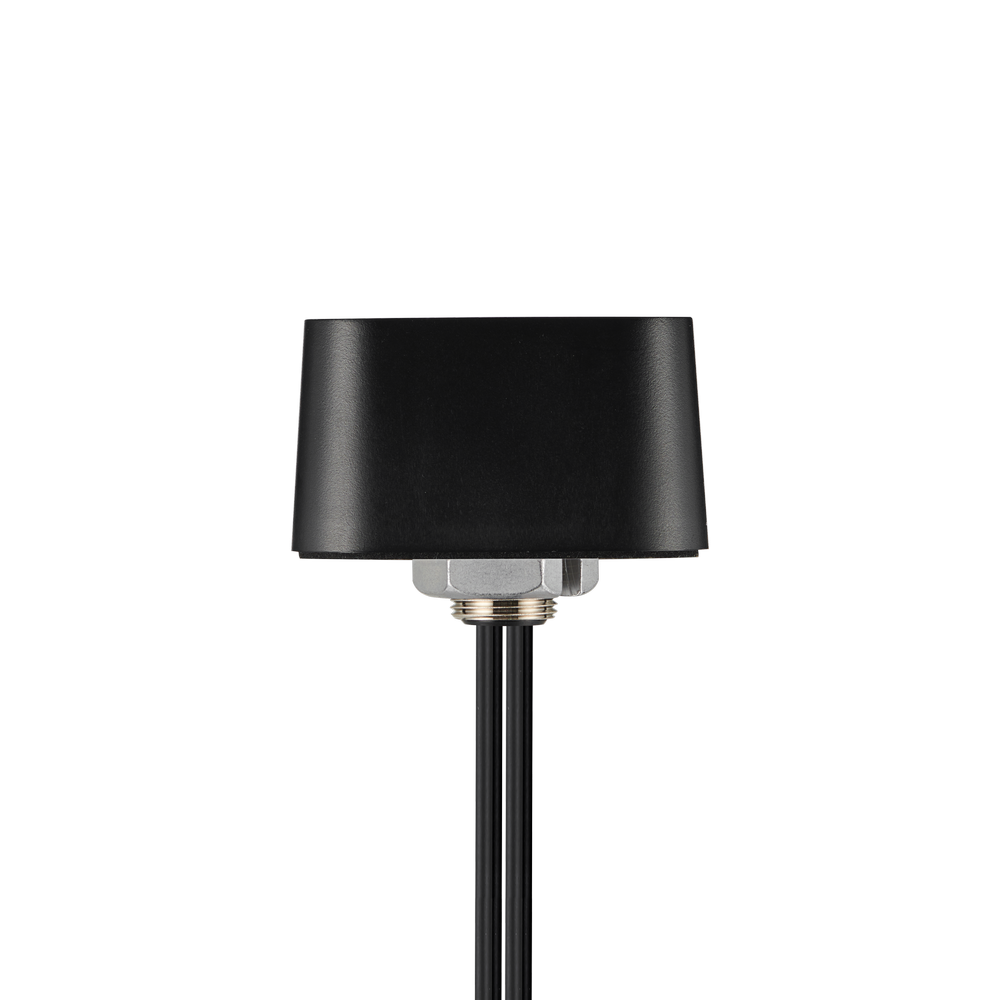

350 x 70 x 39 mm black housing with M22 thread screw mount

The Taoglas Raptor X MA8006 serves routers that need cellular, Wi-Fi and positioning from a single mount. It combines two wideband 5G/4G cellular antennas, three Wi-Fi antennas and a dual-band GNSS antenna in a sealed housing only 39 mm tall. The MA8006.K.002 is a Taoglas cable and connector variant of the standard black MA8006.A.001. It has 5 m leads, with SMA(M) connectors on the GNSS and 5G/4G cables. The longer leads reach a router mounted deep inside a vehicle cab or equipment cabinet. The two linearly polarized, omnidirectional 5G/4G elements cover 600-6000 MHz and are rated for 10 W input. Coverage runs from Band 71 at 617-698 MHz through LTE Bands 12, 13, 14, 17 and 5, 1427-1518 MHz, 1710-2200 MHz and 2300-2690 MHz (Bands 7, 30, 38, 40, 41). It extends to 3300-5000 MHz for Bands 42, 48, n77, n78 and n79, and to 5150-5925 MHz. The three Wi-Fi antennas cover 2400-2500 MHz and 5150-5850 MHz, and Taoglas describes them as Wi-Fi 6 antennas. The RHCP GNSS element covers GPS L1/L5, GLONASS G1, Galileo E1/E5a, BeiDou B1C/B1I/B2a, QZSS L1/L5, IRNSS L5 and SBAS. Its LNA provides 32.3 dB high-band and 26.3 dB low-band gain from a +1.8 to 5.5 V supply. The PC enclosure is rated IP69K and IK10 and operates from -40°C to +85°C. It mounts with an M22 thread and is 70 mm wide, so it fits between vehicle roof ribs and on NEMA cabinets. Taoglas publishes a datasheet for the standard MA8006.A.001 with full per-port performance.

Ideal For

Emergency and first-responder vehicles needing cellular, onboard Wi-Fi and GNSS from one mount
EV charging infrastructure with cellular backhaul and local Wi-Fi
Smart industry, logistics and warehousing gateways on NEMA cabinets
Asset tracking with dual-band L1/L5 positioning
Private LTE and 5G network endpoints

Why This Product

1Two 5G/4G elements plus three Wi-Fi antennas, while the Raptor X MA8005 offers four cellular elements and no Wi-Fi
25 m cable variant of the standard black MA8006.A.001 for routers mounted far from the antenna
3Same 350 x 70 x 39 mm, IP69K/IK10 Raptor X housing as the white MA8006.W.K.002

General

Mpn	MA8006.K.002
Brand	Taoglas
Model	MA8006
Colour	Black
Series	Raptor X
Compliance	RoHS & REACH compliant
Technology	External Antennas, Combination
Standard Model	Variant of MA8006.A.001 (black)
Antenna Elements	1x GNSS + 2x 5G/4G + 3x Wi-Fi

Package

Shipping Weight

1.85 lb

Mechanical

Mount	M22 thread mount
Weight	840 g (datasheet)
Material	PC (polycarbonate)
Dimensions	350 x 70 x 39 mm
Enclosure Impact Rating	IK10

Environmental

Humidity	Non-condensing, 65°C, 95% RH
Temperature Range	-40°C to +85°C
Waterproof Rating	IP69K

Gnss Electrical

Gps L1	66.5% eff., -1.77 dB avg, 3.93 dBi peak, AR 11.7
Gps L5	50.7% eff., -2.95 dB avg, 2.49 dBi peak, AR 5
Beidou B1	63.0% eff., -2.00 dB avg, 3.93 dBi peak, AR 4.8
Impedance	50 Ω
Glonass G1	54.7% eff., -2.62 dB avg, 3.38 dBi peak, AR 13.1
Polarization	RHCP
Current Consumption	16.8 mA

Gnss Lna Filter

Test Voltage	3.3 V typical
Input Voltage	+1.8 to 5.5 V
Output Impedance	50 ohm
Lna Gain Low Band	26.3 dB (low band)
Lna Gain High Band	32.3 dB (high band)
Current Consumption	16.8 mA
Noise Figure Low Band	3.8 dB (low band)
Noise Figure High Band	2.4 dB (high band)
Out Of Band Attenuation 500 1000	60 dB at 500-1000 MHz
Out Of Band Attenuation 2000 2690	60 dB at 2000-2690 MHz
Out Of Band Attenuation 3300 6000	60 dB at 3300-6000 MHz

Wifi Electrical

Impedance	50 Ω
Polarization	Linear
Band 2400 2500	2400-2500 MHz: eff. 40.2/53.7/50.0%, avg -3.96/-2.70/-3.01 dB, peak 3.56/6.71/6.09 dBi
Band 5150 5850	5150-5850 MHz: eff. 49.2/44.3/46.8%, avg -3.08/-3.54/-3.30 dB, peak 6.56/6.82/5.42 dBi
Max Input Power	10 W
Radiation Pattern	Omnidirectional

Ordering Variant

Cable Length	5 m
Gnss Connector	GNSS L1/L5: SMA(M)
Cellular Connector	2x 5G/4G: SMA(M)

Product Attributes

Rohs	Yes
Vswr	<2
Width	70 mm
Height	39 mm
Length	350 mm
Weight	1050 g (product page)
Gain Max	32.3 dB (GNSS LNA gain)
Impedance	50 Ω
Ip Rating	IP69K
Polarization	Linear, RHCP
Mounting Style	Screw
Frequency Range	600-6000 MHz
Max Operating Temperature	85°C
Min Operating Temperature	-40°C

Cellular Electrical

Impedance	50 Ω
Band 617 698	617-698 MHz (B71): eff. 49.8/36.6%, avg -3.03/-4.37 dB, peak 0.87/0.91 dBi
Band 698 824	698-824 MHz: eff. 49.7/39.5%, avg -3.04/-4.03 dB, peak 2.94/2.11 dBi
Band 824 960	824-960 MHz: eff. 50.8/43.7%, avg -2.94/-3.60 dB, peak 2.64/2.18 dBi
Polarization	Linear
Band 1427 1518	1427-1518 MHz: eff. 27.9/27.8%, avg -5.54/-5.56 dB, peak 1.01/1.21 dBi
Band 1710 2200	1710-2200 MHz: eff. 47.7/53.7%, avg -3.21/-2.70 dB, peak 5.15/5.44 dBi
Band 2300 2690	2300-2690 MHz: eff. 45.2/56.8%, avg -3.45/-2.45 dB, peak 6.16/6.97 dBi
Band 3300 5000	3300-5000 MHz: eff. 58.9/58.9%, avg -2.30/-2.30 dB, peak 6.23/6.78 dBi
Band 5150 5925	5150-5925 MHz: eff. 48.9/41.2%, avg -3.11/-3.86 dB, peak 5.76/4.93 dBi
Max Input Power	10 W
Test Conditions	Tested with 200-300 mm staggered cables (standard product)
Radiation Pattern	Omnidirectional

Gnss Frequency Bands

Gps	GPS L1 (1575.42 MHz), L5 (1176.45 MHz)
Qzss	QZSS (regional) L1, L5
Sbas	SBAS L1/E1/B1, L5/B2a/E5a, G1
Irnss	IRNSS (regional) L5 (1176.45 MHz)
Beidou	BeiDou B1C (1575.42 MHz), B1I (1561 MHz), B2a (1176.45 MHz)
Galileo	Galileo E1 (1575.24 MHz), E5a (1176.45 MHz)
Glonass	GLONASS G1 (1602 MHz)
Not Covered	GPS L2, GLONASS G2/G3, Galileo E5b/E6, BeiDou B2b/B3, QZSS L2C/L6, L-Band
