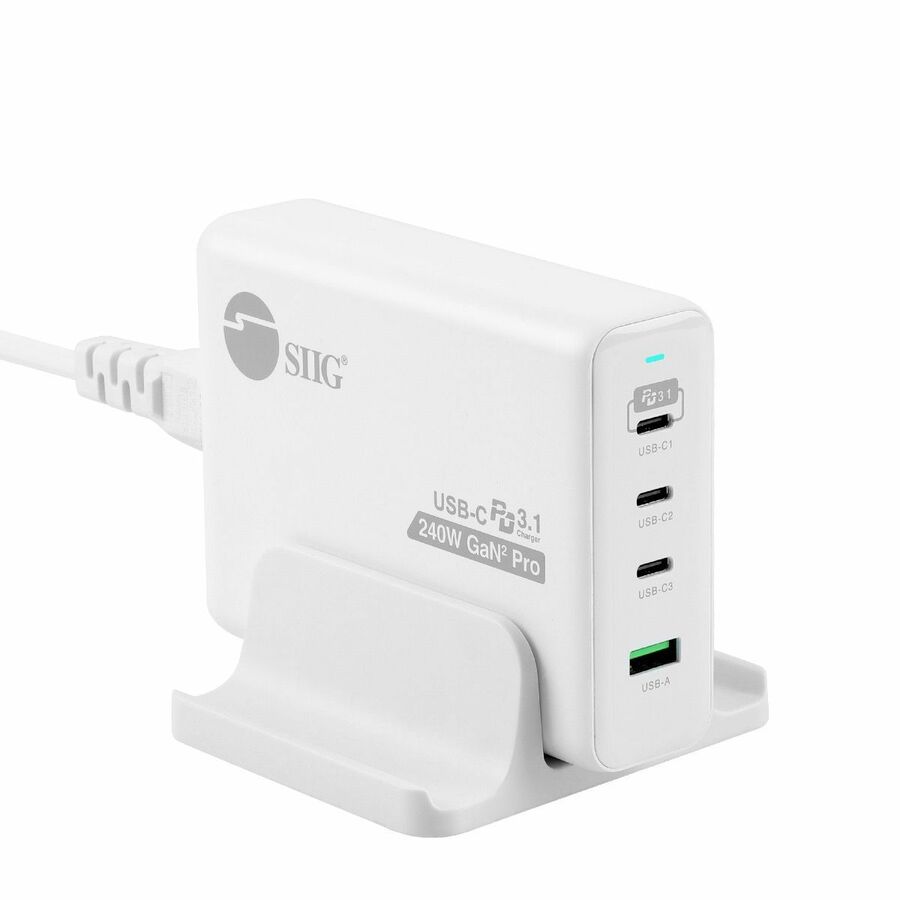

White SIIG 240W GaN PD 3.1 charger with three USB-C ports and one USB-A port, shown with its stand.

SIIG AC-PW1X11-S1 240W GaN PD 3.1 Charger with 140W USB-C, 3C1A

Name: SIIG AC-PW1X11-S1 240W GaN PD 3.1 Charger with 140W USB-C, 3C1A
Brand: SIIG
SKU: AC-PW1X11-S1
Price: 137.57 USD
Availability: InStock

SIIG|

MPN: AC-PW1X11-S1

UPC: 662774045795

In Stock

$137.57$189.99

Request for QuoteCall 224-955-1644 for Sales

Free 2-Day ShippingArrives by Monday, Oct 5

Authorized Dealer — Full manufacturer warranty

Save 41% with a Business Account

Exclusive pricing and Net-30 terms. Sign in or create a free account.

Create Free Business Account

Key Features

240W total output shared across 3 USB-C ports and 1 USB-A port
USB-C1 with USB PD 3.1 up to 140W (28V/5A)
USB-C2 and C3 with PD 3.0 up to 100W (20V/5A) each
USB-A with Quick Charge 3.0 up to 30W
GaN Pro design with 95% power conversion rate

The SIIG AC-PW1X11-S1 is built for users who need to run high-wattage laptops from one charger. Its USB-C1 port supports USB Power Delivery 3.1 and delivers up to 140W at 28V/5A. That is enough for a 16-inch MacBook Pro when used with a USB-C to MagSafe 3 cable (not included). USB-C2 and USB-C3 support PD 3.0 up to 100W (20V/5A), and all USB-C ports are Fast Charger 2.0/PPS compatible. The USB-A port supports Quick Charge 3.0 up to 30W. The 240W total is shared automatically among the ports. USB-C1 plus USB-C2 or C3 delivers 140W + 100W, so two laptops charge at full speed. With all four ports in use, output is 140W + 45W + 35W + 18W. The full distribution table is listed in the specifications. GaN Pro technology gives a 95% power conversion rate and a housing 35% smaller than traditional chargers, according to SIIG. The unit measures 4.45 x 1.28 x 3.39 in and weighs 1.26 lbs. It accepts AC 100-240V, 50/60Hz, 2.5A input. Protection covers over-load, over-voltage, over-current, over-heating and short-circuit conditions. The white charger is FCC, CE, RoHS and ETL certified (Intertek 5000046). It ships with an AC power cord, a stand, a carrying pouch and a quick start guide.

Ideal For

Powering a 140W laptop and a second laptop from one desk charger
Travel charger for professionals carrying a laptop, tablet and phone
Executive and engineering workstations with high-wattage USB-C laptops
Conference rooms serving multiple laptop users

Why This Product

1The 140W PD 3.1 port exceeds the 100W limit of PD 3.0 chargers
2140W + 100W with two laptops connected
3Includes a stand and carrying pouch

General

Mpn	AC-PW1X11-S1
Upc	662774-045795
Brand	SIIG
Usb A	Quick Charger 3.0 protocol
Usb C1	USB Power Delivery 3.1; Fast Charger 2.0/PPS compatible
Ac Input	AC 100-240V, 50/60Hz, 2.5A
Material	New Gallium Nitride (GaN) Pro semiconductor material
Warranty	2 years limited
Usb C2 C3	USB Power Delivery 3.0; Fast Charger 2.0/PPS compatible
Connectors	1x AC input; 3x USB-C (24-pin) female; 1x USB-A (4-pin) female
Protection	Over-load, over-voltage, over-current, over-heating and short-circuit
Certifications	FCC, CE, RoHS, ETL (Intertek 5000046)
Package Contents	Charger, AC power cord, stand, carrying pouch, quick start guide
Country Of Origin	China

Product

Color	White
Weight	1.26 lbs (0.57 kg)
Dimensions Wxhxd	4.45 x 1.28 x 3.39 in (11.30 x 3.25 x 8.61 cm)
Housing Material	Plastic

Power Output

Dual Port	C1+C2 140W+100W; C1+C3 140W+100W; C1+A 140W+30W; C2+C3 65W+35W; C2+A 65W+30W; C3+A 65W+30W
Quad Port	All four ports: 140W+45W+35W+18W
Single Port	USB-C1 140W; USB-C2 100W; USB-C3 100W; USB-A 30W
Triple Port	C1+C2+C3 140W+65W+35W; C1+C2+A 140W+65W+30W; C1+C3+A 140W+65W+30W; C2+C3+A 45W+35W+18W
Total Power Output	240W shared among all charging ports

Unit Package

Weight	1.85 lbs (0.84 kg)
Dimensions Wxhxd	6.38 x 3.46 x 5.04 in (16.20 x 8.79 x 12.80 cm)

Master Carton

Weight	19.62 lbs (8.90 kg)
Quantity	10 pcs per carton
Dimensions Wxhxd	18.31 x 7.09 x 11.02 in (46.51 x 18.01 x 27.99 cm)

Environmental Conditions

Relative Humidity	5% to 90% RH (non-condensing)
Storage Temperature	-4°F to 158°F
Operating Temperature	14°F to 104°F

Purchasing this for your business?

Business account holders on Cable Adapters typically save 41% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

SIIG AC-PW1X11-S1 Manual

0.5mb

Frequently Asked Questions

Can the AC-PW1X11-S1 fast-charge a 16-inch MacBook Pro?▾

Yes. USB-C1 supports USB PD 3.1 at up to 140W. For 140W MagSafe charging you need a USB-C to MagSafe 3 cable, which is not included.

Can it charge two laptops at once?▾

Yes. USB-C1 with USB-C2 or C3 delivers 140W + 100W.

What is the output with all four ports in use?▾

140W + 45W + 35W + 18W.

What is included?▾

The charger, an AC power cord, a stand, a carrying pouch and a quick start guide.
