| Housing Color | Black |
| Mounting Type | Bolt mount |
| Package Contents | Antenna and cables |
| VSWR | < 0.5 |
| GNSS Bands | L1/L5 GPS/GNSS |
| Antenna Gain | 30 dB |
| Antenna Type | Omni-directional |
| MIMO Technology | 4x4 MIMO for 4G/5G |
| Antenna Configuration | 7-in-1: 4x4 4G/5G MIMO, dual-band Wi-Fi, active L1/L5 GPS/GNSS |
| Wi-Fi Frequency Bands | 2.4 GHz and 5 GHz |
| Antenna Gain (Isotropic) | 6.7 dBi |
| Cellular Frequency Range | 617 MHz to 960 MHz; 1,427 MHz to 4,200 MHz |
| Connector Type | SMA |
| Compatible Device | AirLink XR60 Series 5G Router |
| UPC | 5055416083852 |
| Width | 6.91 in |
| Height | 2.24 in |
Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.

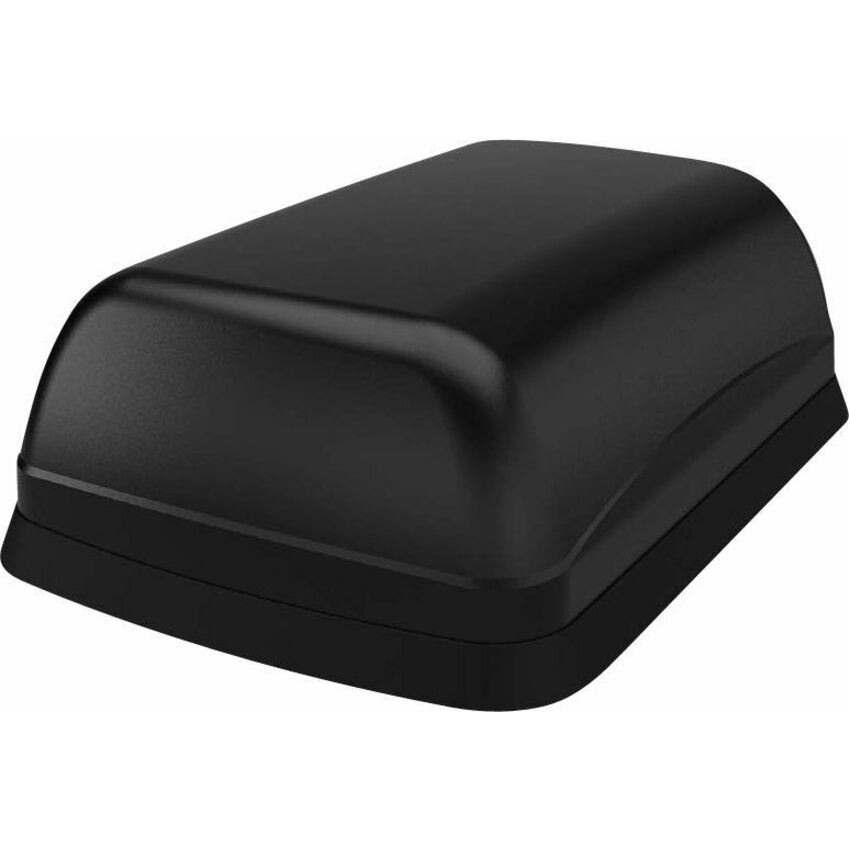

6001517 includes the low-profile 7-in-1 antenna and cables. It combines four cellular MIMO antenna elements, dual-band Wi-Fi antennas, and an active L1/L5 GPS/GNSS antenna in a bolt-mount enclosure.
This antenna is engineered for fixed AirLink XR60 Series 5G Router applications. Its integrated cellular, Wi-Fi, and GNSS functions support XR60 installations that require external antenna placement on an enclosure, panel, or other mounting surface.
The cellular antenna system covers 617 MHz to 960 MHz and 1,427 MHz to 4,200 MHz. This range supports low- and mid-band spectrum used for 4G LTE and 5G cellular router connectivity.
The housing uses a bolt-mount form factor for fixed installation through a panel or enclosure surface. Its omni-directional pattern receives signals from multiple directions, avoiding the directional aiming associated with point-to-point antenna designs.
