| USB | USB 2.0 |
| PD-MRC | Yes |
| BeamFlex | Yes |
| SmartMesh | Yes |
| ChannelFly | Yes |
| Venue Type | Education | Hospitality | MDU | Manufacturing | Office/Retail | Public Venue |
| IoT Support | IoT Onboard |
| Antenna Gain | Up to 4 dBi |
| Ethernet Ports | 1 x 1 / 2.5 / 5 /10 GbE | 1 x 1 GbE |
| Venue Sub-Type | Convention Floor | Lecture Hall | Transit Stations | Venue Common Spaces |
| Concurrent Users | 1024 |
| Number Of Radios | Tri-Radio |
| Wi-Fi Generation | Wi-Fi 7 |
| Controller Support | RUCKUS One™ | RUCKUS SmartZone | RUCKUS Unleashed™ | Standalone |
| Combined Max PHY Rate | 12220 Mb/s |
| Wi-Fi Bands Supported | 2.4 GHz | 5 GHz | 6 GHz |
| Rx Sensitivity At 5 GHz | -100 dBm |
| Rx Sensitivity At 6 GHz | -96 dBm |
| Radio Chains And Streams | 2x2:2 (2.4 GHz) 4x4:4 (5 GHz) 2x2:2 (6 GHz) |
| Wi-Fi Interface Standard | IEEE 802.11a/b/g/n/ac/ax/be |
| Rx Sensitivity At 2.4 GHz | -97 dBm |
| Antenna Patterns, Per Band | 4000+ |
| PHY Rate At 5 GHz, Maximum | 5765 Mb/s |
| PHY Rate At 6 GHz, Maximum | 5765 Mb/s |
| PHY Rate At 2.4 GHz, Maximum | 689 Mb/s |

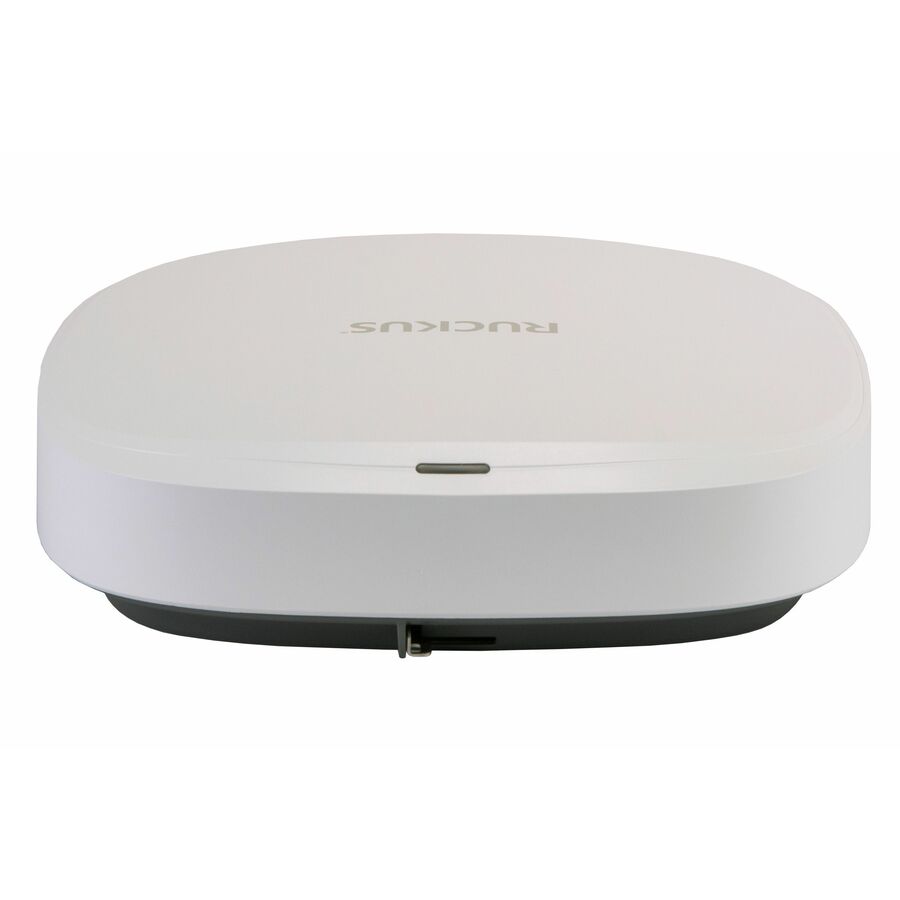

| Product Type | Indoor access point |
| Product Brand | RUCKUS® |
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Port Count | [object Object] |
| Form Factor | [object Object] |
| Poe Powered | [object Object] |
| Antenna Type | [object Object] |
| Mesh Support | [object Object] |
| Mounting Type | [object Object] |
| Wifi Standard | [object Object] |
| Frequency Band | [object Object] |
| Concurrent Clients | [object Object] |
| Controller Managed | [object Object] |
| Max Data Rate Mbps | [object Object] |
| Ethernet Technology | [object Object] |
| Wireless Lan Standard | [object Object] |
| Wireless Transmission Speed | [object Object] |
| Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
Business account holders on Indoor Access Points typically save 8% vs. retail pricing. Create a free account to see your price.
It is designed for indoor enterprise environments that need dependable wireless coverage, higher client density support, and modern Wi-Fi 7 performance.
Wi-Fi 7 helps prepare the network for newer client devices and higher traffic demands while improving the long-term value of the wireless refresh.
Yes. The R770 is specified as a tri-band wireless access point, which helps distribute traffic across available spectrum.
Yes. Its concurrent wireless design and enterprise indoor profile make it a strong fit for shared spaces with many active users.
