| Lna Gain | 26 dB |
| Filtering | Advanced filtering for LTE Band 13/14 |
| Constellations | GPS / GLONASS / Galileo / BeiDou |
| Gps Frequency Range | 1562–1612 MHz |
| Number Of Gps Elements | 1 Module |
| Wifi Feeds | 2 x 2 MIMO Wi-Fi feeds (family maximum: 4) |
| Cable Supply | Cables fitted |
| Cable Type Gps | FR RG174 |
| Cable Type Lte | FR RG174 |
| Cable Type Wifi | FR RG174 |
| Cable Length Gps | 5 m (16.4 ft) |
| Cable Length Lte | 5 m (16.4 ft) |
| Cable Length Wifi | 5 m (16.4 ft) |
| Quantity Of Cell Cable | 2 |
| Quantity Of Gps Gnss Extension | 1 |
| Mpn | SH-IN2617 |
| Upc | 5055416066695 |
| Brand | Panorama Antennas |
| Colour | Black |

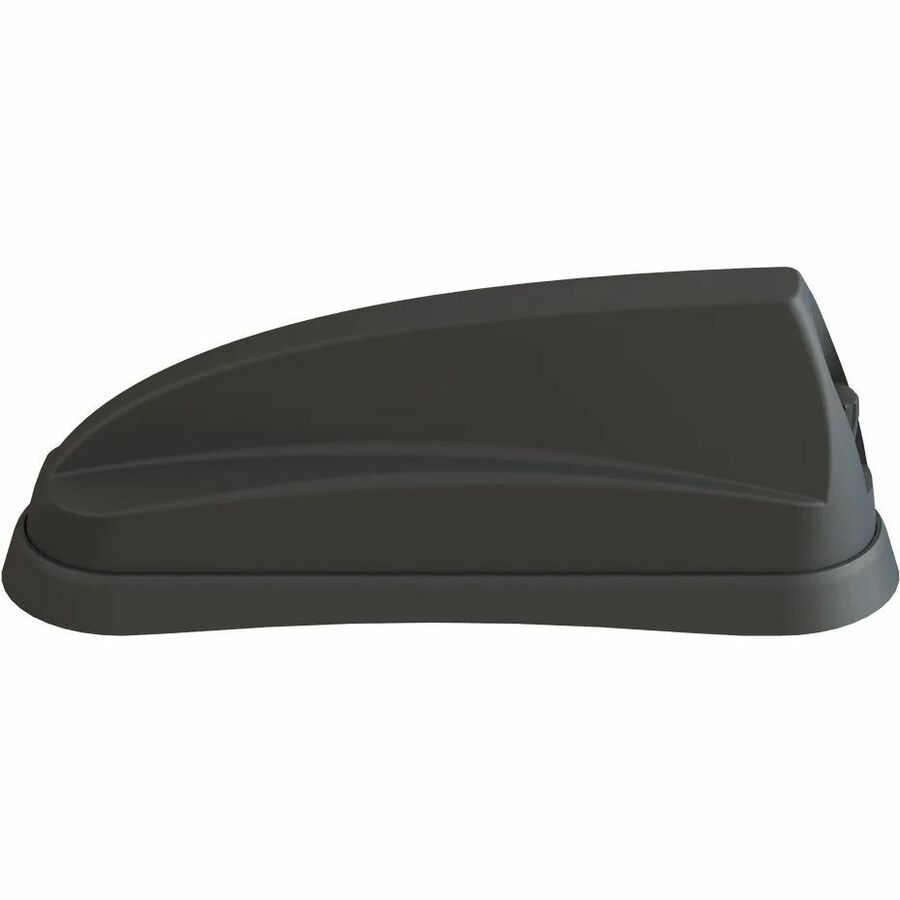

| Configuration | 5-in-1: 2x2 MIMO cellular + 2x2 MIMO Wi-Fi + 1 GPS/GNSS module |
| Product Family | Sharkee SHKG-6-60 |
| Documents | Datasheet, installation instructions, flyer |
| Shipping Weight | 3.75 lb |
| Mounting Methods | Magnetic; Panel |
| Mounting Surface | Metallic or non-metallic panel |
| Mounting Type Temp | Magnetic |
| Mounting Type Fixed | Panel |
| Ip Rating | IP69K |
| Cable Flammability | EN45545-2 HL3; UN ECE R118; EN6722 |
| Pattern | Omnidirectional |
| Uhf Elements | No |
| Wifi Elements | 2 x 2 MIMO |
| Wifi Frequency | 2.4 / 4.9–7.2 GHz (supports Wi-Fi 6) |
| Max Input Power | 10 W |
| Frequency Range Gain | 617–960 MHz: 5 dBi; 1710–3800 MHz: 8 dBi; 4900–6000 MHz: 9 dBi |
| Cellular Lte Elements | 2 x 2 MIMO |
| Width | 63 mm (2.48 in) |
| Height | 90 mm (3.54 in) |
| Length | 243 mm (9.57 in) |
| Operating Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Technology | GPS, 4G/5G, 5G, 2G/3G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GNSS, Wi-Fi MIMO, Wi-Fi (family listing) |
| Connector Gps | SMA (m) |
| Connector Lte | SMA (m) |
| Connector Wifi | Reverse Polarity SMA |
Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.
The two cellular and one GNSS cable terminate in SMA (m); the two Wi-Fi cables terminate in reverse-polarity SMA. All cables are 5 m FR RG174 and come fitted.
Yes. Panorama describes the 2x2 MIMO dual-band Wi-Fi elements, covering 2.4 and 4.9–7.2 GHz, as supporting Wi-Fi 6.
617–960 MHz and 1710–6000 MHz on a 2x2 MIMO antenna, with up to 9 dBi gain in the 4900–6000 MHz range.
It needs a single mounting hole on a metallic or non-metallic panel, fits between roof ribs on all major vehicle manufacturers and can replace a factory-fitted antenna.
