Panorama GPSD4-6-60-D Dual Sharkee 4x4 MIMO 5G

Name: Panorama GPSD4-6-60-D Dual Sharkee 4x4 MIMO 4G/5G Sharkfin Antenna with GPS/GNSS and 2x2 Wi-Fi, Black
Brand: Panorama
SKU: GPSD4-6-60-D
Price: 257.55 USD
Availability: InStock

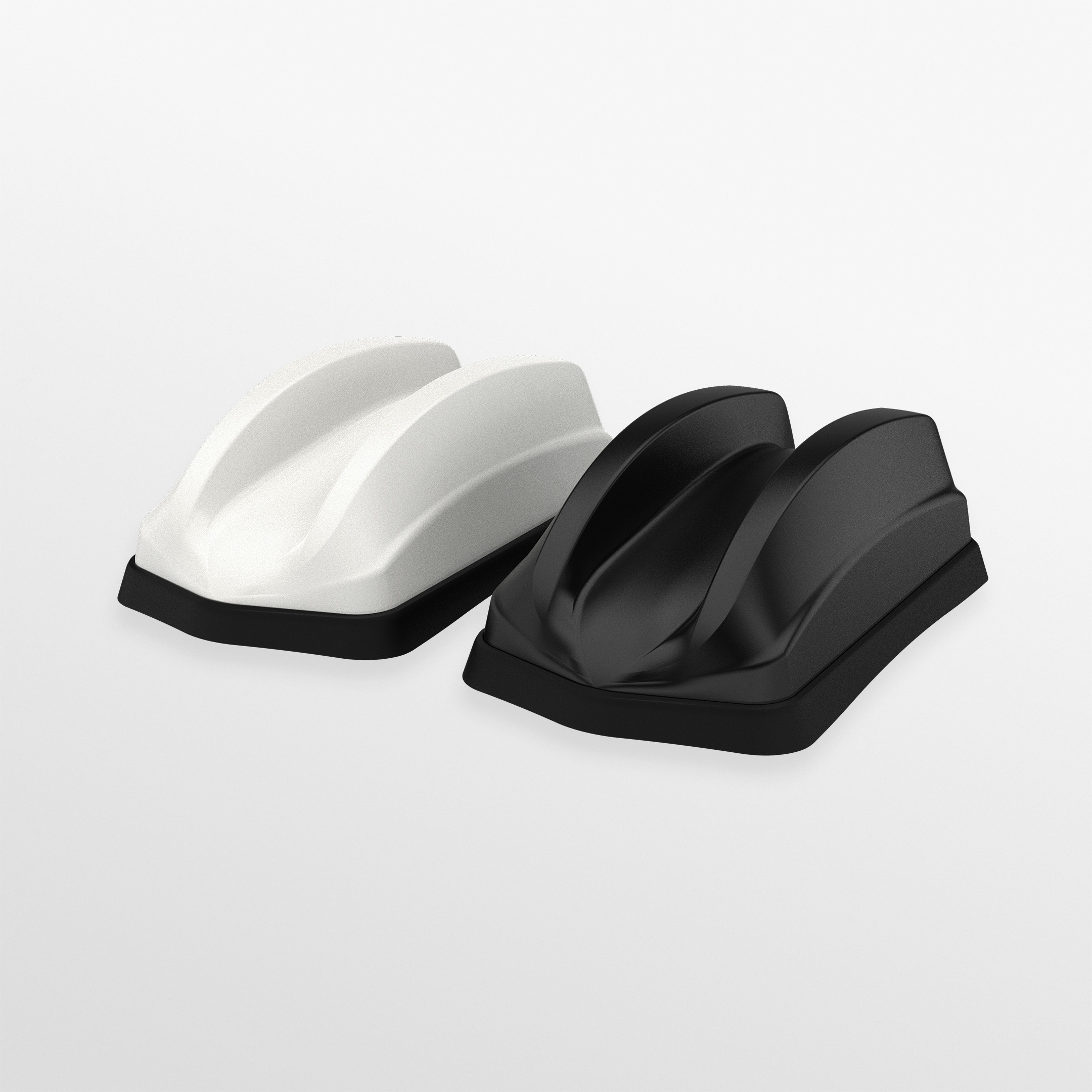

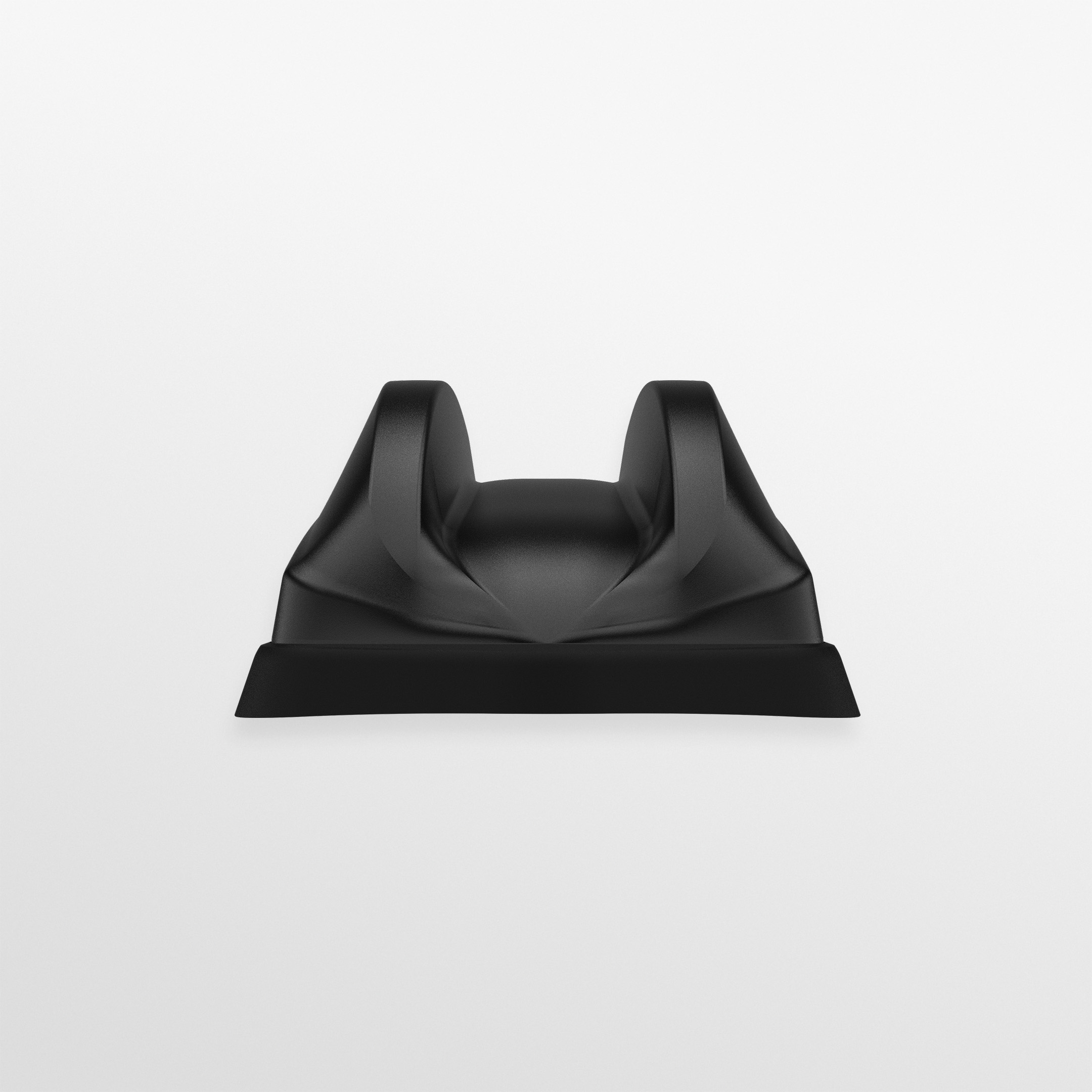

Panorama GPSD4-6-60-D black Dual Sharkee sharkfin antenna with 4x4 MIMO 5G, GPS/GNSS and Wi-Fi elements

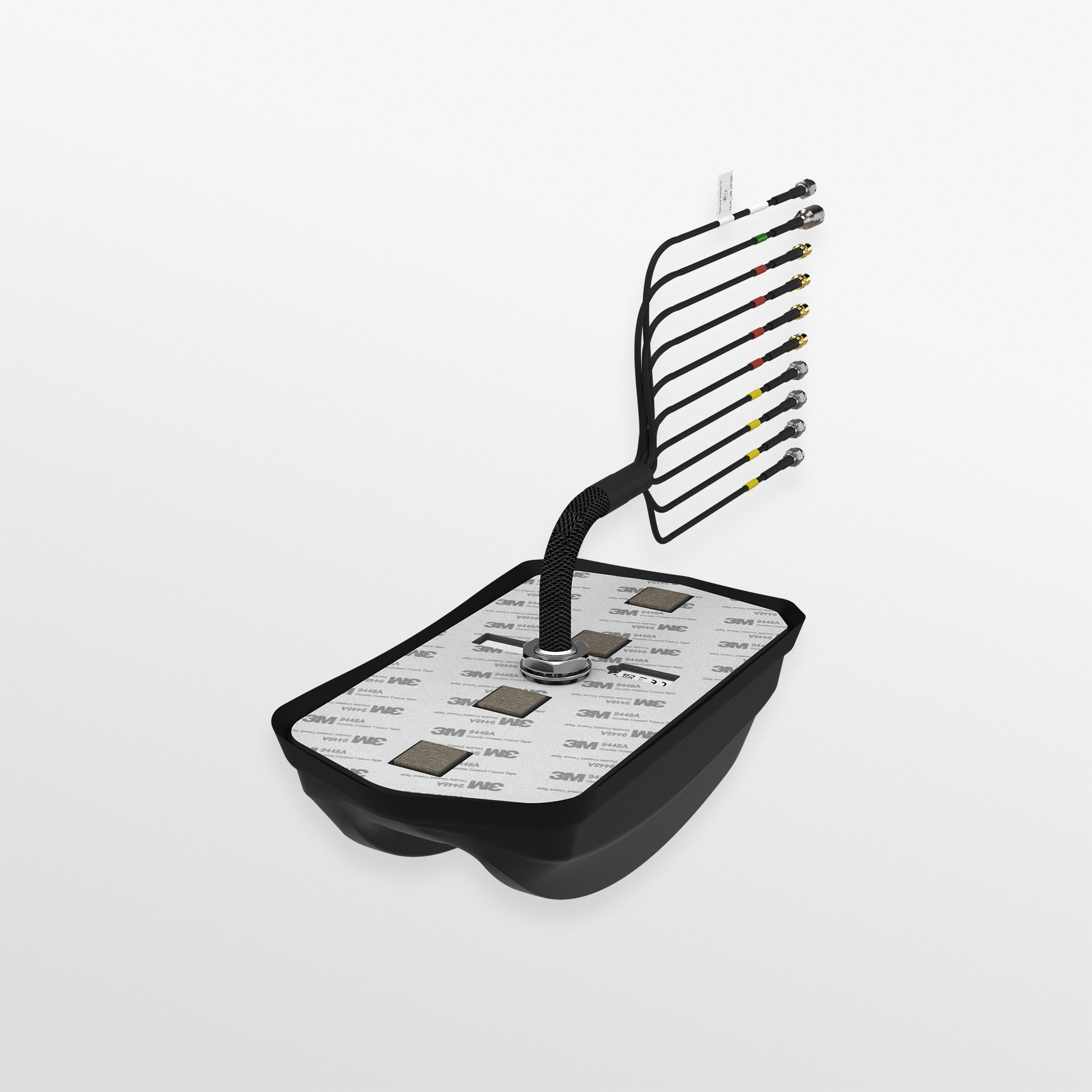

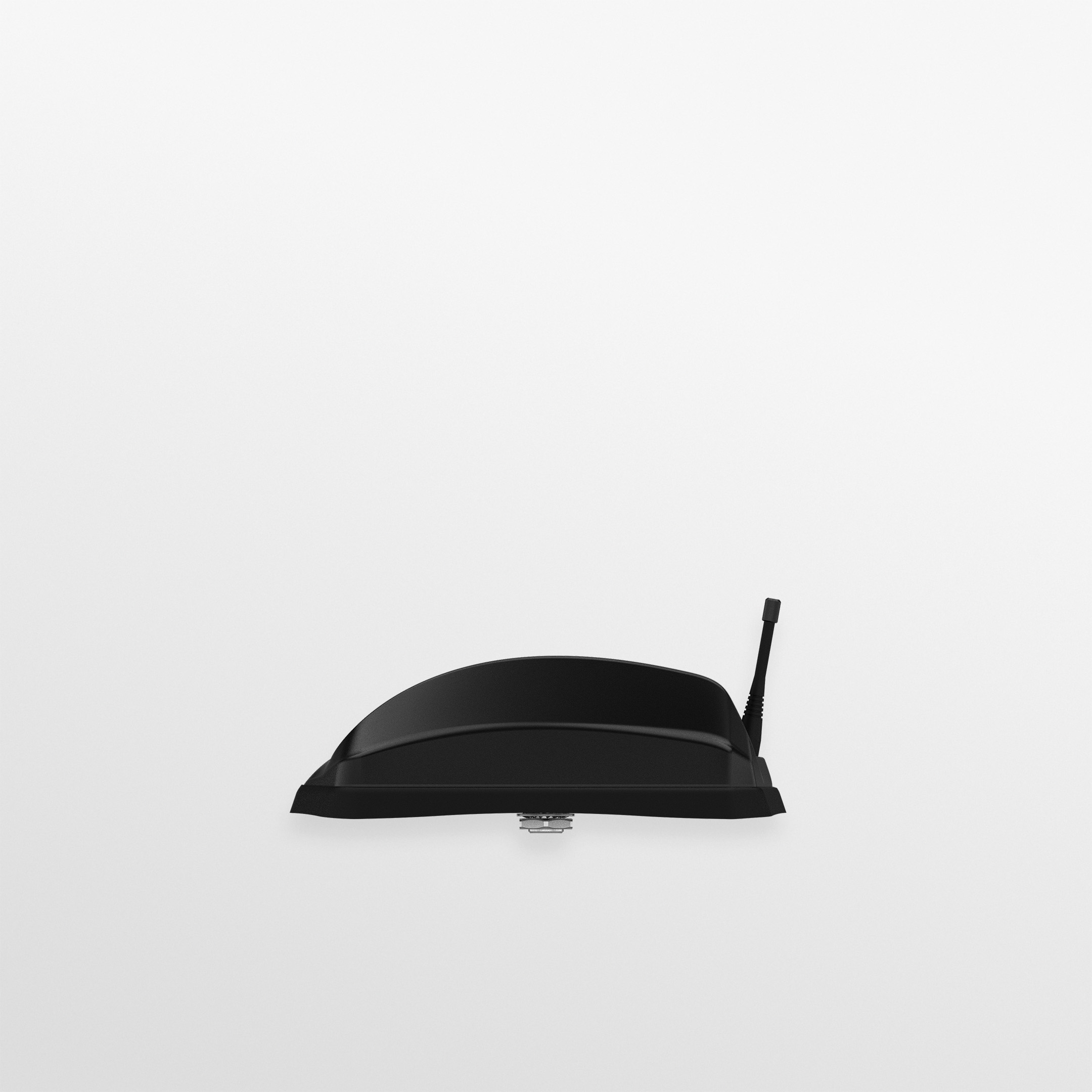

The Panorama GPSD4-6-60-D belongs to the Dual Sharkee family. It is a sharkfin roof antenna for public safety, mass transit, utilities and industrial vehicles that run a 5G router with Wi-Fi and GNSS. The -D configuration packs seven elements into one housing: four cellular, one GPS/GNSS and two Wi-Fi. The housing measures 253 x 142 x 82 mm. The four cellular elements form a 4x4 MIMO array covering 617–960 MHz and 1427–6000 MHz. Panorama lists the family as Band 71 600 MHz ready and FirstNet capable. The GNSS module covers GPS, GLONASS, Galileo and BeiDou (1559–1612 MHz) with a 26 dB LNA. It also has filtering for operation alongside LTE Band 13/14. The 2x2 MIMO Wi-Fi elements are dual-band and support Wi-Fi 6E. Every lead is a 0.3 m pigtail: SMA (m) for cellular, FME (f) for GPS and SMA (f) for Wi-Fi. The antenna needs only a single mounting hole, which reduces installation time and vehicle damage and helps protect resale value. An integral stud mount with an FME (m) connection takes an external VHF, UHF or combination whip for voice radio. A blanking cap is supplied for when no whip is used. Install on a metal panel when a whip is fitted. Without a whip, the antenna can go on a non-metallic panel with similar performance. The antenna is IP69K rated and operates from -40 °C to +80 °C. The flame-retardant cabling meets EN45545-2 HL3, UN ECE R118 and EN6722. Panorama lists three compatible mounting accessories: the SAB-333 magnetic mount, the SAB-312 ribbed-roof kit and the SAB-324-2 adaptor kit for Ford Explorer/Interceptor. Datasheets and the SW3-1025 installation instructions are published by Panorama.

Ideal For

Police, fire and EMS vehicles running a 5G router with Wi-Fi and GNSS
Mass transit buses needing onboard Wi-Fi and cellular backhaul
Utility and industrial service fleets
Vehicles that also carry a VHF/UHF voice radio whip

Why This Product

1-D = 2x2 Wi-Fi; -T (3x3) and -Q (4x4) add more Wi-Fi elements in the same housing
2GPSD4 carries one GNSS module; GPS2D4 versions carry two
3617 MHz low-band start covers 600 MHz Band 71, unlike 698 MHz-start antennas
4Taller 82 mm fin with 6000 MHz upper range, versus the 52 mm Reef Sharkee that covers up to 4900 MHz

Gps

Lna Gain	26 dB
Gps Frequency Range	1559–1612 MHz
Number Of Gps Elements	1 module

Cable

Cable Type Gps	FR CS29; FR RG174
Cable Type Lte	FR RG174; CS32
Cable Type Wifi	FR CS32; FR RG174
Cable Length Gps	0.3 m (0.98 ft) pigtail
Cable Length Lte	0.3 m (0.98 ft) pigtails
Cable Length Whip	0.3 m (0.98 ft)
Cable Length Wifi	0.3 m (0.98 ft) pigtails
Quantity Of Cell Cable	4
Cable Length Family Range	Family range: 0.3 m to 5 m (16.4 ft)
Quantity Of Wifi Extension	Up to 4 (family)
Quantity Of Gps Gnss Extension	1

General

Mpn	GPSD4-6-60-D
Upc	5055416071125
Brand	Panorama Antennas
Product Family	Dual Sharkee 4x4 MIMO 4G/5G Sharkfin

Package

Shipping Weight

2.45 lb

Mounting

Mounting Methods	Magnetic; Panel
Mounting Type Temp	Magnetic
Mounting Type Fixed	Panel (single hole)

Approvals

Ip Rating	IP69K
Cable Flammability	EN45545-2 HL3, UN ECE R118, EN6722

Electrical

Pattern	Omnidirectional
Uhf Elements	No
Wifi Elements	2x2 MIMO dual-band (Wi-Fi 6E support)
Frequency Range	617–960 MHz / 1427–6000 MHz
Cellular Lte Elements	4x4 MIMO

Mechanical

Width	142 mm (5.59 in)
Colour	Black
Height	82 mm (3.23 in)
Length	253 mm (9.96 in)
Operating Temperature	-40 °C to +80 °C (-40 °F to +176 °F)

Technology

4G/5G, 5G, 2G/3G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GPS, Wi-Fi MIMO, Wi-Fi, GNSS

Termination

Connector Gps	FME (f)
Connector Lte	SMA (m)
Connector Whip	VHF/UHF whip: FME (m)
Connector Wifi	SMA (f)

Purchasing this for your business?

Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Panorama SAB-311 Datasheet

0.5mb

Panorama SAB-312 Datasheet

0.5mb

Panorama Installation Instructions: SW3-1025-A4 GPSD4-SHK[G]4

1.1mb

Panorama GPS[X]D4[X]-6-60[-X] Datasheet

6.1mb

Frequently Asked Questions

What does the -D suffix mean on the GPSD4-6-60-D?▾

In Panorama's part-number table, -D is the version with 2x2 MIMO Wi-Fi. It also has 4x4 MIMO cellular and one GPS/GNSS module.

Which cellular frequencies are covered?▾

617–960 MHz and 1427–6000 MHz on four cellular elements, for 4x4 MIMO 4G/5G. Panorama lists the family as Band 71 600 MHz ready.

Can I add a two-way radio antenna?▾

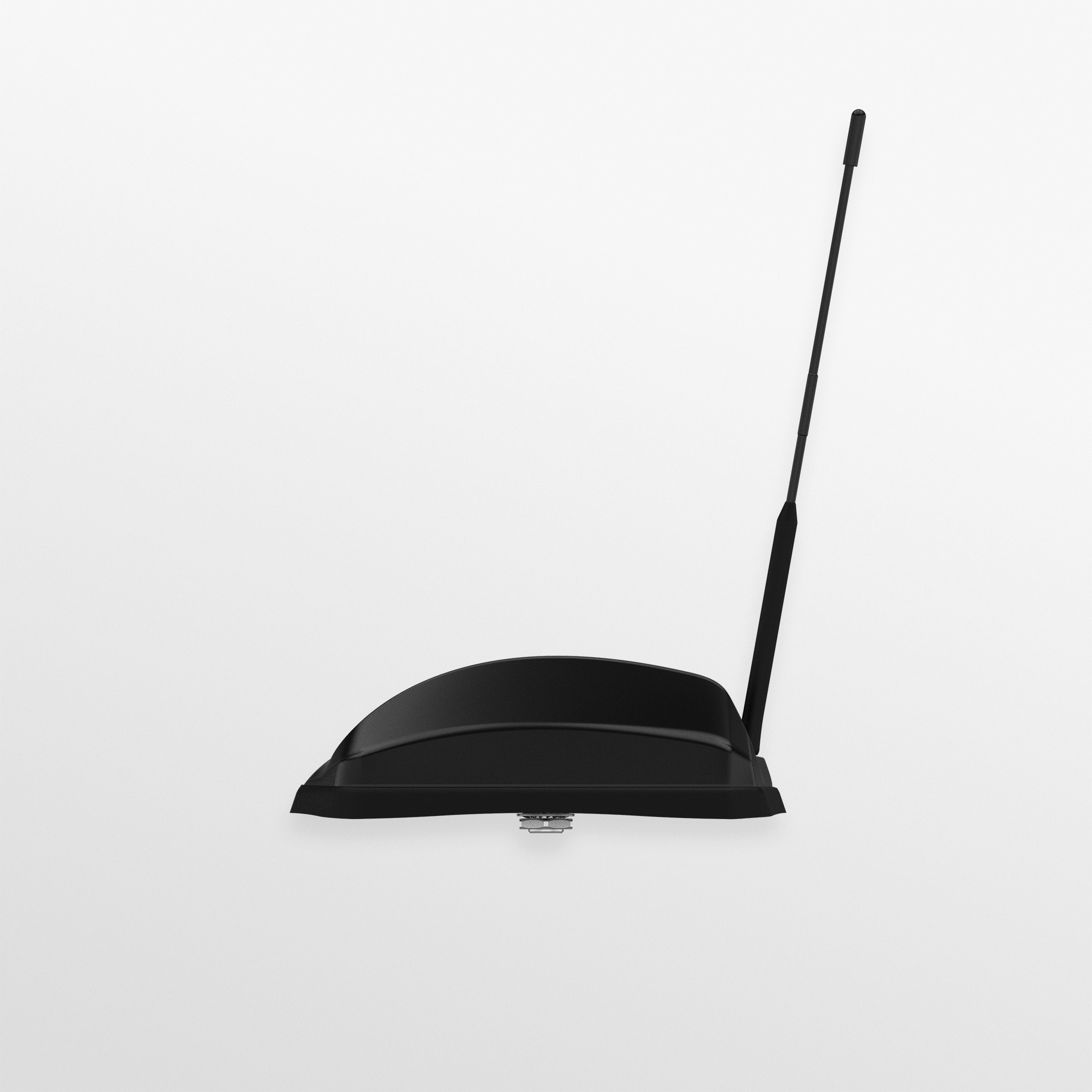

Yes. An integral stud mount with an FME (m) connection accepts an external VHF, UHF or combination whip, and a blanking cap is supplied for when it is unused. Mount on a metal panel when a whip is fitted.

What connectors are on the leads?▾

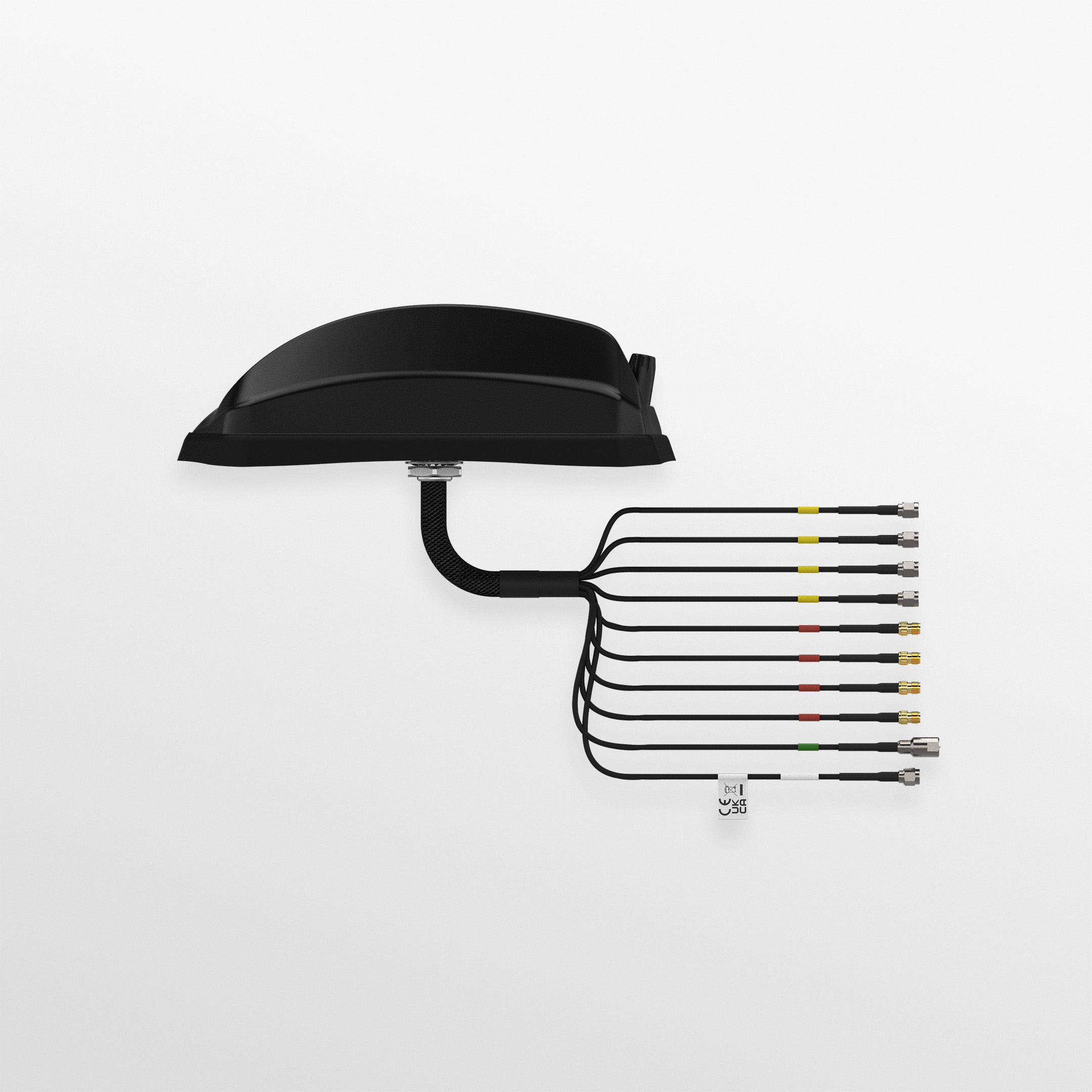

The 0.3 m pigtails end in SMA (m) for the four cellular leads, FME (f) for GPS and SMA (f) for the two Wi-Fi leads.

Is it suitable for harsh environments?▾

The housing is IP69K rated, operates from -40 °C to +80 °C, and uses flame-retardant cabling approved to UN ECE R118.
