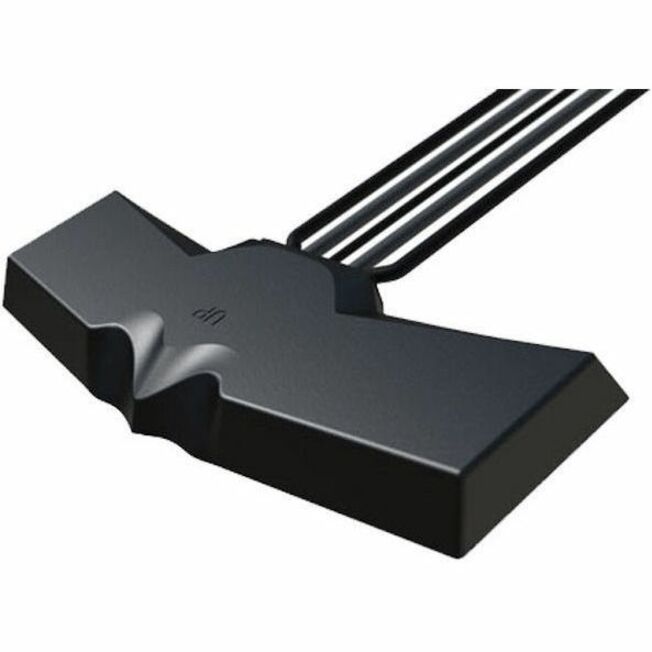

The Panorama BATGM-7-60 is the SMA-terminated cellular and GPS model in Panorama's BAT range of internal, discreet all-in-one antennas. It suits public safety, mass transit and utility vehicles that need a 2x2 MIMO 4G/5G router or modem and GPS tracking without an exterior antenna. The cellular elements are tuned for effective MIMO, with good isolation and low correlation. The cellular elements cover 617-960 MHz at 3 dBi, 1710-2170 MHz at 7 dBi, 2500-3800 MHz at 8 dBi and 4900-6000 MHz at 9 dBi. That coverage includes Band 71 (600 MHz), and Panorama lists FirstNet among the supported technologies. The GPS/GNSS module covers 1562-1612 MHz with a 26 dB LNA and advanced B13/B14 filtering. This version has no Wi-Fi elements. Maximum input power is 20 W. The black housing measures 214 x 77 x 16.5 mm and operates from -30 to +70°C. It is designed for on or under a vehicle dashboard or on glass, and can be mounted on any non-conductive surface. All leads are 3 m. Cellular leads use FR CS32 cable, the GNSS lead uses FR RG174, and all terminate in SMA male connectors. The cables meet EN45545-2 HL3 and UN ECE R118. Panorama's datasheet and installation instructions (SW3-773) cover the BATGM series.
