| Cable Type Lte | Flame retardant RG174 |
| Cable Length Lte | 0.3 m (0.98 ft) |
| Quantity Of Cell Cable | 2 |
| Mpn | LPMM-6-60 |
| Upc | 5055416024183 |
| Brand | Panorama Antennas |
| Configuration | Cellular 2x2 MIMO, no GPS, no Wi-Fi |
| Product Family | Great White (L[G]M[H]M-6-60) |
| Shipping Weight | 1.65 lb |
| Number Of Gps Elements | No (not fitted on LPMM-6-60) |
| Mounting Methods | Panel, Magnetic |
| Mounting Type Temp | Magnetic |
| Mounting Type Fixed | Panel |
| Ip Rating | IP69K |
| Impact Rating | IK10 (radome) |
| Cable Flammability | EN45545-2 HL3, UN ECE R118, EN6722 |
| Pattern | Omnidirectional |
| Uhf Elements | No |
| Wifi Elements | No |
| Frequency Range | 617-960 / 1427-6000 MHz |
| Max Input Power | 20 W |
| Gain 617 960 Mhz | 617-960 MHz: 5 dBi |
| Gain 1710 3800 Mhz | 1710-3800 MHz: 9 dBi |
| Gain 4900 6000 Mhz | 4900-6000 MHz: 10 dBi |
| Cellular Lte Elements | 2 x 2 MIMO |
| Colour | White |
| Height | 75 mm (2.95 in) |
| Diameter | 180 mm (7.09 in) |
| Operating Temperature | -40° to +80°C (-40° to +176°F) |
| Technology | 2G/3G/4G, 5G, Band 71 600 MHz ready, FirstNet |
| Connector Lte | SMA (m) |
Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.
Panorama L[G]M[X]M[X]-6-60[-24-58] Datasheet
6.0mb
Panorama Installation Instructions: SW3-919-L[G]M[H]M[X]-6-60[-24-58]
0.8mb
Panorama IP Certificate: ENVIRONMENTAL LABORATORY - L[G]M[X]M[X}-6-60- IP69K-CoTC-103739
0.1mb
Panorama IK10 Test Certificate: The Lighting Association Laboratories - L[X]M[X]M{X]-6-60[-24-58] IK 10 L18615 Report
1.2mb
Panorama Flyer: Great_White_5G_Flyer
0.4mb
Panorama Flyer: Mass-Transit-Antenna-One-Page-EN
4.6mb
No. The LPMM-6-60 is the cellular-only configuration with two 2x2 MIMO 4G/5G elements. Great White variants with GPS/GNSS or Wi-Fi carry different part numbers.
It covers 617-960 MHz and 1427-6000 MHz. Gain is 5 dBi at 617-960 MHz, 9 dBi at 1710-3800 MHz and 10 dBi at 4900-6000 MHz.
Two integrated 0.3 m flame retardant RG174 cables terminate in SMA (m) connectors.

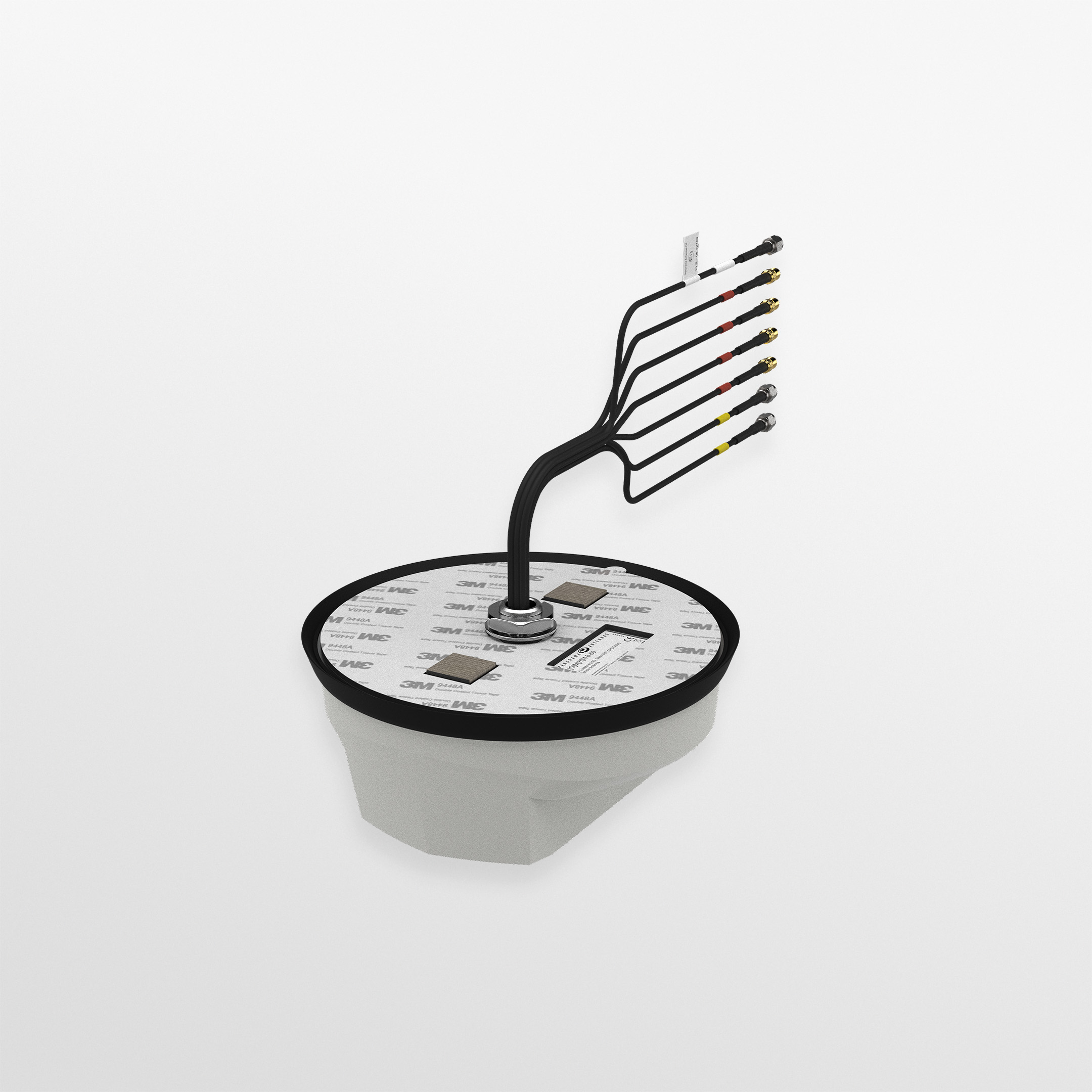

No. It is ground plane independent and can be panel mounted on conductive or non-conductive surfaces. It also supports magnetic mounting for temporary installations.
The radome meets IP69K for ingress protection and IK10 for vandal resistance, and the antenna operates from -40 to +80°C.
