Panorama GP-IN2670 Dual Sharkee 9-in-1 4x4 MIMO 5G

Name: Panorama GP-IN2670 Dual Sharkee 9-in-1 4x4 MIMO 4G/5G, GPS and Wi-Fi Sharkfin Antenna Kit, Black
Brand: Panorama
SKU: GP-IN2670
Price: 512.19 USD
Availability: InStock

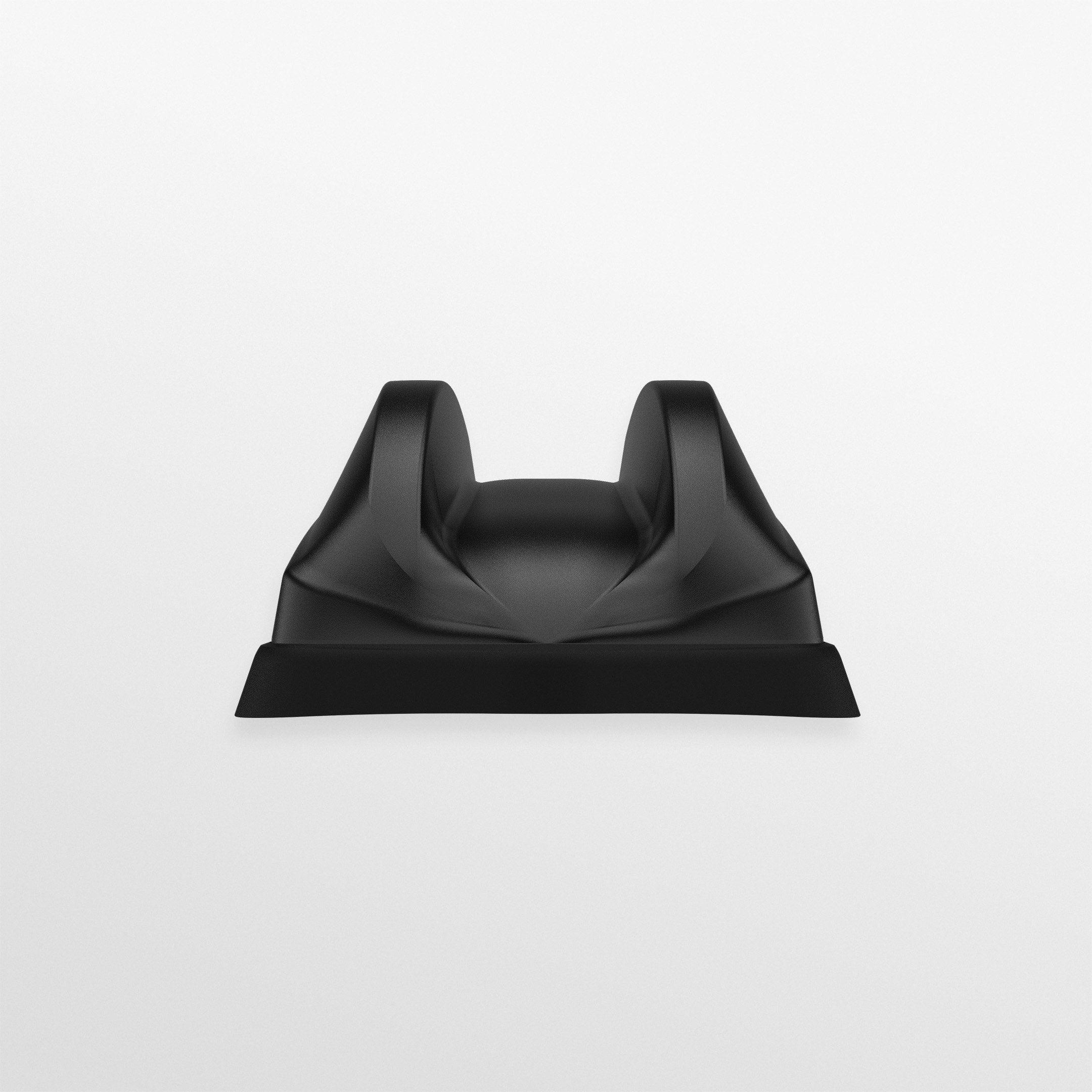

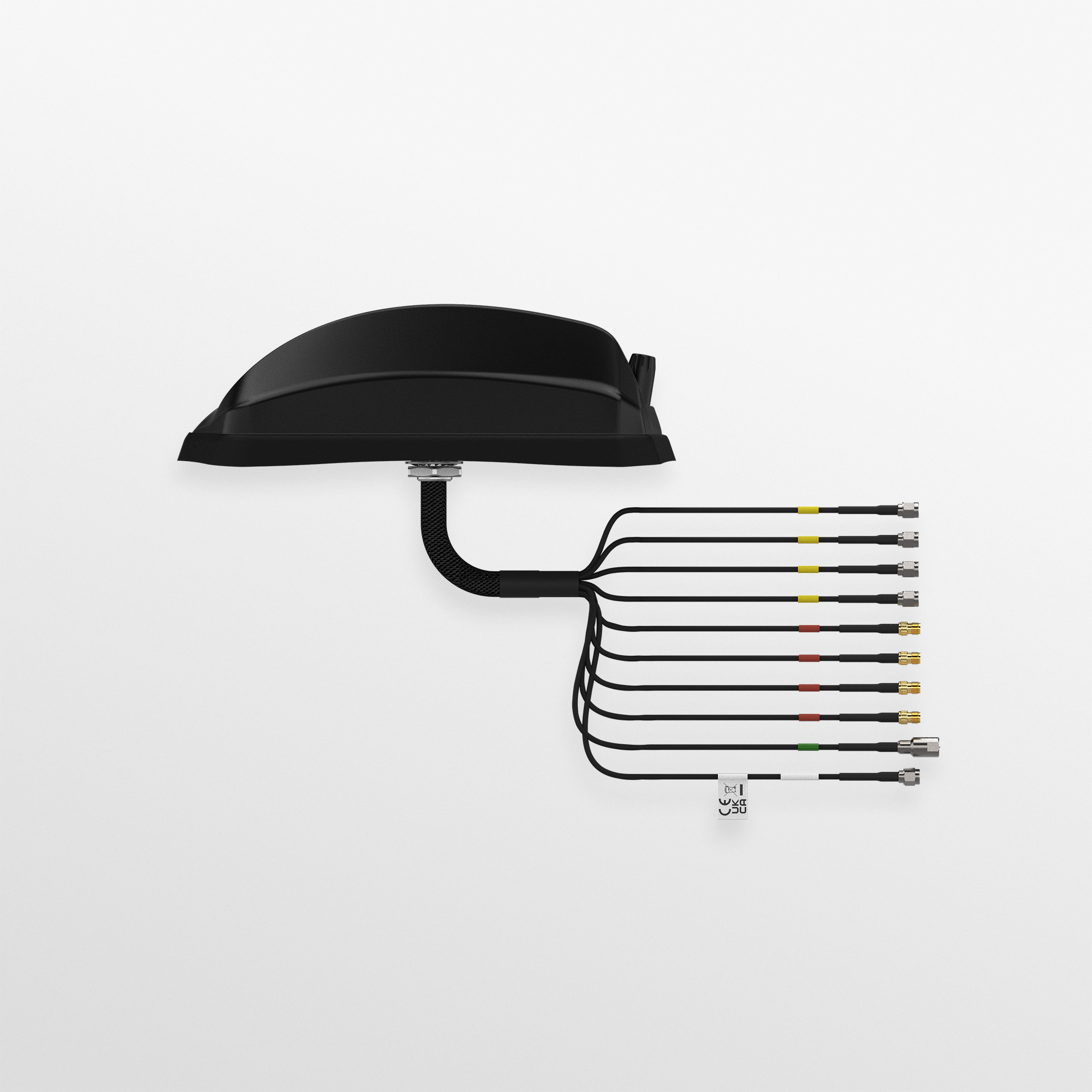

Black Panorama Dual Sharkee GP-IN2670 9-in-1 sharkfin vehicle antenna with fitted cables.

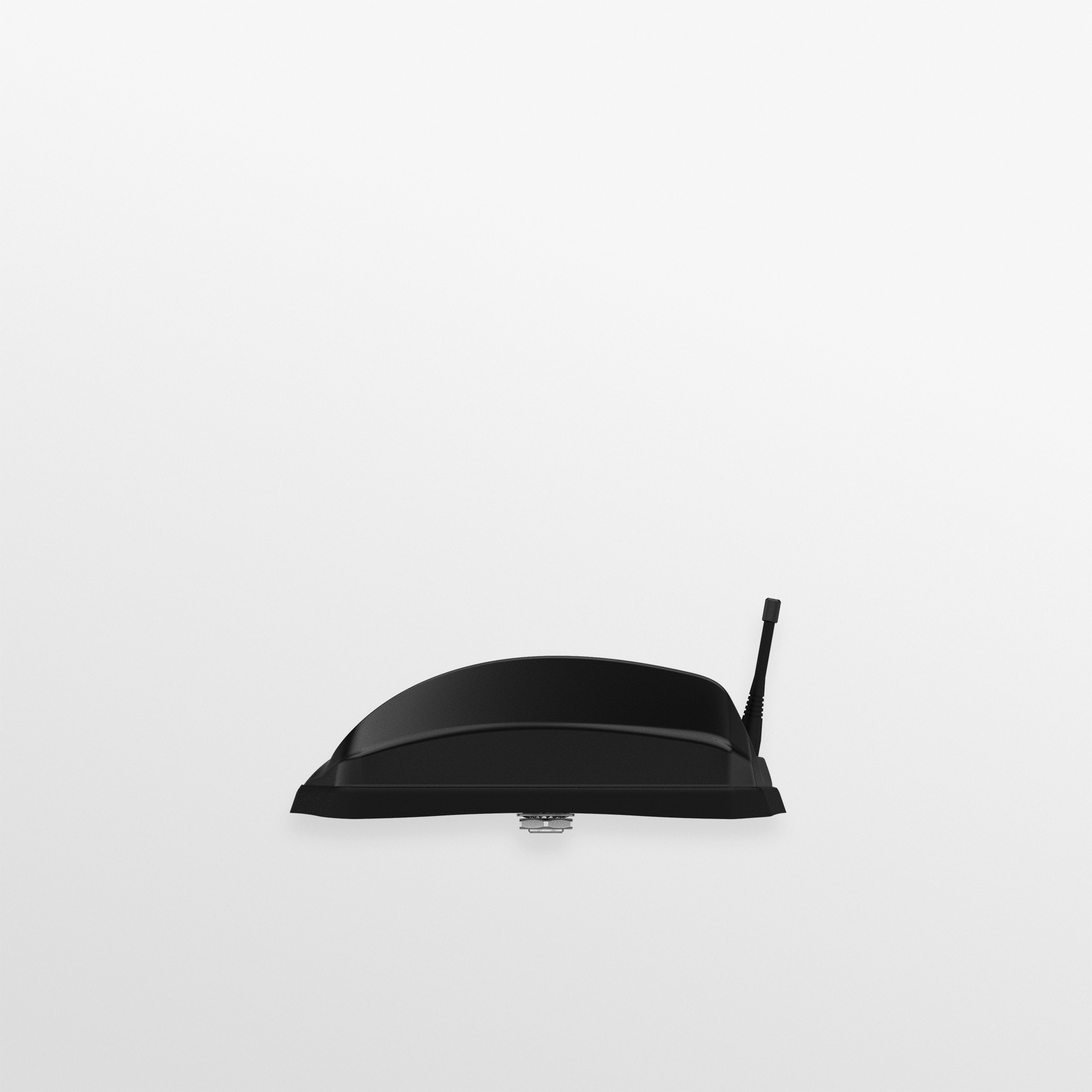

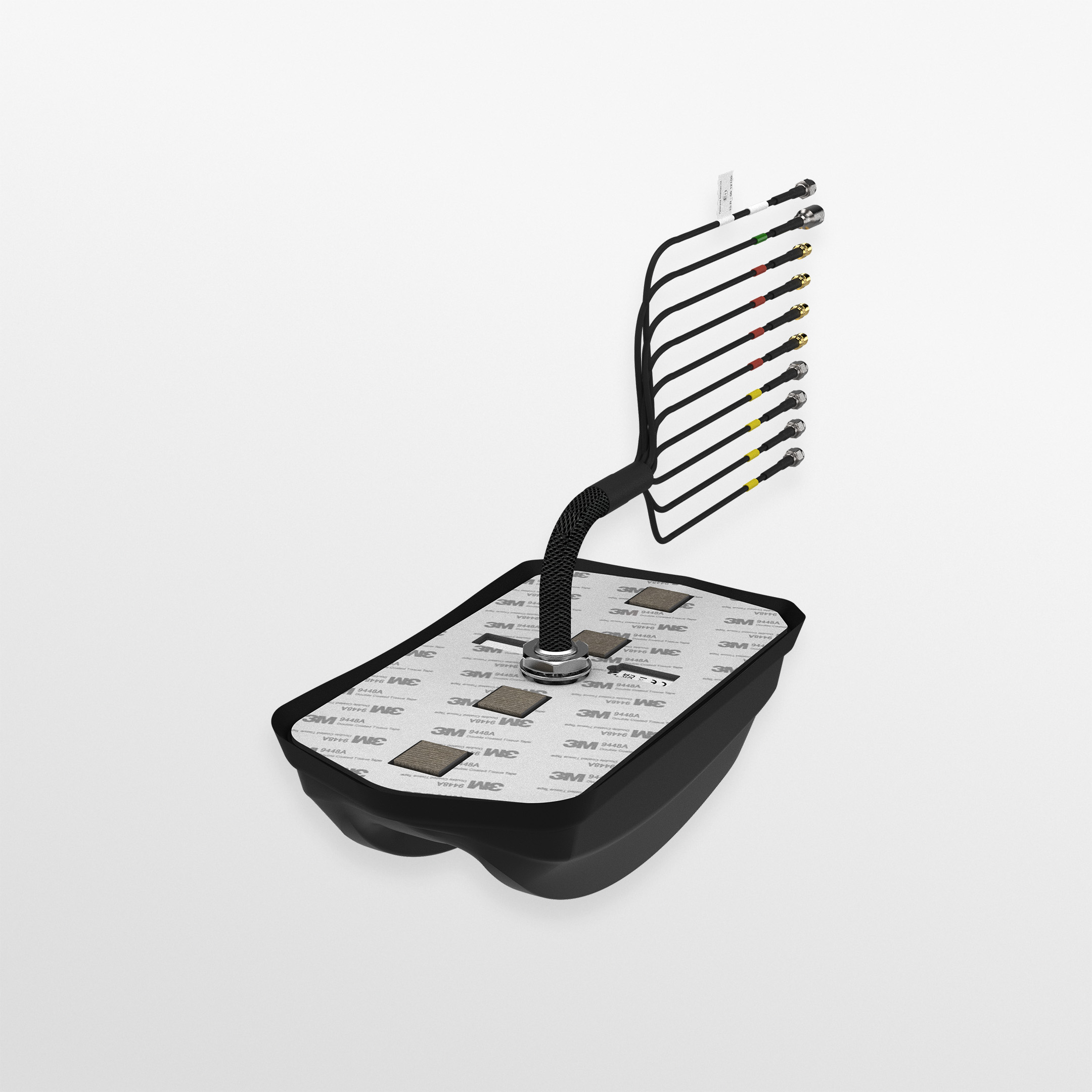

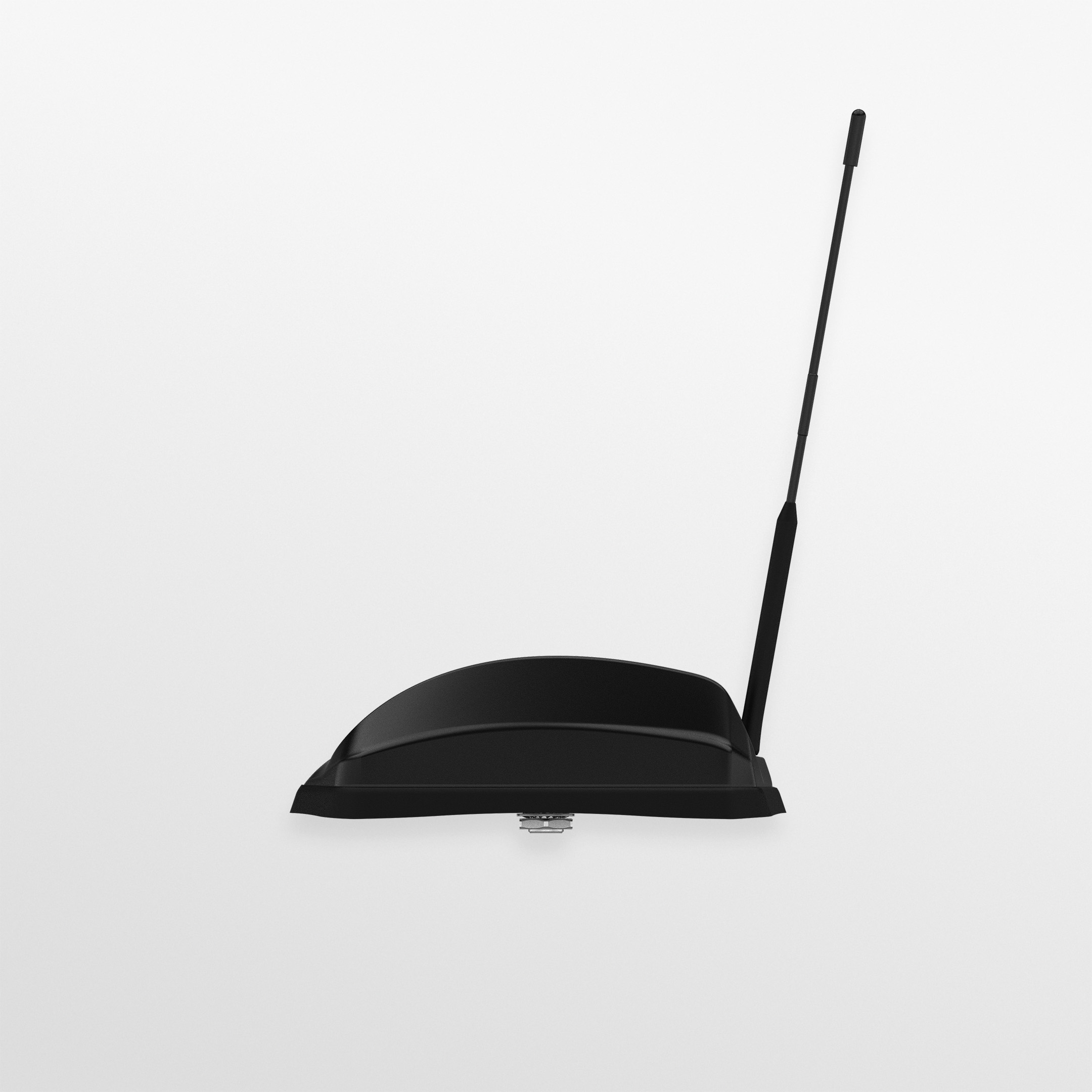

The Panorama GP-IN2670 is built on the GPSD4-6-60-Q Dual Sharkee and supplied as a complete kit with 5 m cables fitted to all nine elements. Four cellular elements provide 4x4 MIMO 4G/5G across 617-960 MHz and 1427-6000 MHz, including Band 71 600 MHz. Four Wi-Fi elements provide 4x4 MIMO dual-band Wi-Fi supporting Wi-Fi 6E. One active GPS/GLONASS/Galileo/BeiDou antenna adds location, with a 26 dB gain LNA and filtering for LTE Band 13/14 operation. This configuration suits a high-end vehicle router that uses every antenna port. Connections are straightforward: cellular leads terminate in SMA (m), Wi-Fi leads in Reverse Polarity SMA, and the GPS lead in SMA (m). The black automotive-style housing measures 253 x 142 x 82 mm (9.96 x 5.59 x 3.23 in). It is IP69K rated and operates from -40 °C to +80 °C. Cable feeds meet EN45545-2 HL3, UN ECE R118 and EN6722 flammability standards, which matters on buses, rail and emergency vehicles. The sharkfin needs only a single mounting hole, which reduces vehicle damage, installation time and visual impact while protecting resale value. An integral stud mount with an FME (m) connection accepts an external VHF, UHF or combination whip for voice radio, and a blanking cap covers it when unused. With a whip, mount the antenna on a metal panel. Without one, a non-metallic panel offers similar performance. Panorama lists the SAB-333 magnetic mount solution, SAB-312 ribbed roof kit and SAB-324-2 Ford Explorer / Interceptor adaptor as compatible accessories. A datasheet and installation instructions (SW3-1025) are published for the family.

Ideal For

Public safety vehicles running 4x4 MIMO 5G routers with GPS and onboard Wi-Fi
Mass transit buses providing passenger Wi-Fi and vehicle tracking
Utility and industrial fleets consolidating several roof antennas into one
Mobile command or incident vehicles that also carry a voice radio whip

Why This Product

1The most fully equipped Dual Sharkee kit: 4x4 cellular, 4x4 Wi-Fi and GPS; GP-IN2679 and GP-IN2680 carry 3x3 and 2x2 Wi-Fi
2Wi-Fi leads are Reverse Polarity SMA and cellular leads are SMA (m), all on fitted 5 m cables

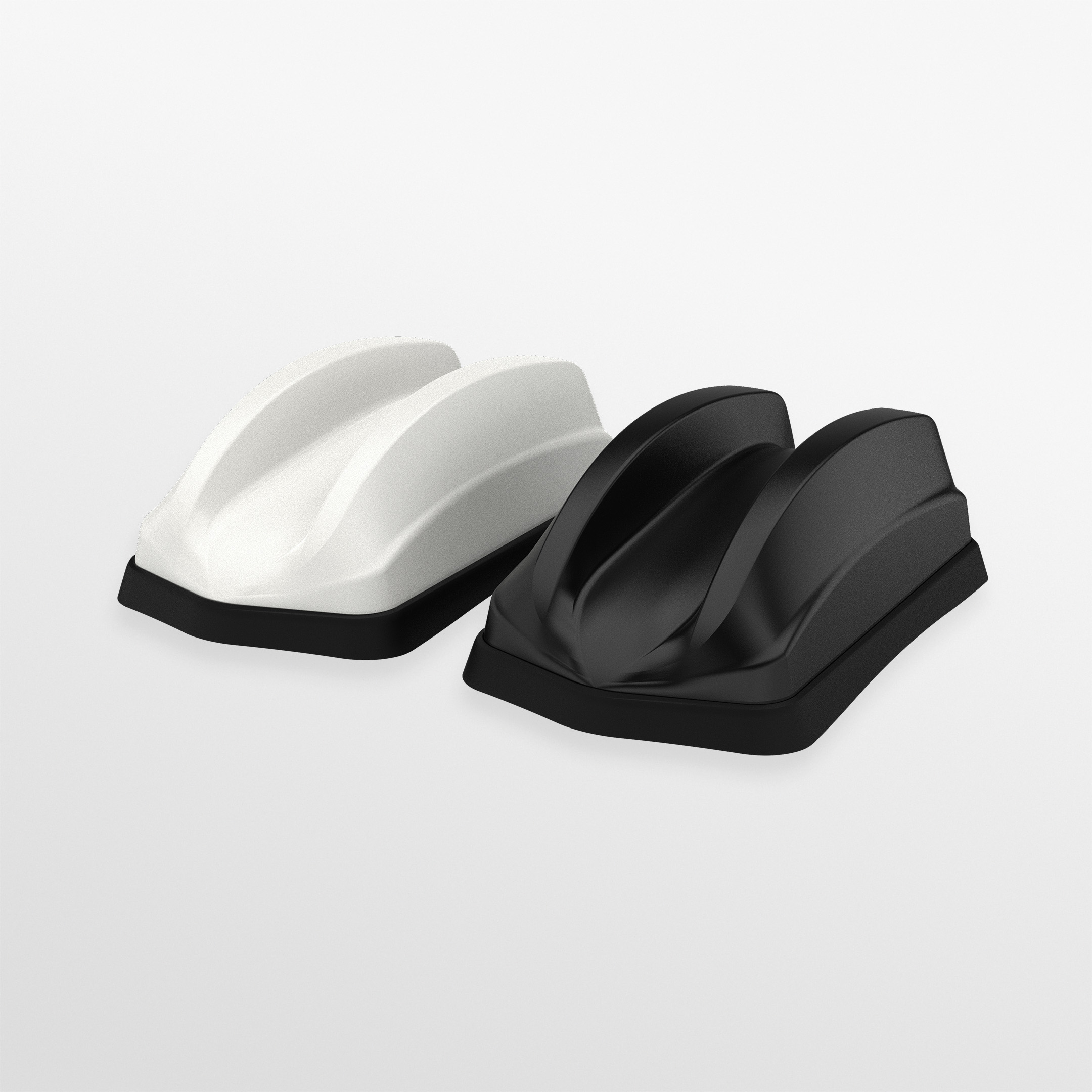

3Black housing; GP-IN2670-W is the white equivalent and GP-IN2670-LC ships with cables loose

Gps

Lna Gain	26 dB
Gps Frequency Range	1559-1612 MHz
Number Of Gps Elements	1 module (GPS/GLONASS/Galileo/BeiDou)

Cable

Cable Type Gps	FR CS29; FR RG174
Cable Type Lte	FR RG174; CS32
Cable Type Wifi	FR CS32; FR RG174
Cable Length Gps	5 m (16.4 ft), fitted
Cable Length Lte	5 m (16.4 ft), fitted
Cable Length Whip	0.3 m (0.98 ft)
Cable Length Wifi	5 m (16.4 ft), fitted
Quantity Of Cell Cable	4
Quantity Of Gps Extension	1
Quantity Of Wifi Extension	4

General

Mpn	GP-IN2670
Upc	5055416073099
Brand	Panorama Antennas
Base Antenna	GPSD4-6-60-Q with fitted 5 m cables
Configuration	9-in-1: 4x4 MIMO cellular, 4x4 MIMO Wi-Fi, 1 GPS/GNSS module
Product Family	Dual Sharkee (GPS[X]D4[X]-6-60)

Package

Documentation	Panorama GPS[X]D4[X]-6-60[-X] datasheet; installation instructions SW3-1025
Cables Included	Four cellular, four Wi-Fi and one GPS cable, each 5 m, fitted
Shipping Weight	7.20 lb

Mounting

Mounting Methods	Magnetic; Panel
Mounting Type Fixed	Panel
Mounting Type Temporary	Magnetic

Approvals

Ip Rating	IP69K
Cable Flammability	EN45545-2 HL3; UN ECE R118; EN6722

Electrical

Pattern	Omnidirectional
Uhf Elements	No
Wifi Elements	4 x 4 MIMO dual-band, Wi-Fi 6E support
Cellular Lte Elements	4 x 4 MIMO
Cellular Frequency Range	617-960 MHz / 1427-6000 MHz

Mechanical

Width	142 mm (5.59 in)
Colour	Black
Height	82 mm (3.23 in)
Length	253 mm (9.96 in)
Operating Temperature	-40 °C to +80 °C (-40 °F to +176 °F)

Technology

4G/5G, 5G, 2G/3G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GPS, Wi-Fi MIMO, Wi-Fi, GNSS

Termination

Connector Gps	SMA (m)
Connector Lte	SMA (m)
Connector Whip	FME (m), VHF/UHF whip
Connector Wifi	Reverse Polarity SMA

Purchasing this for your business?

Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Panorama SAB-311 Datasheet

0.5mb

Panorama SAB-312 Datasheet

0.5mb

Panorama Installation Instructions: SW3-1025-A4 GPSD4-SHK[G]4

1.1mb

Panorama GPS[X]D4[X]-6-60[-X] Datasheet

6.1mb

Frequently Asked Questions

What does 9-in-1 mean for the GP-IN2670?▾

The housing contains nine antenna elements: four 4x4 MIMO 4G/5G cellular elements, four 4x4 MIMO Wi-Fi elements and one GPS/GNSS module.

Which connectors are on the cables?▾

All cables are 5 m and fitted. Cellular and GPS leads end in SMA (m), and Wi-Fi leads end in Reverse Polarity SMA.

What cellular frequencies are covered?▾

617-960 MHz and 1427-6000 MHz, including Band 71 600 MHz.

Does it support Wi-Fi 6E?▾

Yes. The Dual Sharkee's dual-band Wi-Fi elements support Wi-Fi 6E, and this model carries four of them in a 4x4 MIMO configuration.

What mounting options are available?▾

It is designed for single-hole panel mounting, with magnetic mounting listed for temporary installs. Panorama also lists SAB-333, SAB-312 and SAB-324-2 mounting accessories.
