Panorama GP-IN2679 Dual Sharkee 8-in-1 5G/Wi-Fi

Name: Panorama GP-IN2679 Dual Sharkee 8-in-1 4x4 MIMO 5G Sharkfin Antenna Kit with Fitted 5 m Cables, Black
Brand: Panorama
SKU: GP-IN2679
Price: 472.33 USD
Availability: InStock

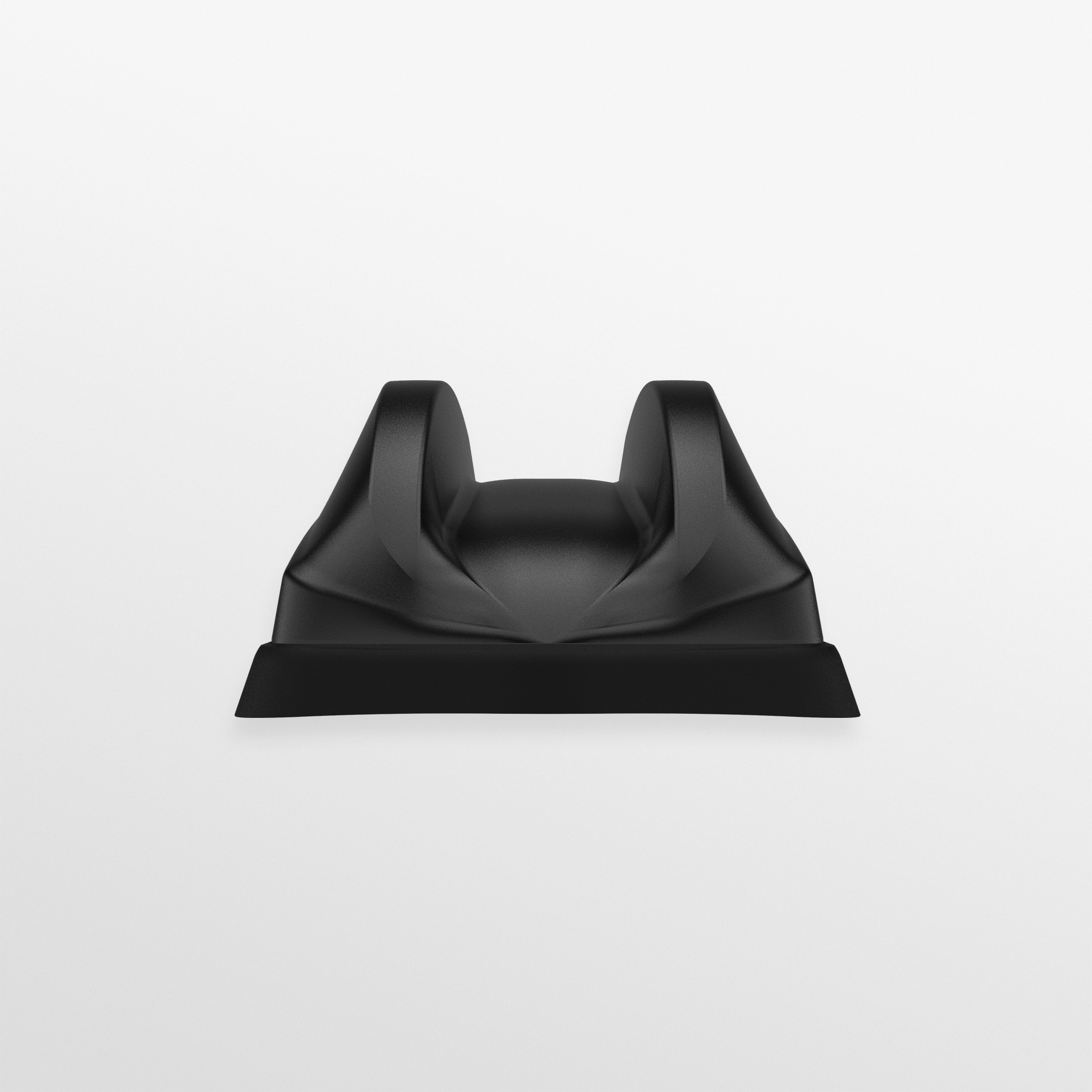

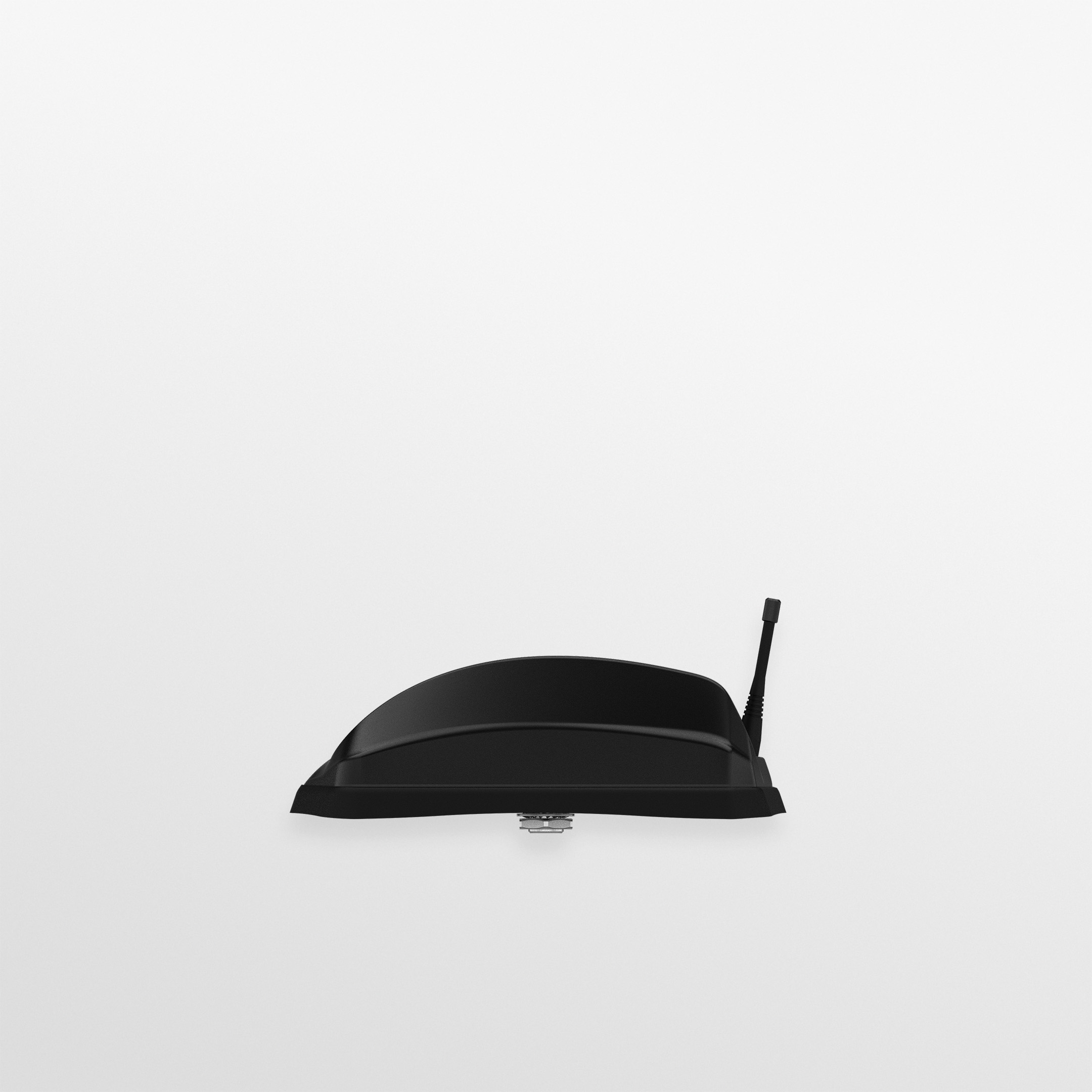

Black Panorama GP-IN2679 Dual Sharkee sharkfin vehicle antenna with 5G, Wi-Fi and GNSS elements.

The Panorama GP-IN2679 is a black Dual Sharkee sharkfin antenna kit that combines eight antenna functions in one roof-mounted housing: four cellular elements for 4x4 MIMO 4G/5G, three Wi-Fi elements for 3x3 MIMO dual-band Wi-Fi and one active GPS/GNSS module. Built on the GPSD4-6-60-T, it is supplied with 5 m cables fitted for every function, ready to route to a vehicle router or gateway. It is designed for public safety, mass transit, utility and industrial fleets that need multi-band connectivity from a single discreet antenna. The cellular elements cover 617-960 MHz and 1427-6000 MHz, spanning 600 MHz Band 71 through the sub-6 GHz 5G bands, and terminate in SMA (m) connectors. The Wi-Fi elements support Wi-Fi 6E and terminate in reverse polarity SMA. The GPS module covers 1559-1612 MHz for GPS, GLONASS, Galileo and BeiDou, with a 26 dB LNA and filtering for LTE Band 13/14 operation. An integral stud mount accepts an external VHF, UHF or combination whip for voice radio (FME male, 0.3 m whip cable), and a blanking cap covers the position when no whip is needed. Install on a metal panel when a whip is fitted; without a whip the antenna may be fitted on a non-metallic panel with similar performance. Single-hole panel mounting reduces vehicle damage, installation time and visual impact, and magnetic mounting is also listed. The housing measures 253 x 142 x 82 mm, is rated IP69K, operates from -40 to +80°C and uses cabling rated to EN45545-2 HL3, UN ECE R118 and EN6722. Panorama's datasheet and installation instructions are available for this model.

Ideal For

Police and emergency vehicles needing 5G, Wi-Fi and GNSS from one discreet roof antenna
Buses and mass transit vehicles running onboard 5G routers with passenger or staff Wi-Fi
Utility and industrial service fleets with vehicle-mounted gateways and GPS tracking
Vehicles combining cellular data with VHF/UHF voice radio via the whip position

Why This Product

13x3 MIMO Wi-Fi (8-in-1), versus 2x2 on GP-IN2680 and 4x4 on GP-IN2670
2Cables supplied fitted; GP-IN2679-LC is the loose-cable version

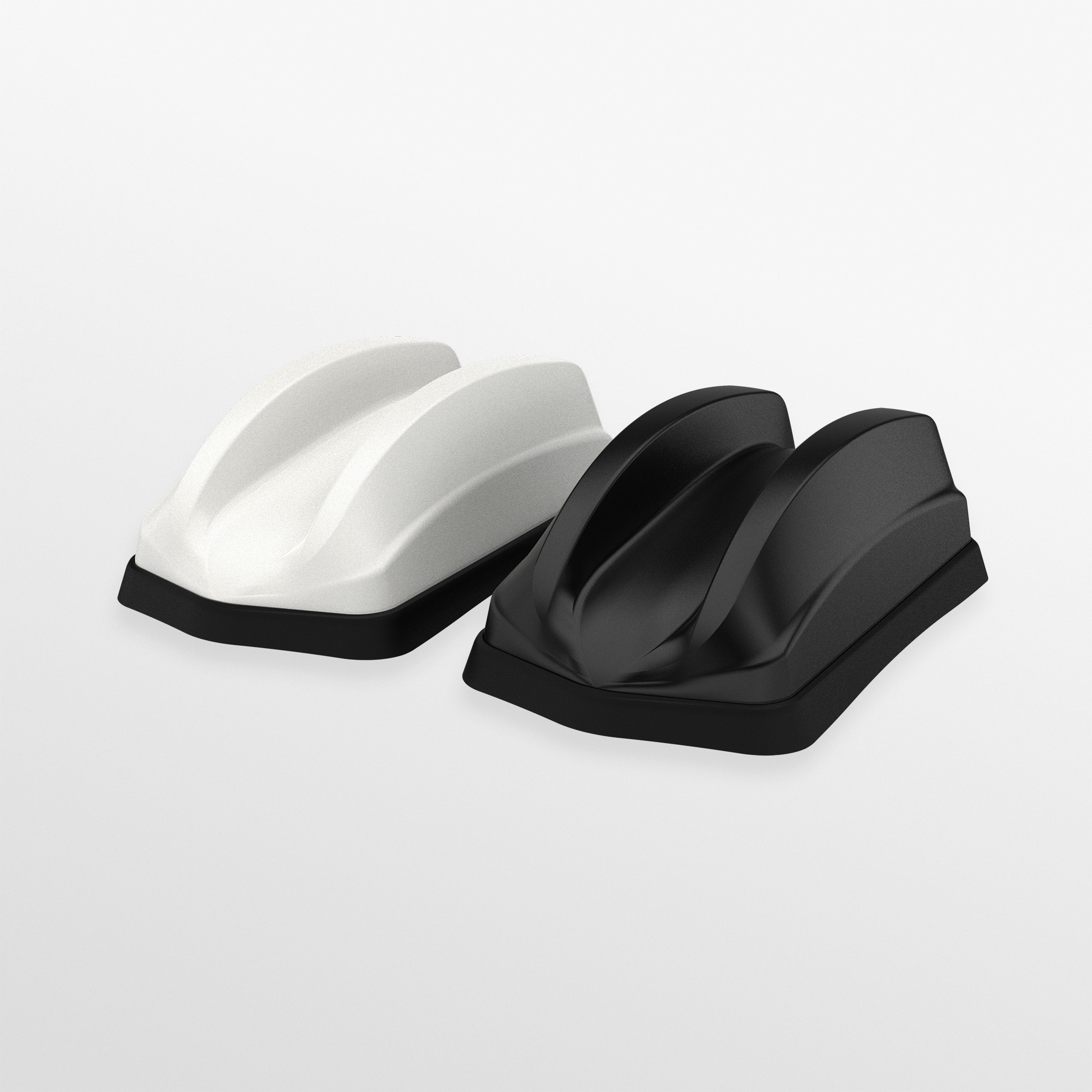

3Black housing; GP-IN2679-W is the white version

General

Mpn	GP-IN2679
Upc	5055416073938
Brand	Panorama Antennas
Base Antenna	GPSD4-6-60-T
Configuration	8-in-1 (4 cellular, 3 Wi-Fi, 1 GPS)
Product Family	Dual Sharkee (GPS[X]D4[X]-6-60[-X])

Package

Shipping Weight

6.45 lb

Gps Data

Lna Gain	26 dB
Gnss Systems	GPS, GLONASS, Galileo, BeiDou
Gps Frequency Range	1559-1612 MHz
Number Of Gps Elements	1 Module

Cable Data

Cable Supply	Cables fitted
Cable Type Gps	FR CS29 / FR RG174
Cable Type Lte	FR RG174 / CS32
Cable Type Wifi	FR CS32 / FR RG174
Cable Length Gps	5 m (16.4 ft)
Cable Length Lte	5 m (16.4 ft)
Cable Length Whip	0.3 m (0.98 ft)
Cable Length Wifi	5 m (16.4 ft)
Quantity Of Cell Cable	4
Quantity Of Wifi Extension	Up to 4 (family specification)
Quantity Of Gps Gnss Extension	1

Configuration

Gps	1 module, 5 m cable, SMA (m), fitted
Wifi	3x3 MIMO, 5 m cables, RP-SMA, fitted
Cellular	4x4 MIMO, 5 m cables, SMA (m), fitted

Mounting Data

Mounting Methods	Magnetic, Panel
Mounting Type Temp	Magnetic
Mounting Type Fixed	Panel (single hole)

Approvals Data

Ip Rating	IP69K
Cable Flammability	EN45545-2 HL3, UN ECE R118, EN6722

Electrical Data

Pattern	Omnidirectional
Uhf Elements	No
Wifi Elements	3 x 3 MIMO
Cellular Lte Elements	4 x 4 MIMO
Cellular Frequency Range	617-960 / 1427-6000 MHz

Mechanical Data

Width	142 mm (5.59 in)
Colour	Black
Height	82 mm (3.23 in)
Length	253 mm (9.96 in)
Operating Temperature	-40° to +80°C (-40° to +176°F)

Technology Data

Technology

4G/5G, 5G, 2G/3G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GPS, Wi-Fi MIMO, Wi-Fi, GNSS

Termination Data

Connector Gps	SMA (m)
Connector Lte	SMA (m)
Connector Wifi	Reverse Polarity SMA
Connector Vhf Uhf Whip	FME (m)

Purchasing this for your business?

Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Panorama SAB-311 Datasheet

0.5mb

Panorama SAB-312 Datasheet

0.5mb

Panorama Installation Instructions: SW3-1025-A4 GPSD4-SHK[G]4

1.1mb

Panorama GPS[X]D4[X]-6-60[-X] Datasheet

6.1mb

Frequently Asked Questions

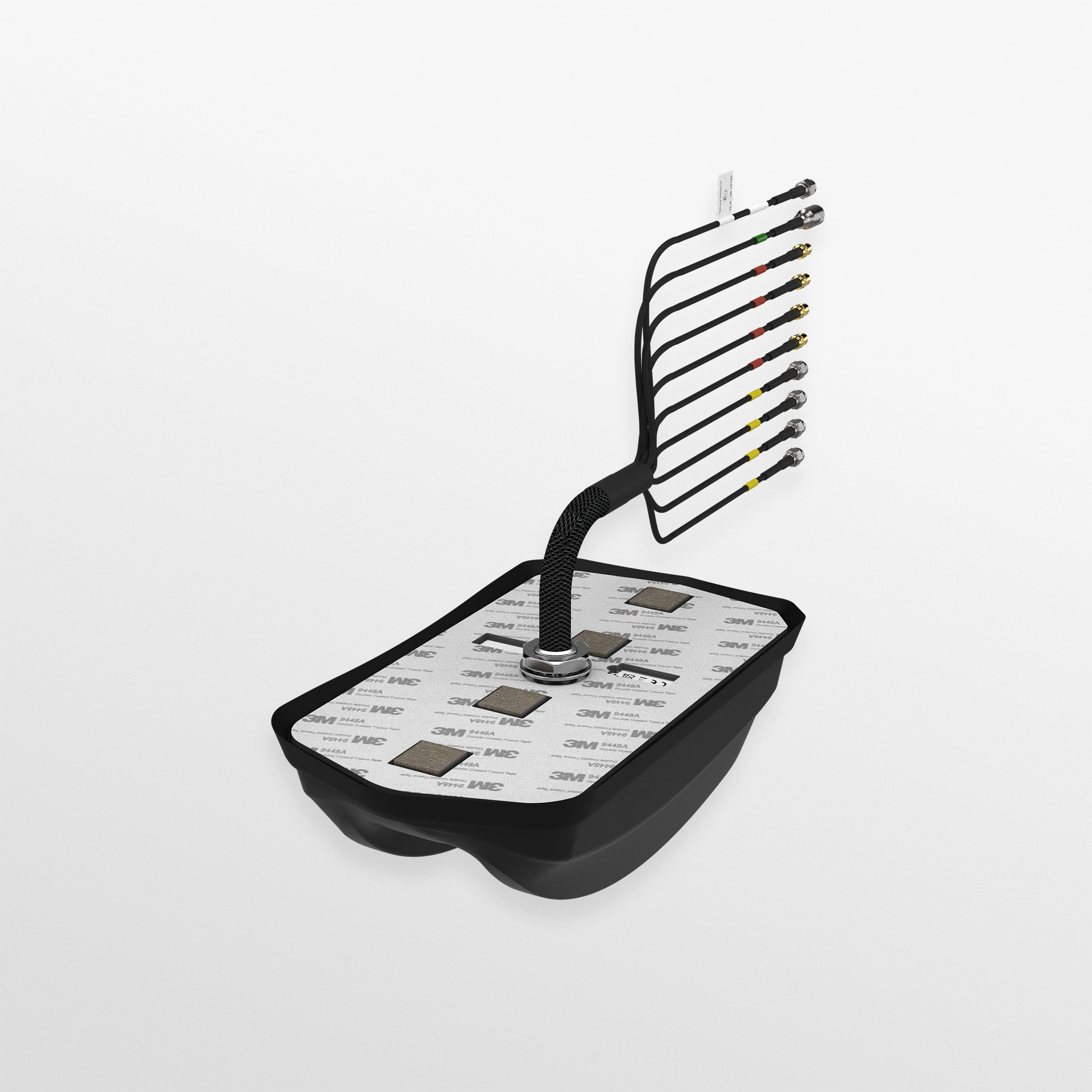

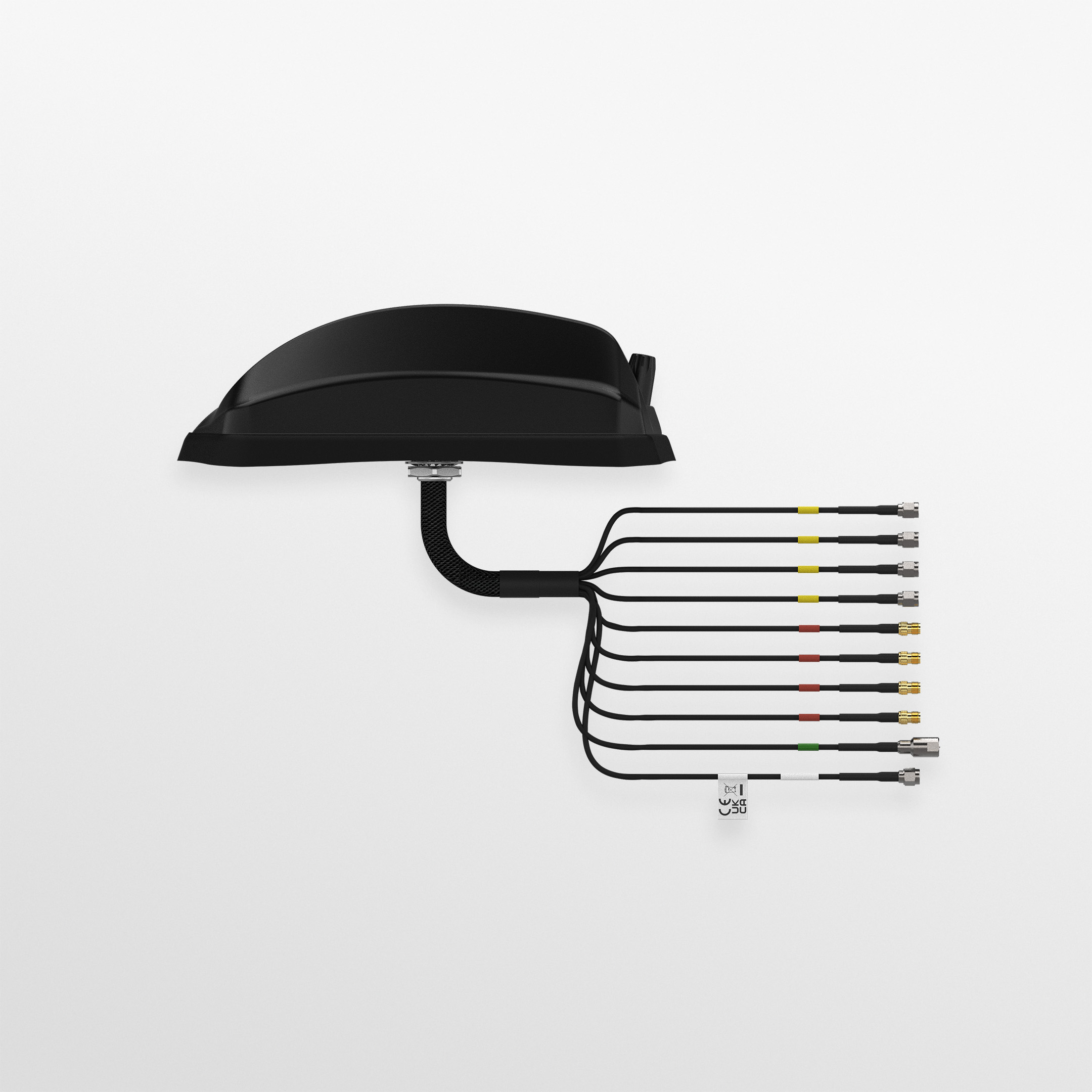

What connects to the GP-IN2679?▾

Four cellular cables terminate in SMA (m), three Wi-Fi cables in reverse polarity SMA and one GPS cable in SMA (m), each 5 m long and supplied fitted.

Which cellular frequencies does it cover?▾

The 4x4 MIMO cellular elements cover 617-960 MHz and 1427-6000 MHz, including 600 MHz Band 71 and the sub-6 GHz 5G bands.

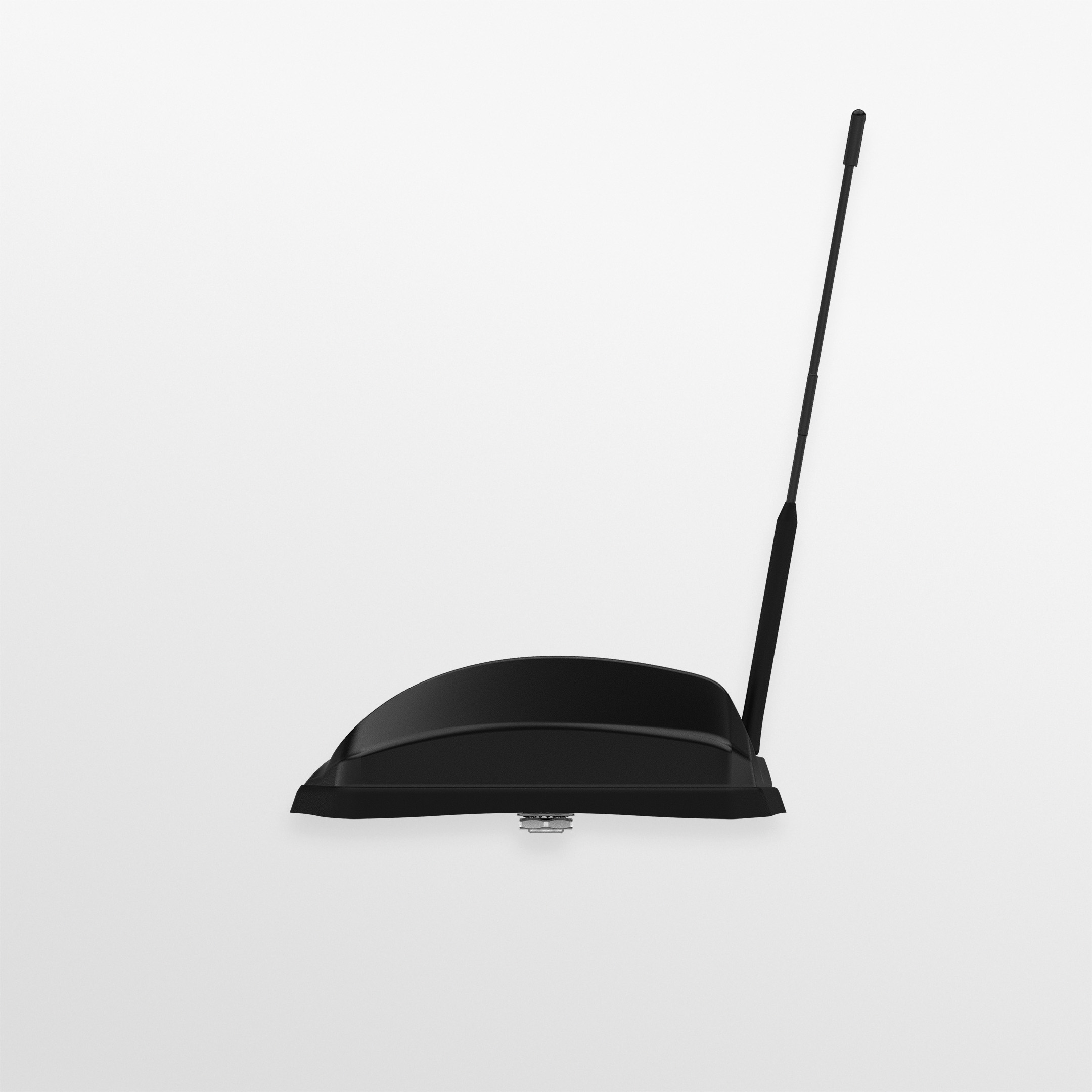

Can I add a radio whip?▾

Yes. An integral stud mount with an FME (m) connection accepts an external VHF, UHF or combination whip. A blanking cap is supplied for when the whip position is not used; with a whip fitted, install the antenna on a metal panel.

How is it mounted?▾

It is designed for single-hole panel mounting, and magnetic mounting is also listed. Panorama offers the SAB-333 magnetic mount, SAB-312 ribbed roof kit and SAB-324-2 Ford Explorer/Interceptor adaptor as compatible accessories.

How rugged is it?▾

The antenna is rated IP69K, operates from -40 to +80°C, and its cabling meets EN45545-2 HL3, UN ECE R118 and EN6722 flammability standards.
