Panorama GP-IN2679-W Dual Sharkee 8-in-1 5G/Wi-Fi

Name: Panorama GP-IN2679-W Dual Sharkee 8-in-1 4x4 MIMO 5G Sharkfin Antenna Kit with Fitted 5 m Cables, White
Brand: Panorama
SKU: GP-IN2679-W
Price: 472.52 USD
Availability: InStock

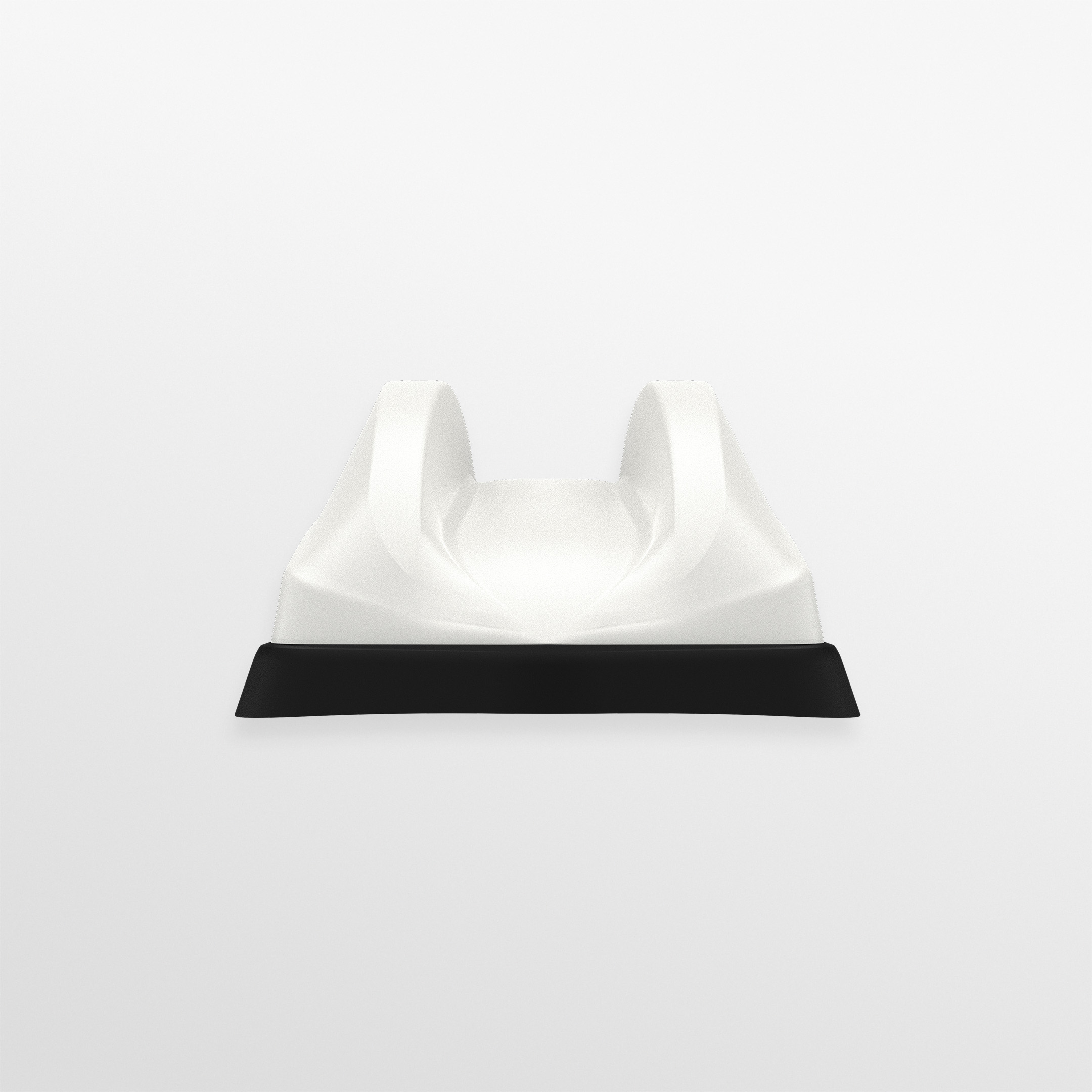

White Panorama GP-IN2679-W Dual Sharkee sharkfin vehicle antenna with 5G, Wi-Fi and GNSS elements.

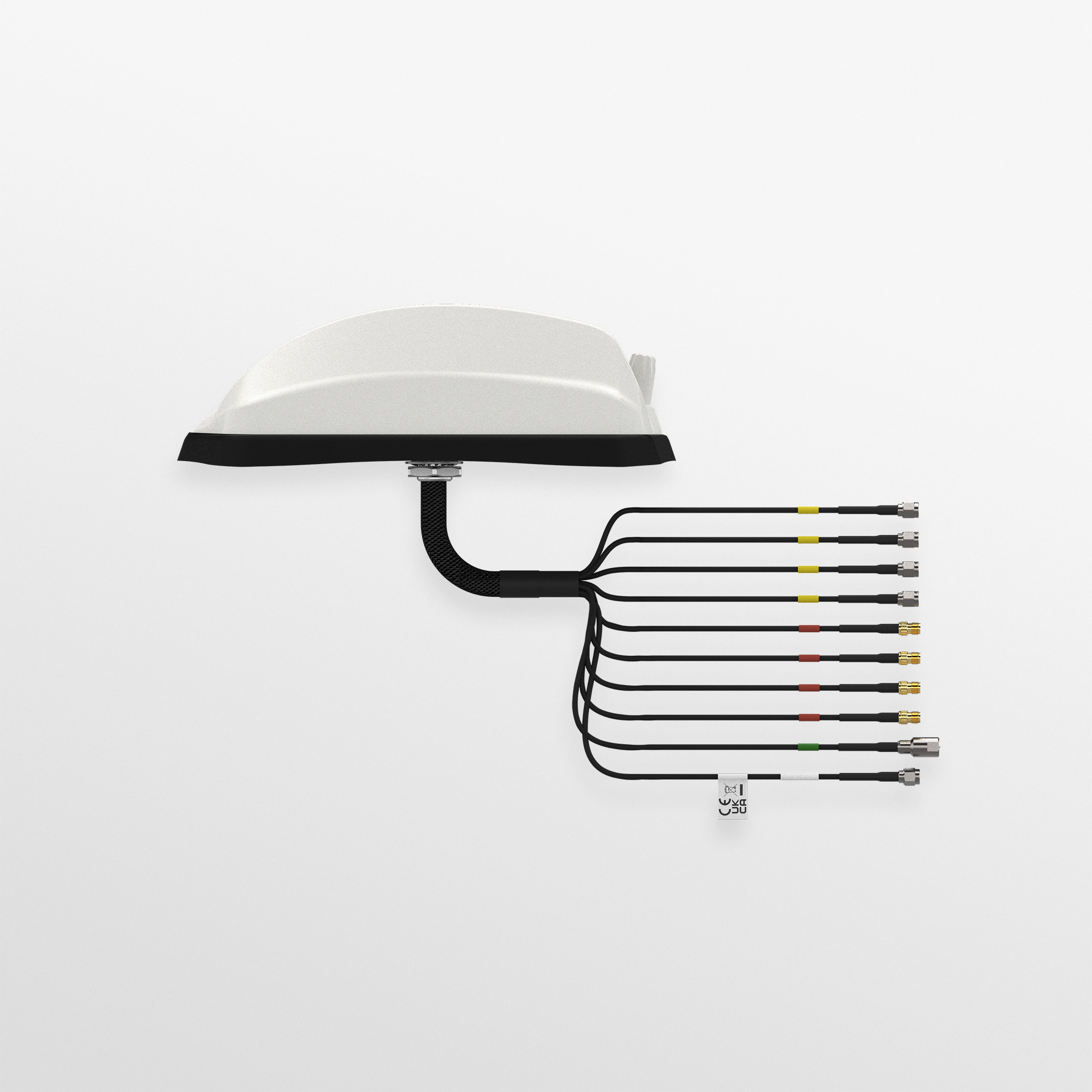

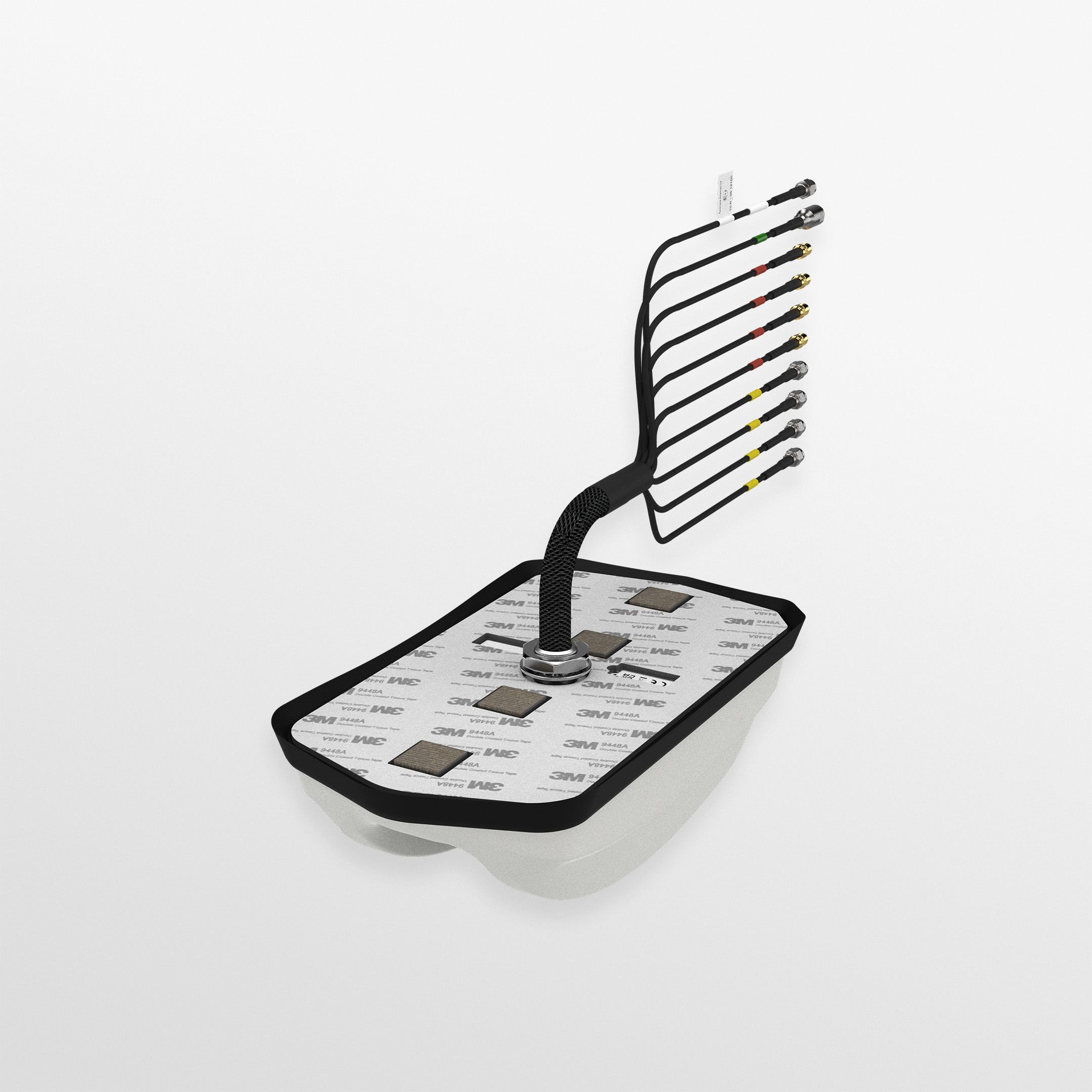

The Panorama GP-IN2679-W is a white Dual Sharkee sharkfin antenna kit that combines eight antenna functions in one roof-mounted housing: four cellular elements for 4x4 MIMO 4G/5G, three Wi-Fi elements for 3x3 MIMO dual-band Wi-Fi and one active GPS/GNSS module. It is supplied with 5 m cables fitted for every function, ready to route to a vehicle router or gateway. It serves public safety, mass transit, utility and industrial fleets that want full connectivity from one discreet antenna, in a finish that matches white vehicle roofs. The cellular elements cover 617-960 MHz and 1427-6000 MHz, spanning 600 MHz Band 71 through the sub-6 GHz 5G bands, on SMA (m) connectors. The Wi-Fi elements support Wi-Fi 6E and use reverse polarity SMA. The GPS module covers 1559-1612 MHz for GPS, GLONASS, Galileo and BeiDou, with a 26 dB LNA and filtering for LTE Band 13/14 operation. An integral stud mount accepts an external VHF, UHF or combination whip for voice radio (FME male, 0.3 m whip cable), and a blanking cap covers it when unused. Install on a metal panel when a whip is fitted; without a whip the antenna may be fitted on a non-metallic panel with similar performance. Single-hole panel mounting reduces vehicle damage, installation time and visual impact, and magnetic mounting is also listed. The housing measures 253 x 142 x 82 mm, is rated IP69K, operates from -40 to +80°C and uses cabling rated to EN45545-2 HL3, UN ECE R118 and EN6722. Panorama's datasheet and installation instructions are available for this model.

Ideal For

Ambulances and white-roofed emergency vehicles needing 5G, Wi-Fi and GNSS
Transit buses and coaches running onboard 5G routers and Wi-Fi
Utility and industrial service vans with vehicle gateways and GPS tracking
Vehicles adding VHF/UHF voice radio through the whip position

Why This Product

1White version of GP-IN2679 with identical 8-in-1 configuration
23x3 MIMO Wi-Fi, versus 2x2 on GP-IN2680-W and 4x4 on GP-IN2670-W
3Cables supplied fitted; GP-IN2679-W-LC is the loose-cable version

General

Mpn	GP-IN2679-W
Brand	Panorama Antennas
Configuration	8-in-1 (4 cellular, 3 Wi-Fi, 1 GPS)
Product Family	Dual Sharkee (GPS[X]D4[X]-6-60[-X])

Package

Shipping Weight

6.75 lb

Gps Data

Lna Gain	26 dB
Gnss Systems	GPS, GLONASS, Galileo, BeiDou
Gps Frequency Range	1559-1612 MHz
Number Of Gps Elements	1 Module

Cable Data

Cable Supply	Cables fitted
Cable Type Gps	FR CS29 / FR RG174
Cable Type Lte	FR RG174 / CS32
Cable Type Wifi	FR CS32 / FR RG174
Cable Length Gps	5 m (16.4 ft)
Cable Length Lte	5 m (16.4 ft)
Cable Length Whip	0.3 m (0.98 ft)
Cable Length Wifi	5 m (16.4 ft)
Quantity Of Cell Cable	4
Quantity Of Wifi Extension	Up to 4 (family specification)
Quantity Of Gps Gnss Extension	1

Configuration

Gps	1 module, 5 m cable, SMA (m), fitted
Wifi	3x3 MIMO, 5 m cables, RP-SMA, fitted
Cellular	4x4 MIMO, 5 m cables, SMA (m), fitted

Mounting Data

Mounting Methods	Magnetic, Panel
Mounting Type Temp	Magnetic
Mounting Type Fixed	Panel (single hole)

Approvals Data

Ip Rating	IP69K
Cable Flammability	EN45545-2 HL3, UN ECE R118, EN6722

Electrical Data

Pattern	Omnidirectional
Uhf Elements	No
Wifi Elements	3 x 3 MIMO
Cellular Lte Elements	4 x 4 MIMO
Cellular Frequency Range	617-960 / 1427-6000 MHz

Mechanical Data

Width	142 mm (5.59 in)
Colour	White
Height	82 mm (3.23 in)
Length	253 mm (9.96 in)
Operating Temperature	-40° to +80°C (-40° to +176°F)

Technology Data

Technology

4G/5G, 5G, 2G/3G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GPS, Wi-Fi MIMO, Wi-Fi, GNSS

Termination Data

Connector Gps	SMA (m)
Connector Lte	SMA (m)
Connector Wifi	Reverse Polarity SMA
Connector Vhf Uhf Whip	FME (m)

Purchasing this for your business?

Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Panorama SAB-311 Datasheet

0.5mb

Panorama SAB-312 Datasheet

0.5mb

Panorama Installation Instructions: SW3-1025-A4 GPSD4-SHK[G]4

1.1mb

Panorama GPS[X]D4[X]-6-60[-X] Datasheet

6.1mb

Frequently Asked Questions

How does the GP-IN2679-W differ from the GP-IN2679?▾

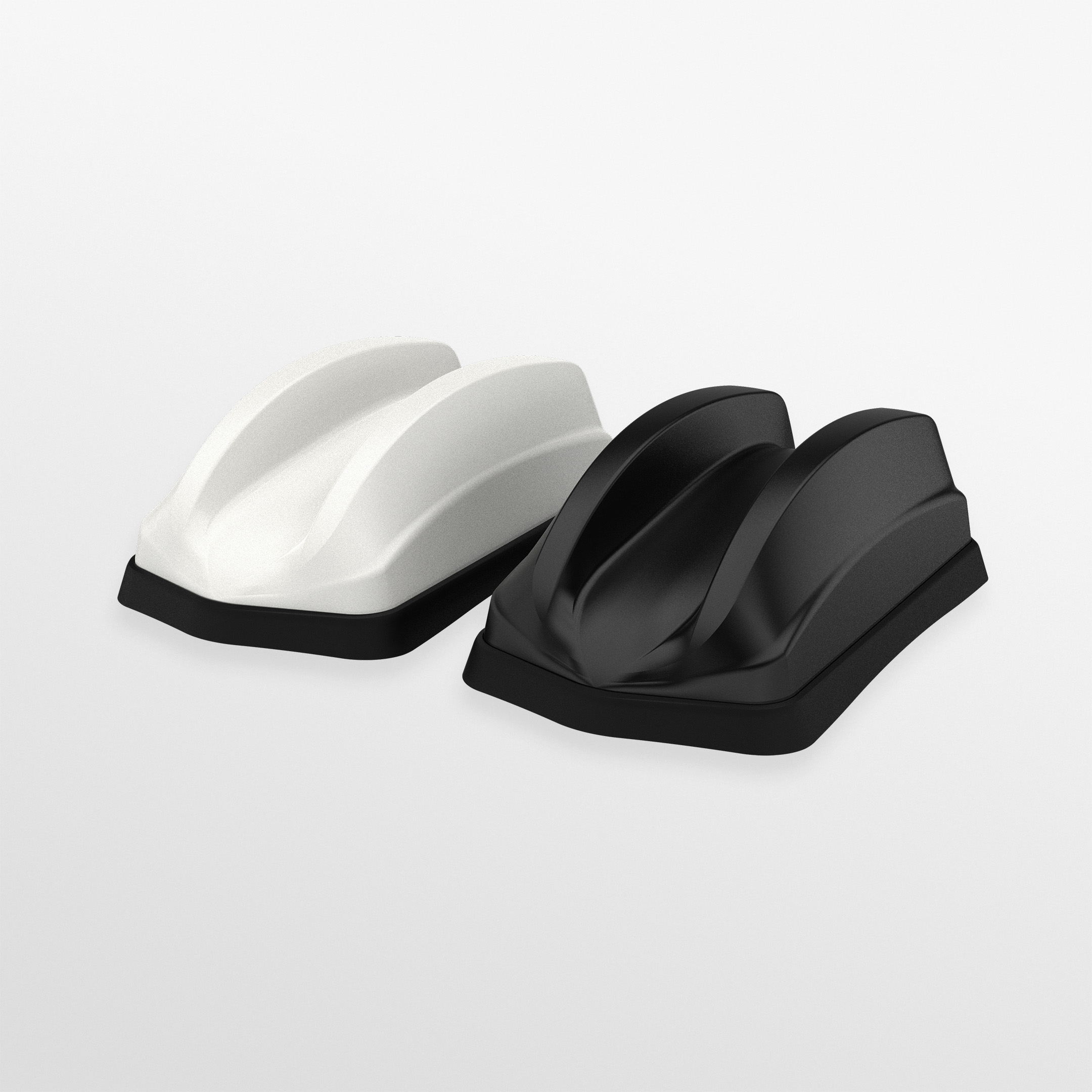

Only the housing colour. The GP-IN2679-W is white; the GP-IN2679 is black. Both have 4x4 MIMO cellular, 3x3 MIMO Wi-Fi, one GPS module and fitted 5 m cables.

What GNSS systems does it support?▾

The active GPS module covers 1559-1612 MHz for GPS, GLONASS, Galileo and BeiDou, with a 26 dB LNA and filtering for LTE Band 13/14 operation.

Which connectors does it use?▾

SMA (m) for cellular and GPS, reverse polarity SMA for Wi-Fi, and FME (m) for the optional whip.

What mounting accessories are available?▾

Panorama lists the SAB-333 magnetic mount, SAB-312 ribbed roof mounting kit and SAB-324-2 adaptor kit for Ford Explorer/Interceptor as compatible accessories.
