Panorama GP-IN2680 Dual Sharkee 7-in-1

Name: Panorama GP-IN2680 Dual Sharkee 7-in-1 4x4 MIMO 5G Sharkfin Antenna Kit with Fitted 5 m Cables, Black
Brand: Panorama
SKU: GP-IN2680
Price: 432.78 USD
Availability: InStock

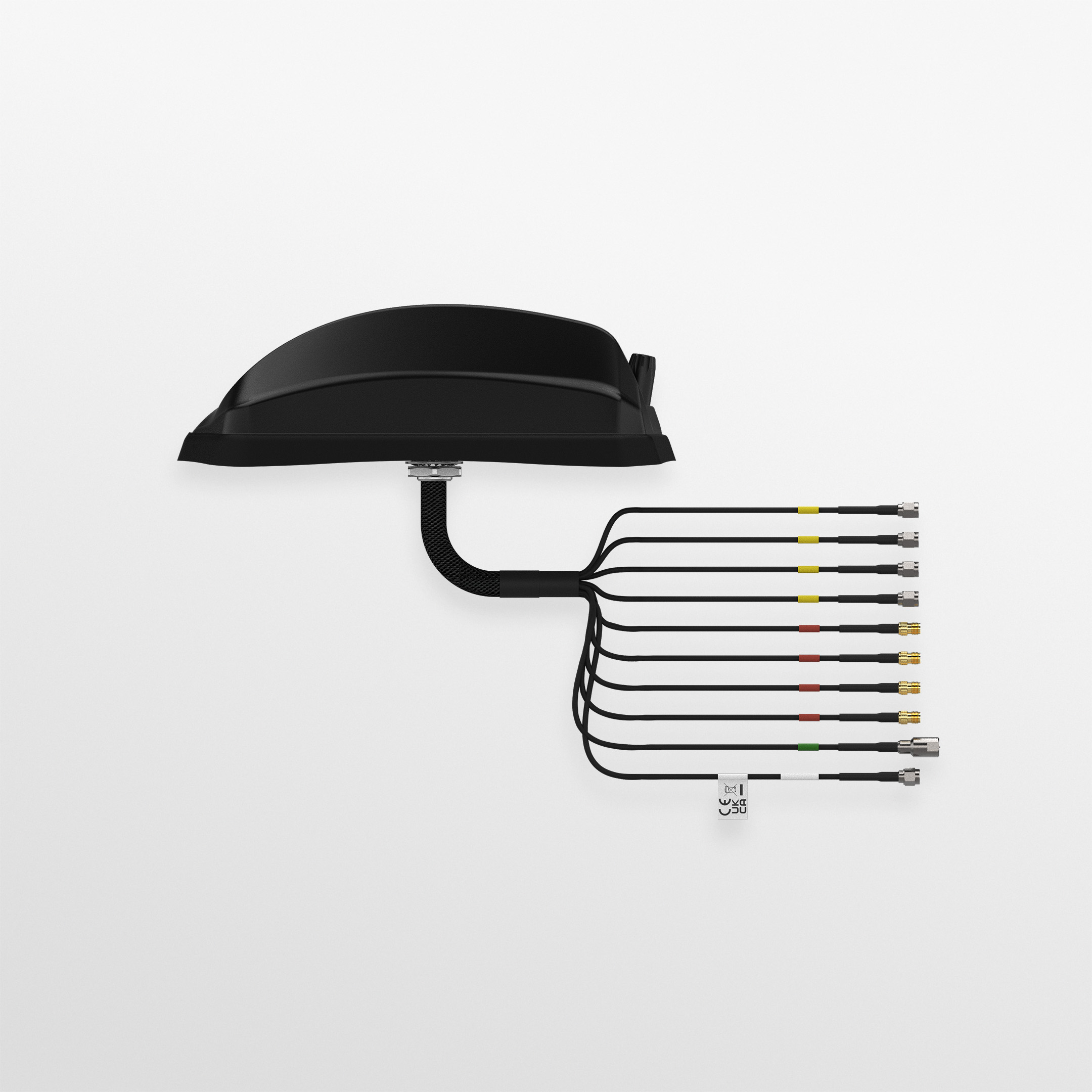

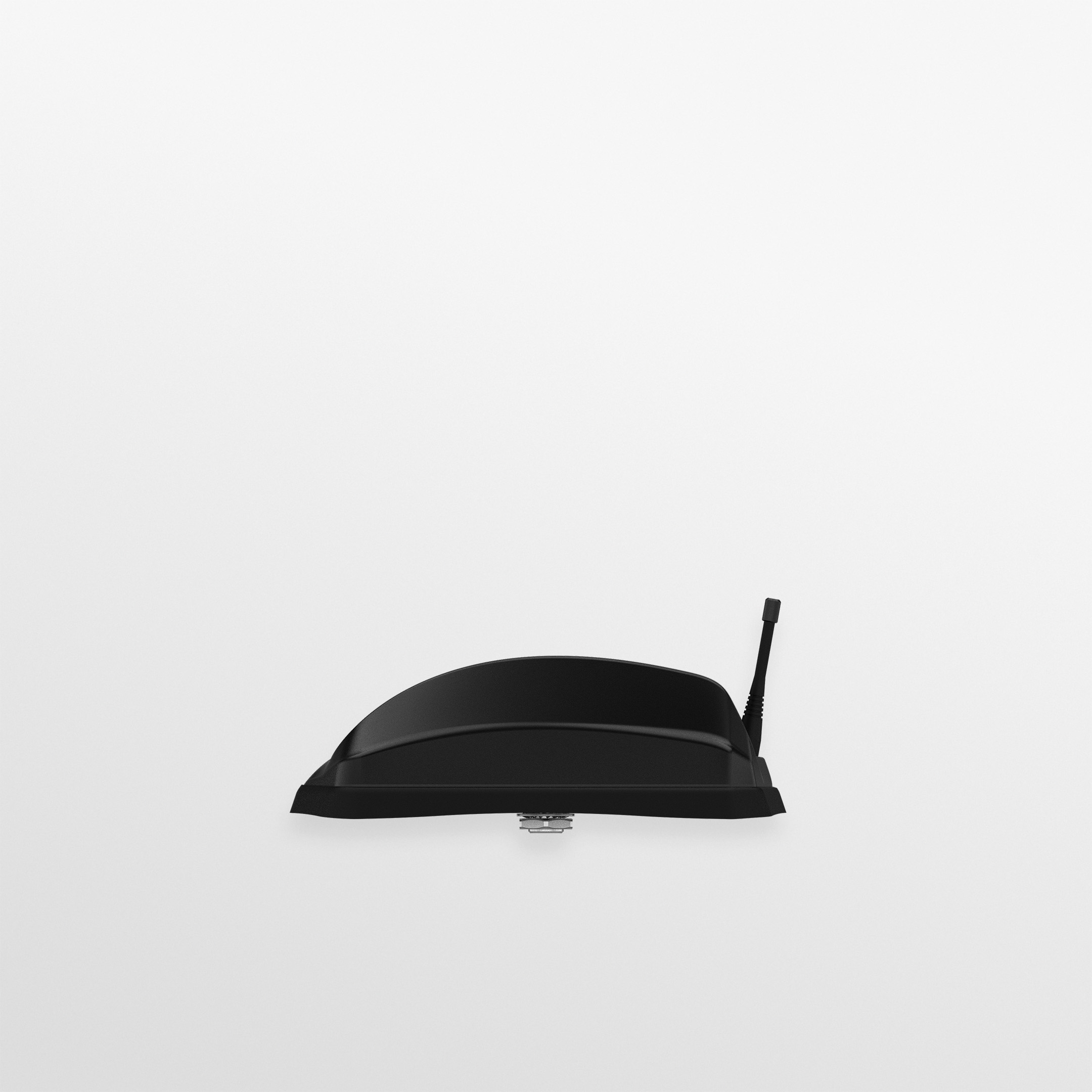

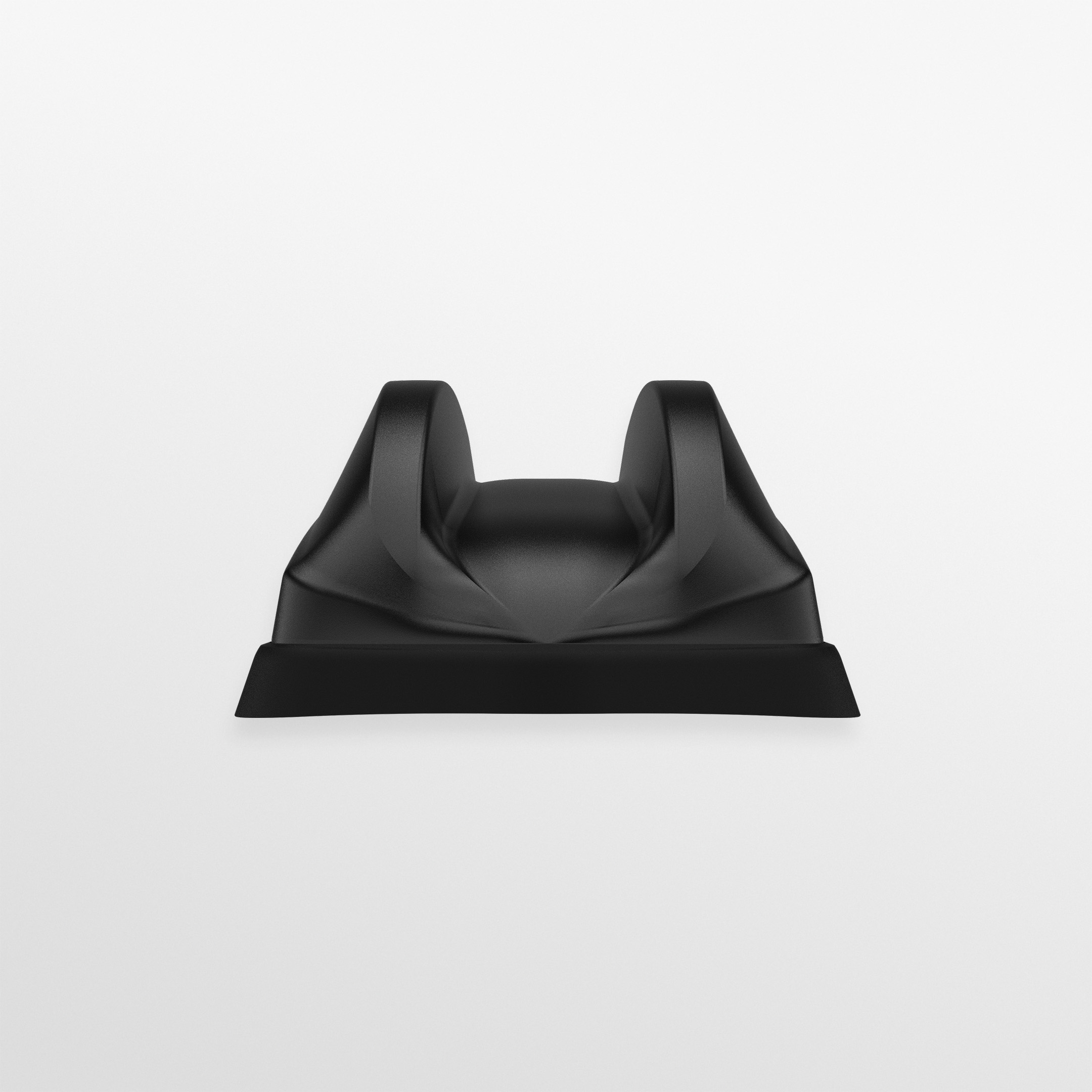

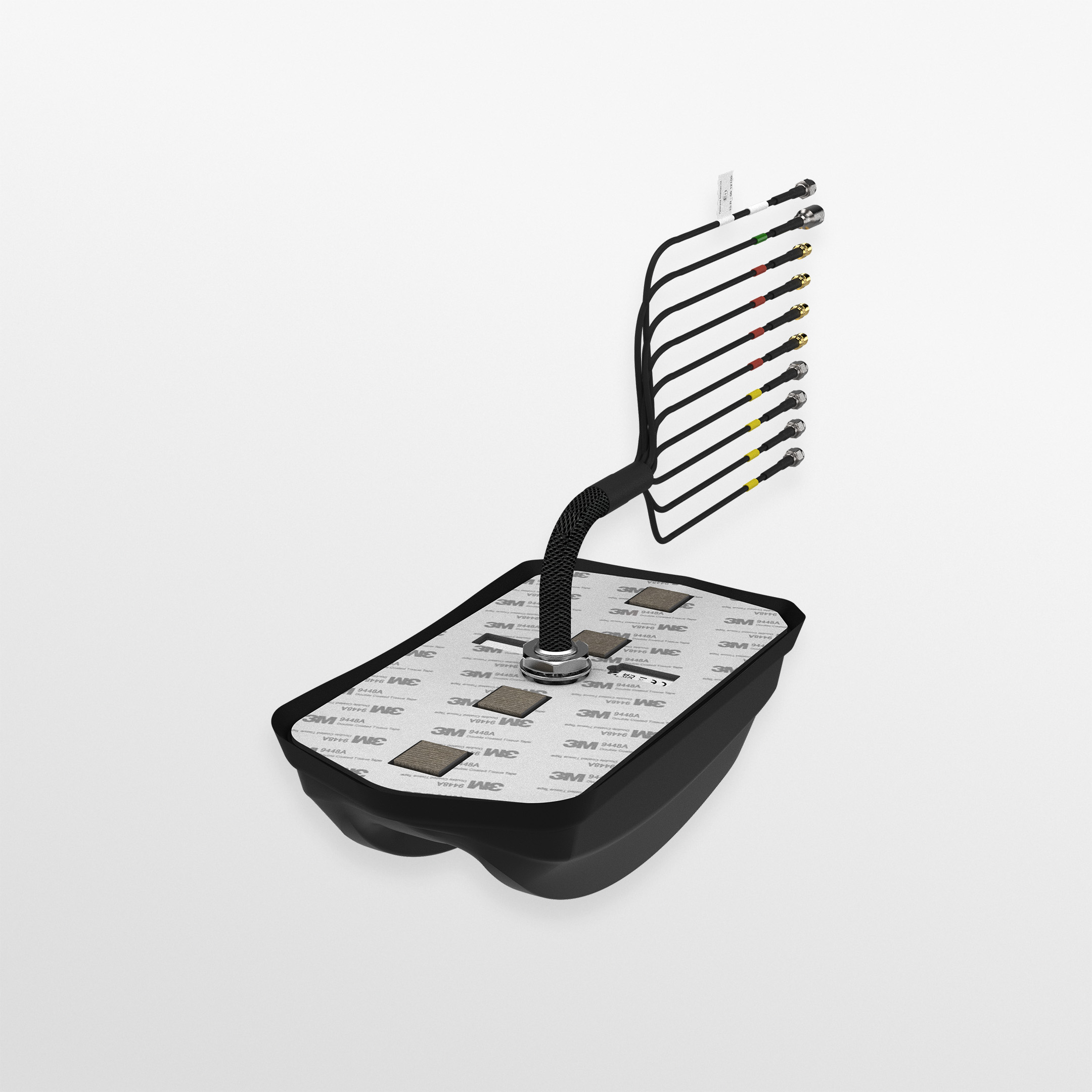

Black Panorama GP-IN2680 Dual Sharkee sharkfin vehicle antenna with 5G, Wi-Fi and GNSS elements.

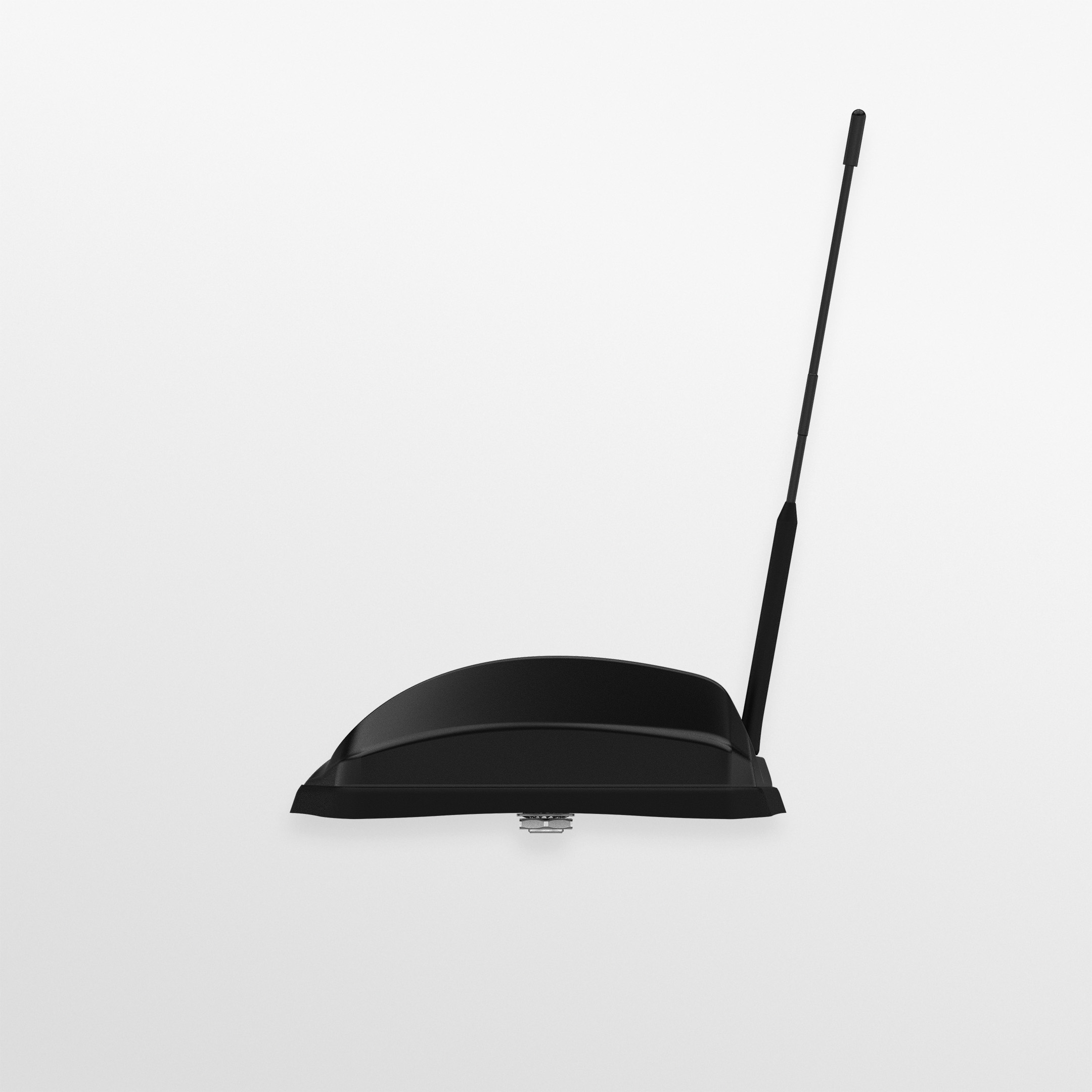

The Panorama GP-IN2680 is a black Dual Sharkee sharkfin antenna kit that combines seven antenna functions in one roof-mounted housing: four cellular elements for 4x4 MIMO 4G/5G, two Wi-Fi elements for 2x2 MIMO dual-band Wi-Fi and one active GPS/GNSS module. Built on the GPSD4-6-60-D, it is supplied with 5 m cables fitted for every function. It is a good match for vehicle routers and gateways with four cellular and two Wi-Fi antenna ports, and serves public safety, mass transit, utility and industrial fleets. The cellular elements cover 617-960 MHz and 1427-6000 MHz, spanning 600 MHz Band 71 through the sub-6 GHz 5G bands, on SMA (m) connectors. The Wi-Fi elements support Wi-Fi 6E and use reverse polarity SMA. The GPS module covers 1559-1612 MHz for GPS, GLONASS, Galileo and BeiDou, with a 26 dB LNA and filtering for LTE Band 13/14 operation. An integral stud mount accepts an external VHF, UHF or combination whip for voice radio (FME male, 0.3 m whip cable), and a blanking cap covers it when unused. Install on a metal panel when a whip is fitted; without a whip the antenna may be fitted on a non-metallic panel with similar performance. Single-hole panel mounting reduces vehicle damage, installation time and visual impact, and magnetic mounting is also listed. The housing measures 253 x 142 x 82 mm, is rated IP69K, operates from -40 to +80°C and uses cabling rated to EN45545-2 HL3, UN ECE R118 and EN6722. Panorama's datasheet and installation instructions are available for this model.

Ideal For

Police and emergency vehicles with 5G routers using two Wi-Fi antenna ports
Transit vehicles needing cellular, Wi-Fi and GNSS from one roof antenna
Utility and industrial fleets with vehicle gateways and GPS tracking
Vehicles adding VHF/UHF voice radio through the whip position

Why This Product

12x2 MIMO Wi-Fi (7-in-1), versus 3x3 on GP-IN2679 and 4x4 on GP-IN2670
2Cables supplied fitted; GP-IN2680-LC is the loose-cable version

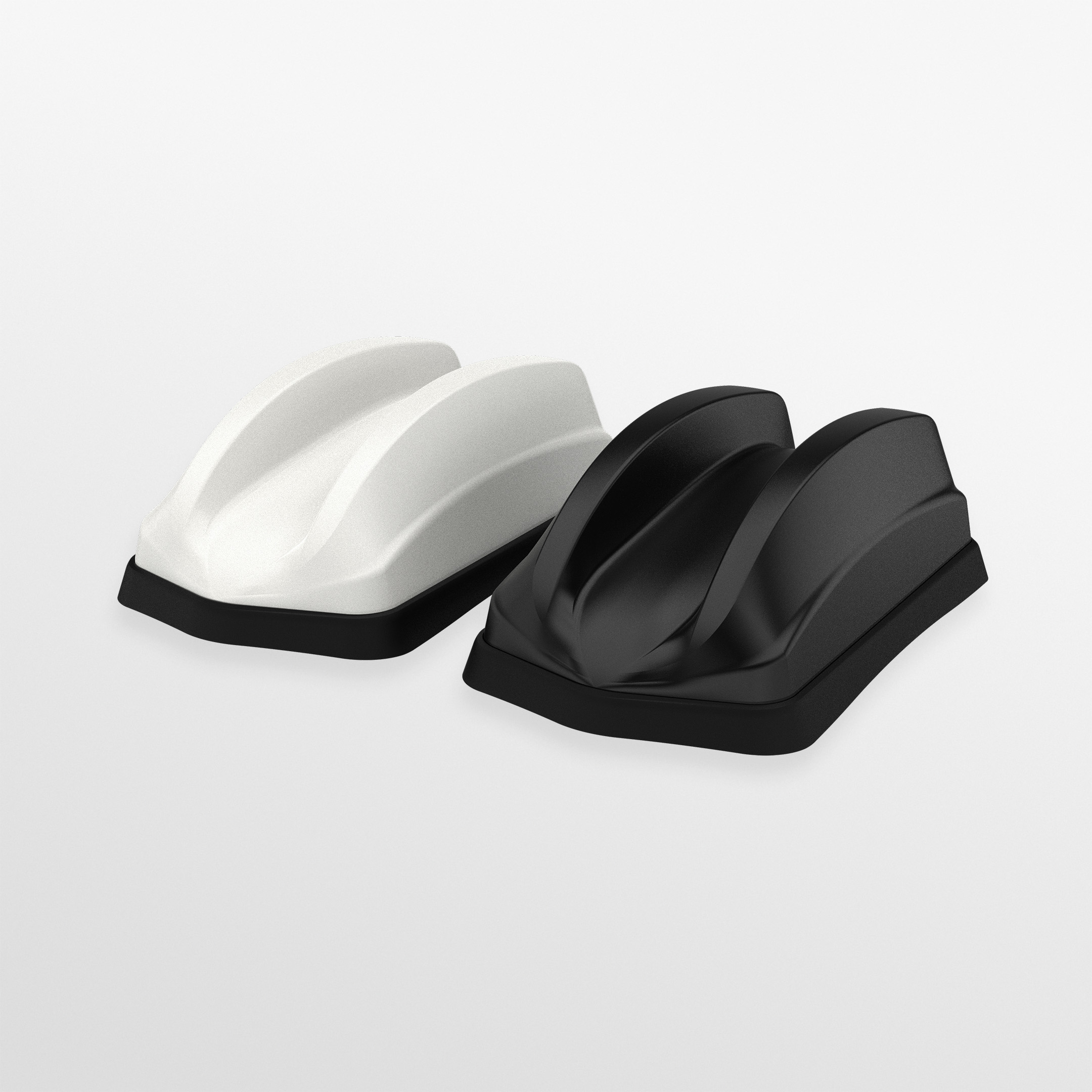

3Black housing; GP-IN2680-W is the white version

General

Mpn	GP-IN2680
Upc	5055416073952
Brand	Panorama Antennas
Base Antenna	GPSD4-6-60-D
Configuration	7-in-1 (4 cellular, 2 Wi-Fi, 1 GPS)
Product Family	Dual Sharkee (GPS[X]D4[X]-6-60[-X])

Package

Shipping Weight

6.16 lb

Gps Data

Lna Gain	26 dB
Gnss Systems	GPS, GLONASS, Galileo, BeiDou
Gps Frequency Range	1559-1612 MHz
Number Of Gps Elements	1 Module

Cable Data

Cable Supply	Cables fitted
Cable Type Gps	FR CS29 / FR RG174
Cable Type Lte	FR RG174 / CS32
Cable Type Wifi	FR CS32 / FR RG174
Cable Length Gps	5 m (16.4 ft)
Cable Length Lte	5 m (16.4 ft)
Cable Length Whip	0.3 m (0.98 ft)
Cable Length Wifi	5 m (16.4 ft)
Quantity Of Cell Cable	4
Quantity Of Wifi Extension	Up to 4 (family specification)
Quantity Of Gps Gnss Extension	1

Configuration

Gps	1 module, 5 m cable, SMA (m), fitted
Wifi	2x2 MIMO, 5 m cables, RP-SMA, fitted
Cellular	4x4 MIMO, 5 m cables, SMA (m), fitted

Mounting Data

Mounting Methods	Magnetic, Panel
Mounting Type Temp	Magnetic
Mounting Type Fixed	Panel (single hole)

Approvals Data

Ip Rating	IP69K
Cable Flammability	EN45545-2 HL3, UN ECE R118, EN6722

Electrical Data

Pattern	Omnidirectional
Uhf Elements	No
Wifi Elements	2 x 2 MIMO
Cellular Lte Elements	4 x 4 MIMO
Cellular Frequency Range	617-960 / 1427-6000 MHz

Mechanical Data

Width	142 mm (5.59 in)
Colour	Black
Height	82 mm (3.23 in)
Length	253 mm (9.96 in)
Operating Temperature	-40° to +80°C (-40° to +176°F)

Technology Data

Technology

4G/5G, 5G, 2G/3G, 2G/3G/4G, Band 71 600 MHz ready, FirstNet, GPS, Wi-Fi MIMO, Wi-Fi, GNSS

Termination Data

Connector Gps	SMA (m)
Connector Lte	SMA (m)
Connector Wifi	Reverse Polarity SMA
Connector Vhf Uhf Whip	FME (m)

Purchasing this for your business?

Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.

Wholesale pricing below retail

Net-30 terms for qualified businesses

Volume discount tiers

Dedicated account representative

Saved payment methods & PO support

Priority order processing

Create Free Business Account

Documentation

Panorama SAB-311 Datasheet

0.5mb

Panorama SAB-312 Datasheet

0.5mb

Panorama Installation Instructions: SW3-1025-A4 GPSD4-SHK[G]4

1.1mb

Panorama GPS[X]D4[X]-6-60[-X] Datasheet

6.1mb

Frequently Asked Questions

Which routers suit the GP-IN2680?▾

It provides four cellular cables (SMA m), two Wi-Fi cables (reverse polarity SMA) and one GPS cable (SMA m), so it pairs with vehicle routers or gateways that have matching antenna ports.

Which cellular frequencies does it cover?▾

617-960 MHz and 1427-6000 MHz in a 4x4 MIMO arrangement, including 600 MHz Band 71 and the sub-6 GHz 5G bands.

Does it support Wi-Fi 6E?▾

Yes. The Dual Sharkee Wi-Fi elements support dual-band Wi-Fi including Wi-Fi 6E; this model has two Wi-Fi elements for 2x2 MIMO.

How rugged is it?▾

It is rated IP69K, operates from -40 to +80°C, and its cabling meets EN45545-2 HL3, UN ECE R118 and EN6722.
