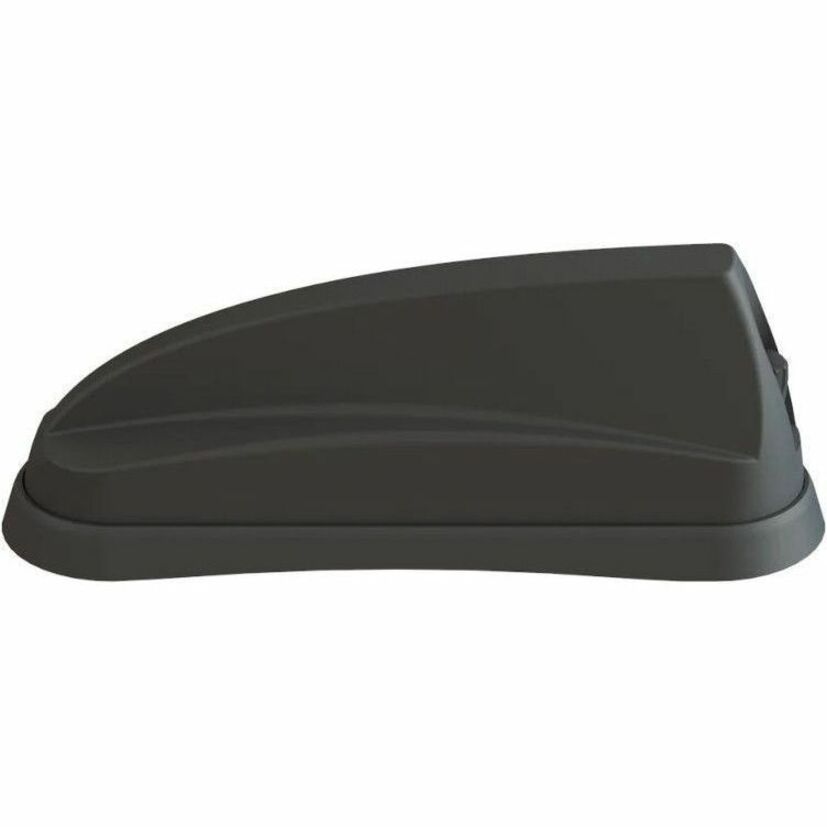

The Panorama SHKG-6-60-DW is a Sharkee OEM-style sharkfin antenna in black. It carries three antenna functions in one housing: 2x2 MIMO 4G/5G cellular, 2x2 MIMO dual-band Wi-Fi and an active GNSS antenna. It fits police and law-enforcement, EMS and fire, mass-transit and utility vehicles. In each case, a router uses one roof antenna for the WAN, in-vehicle or nearby Wi-Fi, and location. The cellular elements have three gain ratings: - 5 dBi across 617-960 MHz - 8 dBi across 1710-3800 MHz - 9 dBi across 4900-6000 MHz Band 71 600 MHz readiness and FirstNet are listed among supported technologies. The two Wi-Fi elements cover 2.4 and 4.9-7.2 GHz and support Wi-Fi 6. The GNSS module covers 1562-1612 MHz for GPS, GLONASS, Galileo and BeiDou. It has a 26 dB LNA and advanced filtering for LTE Band 13/14 operation. The pattern is omnidirectional and maximum input power is 10 W. The housing measures 243 x 63 x 90 mm (9.57 x 2.48 x 3.54 in). It is IP69K rated for -40 °C to +80 °C operation. It installs through a single hole on metallic or non-metallic panels and fits between roof ribs on all major vehicle manufacturers. It can also replace a factory-fitted antenna. All pigtails are 0.3 m of flame-retardant RG174, and the cable feeds are UN ECE R118 compliant. They terminate as follows: - Cellular: SMA (m) - GNSS: FME (f) - Wi-Fi: SMA (f) Panorama publishes a datasheet, installation instructions and a flyer for the SHKG-6-60 family.
