| Weight | 2.2 lbs. [1.0 kg] |
| Humidity | 10% to 90% (non-condensing) |
| Warranty | 5 Years |
| Backplane | 20 Gbps |
| Poe Power | 30 Watts for (4) ports simultaneously; 15.4 Watts for (8) ports simultaneously |
| Sfp Slots | (2) 100/1000 SFP slots |
| Dimensions | 8.66” [220 mm] x 9.53” [242 mm] x 1.73” [44 mm] |
| Management | Web Management, SNMP V1/V2c/V3, Telnet, CLI |
| Poe Budget | Max PoE budget 130 Watts |
| Technology | Store-and-Forward switching architecture |
| Mac Address | 8K MAC address table |
| Power Input | +52 to +54VDC or -52 to -54VDC |
| Rj-45 Ports | (8) 10/100/1000 RJ-45 ports |
| Poe Standard | Compliant with IEEE 802.3af PoE |
| Poe+ Standard | Compliant with IEEE 802.3at PoE+ |
| Troubleshooting | Network diagnostic, protection mechanism, performance and link management |
| Power Consumption | 140 Watts (full load with PoE) |
| Graphical Monitoring | Topology view, Floor view, Map view |
| Operating Temperature | 0°C to +50°C |
| Safety Certifications | EN60950, UL/cUL Listed |
| Device Management System | Traffic Monitoring |
Business account holders on Managed Switches typically save 13% vs. retail pricing. Create a free account to see your price.
It uses +52 to +54VDC or -52 to -54VDC power input.

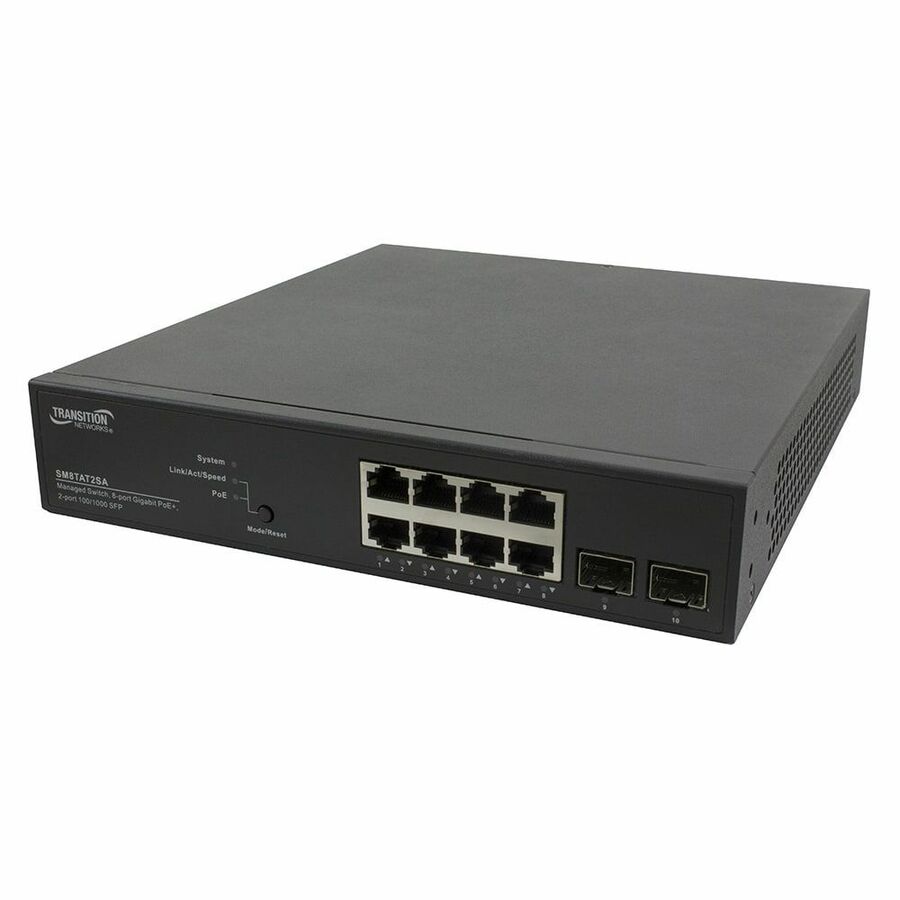

It provides (8) 10/100/1000Base-T copper ports with IEEE 802.3at PoE+ capability and (2) 100/1000Base-X SFP slots.
Yes. The part row states that the SM8TAT2SA-DC includes 19” rack mount brackets.
Management features include Web Management, SNMP V1/V2c/V3, Telnet and CLI, plus embedded Device Management System (DMS) software.
