| Weight | 11.1 lbs. maximum, depending on option |
| Ac Input | 100-240 VAC, 50 to 60 Hz |
| Mounting | Front-mid-rear mounting brackets |
| Usb Ports | 2 x USB |
| Dimensions | 30.5 x 44.4 x 4.4 cm (12 x 17.48 x 1.75 in) |
| Rack Height | 1U |
| Tls Support | TLS v1.0, TLS v1.1, TLS v1.2, TLS v1.3 |
| Device Ports | 16 RJ-45 serial ports |
| Power Supply | Single AC Supply |
| Sd Card Slot | SD and SDHC |
| Secure Shell | SSH v2, Public Key |
| Usb Standard | USB 2.0 High Speed, Full Speed, Low Speed |
| Console Speed | 300 to 230400 bps |
| Heat Flow Rate | 68 BTU per hour |
| Port Buffering | 256 KB per port |
| Shipping Weight | 15.1 lbs. maximum, depending on option |
| Fiber Interfaces | Dual 1 Gb fiber SFP |
| Limited Warranty | 3 Year |
| Operating System | Embedded Linux |
| Console Connector | RS-232 (RJ-45) |
| Fips Cryptography | FIPS 140-2 compliant cryptography (Certificate #2398) |
| Power Consumption | Less than 30W |
| Network Interfaces | Dual 10/100/1000 Base-T RJ-45 Ethernet |
| Storage Temperature | -20 to 80⁰ C (-4 to 176⁰ F), 10 to 90%RH, non-condensing |
| Operating Temperature | 0 to 50⁰ C (32 to 122⁰ F), 30 to 90%RH, non-condensing |
| Remote Authentication | LDAP, RADIUS, Kerberos, TACACS+, Active Directory, NIS |
| Maximum Concurrent Users | 352 concurrent users |
| Serial Device Port Speed | 300 to 230400 bps |
| Maximum Users Per Device Port | 15 users per device port at 9600 baudrate (typical) |
Business account holders on Console Servers typically save 13% vs. retail pricing. Create a free account to see your price.

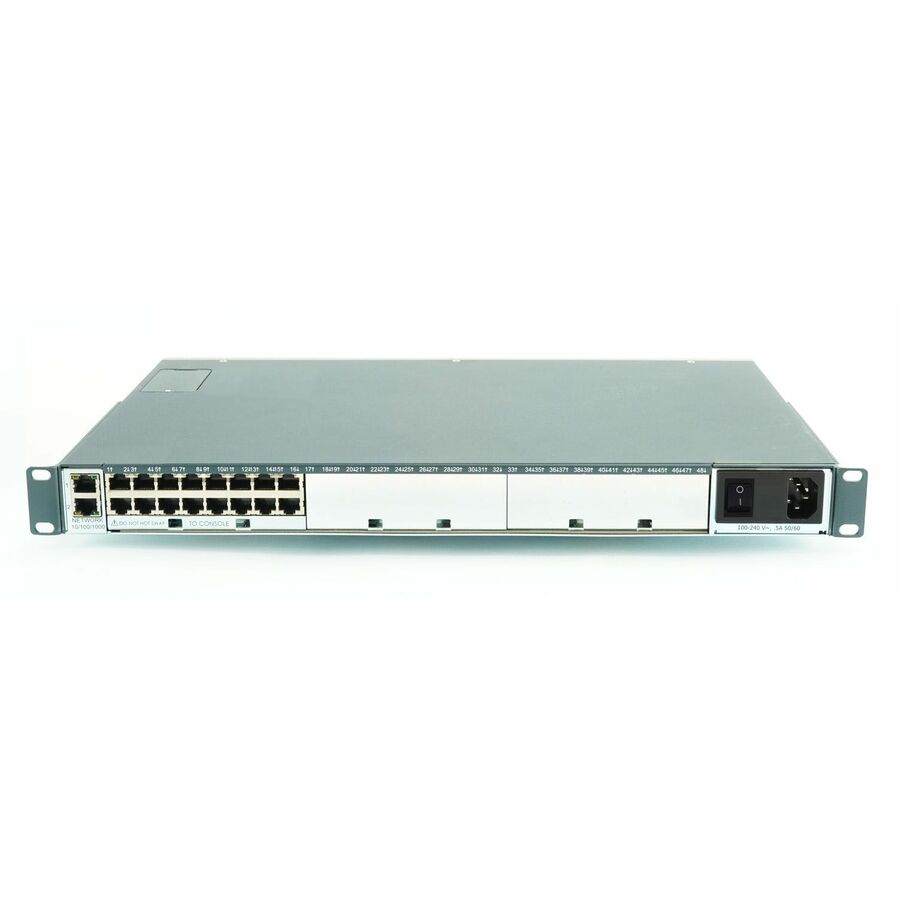

SLC80161201S is the 16 Ports RJ45 configuration of the Lantronix SLC 8000 advanced console manager.
This SKU has a Single AC Supply. The AC model input is 100-240 VAC, 50 to 60 Hz, and a North American power cord is included. Regional power cords are sold separately.
Yes. The SLC 8000 is compatible with the Lantronix Percepxion central management software.
Security features include SSH v2, TLS v1.0 through TLS v1.3, packet filtering, per port user permissions, remote authentication, and FIPS 140-2 compliant cryptography (Certificate #2398).
