| Weight | 0.35 kg (0.77 lb) |
| Usb Port | Type C Host / Device Connector |
| Warranty | 5-Year Limited Warranty |
| Ip Rating | 30 |
| Data Rates | Up to 921 Kbps |
| Dimensions | 10.8 cm (4.3 in) x 7.2 cm (2.8 in) x 3.3 cm (1.3 in) |
| Power Input | DC barrel, 9-30 VDC (standard) |
| Ethernet Port | RJ-45 Ethernet port |
| Wireless Band | Dual band 2.4 GHz and 5 GHz |
| Ethernet Speed | 10/100Mbps |
| Wireless N Mode | 1×1 n (MCS0 – MCS7) |
| Serial Interface | RS-232 or Multi-protocol RS-232/422/485 |
| Wireless Ac Mode | 1×1 AC (MCS0 – MCS9) |
| Power Consumption | 1.9W typical without USB Load |
| Relative Humidity | 5 to 95%, Non-condensing |
| Usb Specification | Configurable USB 2.0 HS/FS port with USB type C connector |
| Wireless Standards | IEEE 802.11a/b/g/n/AC |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Optional Power Input | Power over Ethernet (optional) |
| Powered Device Class | 3at Class 2 Powered Device |
| Operating Temperature | -40° to 70° C (-40° to 158° F) |
| Security Certification | FIPS 140-2 Level 1 Certification* |
| Ethernet Surge Isolation | 1.5 KV Surge Isolation |
| Maximum Power Consumption | 5.5W max with USB Load |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
It supports IEEE 802.11a/b/g/n/ac wireless. The wireless specifications include 1×1 ac, 1×1 n, and dual band 2.4 GHz and 5 GHz operation.

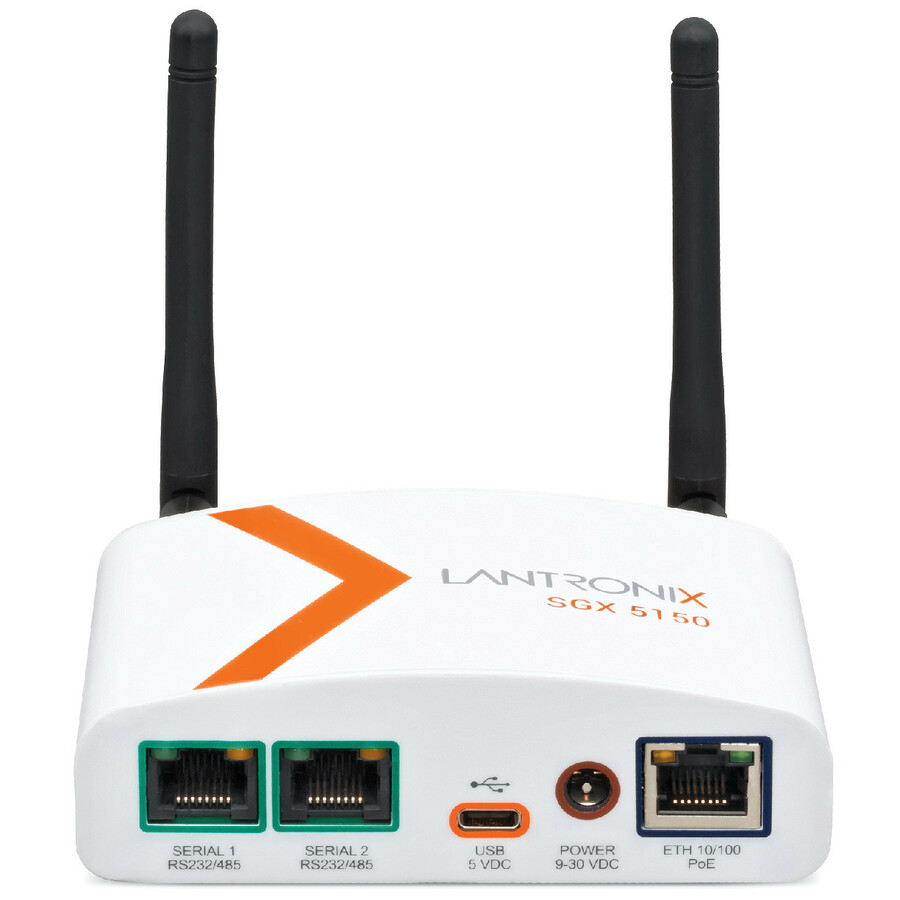

The listed interfaces include RJ-45 serial connectivity that can be RS-232 or multi-protocol RS-232/422/485, a USB Type C host/device connector, and an RJ-45 Ethernet port with 10/100Mbps support.
Power input is listed as a DC barrel, 9-30 VDC standard input. The input data also lists Power over Ethernet as optional and a USB Type C I/O connector.
Management interfaces include Web Manager through an HTML5 browser over HTTP/HTTPS, CLI over serial ports, telnet or SSH, OTA field upgrade, SNMP v2 and V3, and XML configuration records via CLI or FTP.
