| Input | DC barrel, 9-30 VDC (standard) |
| Region | US |
| Series | SGX 5150 |
| Weight | 0.35 kg (0.77 lb) |
| Ethernet | 10/100 ETHERNET |
| Usb Port | Type C Host / Device Connector |
| Warranty | 5-Year Limited Warranty |
| Wireless | 802.11A/B/G/N/AC |
| Ip Rating | 30 |
| Data Rates | Up to 921 Kbps |
| Dimensions | 10.8 cm (4.3 in) x 7.2 cm (2.8 in) x 3.3 cm (1.3 in) |
| Flash Memory | 256M FLASH |
| Optional Input | Power over Ethernet (optional) |
| Serial Interface | 1xRS232(RJ-45) |
| Power Consumption | 1.9W typical without USB Load |
| Relative Humidity | 5 to 95%, Non-condensing |
| Usb Specifications | Configurable USB 2.0 HS/FS port with USB type C connector |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Powered Device Class | 3at Class 2 Powered Device |
| Max Power Consumption | 5.5W max with USB Load |
| Operating Temperature | -40° to 70° C (-40° to 158° F) |
| Ethernet Specifications | IEEE 802.3 MAC and PHY, 10BaseT and 100BaseT |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.

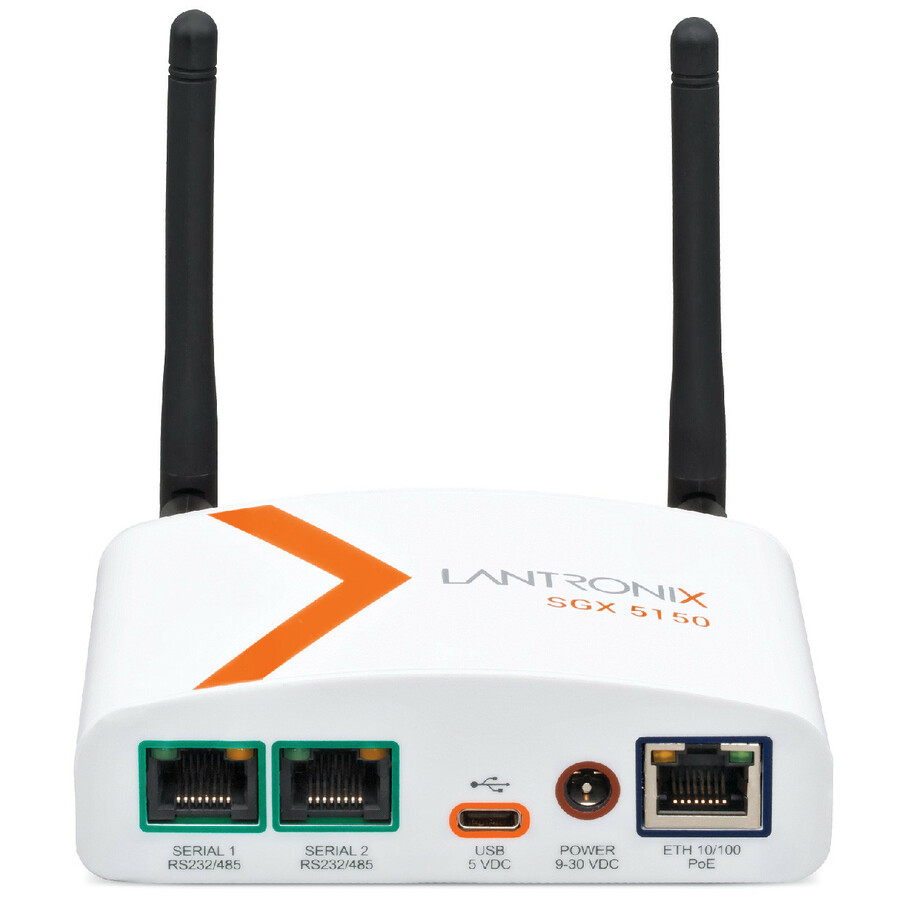

SGX5150122US is listed as an SGX 5150 IoT device gateway with wireless 802.11a/b/g/n/ac, 1xRS232(RJ45), USB, 10/100 Ethernet, 256M Flash and US designation.
Management interfaces include Web Manager through an HTML5 browser over HTTP/HTTPS, CLI over serial ports, telnet or SSH, SNMP v2 and V3, and XML configuration records via CLI or FTP.
The extended operating temperature is -40° to 70° C (-40° to 158° F). Extended storage temperature is -40° to 85° C (-40° to 185° F).
TruPort Security includes WLAN security, AES/CCMP and TKIP encryption, 802.11i, WPA/WPA2 Pre-Shared Key (PSK) or IEEE 802.1X, AES-CCMP, and EAP-TLS, EAP-TTLS, EAP-PEAP and EAP-FAST methods.
