| Flash | 256M Flash |
| Series | SGX 5150 |
| Weight | 0.35 kg (0.77 lb) |
| Ethernet | 10/100 Ethernet |
| Usb Port | Type C Host / Device Connector |
| Ip Rating | 30 |
| Poe Input | Power over Ethernet (optional) |
| Data Rates | Up to 921 Kbps |
| Dimensions | 10.8 cm (4.3 in) x 7.2 cm (2.8 in) x 3.3 cm (1.3 in) |
| Dc Power Input | DC barrel, 9-30 VDC (standard) |
| Powered Device | 3at Class 2 Powered Device |
| Regional Version | US (For JAPAN Deployments) |
| Serial Interface | 1xRS232 (RJ-45) |
| Relative Humidity | 5 to 95%, Non-condensing |
| Usb Specifications | Configurable USB 2.0 HS/FS port with USB type C connector |
| Wireless Standards | 802.11a/b/g/n/AC |
| Power Consumption Max | 5.5W max with USB Load |
| Wireless Channel Width | 20, 40 and 80 MHz Channels with optional SGI |
| Ethernet Specifications | IEEE 802.3 MAC and PHY, 10BaseT and 100BaseT |
| Wireless Specifications | 1×1 AC (MCS0 – MCS9) |
| Power Consumption Typical | 1.9W typical without USB Load |
| Extended Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Extended Operating Temperature | -40° to 70° C (-40° to 158° F) |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.

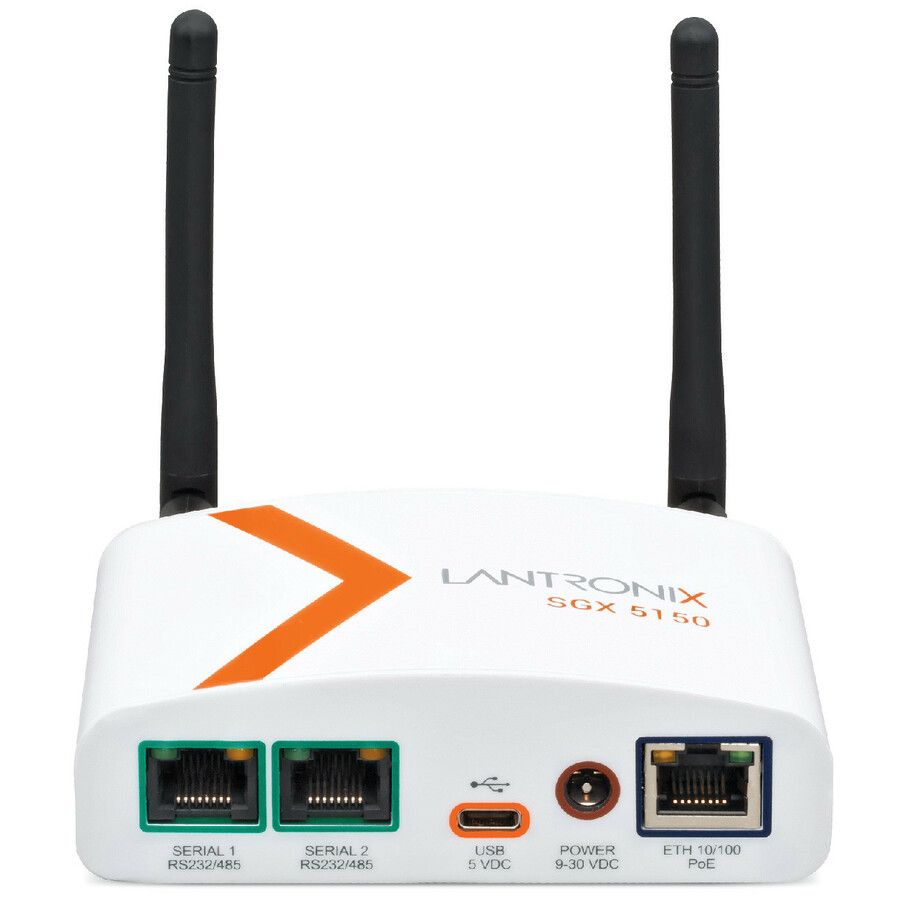

SGX5150122JS is an SGX 5150 Wireless IoT Gateway with 802.11a/b/g/n/ac, 1xRS232 (RJ45), USB, 10/100 Ethernet, 256M Flash, US (For JAPAN Deployments).
The SGX 5150 supports Web Manager through an HTML5 browser over HTTP/HTTPS, CLI over serial ports, telnet or SSH, SNMP v2/v3, OTA field upgrade and XML configuration records via CLI or FTP.
The listed inputs are DC barrel, 9-30 VDC (standard); Power over Ethernet (optional); and USB Type C I/O connector.
The extended operating temperature is -40° to 70° C (-40° to 158° F).
