| Digital Input | 0 V DC ~ 1 V DC = ZERO; 1.4 V ~ 36 V DC = ONE |
| Digital Output | open collector, 100 mA max, 36 V DC max |
| User Configurable Io | 2 user-configurable I/Os via the 4-pin Micro-Fit power connector (lower row) |
| Input Voltage | 8 ~ 32 V DC, with slow start |
| Power Off Timekeeping | Dedicated RTC with 100-day data retention (approx. 15 mWh lithium manganese battery, not functional below -20 °C) |
| Rs232 | RS-232 full implementation via 9-pin sub-D header |
| Rs485 | RS-485 via SNAP CAP SC485 adapter (sold separately); isolated half- or full-duplex on 5-pin, 3.5 mm pitch COMBICON header |
| Mpn | E214G001S |
| Upc | 783384241008 |
| Brand | Lantronix |

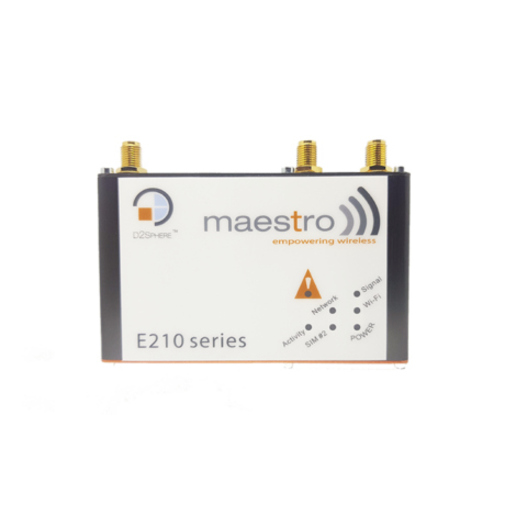

| Model | E214G |
| Series | E210 Series |
| Regional Variant | North America (Verizon) |
| Sim | Dual SIM, single standby; via two mini-SIM held in trays |
| Lte Bands | LTE Cat-1: B13, B14 |
| Technology | 4G LTE Cat-1 |
| Ports | 2 x 10/100 Ethernet |
| Configuration | One LAN and one WAN (reconfigurable as second LAN); RJ-45 headers fitted with two LEDs |
| Size | 92.5 x 57.2 x 22.5 mm without connectors |
| Weight | Approx. 150 g |
| Material | Brushed aluminum alloy |
| Status Leds | Seven: POWER; blue SIM, Wi-Fi; amber Activity, Network, Signal; red ALERT |
| Shipping Weight | 0.44 lb |
| Sdk | G520 SDK for custom packages and firmware images using Python or standard C/C++ |
| Vpn | PPTP client, L2TP, OpenVPN client/server/passthrough, GRE, IPsec (up to 4 channels), WireGuard |
| Cloud | TR-069, MQTT/s, TLS 1.3, Percepxion integration |
| Routing | DHCP, static routing, port forwarding, traffic routing, static/dynamic DNS, DNS proxy, NAT, STP |
| Security | Secure HTTPS web UI; zone-based firewall, VLAN, DMZ, HTTPS local and remote connection, SIM PIN |
| Redundancy | Ethernet, Cellular, Wi-Fi – configurable as failover or load balancing |
| Resilience | Configurable network connectivity watchdog, internal application watchdog |
| Wifi Software | Client or Access point (approx. 12 users), WEP, WPA, WPA-PSK / WPA2-PSK, WPA3-PSK security modes |
| Administration | Web-based UI, setup wizard, console log viewer, save/load configuration, NTP, SMS/OTA remote configuration, TR-069-capable |
| Device Management | Lantronix Percepxion platform or third-party platforms |
| Industrial Protocols | Modbus RTU/TCP to IEC-60870-5-104, Modbus master, Modbus RTU to TCP, Modbus to MQTT/Cumulocity/FTP/Azure/HTTP, Serial to FTP, IEC-60870-5-101 to 104, Modbus to DNP3, I/O to Modbus, I/O to IEC 104, I/O toggling through SMS |
| Performance Fault Management | Real-time processor load and interface (WAN/LAN/Wi-Fi) traffic analysis, ICMP, trace-route, NS lookup |
| Cpu | MIPS32 24KEc CPU at 580 MHz |
| Ram | DDR SDRAM 128 MB |
| Flash | SPI Flash 32 MB |
| User Storage | External via microSD card (not provided) |
| Gps | GPS via a dedicated SMA antenna connector |
| Storage | -40 °C ~ +85 °C; up to 95% RH |
| Operating | -20 °C ~ +70 °C; up to 95% RH |
| Wifi Modes | Client or Access point (approx. 25 users), WEP, WPA, WPA-PSK / WPA2-PSK security mode |
| Wifi Radio | 1T1R Wi-Fi 4; via an RP-SMA antenna connector |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
Cert, Environmental, E210
0.1mb
Cert, RoHS and REACH FM-418 A, Lantronix Mobility Solutions – FOX3
0.1mb
CERTIFICATE, FCC, E214G#01
0.1mb
Certs RoHS and REACH, E210 & E220 Series
0.1mb
Cert, MTBF Declaration, E214 Series
0.1mb
E210 Series – Product Brief
0.3mb
E210 Series – Product Brief (A4)
0.3mb
Lantronix E210 Series Routers Case Study for ATM Monitoring Solutions – Argus Secure Technologies
0.7mb
E210 Series – User Guide
1.1mb
Lantronix Mobility Solutions Brochure
3.5mb
E214G Quick Start Guide Rev B
0.3mb
E214 & E218 Quick Start Guide Rev B
0.3mb
E210 and E220 Series – ePACK User Guide
8.0mb
It is the North America Verizon variant of the E214G, operating on LTE Cat-1 bands B13 and B14.
Two 10/100 ports: one LAN and one WAN. The WAN port can be reconfigured as a second LAN port.
Yes. As a G variant, it provides GPS through a dedicated SMA antenna connector.
Yes. The router runs Lantronix's Linux-based ePack suite, and the G520 SDK lets you build custom packages and firmware images in Python or C/C++.
-20 °C to +70 °C, up to 95% relative humidity. Storage range is -40 °C to +85 °C.
