| Model | 24-Port LM83X |
| Safety | TUV RoHS compliant |
| Weight | 3.72 kg (8.2 lbs.) |
| Sfp Port | One |
| Emissions | FCC class A sub part B |
| Operating | 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing |
| Dimensions | 43.2 mm (1.7 in.) x 445 mm (17.5 in.) x 264 mm (10.4 in.); 1 rack unit (1RU) |
| Usb-A Port | One |
| Usb-C Port | One |
| Form Factor | Rack-mountable |
| Option Slot | One option slot (RS-232; V.92, cellular, and fiber cards available) |
| Serial Ports | 24 |
| Cybersecurity | FIPS 140-2 Level 2 (available) |
| Non-Operating | -30° C to 60° C (-22° F to 140° F) at mean sea level, 90% relative humidity, non-condensing |
| Ethernet Ports | 3 |
| Ac Power Supply | Dual input, (100-240 VAC) 50/60 Hz, 60 W |
| Expansion Slots | 3.0 Total Expansion Slot(s) |
| Limited Warranty | 1 Year |
| On-Board Storage | 256GB NVMe supporting TCG Opal 2.0, 256-bit AES encryption |
| Rs-232 Console Port | One |
| Dedicated Ethernet Ports | 8 |
| Management Ethernet Interfaces | Two 10/100/1000 BaseT Ethernet interfaces (with failover support) |
Business account holders on Remote Management typically save 16% vs. retail pricing. Create a free account to see your price.

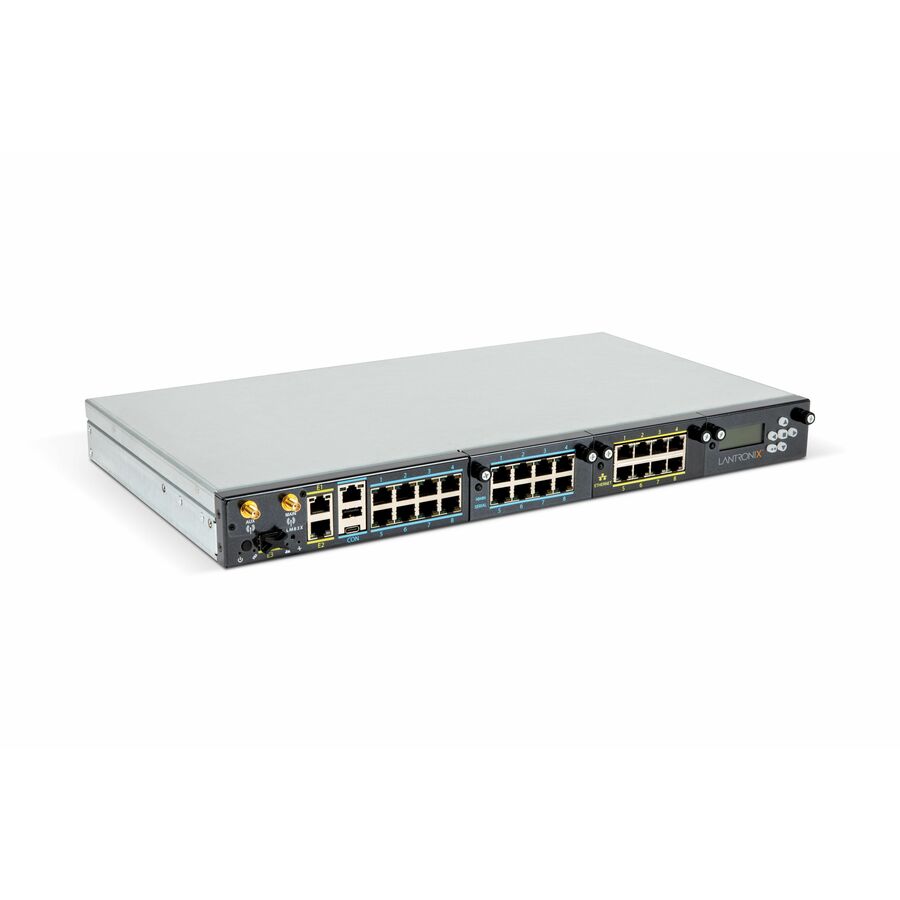

83X-24S-E34-NAA is a 24-Port LM83X with 24 serial ports, 8 dedicated Ethernet ports, an LCD Module, 3 Ethernet ports and LMS (3M Cables).
Yes. The LM83X can be accessed directly through the CLI or through Lantronix Control Center to manage LM-Series devices and automate management of connected devices.
The LM83X measures 43.2 mm (1.7 in.) x 445 mm (17.5 in.) x 264 mm (10.4 in.); 1 rack unit (1RU), and weighs 3.72 kg (8.2 lbs.).
The operating range is 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing.
