| Safety | TUV RoHS compliant |
| Weight | 3.72 kg (8.2 lbs.) |
| Ac Model | Dual input, (100-240 VAC) 50/60 Hz, 60 W |
| Dc Model | Dual input, -20 to -72 VDC |
| Sfp Port | One SFP port |
| Warranty | 1 Year |
| Emissions | FCC class A sub part B |
| Operating | 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing |
| Dimensions | 43.2 mm (1.7 in.) x 445 mm (17.5 in.) x 264 mm (10.4 in.); 1 rack unit (1RU) |
| Usb-A Port | One USB-A port |
| Usb-C Port | One USB-C port |
| Form Factor | Rack-mountable |
| Option Slot | One option slot (RS-232; V.92, cellular, and fiber cards available) |
| Console Port | One RS-232 console port |
| Serial Ports | 24 Serial Ports |
| Cybersecurity | FIPS 140-2 Level 2 (available) |
| Network Ports | 11 x Network (RJ-45) |
| Non-Operating | -30° C to 60° C (-22° F to 140° F) at mean sea level, 90% relative humidity, non-condensing |
| Ethernet Ports | 3 Ethernet Ports |
| Taa Compliance | TAA Compliant |
| Network Standard | 10/100/1000Base-T |
| On-Board Storage | 256GB NVMe supporting TCG Opal 2.0, 256-bit AES encryption |
| Ethernet Technology | Gigabit Ethernet |
| Management Interfaces | Two 10/100/1000 BaseT Ethernet interfaces (with failover support) |
| Dedicated Ethernet Ports | 8 Dedicated Ethernet Ports |
Business account holders on Remote Management typically save 15% vs. retail pricing. Create a free account to see your price.

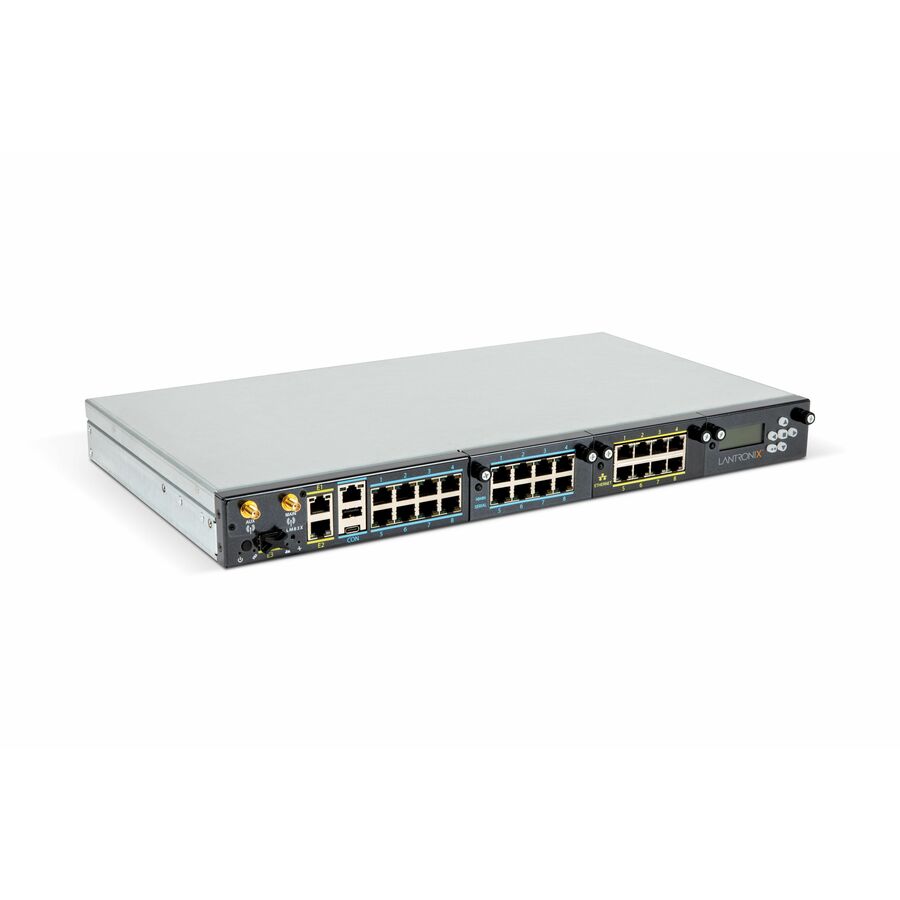

83X-24S-E11-NAA is listed as a 24-Port LM83X with 24 serial ports, 8 dedicated Ethernet ports, 3 Ethernet ports and LMS.
The LM83X system specifications list two 10/100/1000 BaseT Ethernet interfaces with failover support, one RS-232 console port and one SFP port.
Yes. Lantronix states that users can access the LM83X and connected devices directly through the CLI or utilize the Lantronix Control Center to manage LM-Series devices and automate management of connected devices.
The operating range is 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing.
