| Safety | TUV RoHS compliant |
| Weight | 3.72 kg (8.2 lbs.) |
| Warranty | 1 Year |
| Emissions | FCC class A sub part B |
| Operating | 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing |
| Rack Unit | 1 rack unit (1RU) |
| Sfp Ports | One SFP port |
| Dimensions | 43.2 mm (1.7 in.) x 445 mm (17.5 in.) x 264 mm (10.4 in.) |
| Form Factor | Rack-mountable |
| Option Slot | One option slot (RS-232; V.92, cellular, and fiber cards available) |
| Usb-A Ports | One USB-A port |
| Usb-C Ports | One USB-C port |
| Serial Ports | 24 Serial Ports |
| Console Ports | One RS-232 console port |
| Cybersecurity | FIPS 140-2 Level 2 (available) |
| Non-Operating | -30° C to 60° C (-22° F to 140° F) at mean sea level, 90% relative humidity, non-condensing |
| Ethernet Ports | 3 Ethernet Ports |
| Taa Compliance | TAA Compliant |
| Expansion Slots | Three expansion slots |
| Included Cables | LMS (1.5M Cables) |
| On-Board Storage | 256GB NVMe supporting TCG Opal 2.0, 256-bit AES encryption |
| Ethernet Interfaces | Two 10/100/1000 BaseT Ethernet interfaces (with failover support) |
| Ac Model Power Supply | Dual input, (100-240 VAC) 50/60 Hz, 60 W |
| Dc Model Power Supply | Dual input, -20 to -72 VDC |
Business account holders on Remote Management typically save 16% vs. retail pricing. Create a free account to see your price.
The Lantronix part row lists 24 Serial Ports, 3 Ethernet Ports and LMS (1.5M Cables).

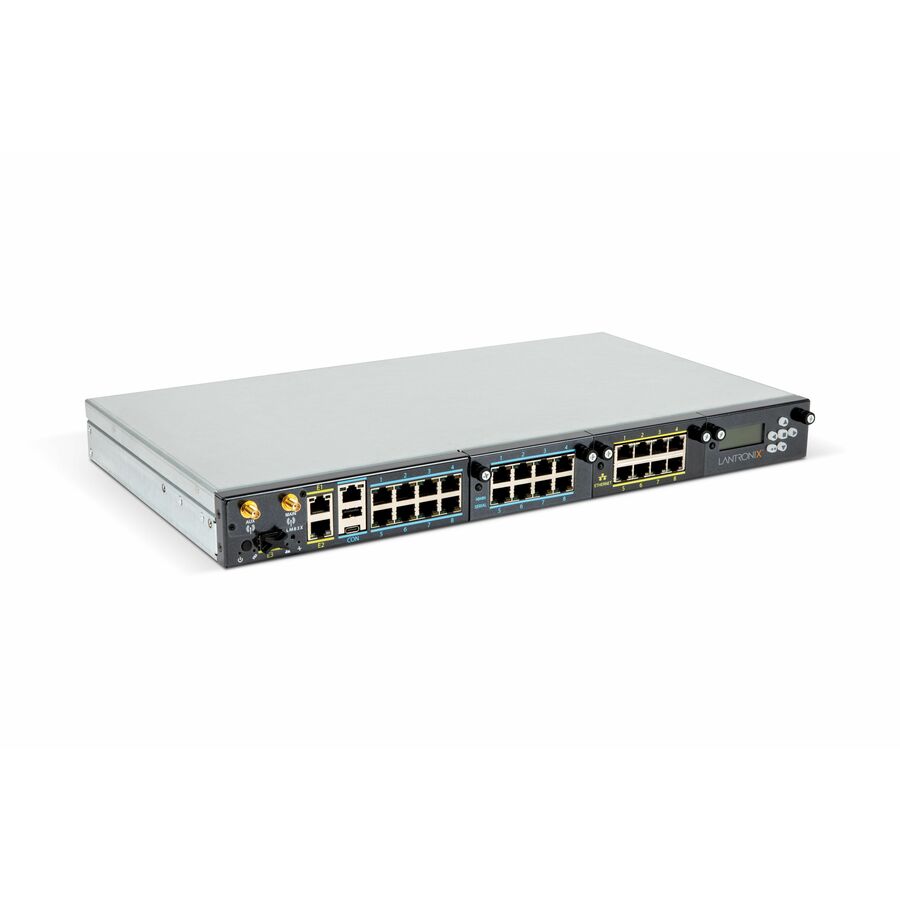

The LM83X is part of the Lantronix LM-Series, described as state-aware console servers for recovering and mitigating network infrastructure using rules-based AI.
The LM83X supports direct access through the CLI and can also be used with the Lantronix Control Center for a single pane of glass to manage LM-Series devices and automate management of connected devices.
Lantronix lists the operating range as 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing.

Lantronix · LM4-2S-NA

Lantronix · LM4-4S-NA

Lantronix · 83X-16S-100-NDA

Lantronix · 83X-16S-104-NDA

Lantronix · 83X-24S-110-NDA
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business Account
