| Model | 24-Port LM83X |
| Safety | TUV RoHS compliant |
| Weight | 3.72 kg (8.2 lbs.) |
| Sfp Port | One SFP port |
| Warranty | 1 Year |
| Emissions | FCC class A sub part B |
| Option Slot | One option slot (RS-232; V.92, cellular, and fiber cards available) |
| Console Port | One RS-232 console port |
| Serial Ports | 24 |
| Cybersecurity | FIPS 140-2 Level 2 (available) |
| Ethernet Ports | 3 |
| Ac Power Supply | Dual input, (100-240 VAC) 50/60 Hz, 60 W |
| Dc Power Supply | Dual input, -20 to -72 VDC |
| Expansion Slots | Three expansion slots for 8-Port and 16-Port Serial cards; 8-Port Ethernet card (10/100/1000 Mbps; LCD keypad |
| On-Board Storage | 256GB NVMe supporting TCG Opal 2.0, 256-bit AES encryption |
| Included Software | LMS |
| Management Interfaces | Supports up to 104 devices via serial (RS-232) |
| Operating Environment | 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing |
| Height X Width X Depth | 43.2 mm (1.7 in.) x 445 mm (17.5 in.) x 264 mm (10.4 in.); 1 rack unit (1RU) |
| Peripheral Connectivity | One USB-A port, one USB-C port |
| Non-Operating Environment | -30° C to 60° C (-22° F to 140° F) at mean sea level, 90% relative humidity, non-condensing |
| Ethernet Management Interfaces | Two 10/100/1000 BaseT Ethernet interfaces (with failover support) |
Business account holders on Remote Management typically save 16% vs. retail pricing. Create a free account to see your price.

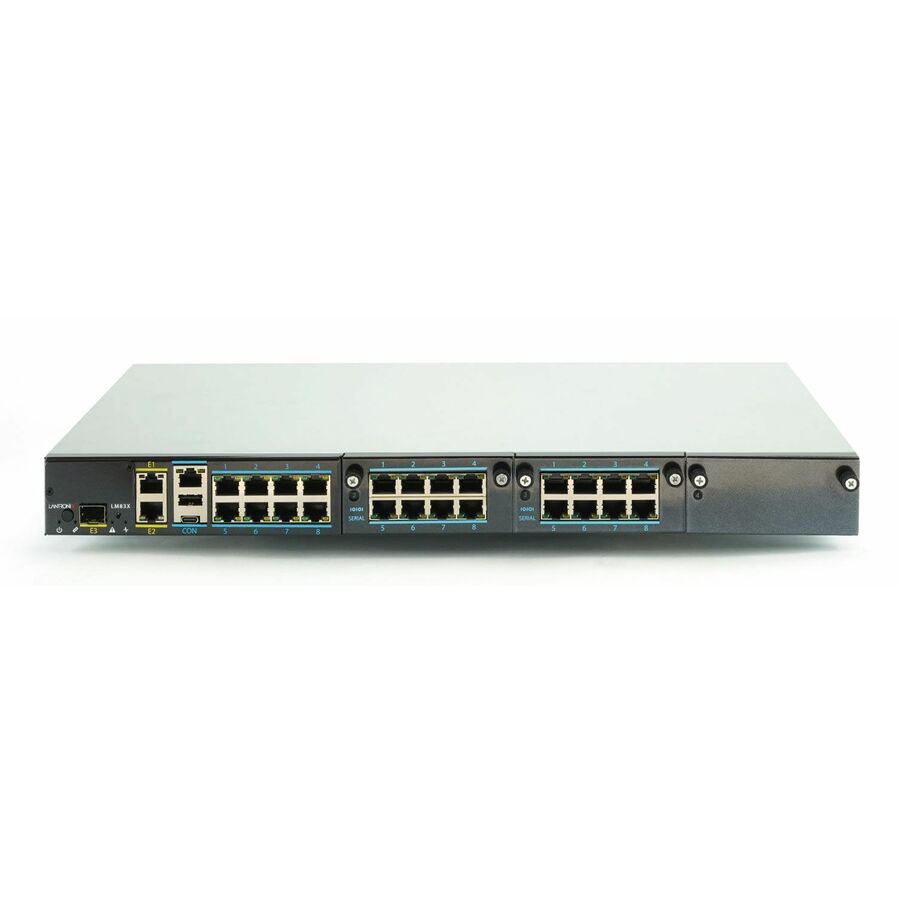

83X-24S-110-NAA is listed as a 24-Port LM83X with 24 serial ports, 3 Ethernet ports and LMS.
Administrators can access the LM83X and connected devices directly through the CLI or use the Lantronix Control Center to manage LM-Series devices and automate management of connected devices.
The LM83X system specifications list two 10/100/1000 BaseT Ethernet interfaces with failover support, one RS-232 console port, one SFP port, one USB-A port and one USB-C port.
The accessory kit lists 2 power cords or DC connectors for the DC power model, 2 rack mount ears, 4 mounting screws, 1 USB-A to USB-C cable and 1 connection instruction sheet.
