| Lms | Included |
| Safety | TUV RoHS compliant |
| Weight | 3.72 kg (8.2 lbs.) |
| Sfp Port | One SFP port |
| Warranty | 1 Year |
| Emissions | FCC class A sub part B |
| Operating | 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing |
| Lcd Module | Included |
| Usb-A Port | One USB-A port |
| Usb-C Port | One USB-C port |
| Option Slot | One option slot (RS-232; V.92, cellular, and fiber cards available) |
| Serial Ports | 8 |
| Cybersecurity | FIPS 140-2 Level 2 (available) |
| Non-Operating | -30° C to 60° C (-22° F to 140° F) at mean sea level, 90% relative humidity, non-condensing |
| Ethernet Ports | 3 |
| On-Board Storage | 256GB NVMe supporting TCG Opal 2.0, 256-bit AES encryption |
| Rs-232 Console Port | One RS-232 console port |
| Ac Model Power Supply | Dual input, (100-240 VAC) 50/60 Hz, 60 W |
| Dc Model Power Supply | Dual input, -20 to -72 VDC |
| Serial Device Support | Supports up to 104 devices via serial (RS-232) |
| Height Width And Depth | 43.2 mm (1.7 in.) x 445 mm (17.5 in.) x 264 mm (10.4 in.); 1 rack unit (1RU) |
| Dedicated Ethernet Ports | 8 |
| Ethernet Management Interfaces | Two 10/100/1000 BaseT Ethernet interfaces (with failover support) |
Business account holders on Remote Management typically save 16% vs. retail pricing. Create a free account to see your price.

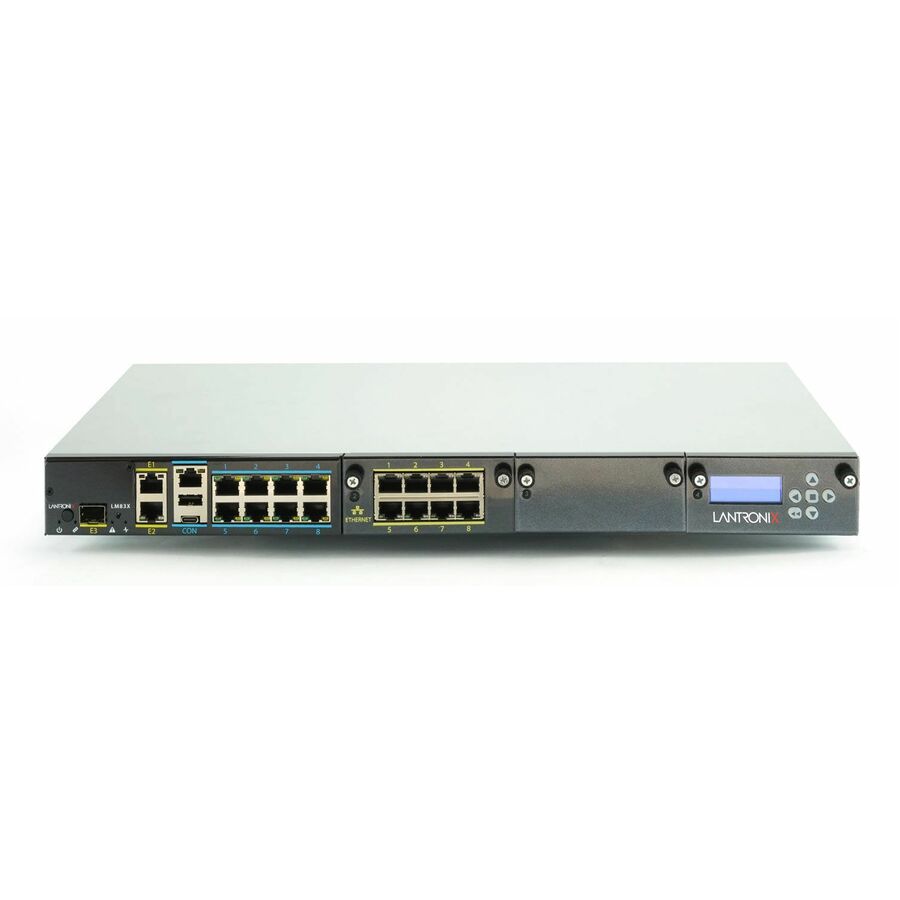

This SKU is the 8-Port LM83X with 8 Serial Ports, 8 Dedicated Ethernet Ports, LCD Module, 3 Ethernet Ports, includes LMS.
The LM83X platform supports up to 104 devices via serial (RS-232).
The LM83X and connected devices can be accessed directly through the CLI or through the Lantronix Control Center.
The operating environment is 0° C to 45° C (32° F to 113° F) at mean sea level, 20% to 80% relative humidity, non-condensing.
