| Rohs | Compliant |
| Weight | 2 kg (4.4 lbs.) |
| Sfp Port | One SFP port |
| Warranty | 1 Year |
| Emissions | FCC class A, CE, TUV |
| Rack Units | 1 rack unit (1RU) |
| Usb-A Port | One USB-A port |
| Usb-C Port | One USB-C port |
| Option Slot | One option slot (RS-232; V.92, cellular, and fiber cards available) |
| Console Port | One RS-232 console port |
| Power Supply | Internal universal power (100-240 VAC, 50/60 Hz, included) 30W |
| Serial Ports | 8 Serial ports |
| Cybersecurity | FIPS 140-2 Level 2 (available) |
| Ethernet Ports | 3 Ethernet ports |
| On-Board Storage | 256GB NVMe supporting TCG Opal 2.0, 256-bit AES encryption |
| Included Software | LMS |
| Serial Management | Supports up to 8 devices via serial (RS-232) |
| Height Width Depth | 43 mm (1.7 in.) x 254 mm (10 in.) x 163 mm (6.4 in.) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| Ethernet Interfaces | Two 10/100/1000 BaseT Ethernet interfaces (with failover support) |
| Operating Temperature | 0° C to 45° C (32° F to 113° F) at mean sea level |
| Non-Operating Humidity | 90% relative humidity, non-condensing |
| Non-Operating Temperature | -30° C to 60° C (-22° F to 140° F) at mean sea level |
Business account holders on Remote Management typically save 15% vs. retail pricing. Create a free account to see your price.

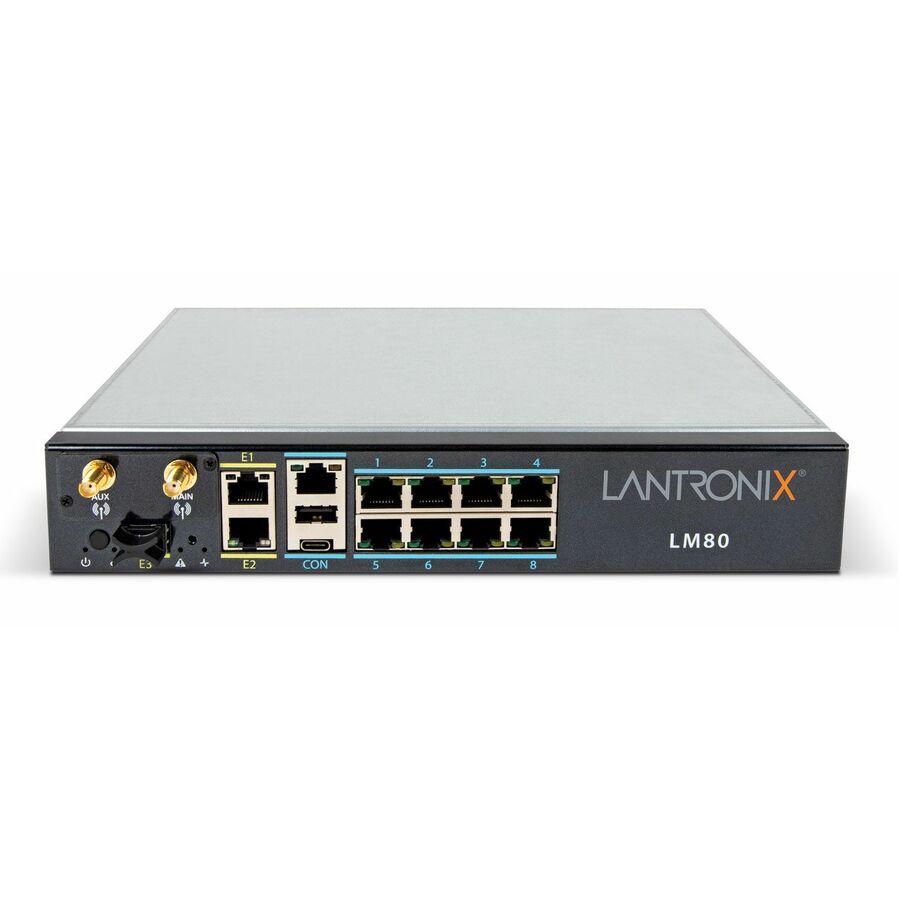

Lantronix lists 80-8S-NNN-NAA as an LM80 Local Manager with 8 serial ports, 3 Ethernet ports and LMS included.
The LM80 supports up to 8 devices via serial (RS-232), including a managed power supply.
The LM80 has one option slot, with RS232, V.92, cellular and fiber cards available.
It includes an internal universal power supply rated 100-240 VAC, 50/60 Hz, 30W. Operating environment is 0° C to 45° C at mean sea level with 20% to 80% relative humidity, non-condensing.
