Create Free Business Account| Case | Hardened aluminum case |
| Depth | 4.3" |
| Height | 5.4" |
| Mounting | DIN-rail, panel, or rack-mounting installation |
| Fiber Port | 1 100BaseFX MM SC Connector |
| Switch Type | Unmanaged |
| Power Inputs | Redundant 2A max, 10 to 48 VDC |
| Buffer Memory | 768 kilobit |
| Mac Addresses | 2048 |
| Ethernet Ports | 8 10/100TX |
| Layer Supported | 2 |
| Limited Warranty | 2 Year |
| Fiber Mode Supported | Multi-mode |
| Emc Immunity Standard | IEC61000-6-2 |
| Operating Temperature | -34° to 74° C (-29° to 165° F) |
| Fiber Network Technology | 100Base-FX |
| Copper Network Technology | 10/100Base-TX |
| Environmental Requirements | NEMA TS1 and TS2 |
| Hazardous Location Classification | UL 1604 Class 1, Division 2 |
| Fiber Optic Cable Core Cladding Specification | 62.5/125 µm |
Business account holders on Switches typically save 9% vs. retail pricing. Create a free account to see your price.

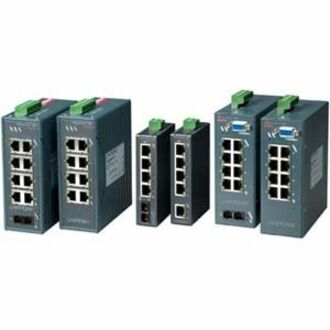

It is an unmanaged rugged Ethernet switch in the Lantronix XPress-Pro SW series.
The part row lists 8 10/100TX ports and 1 100BaseFX MM SC Connector fiberoptic interface.
It supports DIN-rail, panel, or rack-mounting installation. The package contents list includes a DIN Rail mounting kit.
The XPress-Pro SW 92000 Series lists a wide -34° to 74° C (-29° to 165° F) operating temperature range.
