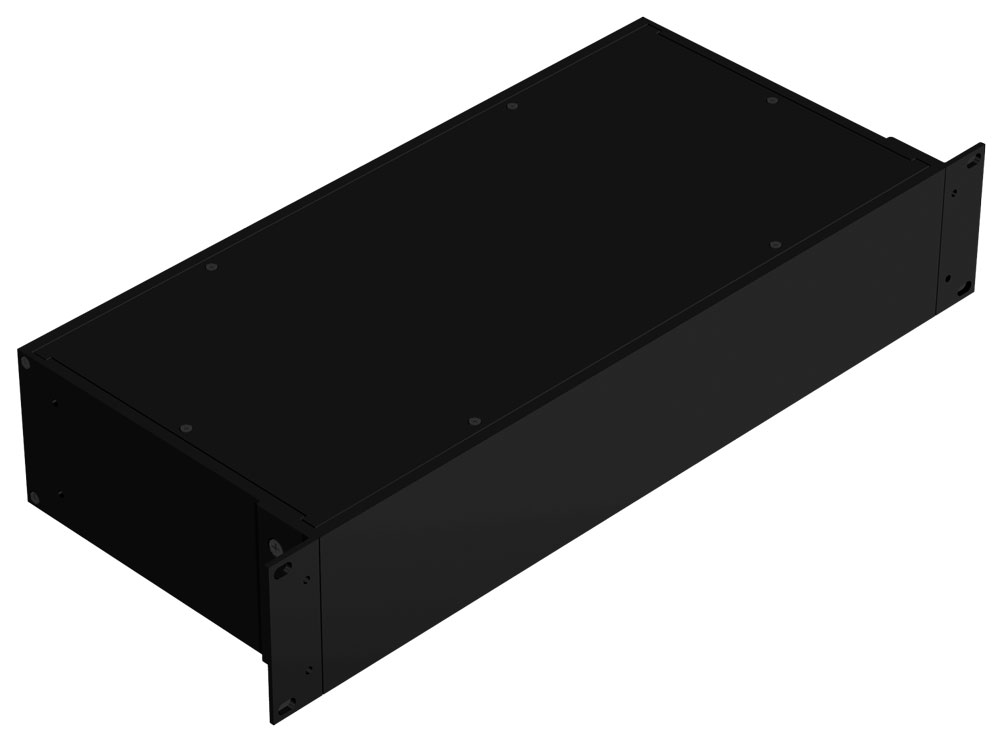

The RM1913BKSP is a solid replacement top or bottom body panel for the RM series rack-mount aluminum instrument enclosure, sold individually. Its nominal panel size is 16.60 in (422 mm) wide by 13.00 in (330 mm) deep, the full 16.60 in width footprint listed in the RM ordering table for the RM1U1913SBK through RM5U1913SBK enclosures. It is intended for OEM builders, maintenance teams and integrators who need to replace a damaged panel, keep a spare for machining, or change an enclosure between solid and vented tops.
At 16.60 in wide by 13.00 in deep it matches the 13 in deep full-width RM enclosures, from 1U through 5U; its mounting holes are 8 X Ø4.50 mm thru with Ø6.70 mm x 82° countersinks.
The drawing specifies the panel material as .064" aluminum (5052-H32) with a black powder coat colour, and the part page lists aluminum material in black. Drawing dimensions show the panel at 413.80 mm [16.291 in] by 316.00 mm [12.441 in], 1.80 mm [0.071 in] thick, with mounting holes called out as 8 X Ø4.50 mm thru, countersunk Ø6.70 mm X 82.0°. Top and bottom panels in the RM design are interchangeable, so the same part serves either position.
The RM1913BKSP is RoHS and REACH compliant, has a shipping weight of 2.4 lbs (1.09 kg), and carries UPC 623980102313. The drawing notes that the panel can be factory modified (milling, drilling, printing) and that solid models are available in STEP or IGES, useful when planning cut-outs for connectors, fans or displays. Because RM enclosure panels are powder coated, they are not grounded to the frame; the grounding method is to be determined by the customer.
| Type | Panel |
| Series | RM Series Rack Mount Aluminum Instrument Enclosure |
| Sold As | Individually |
| Panel Style | Solid |
| Product Type | Replacement top/bottom body panel |
| Long Description | hardware - replacement panels for RM series |
| Manufacturer Description | RM 1913 TOP/BOT PLATE - SOLID |
| Solid / Vented Counterpart | RM1913BKVP |
| Panel Depth (Drawing) | 316.00 mm [12.441 in] |
| Panel Width (Drawing) | 413.80 mm [16.291 in] |
| Panel Thickness (Drawing) | 1.80 mm [0.071 in] |
| Size (L X W X H, As Listed) | 0.07 in x 16.6 in x 13 in (2 mm x 422 mm x 330 mm) |
| Nominal Size (Width X Depth) | 16.60 in (422 mm) x 13.00 in (330 mm) |
| UPC | 623980102313 |
| UNSPSC | 43201602 |
| Packaging Type | box |
| Shipping Weight | 2.4 lbs (1.09 kg) |
| Colour | Black Powder Coat |
| Material | .064" Aluminum (5052-H32) |
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Its nominal panel size is 16.60 in (422 mm) wide by 13.00 in (330 mm) deep. The part page lists it as 0.07 in x 16.6 in x 13 in (2 mm x 422 mm x 330 mm), and the drawing shows 413.80 mm [16.291 in] by 316.00 mm [12.441 in].
Yes. RM enclosures use 2 interchangeable top and bottom panels, and this replacement panel is listed for either position.
No, it is a solid panel. The vented version is RM1913BKVP.
The drawing lists .064" aluminum (5052-H32) with a black powder coat.
No. Replacement top/bottom body panels are sold individually, so order two if both the top and the bottom need replacing.
