The 1597KIT4MBB is a compact DIN rail enclosure kit made for the Beaglebone Black development board, part of the Italtronic 1597KIT Embedded DIN Rail Mounted Enclosures series. It suits OEM engineers, automation integrators and makers who want to put a Beaglebone Black on a standard 35 mm DIN rail inside a control panel. Beaglebone Black users get the slimmest housing in the series table's Beaglebone rows.

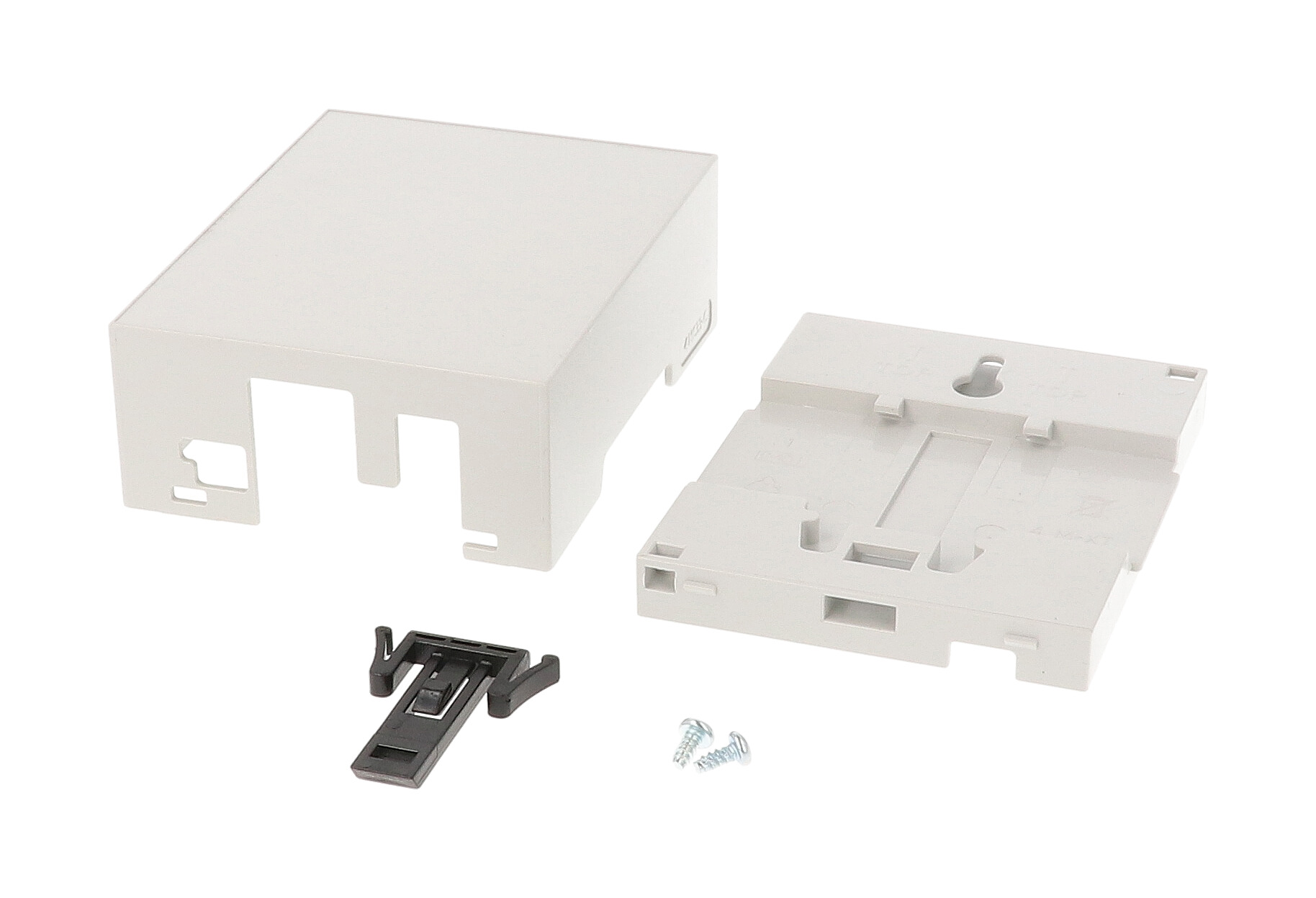

The enclosure is PC-ABS in RAL7035 light grey (UL94 V-2 per the part page), and the DIN clip is PPO. It assembles by snap-together construction and comes with pre-made cutouts for the development board components. The purchased enclosure includes the base, cover, screws and DIN clip; the Beaglebone Black itself is not included.
This is the Compact Standard model: 90 x 71 x 32 mm in the series table, 3.54 x 2.8 x 1.27 in on the part page, and 90.00 mm [3.54 in] by 71.10 mm [2.80 in] by 32.20 mm [1.27 in] on the drawing. Shipping weight is 0.09 lbs (0.04 kg).
The hardware needed to install the board is included; the recommended PCB screw torque is 28.0-35.5 ozf-in (20-25 cN-m). Replacement #4 x 1/4" (6.4 mm) plated self-tapping PCB screws are 1593ATS50 (pack of 50) and 1593ATS100 (pack of 100), and the replacement DIN clip is 1597DINCLIPXT. For a taller Beaglebone Black housing with a clear cover plate, the series also lists the 90.5 x 72 x 62 mm Standard model.
The 1597KIT4MBB is RoHS and REACH compliant. Hammond can factory modify it (milling, drilling, printing), and solid models are available in .stp or .x_t.
| Model | Compact Standard |
| Series | 1597KIT Embedded DIN Rail Mounted Enclosures (Italtronic) |
| Included | Base, cover, screws and DIN clip |
| Description | Italtronic DIN enclosure kit for Beaglebone Black |
| Solid Models | .stp or .x_t |
| Board Cutouts | Pre-made cutouts for development board components |
| Compatible Board | Beaglebone Black (not included) |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| Replacement DIN Clip | 1597DINCLIPXT |
| Replacement PCB Screws | 1593ATS50 (pkg 50), 1593ATS100 (pkg 100); P.C. board self tapping screw #4 x 1/4" (6.4 mm) plated |
| Recommended PCB Screw Torque | 28.0-35.5 ozf-in (20-25 cN-m) |
| Overall Depth (Drawing) | 32.20 mm [1.27 in] |
| Overall Width (Drawing) | 71.10 mm [2.80 in] |
| Nominal Size (L X W X H) | 3.54 in x 2.8 in x 1.27 in (90 mm x 71 mm x 32 mm) |
| Overall Height (Drawing) | 90.00 mm [3.54 in] |
| Series Table Size (H X W X D) | 90 mm x 71 mm x 32 mm |
| UPC | 623980046105 |
| UNSPSC | 39121301 |
| Mounting | Standard 35 mm DIN rail, integrated DIN rail mounting clip |
| Shipping Weight | 0.09 lbs (0.04 kg) |
| Colour | RAL7035 light grey |
| Assembly | Snap-together construction |
| Flame Rating | UL94 V-2 |
| DIN Clip Material | PPO |
| Enclosure Material | PC-ABS |
| Chemical Resistance | Some chemicals can damage or weaken plastic; the manufacturer advises against acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
No. The drawing marks the Beaglebone Black as not included. The kit includes the base, cover, screws and DIN clip.
The drawing shows 90.00 x 71.10 x 32.20 mm [3.54 x 2.80 x 1.27 in]; the series table lists 90 x 71 x 32 mm (Compact Standard).
It mounts onto a standard 35 mm DIN rail using the integrated DIN rail clip. The replacement clip is 1597DINCLIPXT.
The recommended PCB screw torque is 28.0-35.5 ozf-in (20-25 cN-m).
Order 1593ATS50 (50 screws) or 1593ATS100 (100 screws), #4 x 1/4" (6.4 mm) plated self-tapping screws.
