The 1591XXEBK is a black multi-purpose enclosure from the 1591XX series, molded from easy-to-machine, flame retardant ABS plastic with a UL94 V-0 flammability rating. It is built for electronics designers, OEM engineers and integrators who need a compact housing for a printed circuit board mounted horizontally, with protection against dust and splashing water (designed to meet IP54).
Nominal enclosure size is 7.60 in (193 mm) long, 4.45 in (113 mm) wide and 2.40 in (61 mm) deep; the drawing gives overall dimensions of 193.41 mm [7.61 in] x 113.41 mm [4.47 in] x 61.00 mm [2.40 in], with an inside length of 185.65 mm [7.31 in], inside width of 89.77 mm [3.53 in] and inside height of 57.00 mm [2.24 in] over a 2.00 mm [0.08 in] wall. A PC board up to 185.00 mm x 105.00 mm [7.28 in x 4.13 in] fits in the box or in the lid.

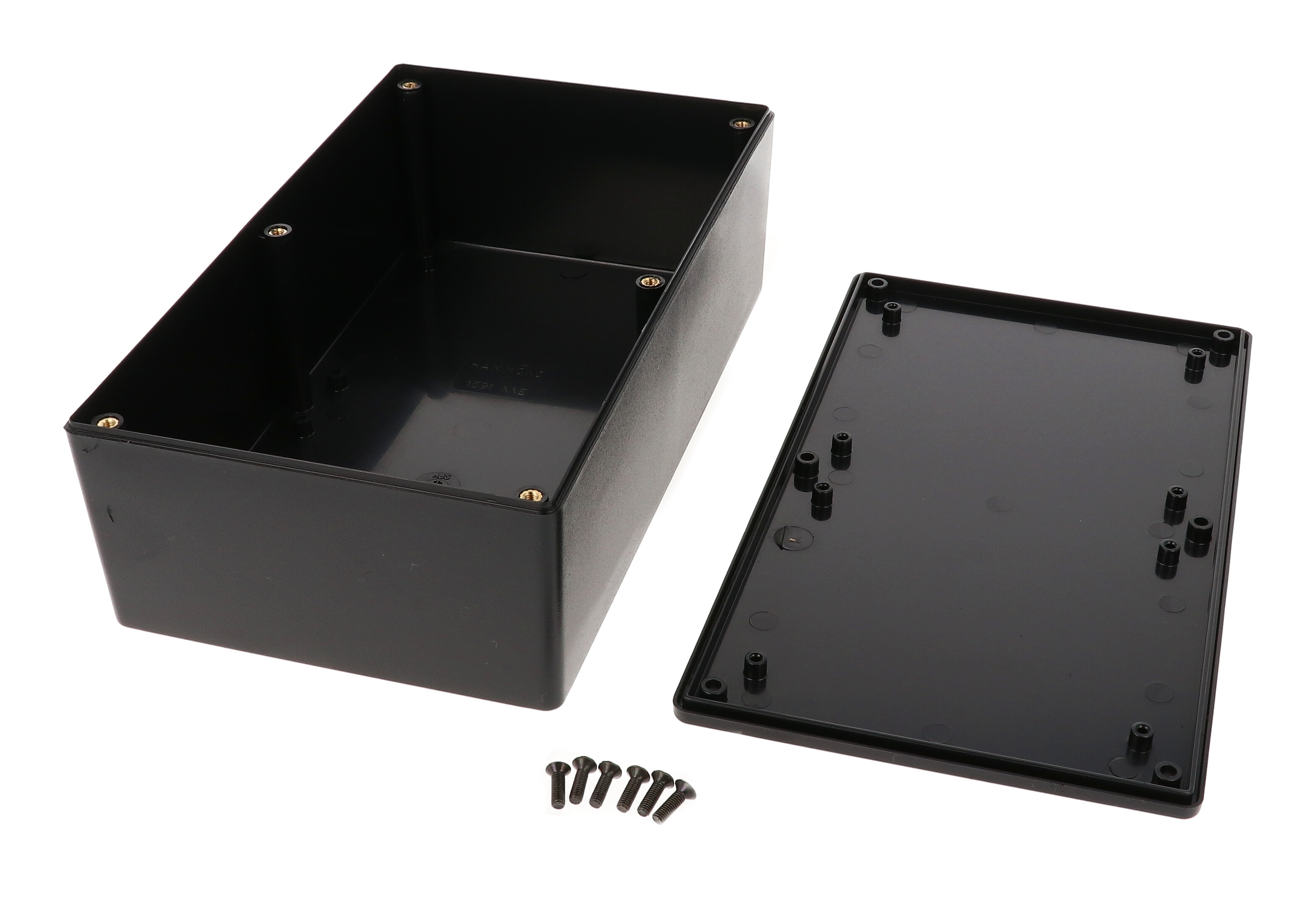

The lid is secured with six M3-0.5 x 10 mm Phillips machine screws (black) threaded into installed brass inserts, a design suited to applications that need repeated assembly and disassembly; recommended torque is 43-50 ozf.in (30-35 cN.m). Replacement screws are sold in packs of 100 as 1591MS100BK (black) or 1591MS100 (nickel plated). Integral PCB standoffs in the box and lid accept #4 x 1/4" self-tapping screws, not supplied (packs 1593ATS50 and 1593ATS100).

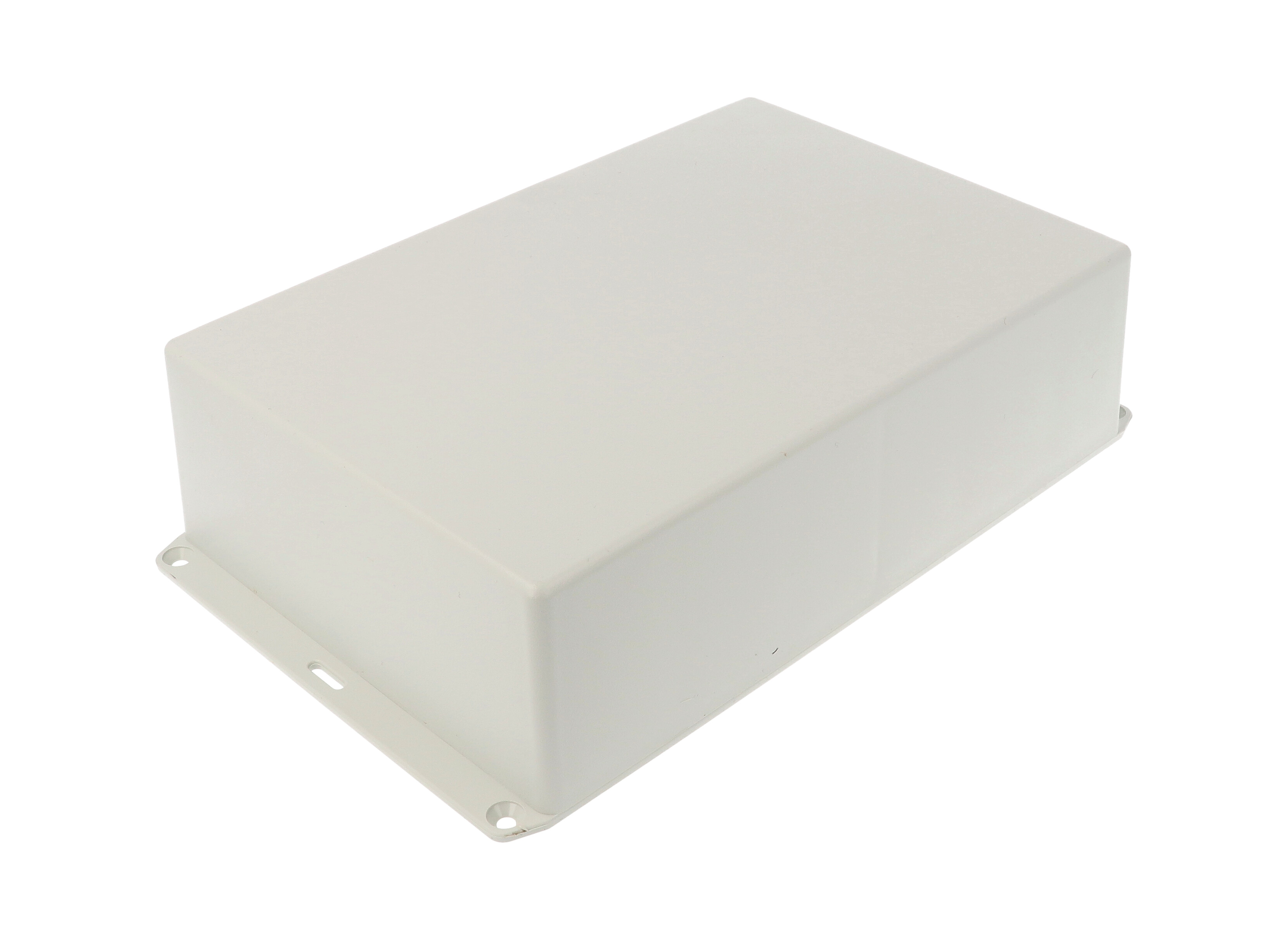

Internal sides are smooth for easy connector installation. For wall or shelf mounting, accessory ABS mounting flanges are sold separately (1591FEBK black, 1591FEGY grey). The 1591XXEBK is REACH and RoHS compliant, ships shrink wrapped with a shipping weight of 0.47 lbs (0.21 kg), and can be factory modified (milling, drilling, printing); STEP and IGES solid models are available.
| Accessory Mounting Flanges (Sold Separately) | 1591FEBK (black ABS), 1591FEGY (grey ABS) |
| Type | project box, general purpose |
| Series | 1591XX Series ABS Plastic Multi-Purpose Enclosures w/ PC Board Standoffs |
| Version | Flame Retardant Plastic w/ Brass Screw Inserts |
| Description | enclosure - plastic |
| Part Number | 1591XXEBK |
| Ordering Table | Enclosures Without Mounting Flanges |
| Short Description | 1591XXE BLACK FRABS |
| Box Height | 58.25 mm [2.29 in] |
| Lid Height | 6.50 mm [0.26 in] |
| Inside Width | 89.77 mm [3.53 in] |
| Inside Height | 57.00 mm [2.24 in] |
| Inside Length | 185.65 mm [7.31 in] |
| Wall Thickness | 2.00 mm [0.08 in] |
| Nominal Size (Depth) | 2.40 in (61 mm) |
| Nominal Size (Width) | 4.45 in (113 mm) |
| Nominal Size (Length) | 7.60 in (193 mm) |
| Overall Width (Drawing) | 113.41 mm [4.47 in] |
| Overall Height (Drawing) | 61.00 mm [2.40 in] |
| Overall Length (Drawing) | 193.41 mm [7.61 in] |
| Size L X W X H (Part Data) | 7.6 in x 4.4 in x 2.2 in (193 mm x 112 mm x 56 mm) |
| UPC | 623980582566 |
| UNSPSC | 39121301 |
| PCB Standoffs | Integral in box and lid; accept #4 x 1/4" (6.4 mm) self-tapping screws (not supplied) |
| Board Orientation | Suited to mounting printed circuit boards horizontally |
| Max. PC Board Size (Drawing) | 185.00 mm x 105.00 mm [7.28 in x 4.13 in], fits in box or in lid |
| Max. P.C. Board Width (Part Data) | 185 mm |
| PC Board Screws (Sold Separately) | 1593ATS50 (pack of 50), 1593ATS100 (pack of 100) |
| Max. P.C. Board Length (Part Data) | 105 mm |
| Cover Screws | 6 x M3-0.5 x 10 mm Phillips machine screws, black |
| Screw Inserts | Brass inserts, installed |
| Recommended Torque | (43-50) ozf.in / (30-35) cN.m |
| Replacement Cover Screws | 1591MS100BK (black, pack of 100), 1591MS100 (nickel plated, pack of 100) |
| Included | Box, lid, 6 cover screws and installed brass inserts |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.47 lbs (0.21 kg) |
| Color | Black |
| Finish | Textured |
| Material | ABS Plastic |
| CAD Models | STEP or IGES solid models available |
| Plastic Grade | Flame retardant ABS (FRABS), easy-to-machine |
| Internal Sides | Smooth, for easy connector installation |
| Factory Modification | Milling, drilling, printing available from factory |
| IP Rating | IP54 |
| Protection | Against access of dust and splashing water |
| Flame Rating | UL94 V-0 |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection or anti-seize paste, strong solvents, and some greases and oils |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Yes. The 1591XXEBK is molded from flame retardant ABS plastic with a UL94 V-0 flammability rating.
A board up to 185.00 mm x 105.00 mm [7.28 in x 4.13 in] fits in the box or in the lid. PCB standoffs in both halves accept #4 x 1/4" self-tapping screws, which are not supplied with the enclosure.
Inside length is 185.65 mm [7.31 in], inside width 89.77 mm [3.53 in] and inside height 57.00 mm [2.24 in], with a 2.00 mm [0.08 in] wall.
With six M3-0.5 x 10 mm Phillips machine screws (black) threaded into installed brass inserts, at a recommended torque of 43-50 ozf.in (30-35 cN.m). Replacements: 1591MS100BK (black) or 1591MS100 (nickel plated), packs of 100.
Yes. Accessory ABS mounting flanges are sold separately: 1591FEBK (black) and 1591FEGY (grey).
The enclosure is designed to meet IP54, providing protection against access of dust and splashing water.
