The 1590WXX is the shallow version of the 145 x 121 mm watertight diecast footprint, listed at 5.72 x 4.77 x 1.55 in (145 x 121 x 39 mm) with no mounting flanges. It suits designers housing a single large PC board or flat assemblies that need an enclosure designed to meet IP65 without extra height.
The box and lid are die-cast aluminum alloy that is tough yet easy to machine. Lap joint construction at the lid seam guards against dust and splashing water, and a silicone gasket ships loose inside the enclosure for installation on the lid. Low side wall draft angles of 2° or less simplify board mounting. The natural aluminum version is left unpainted and vibra finished for a smooth surface with no sharp edges.
Outside, the body is 145.20 x 121.20 mm [5.717 x 4.772 in] with an overall height of 39.30 mm [1.547 in]. Inside there is 139.00 x 115.00 mm [5.472 x 4.528 in] of space and 35.05 mm [1.380 in] of height, and the maximum PC board size is listed as 114 mm (length) by 138 mm (width).
Four 6-32 UNC cover screws thread into factory-tapped holes; recommended torque is 25-30 cN.m [36-43 ozf.in] with the gasket, 50-55 cN.m [71-78 ozf.in] without. The assembly includes box, lid and four screws, is shrink wrapped, and is RoHS and REACH compliant. A flanged-lid version (1590WXXFL) is available, and the optional replacement gasket kit is 1590XGASKET.
| Mounting | No mounting flanges |
| Description | enclosure - watertight diecast |
| Product Type | Die-cast box, water-tight |
| Ordering Table Version | No Mounting Flanges, Water-Tight Version |
| Standard (Non-Watertight) Equivalent | 1590XX |
| Body Width | 121.20 mm [4.772 in] |
| Body Length | 145.20 mm [5.717 in] |
| Inside Width | 115.00 mm [4.528 in] |
| Inside Height | 35.05 mm [1.380 in] |
| Inside Length | 139.00 mm [5.472 in] |
| Overall Height | 39.30 mm [1.547 in] |
| Size (L X W X H) | 5.72 in x 4.77 in x 1.55 in (145 mm x 121 mm x 39 mm) |
| Max. P.C. Board Width | 138 mm |
| Max. P.C. Board Length | 114 mm |
| Nominal Size (Ordering Table) | 5.71 in (145 mm) x 4.76 in (121 mm) x 1.57 in (40 mm) |
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
| UPC | 623980036014 |
| UNSPSC | 39121301 |
| Part Number | 1590WXX |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.73 lbs (0.33 kg) |
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |
| Included | Box, lid and 4 cover screws; silicone gasket (supplied loose, not pre-installed) |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Lap joint where lid and box meet |
| Cover Screws | 4 x 6-32 UNC, threaded into factory-tapped holes |
| Side Wall Draft Angle | 2° or less |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Gasket | Silicone, supplied with liquid resistant enclosure |
| IP Rating | IP65 |
| Optional Replacement Gasket Kit | 1590XGASKET |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
It is rated IP65. The watertight version includes a silicone gasket, supplied loose inside the enclosure (not pre-installed), that is applied to the lid; the gasket spec calls for lid screws torqued to 25-30 cN.m (36-43 ozf.in).
The maximum PC board size is 114 mm (length) x 138 mm (width). Inside dimensions are 139.00 mm [5.472 in] x 115.00 mm [4.528 in] with an inside height of 35.05 mm [1.380 in].

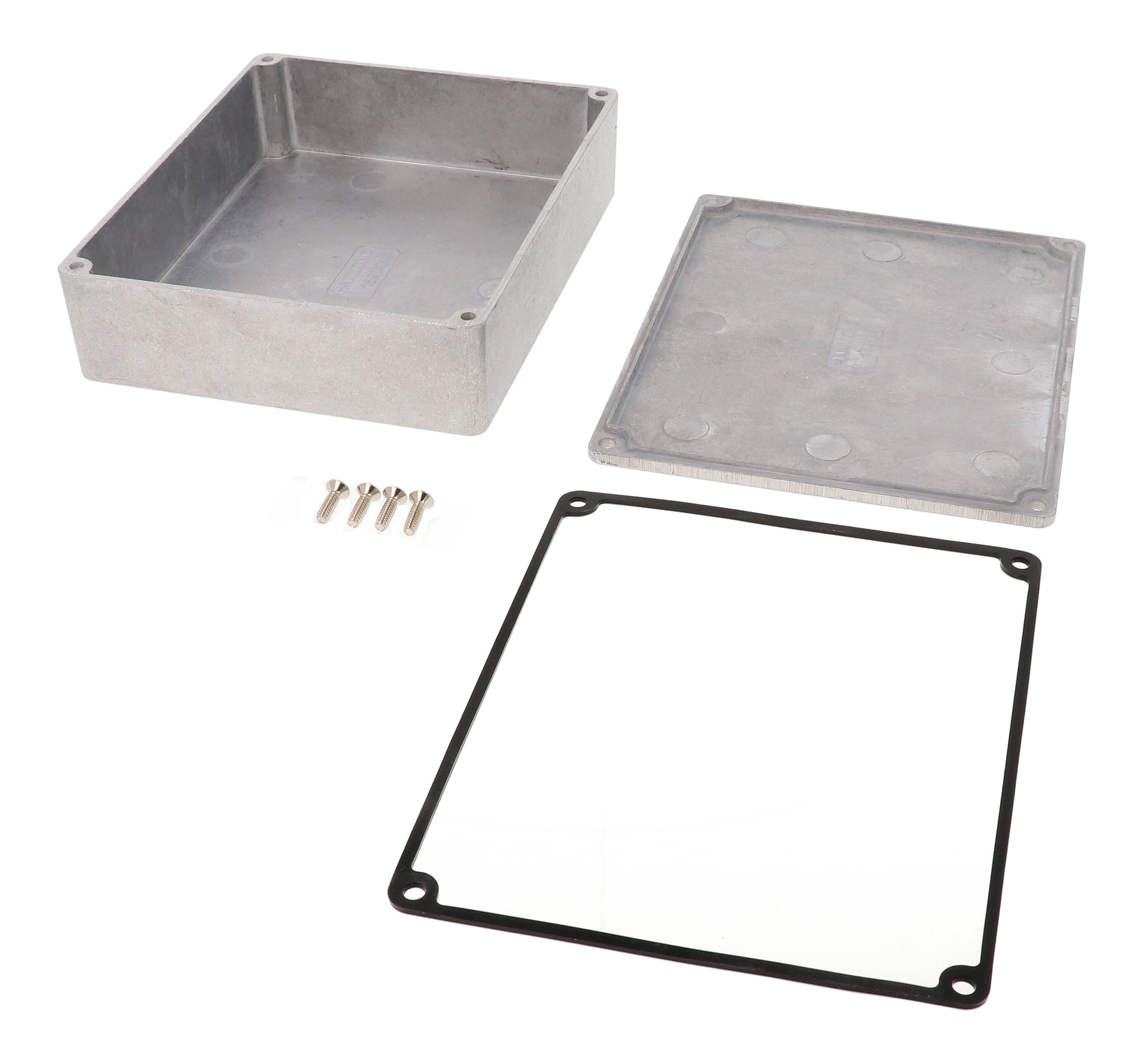

The purchased assembly includes the box, lid and 4 cover screws (6-32 UNC, threaded into factory-tapped holes), plus a silicone gasket supplied loose.
No. This is the no-mounting-flange version. A flanged-lid version is listed in the ordering table for the same size.
Yes. The optional replacement gasket kit for this size is 1590XGASKET. Liquid resistant stainless steel cover screws with O-ring (6-32 x 1/2") are also offered as 1590WMS100 and 1590WMS100BK in packs of 100.
The shipping weight is 0.73 lbs (0.33 kg). It is supplied in shrink wrap packaging.
