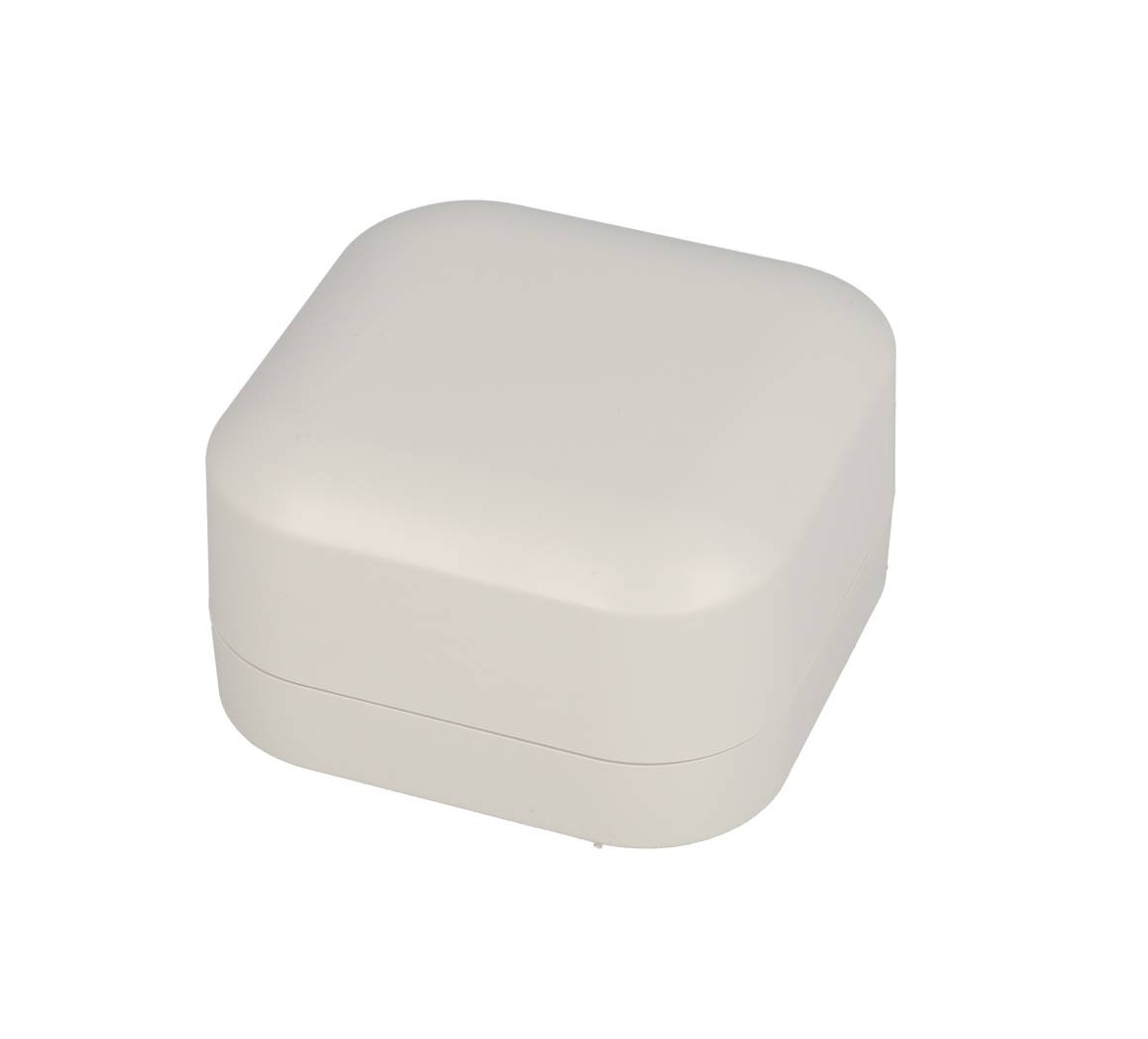

The 1556BGY is a light gray, 3.15 in x 3.15 in x 1.77 in (80 mm x 80 mm x 45 mm) enclosure for small electronics, IoT equipment and printed circuit boards. It is the shorter of the two 80 x 80 mm heights in the 1556 series and suits indoor desktop or wall installations.
Flame retardant ABS rated UL94 V-0 gives the housing its fire performance, while the light satin texture and rounded face give it a modern look. Lap joint construction protects against dust and splashing water, and the enclosure is designed to meet IP54.
Inside it provides 74.40 mm x 74.18 mm of floor space and 40.00 mm [1.57 in] of height, taking PC boards up to 71 mm x 71 mm. The lid and base include multiple mounting locations for #6 self-tapping screws, and the 1556BPL aluminum inner panel is available as an accessory.

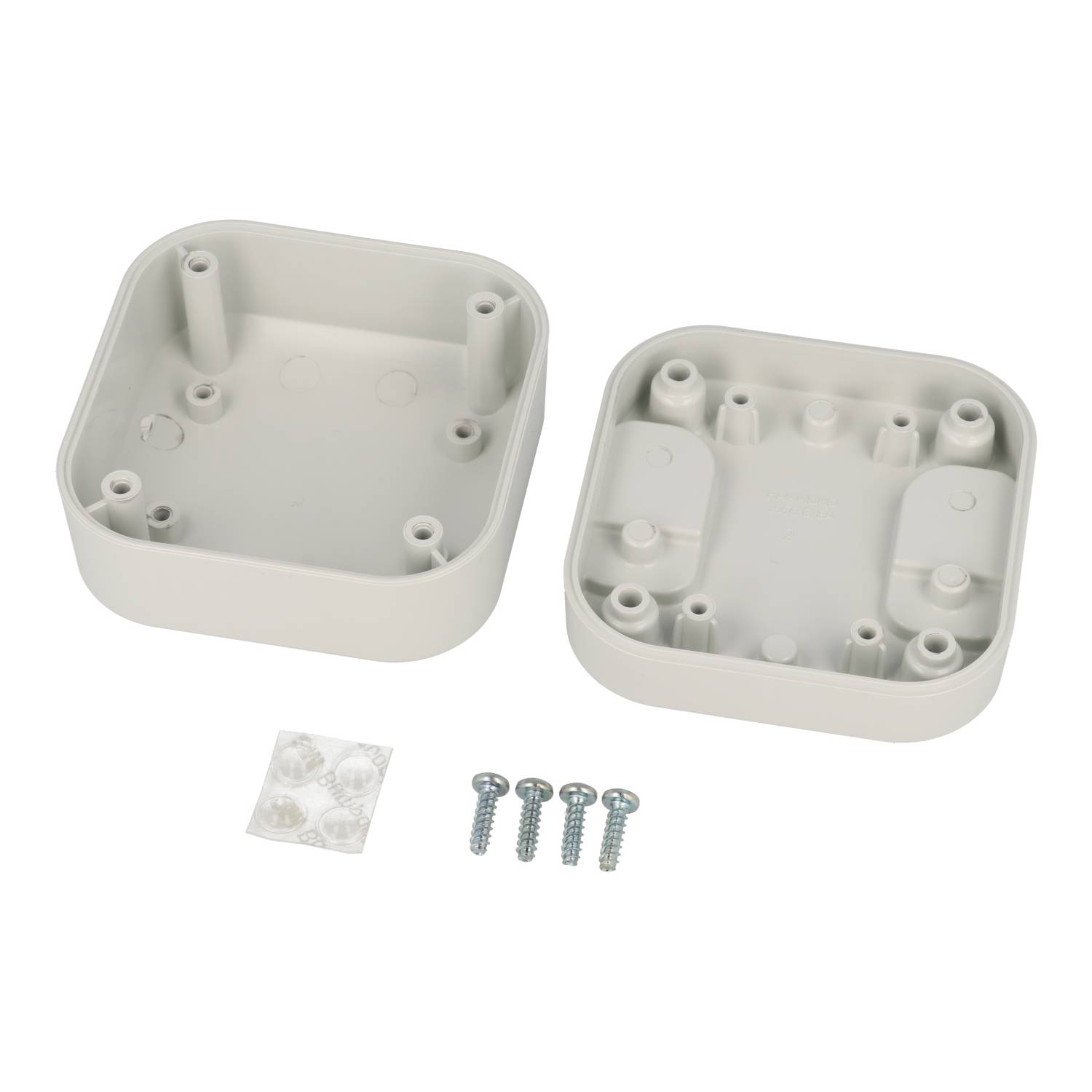

Supplied with the lid, four #6 x 1/2" Plastite screws (recommended torque 71-85 ozf-in, 50-60 cN-m) and four rubber feet. The matching 1556FOOTGY-4 light gray foot kit enables flange or flush keyhole wall mounting, and the PMB5057WKIT1 or PMB5057WKIT2 kits allow pole mounting. Shipping weight is 0.16 lbs (0.07 kg).
| Rubber Feet | 4 included; replacement clear rubber feet 1421T6CL (Pkg 24) |

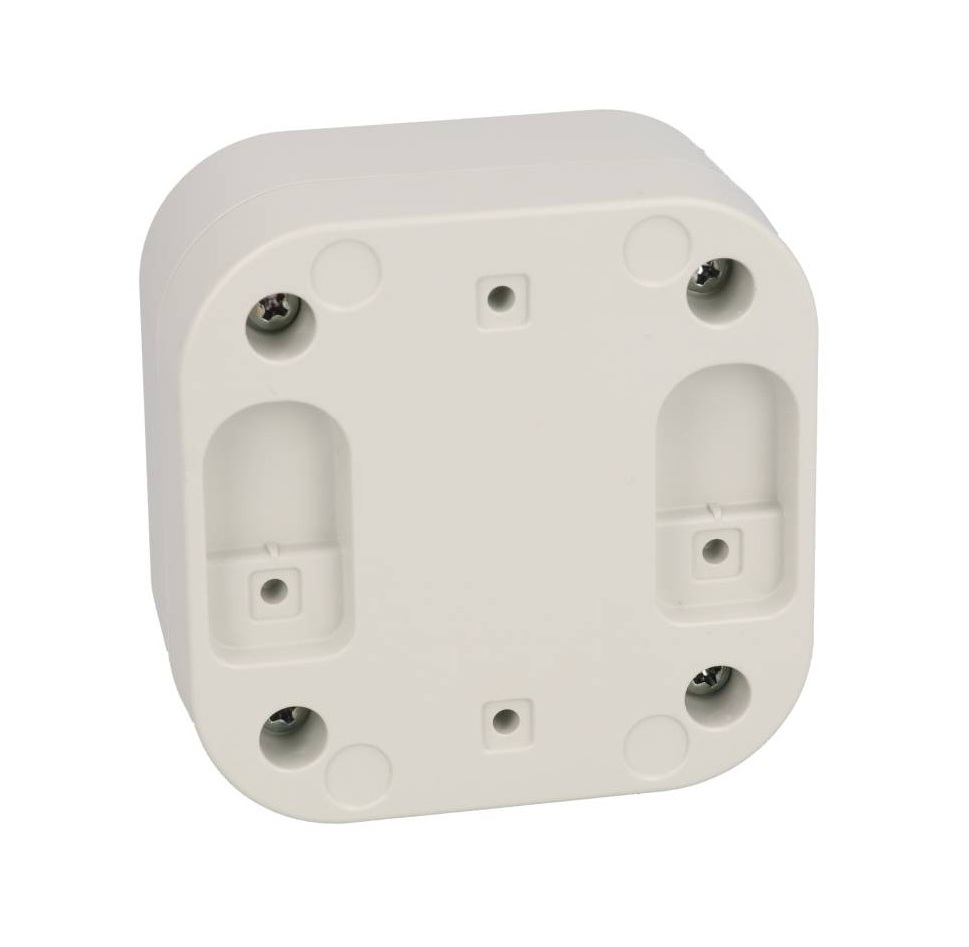

| Mounting Options | Desktop/tabletop on included rubber feet; heavy duty wall flange mount or flush wall mount (keyhole slots) using wall mount foot kit, sold separately |
| Pole Mount Kit (7" Max.) | PMB5057WKIT1 |
| Pole Mount Kit (15" Max.) | PMB5057WKIT2 |
| Replacement Wall Mount Foot Screws | SC556-50 (Stainless Steel, #8 X 3/8" Self Tapping, Pkg 50) |
| Pole Mount Screw Type / Replacement Pack | #8 x 1/2" / SCPMB4-20 |
| Wall Mount Foot Kit (Pkg 4, Sold Separately) | 1556FOOTBK-4 (Black), 1556FOOTGY-4 (Light Gray), 1556FOOTWH-4 (White); #8 X 3/8" self tapping screws included |
| Color | Light Gray |
| Series | 1556 Series Modern General Purpose Enclosures (Dual Wall-Mount or Desktop) |
| CAD Models | Solid models available in .stp or .x_t |
| Description | FRABS DESKTOP/WALL MOUNT/IOT INDOOR ENCLOSURE |
| Short Description | FRABS WALL MOUNT/ IOT ENCL |
| Enclosure Size Code | 1556B |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |

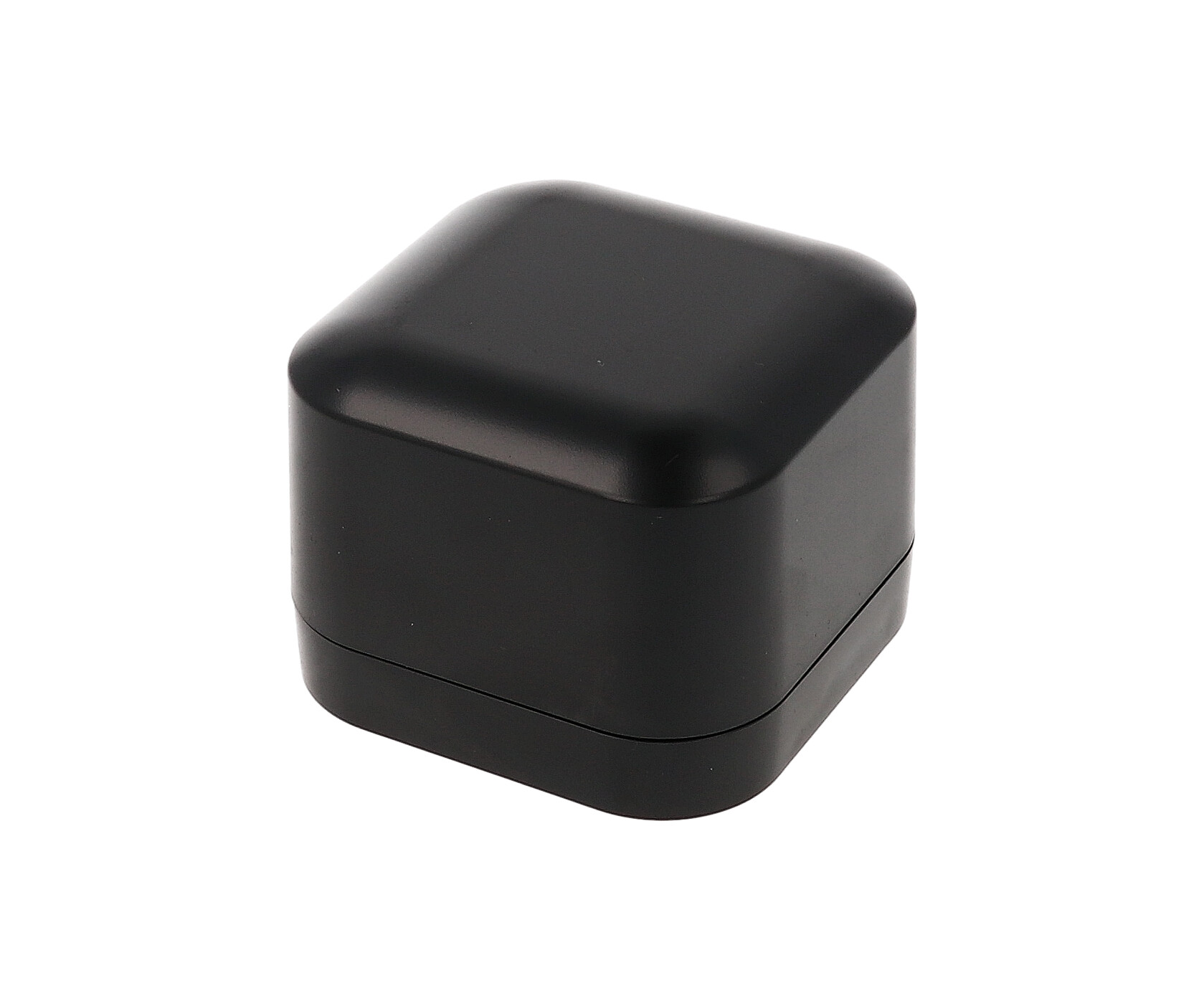

| Colour Variants In This Size | 1556BBK (Black), 1556BGY (Light Gray), 1556BWH (White) |
| Width | 3.15 in (80 mm) |
| Length | 3.15 in (80 mm) |
| Inside Width | 74.18 mm [2.92 in] |
| Total Height | 1.77 in (45 mm) |
| Inside Height | 40.00 mm [1.57 in] |
| Inside Length | 74.40 mm [2.93 in] |
| Wall Thickness | 2.50 mm [.10 in] |
| Size L X W X H (Part Page) | 3.15 in x 3.15 in x 1.77 in (80 mm x 80 mm x 45 mm) |
| UPC | 623980666976 |
| UNSPSC | 39121301 |
| Part Number | 1556BGY |
| PC Board Mounting | Multiple mounting locations inside the lid and base; accept #6 self-tapping screws |
| Max. P.C. Board Width | 71 mm |
| Max. P.C. Board Length | 71 mm |
| Replacement PC Board Screws | SC526-50 (Steel P.C. Board Screw, #6 X 1/4" Self Tapping, Pkg 50) |
| Recommended PCB Screw Torque | 42-56 ozf-in (30-40 cN-m) |
| Aluminum Inner Panel (Sold Separately) | 1556BPL |
| Included | Box, lid, 4 cover screws and 4 rubber feet |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.16 lbs (0.07 kg) |
| Finish | Light satin texture; rounded corners and face |
| Material | Flame retardant ABS (FRABS) plastic |
| Lid Screws | 4 included #6 x 1/2" high strength self-tapping Plastite screws |
| Construction | Lap joint construction for protection against dust and splashing water |
| Replacement Cover Screws | SC527-50 (Steel Cover Screws, #6 X 1/2" Self Tapping, Pkg 50) |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
| IP Rating | IP54 (designed to meet) |
| Flame Rating | UL94 V-0 |
| Intended Use | Indoor use; not designed for outdoor use |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Up to 71 mm x 71 mm.
1556BBK (black), 1556BGY (light gray) and 1556BWH (white).
Yes, four rubber feet are included. Replacement clear rubber feet are 1421T6CL (pack of 24).
Use the 1556FOOTGY-4 wall mount foot kit for heavy duty flange or flush keyhole mounting.
Cover screws SC527-50, PC board screws SC526-50 and wall mount foot screws SC556-50.
