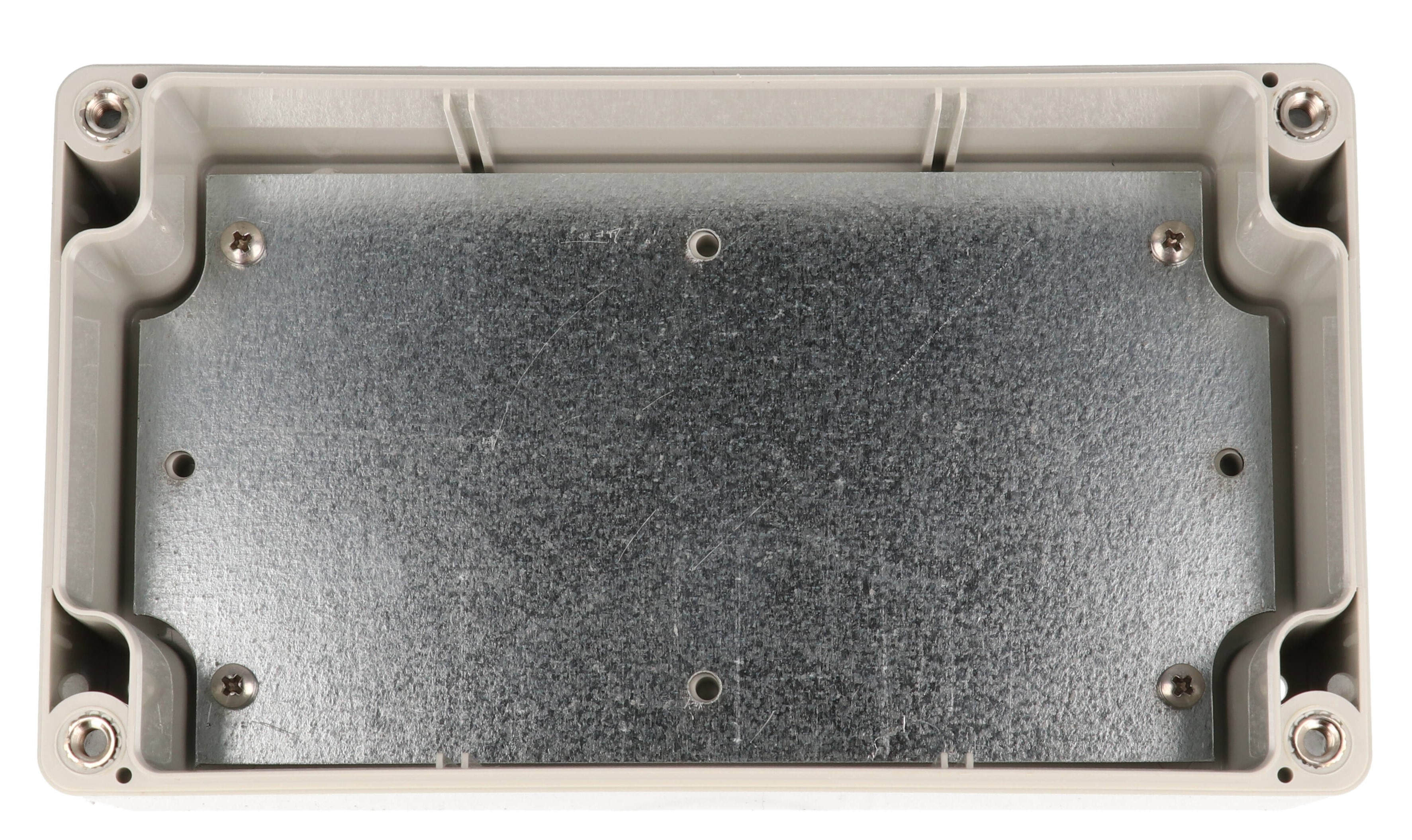

The 1554QPL is an inner panel for Hammond 1554 and 1555 series enclosures in sizes Q and QA. It gives integrators, OEM engineers and panel builders a flat, removable steel plate to mount components, DIN hardware or circuit boards on inside the enclosure, so the build-out can be done on the bench and then installed as one piece. The manufacturer describes it as "1554 Q/QA INNER PANEL".

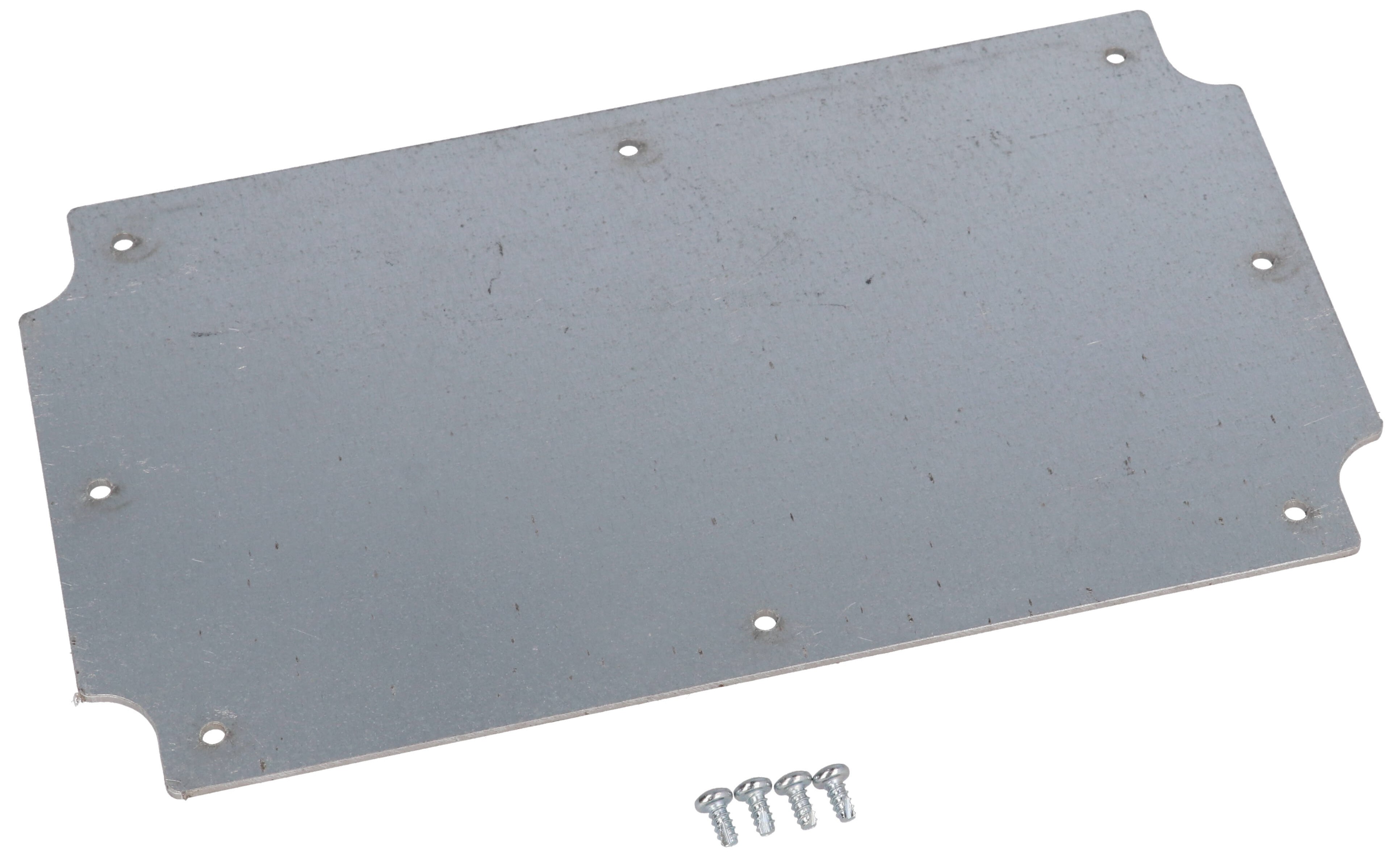

The panel is made from 16ga galvanized steel. Installation hardware is included with the panel.
According to the part drawing, the 1554QPL measures 127.00 mm (5.00 in) by 127.50 mm (5.02 in) overall, with a thickness of 1.63 mm (.064 in). The drawing shows a 1.00 x 45.0° chamfer and a 3.73 mm (.15 in) hole dimension. Shipping weight is 0.21 lbs (0.10 kg).
Because installation hardware is included, the panel can go straight into a matching Q/QA size enclosure. If mounting screws are lost, Hammond lists 1591MM100 (pack of 100 screws) as the replacement screw for all sizes other than A and B. The panel is RoHS compliant and REACH compliant, is catalogued under product category Accessories with UNSPSC 39121301, and carries UPC 623980781600 for receiving and inventory matching.
| Type | Inner Panel |
| Product | Inner panel |
| Description | 1554 Q/QA INNER PANEL |
| Long Description | Panel for 1554Q, QA - Galv |
| Fits Enclosure Sizes | 1554 or 1555 series sizes Q, QA |
| Thickness (Per Drawing) | 1.63 mm [.064 in] |
| Overall Width (Per Drawing) | 127.50 mm [5.02 in] |
| Corner Chamfer (Per Drawing) | 1.00 x 45.0° |
| Hole Dimension (Per Drawing) | 3.73 mm [.15 in] |
| Overall Length (Per Drawing) | 127.00 mm [5.00 in] |
| UPC | 623980781600 |
| UNSPSC | 39121301 |
| Replacement Screws | 1591MM100 (pack of 100 screws) |
| Installation Hardware | Included |
| Shipping Weight | 0.21 lbs (0.10 kg) |
| Material | Steel |
| Panel Material (Series) | 16ga galvanized steel |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
It is the inner panel for Hammond 1554 or 1555 series enclosures in sizes Q and QA.
The 1554/1555 inner panel series is made from 16ga galvanized steel.
The part drawing shows 127.00 mm [5.00 in] by 127.50 mm [5.02 in] overall, 1.63 mm [.064 in] thick.
Yes, installation hardware is included. Replacement screws for this size are 1591MM100 (pack of 100 screws).
Yes, the part is listed as RoHS compliant and REACH compliant.
