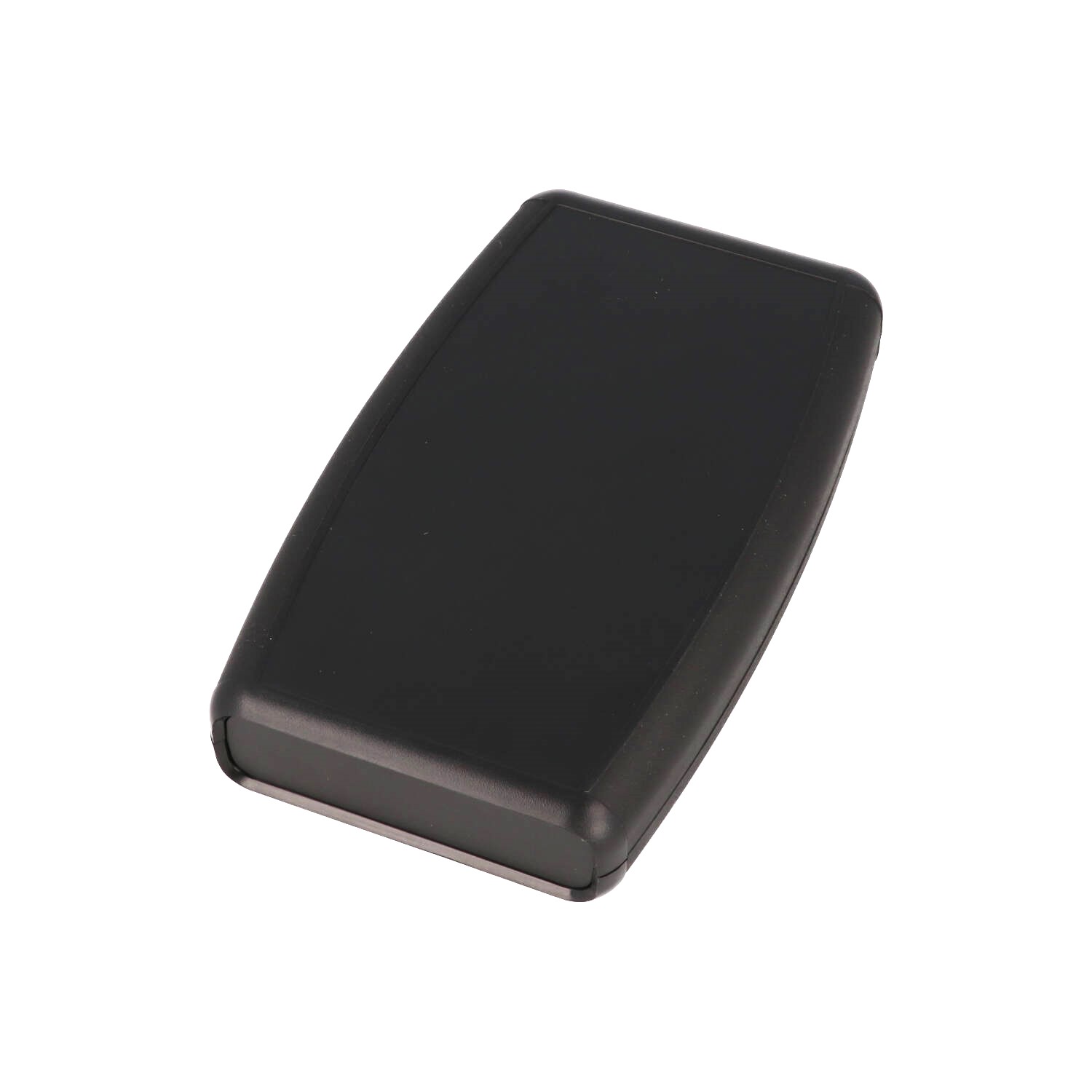

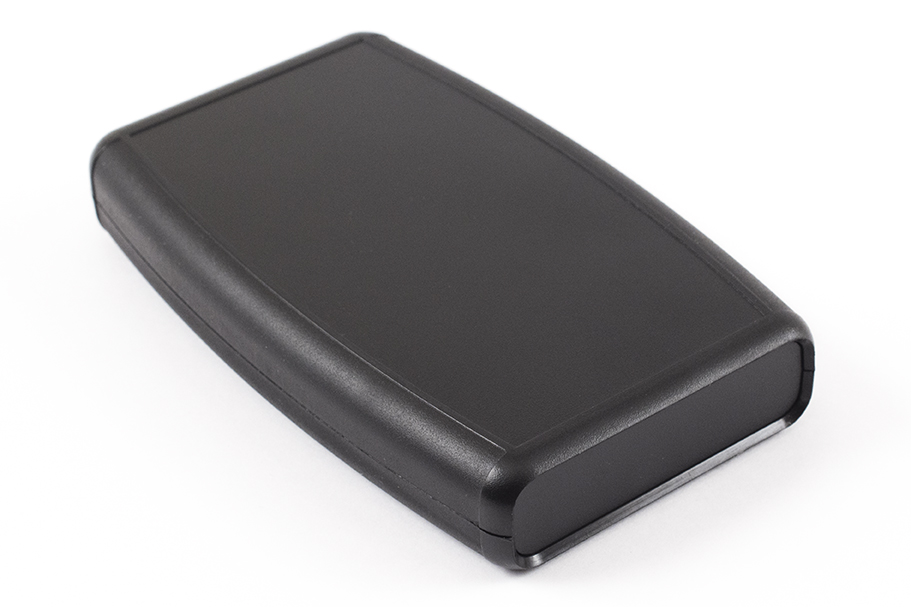

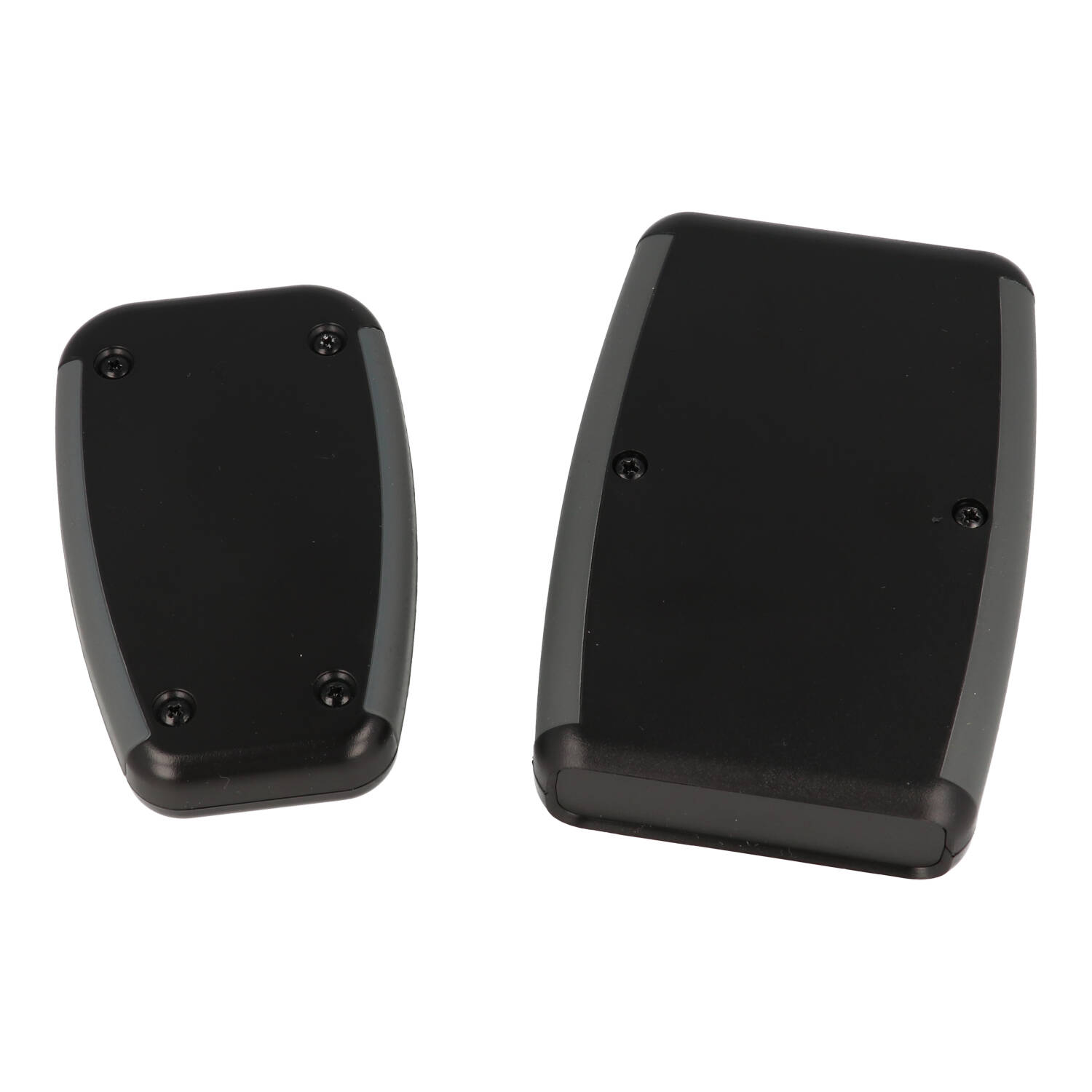

The 1553DBKBKBAT is the all-black battery version of the large size D 1553 Series handheld enclosure, with a black ABS case and black soft-sided overmold. It combines a uniform black look with an integrated battery compartment for portable, battery-powered electronics.
The battery door and compartment come with 4 battery spring clips for 2x AA batteries and a 9V (PP3) adapter clip. The case is molded from general purpose ABS plastic with a UL94 HB flame rating and a soft plastic overmold, the top cover is recessed for a membrane display or keypad, and the PC board aligns on molded-in bosses.
Overall dimensions are 147 x 89 x 25 mm (5.79 x 3.50 x 0.98 in), nominally 5.8 x 3.5 x 0.98 in. The inner box is 140.24 mm long and 19.50 mm high. With the battery bay in place the maximum PC board is 107 mm x 74 mm (4.21 x 2.91 in) per the ordering table; the drawing shows 106.80 x 73.67 mm.
The 1553DBKBKBAT ships with the top, bottom, front plastic panel, battery door, battery spring clips (4 pcs), 9V adapter (1 pc) and 4 cover screws; the PC board is not supplied. Non-grey 1553 enclosures use black screws. Replacement lid screws are 1593QS100BK, torqued to 2.5 lbf-in (30 cN-m). Spare 9V (BS61) and AA clip (1553HDR-BKIT) kits are listed as accessories.
It is RoHS and REACH compliant and ships in shrink wrap at 0.24 lbs (0.11 kg).
| Type | Hand-held, soft sided, battery |
| Series | 1553 Series ABS Plastic Hand Held Enclosures |
| Configuration | With Battery Doors & Compartments |
| Enclosure Size | 1553D |
| Long Description | black ABS w/ black soft side hand held enclosure & battery door 5.80x3.50x0.98 |
| Short Description | 1553D LRG SOFT TOUCH CASE BK |
| Overall Depth | 0.98 in (25 mm) |
| Overall Width | 3.50 in (89 mm) |
| Overall Length | 5.79 in (147 mm) |
| Top Inlay Depth | 0.50 mm [.02 in] |
| Top Inlay Width | 69.68 mm [2.743 in] |
| Inner Box Height | 19.50 mm [.768 in] |
| Inner Box Length | 140.24 mm [5.521 in] |
| Top Inlay Length | 130.68 mm [5.145 in] |
| Front Inlay Width | 58.93 mm [2.320 in] |
| P.C. Board Location | Aligned on PCB bosses |
| Max. P.C. Board Width | 2.91 in (74 mm) |
| Max. P.C. Board Length | 4.21 in (107 mm) |
| Overall Depth (Drawing) | 25.00 mm [.984 in] |
| Overall Width (Drawing) | 89.00 mm [3.504 in] |
| Nominal Size (L X W X H) | 5.8 in x 3.5 in x 0.98 in (147 mm x 89 mm x 25 mm) |
| Overall Length (Drawing) | 147.24 mm [5.797 in] |
| Max. P.C. Board Size (Drawing) | 106.80 mm x 73.67 mm [4.205 in x 2.900 in] |
| Assembly Boss Diameter (Top And Bottom) | 6.00 mm [.236 in] |
| Max. P.C. Board Length X Width (Part Page) | 75.82 mm x 106.7 mm |
| Battery Clips | 4x battery clips (for 2x AA batteries) and 1x 9 volt (PP3) battery clip |
| Replacement 9V Battery Kit | BS61 (not supplied) |
| Replacement AA Battery Clip Kit | 1553HDR-BKIT (4 positive and 4 negative, not supplied) |
| UPC | 623980035093 |
| UNSPSC | 39121301 |
| Included | Top, Bottom, front plastic panel, Battery Door, battery spring clips (4 pcs), 9V adapter (1 pc) and 4 cover screws (P.C. Board not supplied) |
| Solid Models | Available in STEP or IGES |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.24 lbs (0.11 kg) |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| PC Board Mounting Screws | Not included; order 1593ATS50 (pkg 50) or 1593ATS100 (pkg 100), #4 x 1/4" (6.4 mm) plated self-tapping |
| Replacement Cover Screws | Oval head self-tapping cover screws, #4 x 3/4" (19 mm), pkg of 100: 1593QS100 (Silver) / 1593QS100BK (Black) |
| Belt Or Pocket Clip (Optional) | 1599CLIP (Black) / 1599CLIPGY (Grey) |
| Material | ABS Plastic (enclosure molded from GP ABS plastic) |

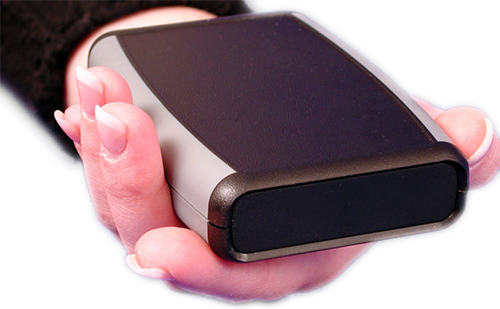

| Overmold | Soft plastic overmold for comfortable grip |
| Top Cover | Recessed for membrane display or keypad |
| End Panels | Single removable front panel |
| Cover Screws | Black |
| Overmold Color | Black |
| Enclosure Color | Black |
| PC Board Standoffs | Molded into case |
| Battery Compartment | Battery door and compartment |
| Replacement Lid Screws | 1593QS100BK |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid and strong solvents |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
The compartment includes 4 battery spring clips for 2x AA batteries and a 9 volt (PP3) battery clip/adapter.
Up to 107 mm x 74 mm (4.21 x 2.91 in) per the ordering table; the part page lists 75.82 x 106.7 mm.
The series lists 1553DBPCB, a ProtoBoard printed circuit board of FR4 glass epoxy designed for all 1553 size D enclosures.
1593QS100BK (black), #4 x 3/4 in (19 mm) oval head self-tapping, pack of 100.
No IP rating is listed for this battery-door version; the data states that versions without a battery door, such as the 1553DBKBK, are designed to meet IP54.
