The 1457C801BK is a watertight extruded aluminum enclosure from the Hammond 1457 series, designed to meet IP65. It is the non-flanged version, with flat end panels and no mounting flanges. It houses PC boards or serves for equipment interfacing, for OEM designers and integrators needing a small sealed metal case.

The enclosure measures 3.15 in x 2.32 in x 1.21 in (80 mm x 59 mm x 31 mm). In the series table the extrusion is 80.00 mm long, 59.00 mm wide and 31.00 mm high, and the maximum PCB size is listed as 80.00 x 55.00 mm; the part page lists the maximum P.C. board as 79 mm x 54.5 mm, and the drawing notes it fits a 80mm (3.149") X 55.0mm (2.165") PCB. Boards slide horizontally into internal slots. The drawing gives an extrusion length of 80.00 ±0.50 mm [3.150 ±0.020 in] and an overall assembly length of 89.40 mm [3.520 in].

The body is one piece of extruded aluminum with a minimum thickness of 0.06" (1.5 mm) and a black powder coat finish. The body includes a recessed area 0.75 mm (0.030") deep for labels or a membrane keypad. The two end panels are diecast aluminum painted in black satin powder paint. They are easy to machine and carry full-perimeter self-adhesive gaskets.

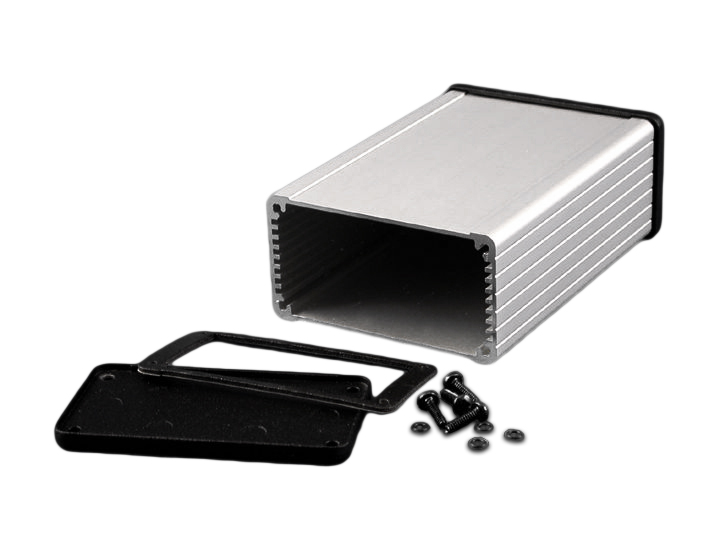

Included in the box: the body, two diecast end panels, two closed-cell polyethylene foam end plate gaskets, and stainless steel assembly hardware with a rubber o-ring and adhesive rubber feet. The thread-forming screws are black zinc plated to ASTM B633-13, Type II (96 hour salt spray test), SC3 severe rating (12 micron coating). Recommended screw torque is 5 lbf/in, and replacement screws come in packs of 100 as 1457MS100.

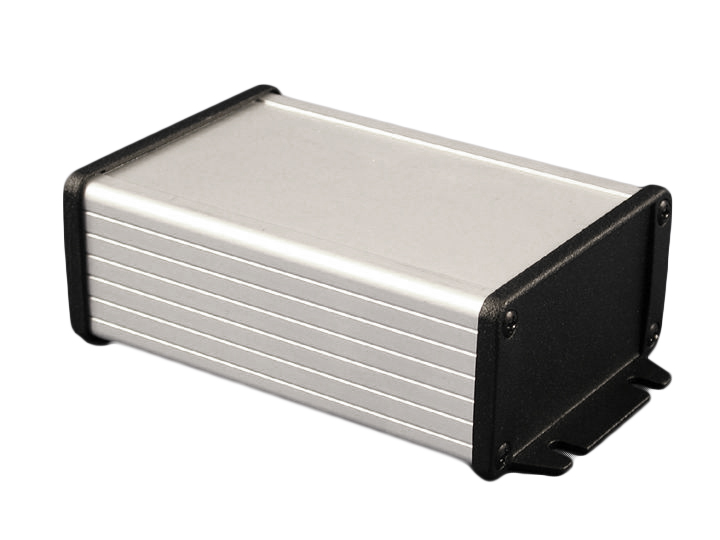

Replacement end panel kits for 1457C enclosures are 1457CWP (2-pack) and 1457CWP-10 (10-pack). Replacement gaskets are 1457CPG-10 (watertight) and 1457CEG-10 (EMI). The clear anodized version of this part is 1457C801, and the flanged version is 1457C802BK. The 1457C801BK ships shrink-wrapped at 0.25 lbs (0.11 kg).
