The 1441-20 is a 17 in x 4 in x 3 in (432 mm x 102 mm x 76 mm) steel chassis finished in ASA 61 smooth grey powder paint. It is the ASA 61 grey version of this size; the same chassis is offered in satin black as 1441-20BK3. It suits electronics hobbyists, audio and tube-equipment builders, and OEM engineers who need an open-bottom metal base for mounting components.
Construction is spot welded, heavy-duty 20 gauge steel; the drawing specifies 0.036 in steel for both the chassis and the optional bottom plate. The inner box measures 429.97 mm [16.93 in] long, 99.77 mm [3.93 in] wide and 74.37 mm [2.93 in] high, which is the space available for transformers, boards and wiring. Shipping weight is 2.25 lbs (1.02 kg).

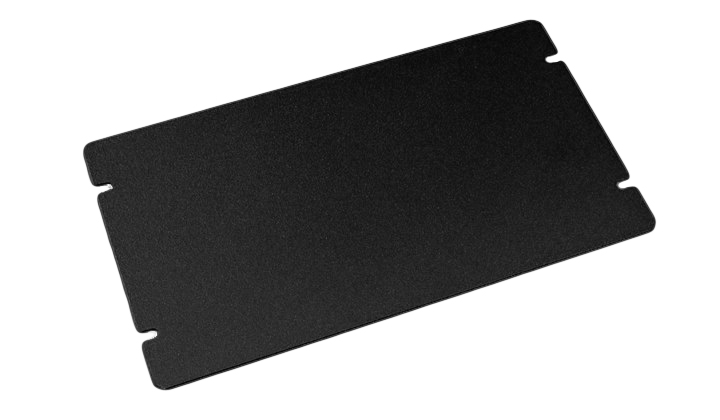

At 17 in long but only 4 in deep, with a 3 in height, this is the slimmest 17 in size in the table; no perforated chassis cover is listed for it. All components are sold separately. The matching ASA 61 grey bottom panel is 1431-20 (1431-20BK3 in the other finish); bottom plates are punched with 4 holes of 3/16 in diameter and the chassis includes 1/8 in holes to accept them.
| Type | Chassis (Steel) |
| Series | 1441 Series Steel Chassis |
| Part Number | 1441-20 |
| Long Description | chassis - steel; ASA 61 grey finish |
| Short Description | STEEL CHASSIS 17X4X3 |
| Depth | 4.00 in (102 mm) |
| Width | 17.00 in (432 mm) |
| Height | 3.00 in (76 mm) |
| Inner Box Width | 99.77 mm [3.93 in] |
| Inner Box Height | 74.37 mm [2.93 in] |
| Inner Box Length | 429.97 mm [16.93 in] |
| Size (L X W X H) | 17 in x 4 in x 3 in (432 mm x 102 mm x 76 mm) |
| Rubber Feet | Sold separately |
| Included Items | None - all components sold separately |
| Bottom Panel (Sold Separately) | 1431-20 (ASA 61 grey); 1431-20BK3 (satin black) |
| Bottom Plate Screws (Sold Separately) | 1421J6 natural finish cover screws, pkg 6, 6-32 x 1/4" self-tapping; 1421J6BK black also listed |
| UPC | 623980496207 |
| UNSPSC | 39121301 |
| Satin Black Chassis | 1441-20BK3 |
| Packaging Type | shrink wrap |
| Shipping Weight | 2.25 lbs (1.02 kg) |
| Color | Gray |
| Finish | ASA 61 smooth grey powder paint |
| Material | Steel |
| CAD Models | Solid models available in STEP or IGES |
| Steel Gauge | 20 |
| Construction | Spot welded steel, heavy duty |
| Factory Modification | Milling, drilling, printing available from factory |
| Bottom Plate Mounting | Optional bottom plates punched with 4 holes, 3/16" diameter; chassis includes 1/8" holes for bottom plate installation |
| Chassis Material Thickness | 0.036" steel |
| Bottom Plate Material Thickness | 0.036" steel |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
The chassis is 17 in x 4 in x 3 in (432 mm x 102 mm x 76 mm). The drawing gives an inner box of 429.97 mm [16.93 in] long, 99.77 mm [3.93 in] wide and 74.37 mm [2.93 in] high.
No. All components are sold separately. The matching ASA 61 grey bottom panel is 1431-20, screws are 1421J6 (pkg of 6, 6-32 x 1/4 in self-tapping), and rubber feet are sold separately.
The ordering table lists no perforated chassis cover for this size; only bottom panels are listed.
The chassis is spot welded 20 gauge steel, 0.036 in thick per the drawing, finished in ASA 61 smooth grey powder paint.

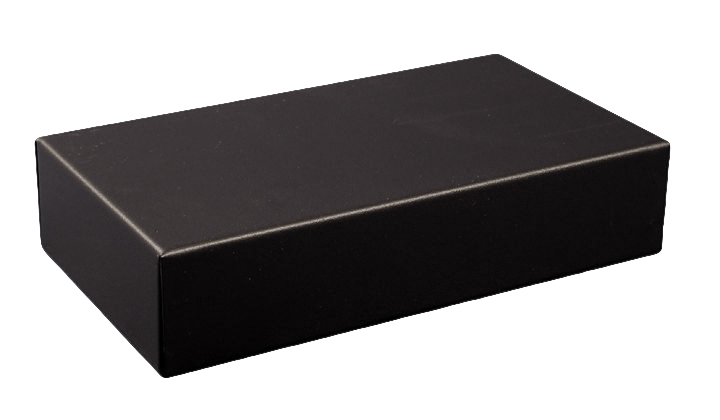

The same size is listed as 1441-20BK3 in satin black.
Yes, the part is listed as both RoHS compliant and REACH compliant.
