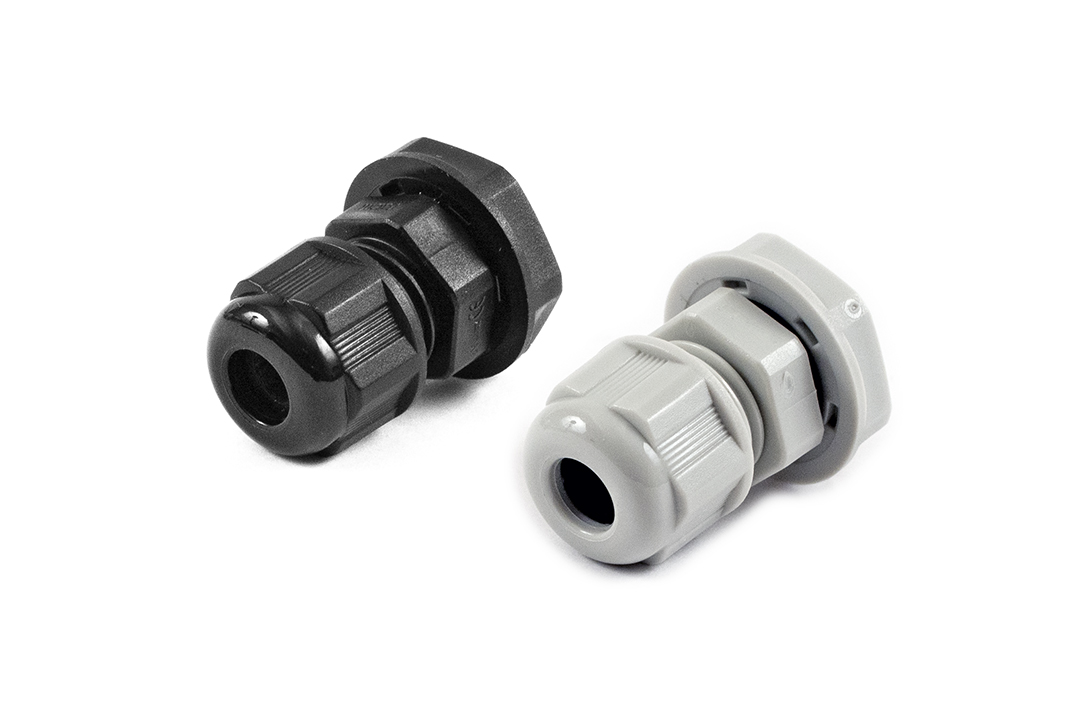

The 1427NCGPG7G is a gray (RAL 7035) nylon liquid-tight cordgrip with a PG7 thread, the smallest PG size in the 1427NCG series. It seals small cables where they enter or leave an enclosure and gives them strain relief, with a gray finish that suits light-gray enclosures.

Construction is nylon with an NBR (nitrile rubber) seal. The large opening lets the seal take a wide range of cable diameters, and the strain relief elements tighten in a circular sequence on the sealing ring so the cable is held without twisting or damage. A nylon locknut and EPDM o-ring come with it.

• Thread size (D): PG7 (standard length)
• Mounting hole: 0.51 in (13 mm)
• Wire diameter min.: 0.12 in (3 mm)
• Wire diameter max.: 0.28 in (7 mm) per ordering table; 6.5 mm per part drawing
• Outer length (L): 0.83 in (21 mm)
• Inner thread length (T): 0.31 in (8 mm)
• Guide torque: sealing nut 0.8–1.5 N-m, locknut 1–2 N-m

The 1427NCGPG7G is UL listed, has a UL94 V-2 flammability rating, provides IP68 protection and is designed to meet NEMA Type 4, 4X, 6, 6P, 12 and 13. It is RoHS and REACH compliant. Static operating temperature is -40°C to 100°C (up to 120° instantaneous); dynamic is -20°C to 80°C (up to 100° instantaneous). It is packed in a bag.
