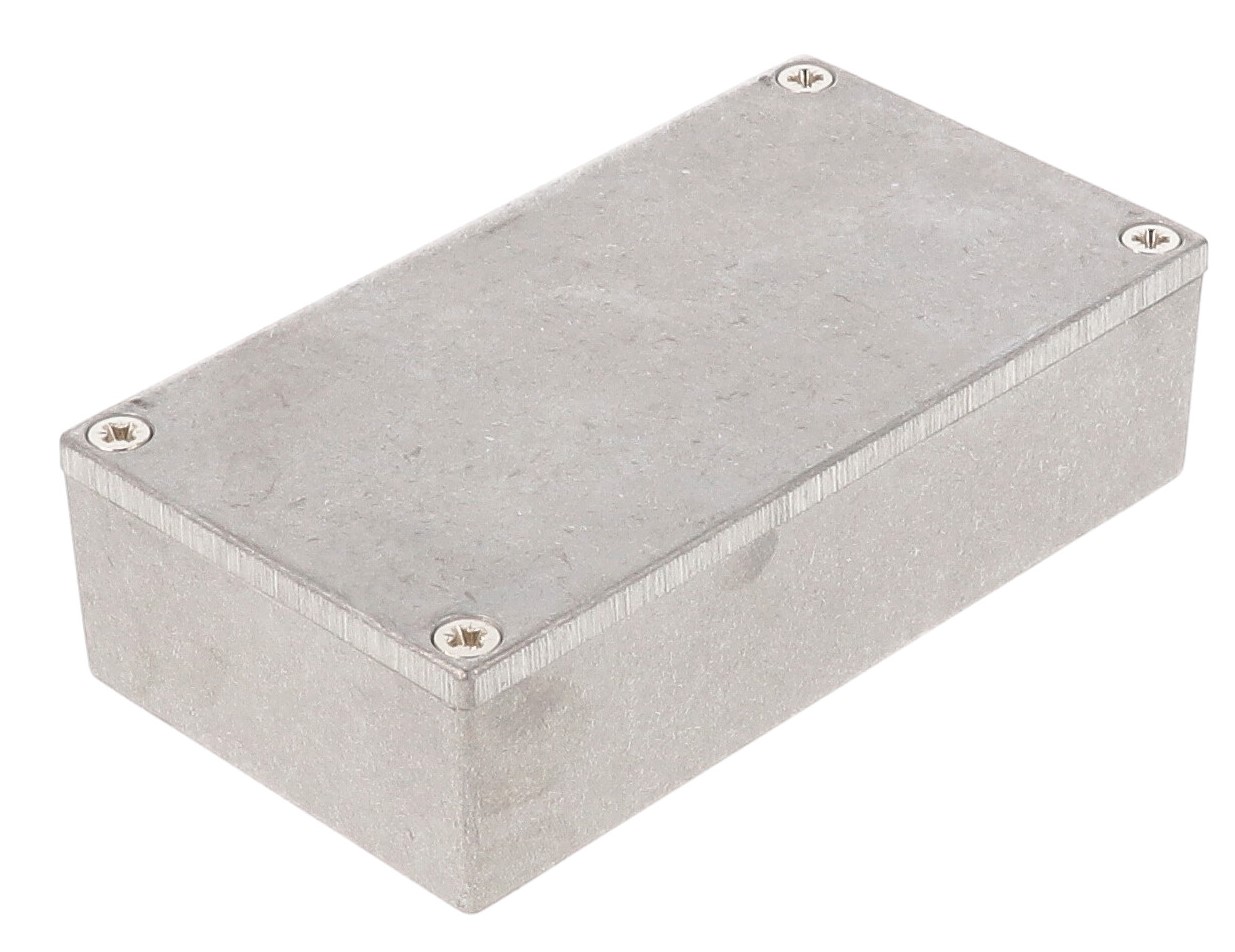

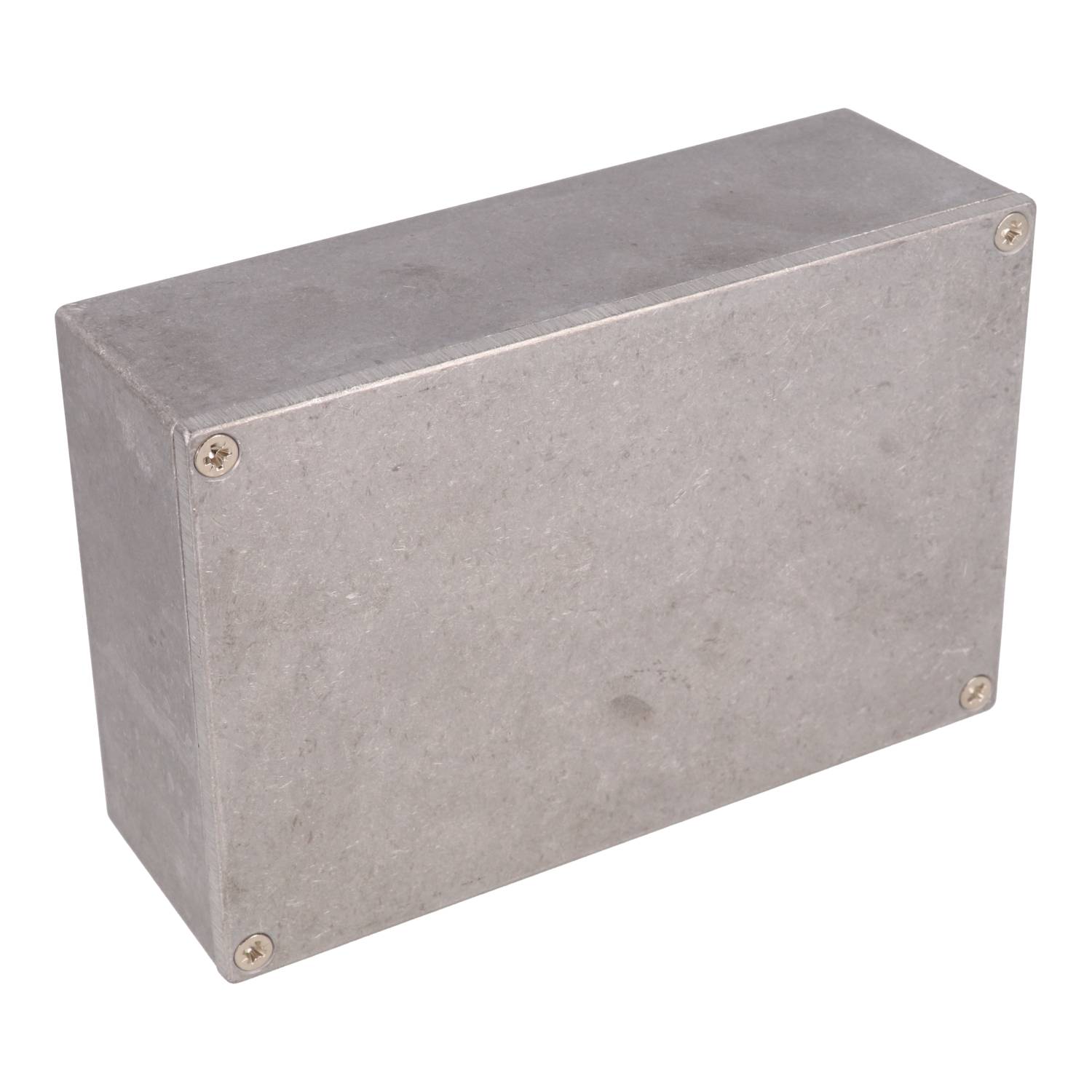

The 10758PSLA is the Eddystone 10758 diecast aluminium enclosure, a compact 145 x 95 mm instrument box supplied in natural finish. It is intended for designers and builders of small electronic instruments who want a rugged metal case that is tough yet easy to machine.
The enclosure is cast from aluminium alloy to BS1490, LM2M. Lap joint construction between box and lid protects against access of dust and splashing water, and the design is intended to meet IP54. The lid is retained by four M3.5 x 12 countersunk screws with POZIDRIV No. 2 heads, set in countersunk lid holes, with a recommended torque of 50-55 cN.m [71-78 ozf.in].
The part page lists the size as 5.71 in x 3.74 in x 1.93 in (145 mm x 95 mm x 49 mm). In the series table the box is 145 mm long, 95 mm wide and 45 mm in total depth, with a 4 mm lid height, and the drawing shows overall dimensions of 145.50 x 95.40 x 49.30 mm. Side walls have a low draft angle of 2 degrees or less, which makes PC board mounting easier. Shipping weight is 0.7 lbs (0.32 kg).

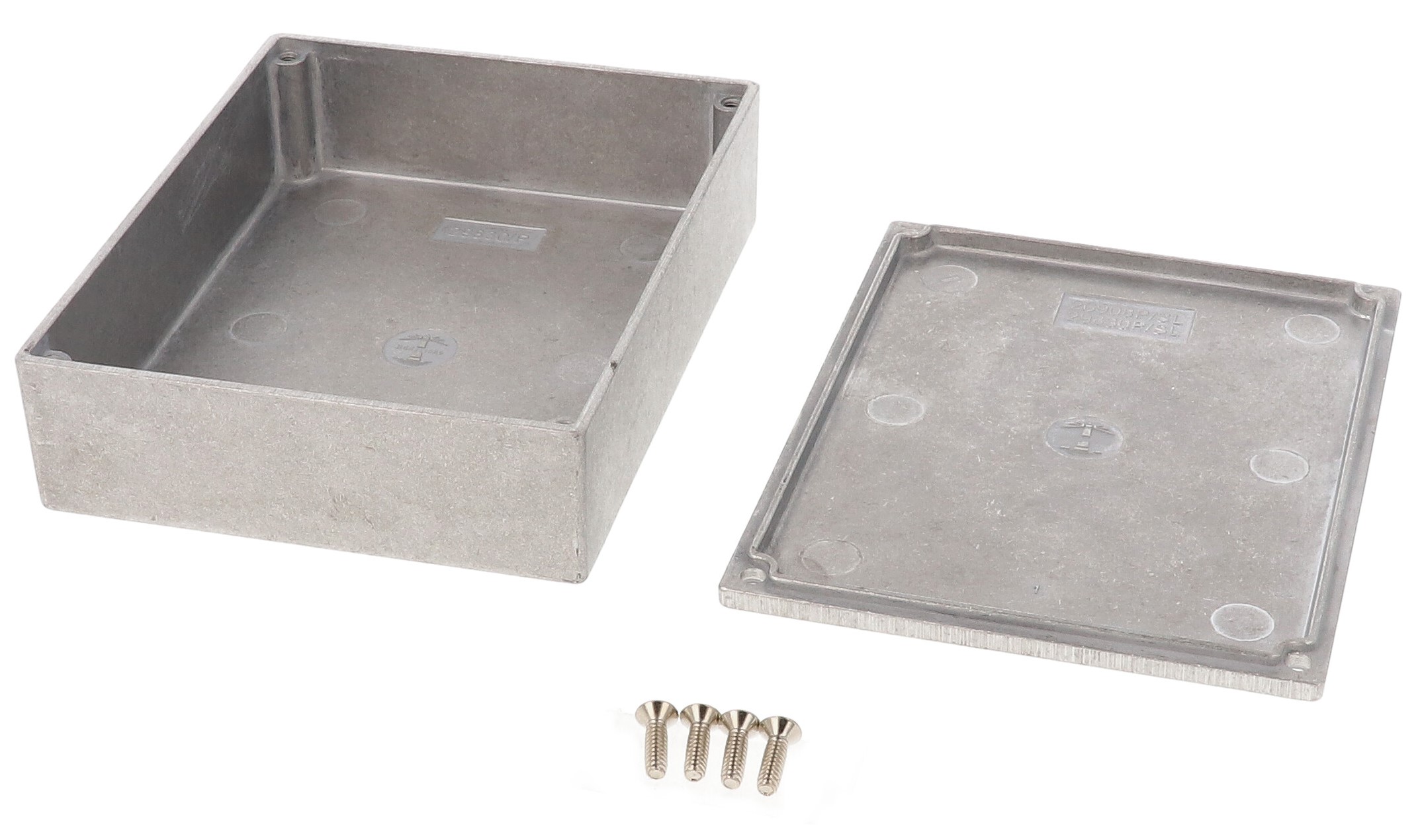

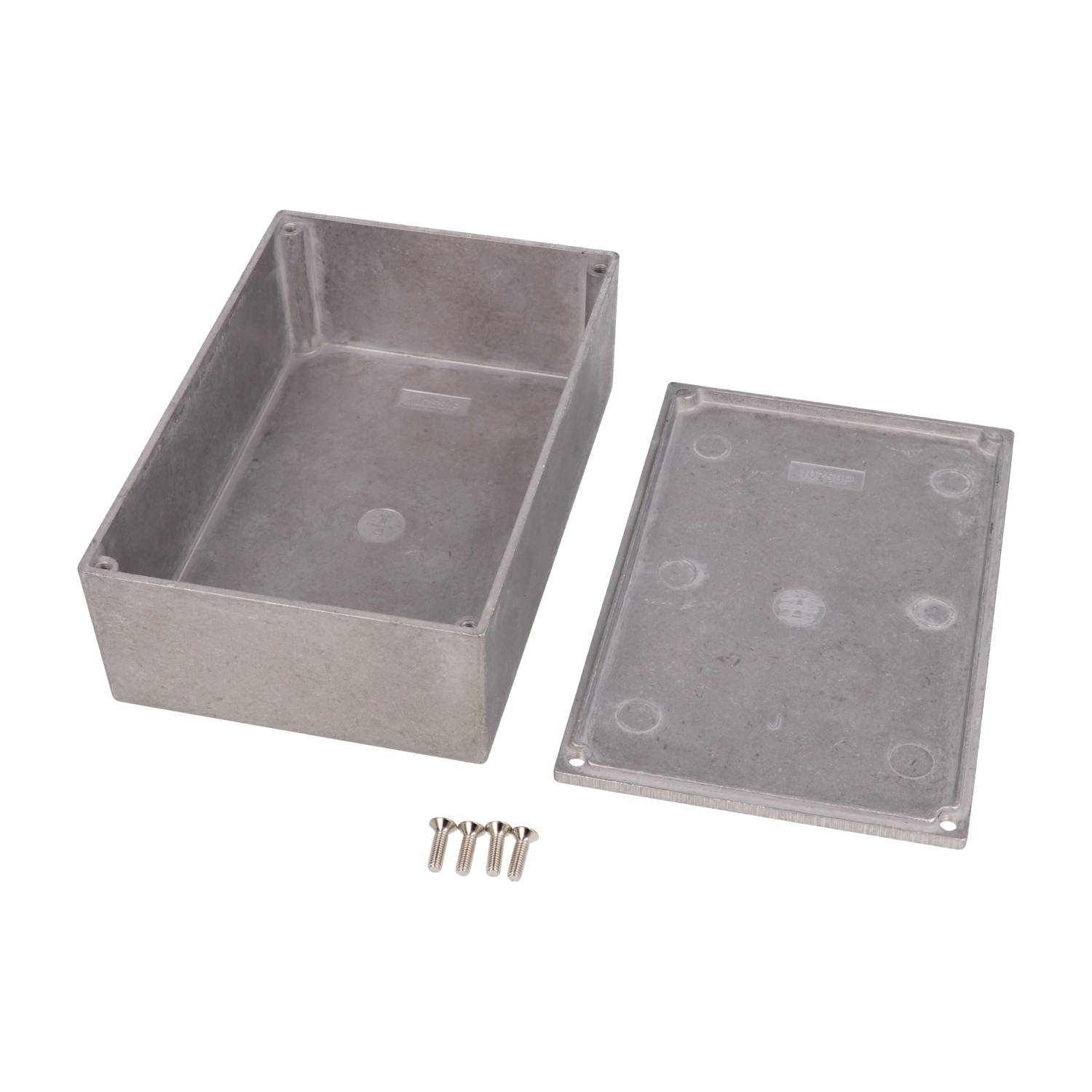

The purchased assembly includes the lid, box and 4 cover screws; spare Pozidriv cover screws are available as SCR0230-100 (pack of 100). The enclosure is RoHS and REACH compliant, can be factory modified, and has solid models available in .stp or .x_t. The Eddystone brand was purchased by Hammond in 1998.
| Series | EDDYSTONE Series Die-Cast Enclosures |
| CAD Models | Solid models available in .stp or .x_t |
| Product Type | Eddystone diecast aluminum enclosure |
| Brand History | Eddystone designed; the Eddystone brand was purchased by Hammond in 1998 |
| Eddystone Model | Eddystone 10758 |
| Short Description | EDDYSTONE ALUM 145X95X49 |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Lid Height | 0.16 in (4 mm) |
| Total Depth | 1.77 in (45 mm) |
| Overall (Drawing) | 145.50 mm x 95.40 mm x 49.30 mm [5.73 in x 3.76 in x 1.94 in] |
| Ordering Table Width | 3.74 in (95 mm) |
| Ordering Table Length | 5.71 in (145 mm) |
| Nominal Size (L X W X H) | 5.71 in x 3.74 in x 1.93 in (145 mm x 95 mm x 49 mm) |
| Cover Screws | SCR0230-100 Pozidriv #2 cover screws (pkg 100) [M3.5 x 12mm] |
| UPC | 623980845067 |
| UNSPSC | 39121301 |
| Part Number | 10758PSLA |
| Cover Screw Thread | M3.5 x 0.6 |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Included | Lid, box and 4 cover screws |
| Shipping Weight | 0.7 lbs (0.32 kg) |
| Finish | Natural finish |
| Material | Diecast aluminium alloy to BS1490, LM2M |
| Lid Holes | Countersunk |
| Construction | Lap joint construction |
| Lid Retention | M3.5 x 12 countersunk screws (POZIDRIV No. 2 head) |
| Machinability | Diecast material is tough yet easy to machine |
| Side Wall Draft Angle | 2 degrees or less (for easy PC board mounting) |
| Ingress Protection | Designed to meet IP54; protection against access of dust and splashing water |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
The part page lists 5.71 in x 3.74 in x 1.93 in (145 mm x 95 mm x 49 mm). The series table gives 145 mm length, 95 mm width, 45 mm total depth and 4 mm lid height.
The Eddystone series is designed to meet IP54, with lap joint construction that protects against access of dust and splashing water.
M3.5 x 12 countersunk screws with a POZIDRIV No. 2 head. Replacements are SCR0230-100 (pack of 100); recommended torque is 50-55 cN.m [71-78 ozf.in].
Diecast aluminium alloy to BS1490, LM2M, supplied in natural finish.
The side walls have a low draft angle of 2 degrees or less for easy PC board mounting.
The lid, box and 4 cover screws.
