| Gain | 0.6 - 2.6 dBi |
| Vswr | 1.7:1 at 698-960 MHz, 1.5:1 at 1710-2170 MHz, 1.3:1 at 2500-2700 MHz |
| Frequency | 3G/4G/LTE (698-960 / 1710-2170 / 2500-2700 MHz) |
| Impedance | 50 Ohms |
| Polarization | Linear |
| Mpn | 76002103 |
| Type | Indoor |
| Brand | Digi International |
| Application | Cellular |
| Form Factor | Dipole |
| Product Type | Cellular antenna |
| Compatibility | Digi IX10, Digi IX15 |
| Order Quantity | (1) Cellular antenna, order quantity 2 |
| Color | Black |
| Weight | 25 g |
| Material | PC/ABS, UV stable |
| Mounting | Direct / SMA male |
| Dimensions | 170 x 18 x 10 mm (6.69 x 0.71 x 0.39 in) |
| Cable Length | N/A |
| Operating Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
Business account holders on Antennas typically save 23% vs. retail pricing. Create a free account to see your price.

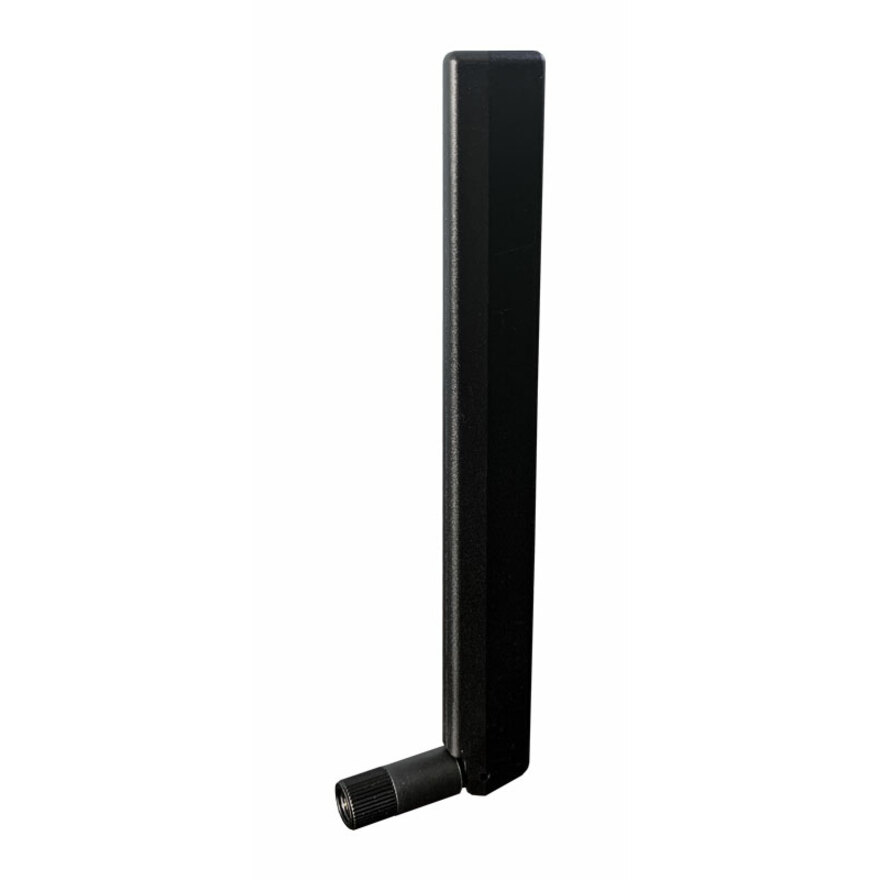

Digi specifies it for the Digi IX10 Industrial Cellular Router and the Digi IX15 IoT Gateway and Cellular Router.
It covers 3G/4G/LTE in the 698-960 MHz, 1710-2170 MHz and 2500-2700 MHz ranges, with 0.6-2.6 dBi gain.
Digi lists the part as one cellular antenna with an order quantity of 2.
Digi classifies this antenna as an indoor type. It mounts directly on the router's SMA port and is rated for -40 °C to 85 °C operation.
