| Connector | 6-pin (2x3) Molex Micro-Fit external power connector |
| Fuse 9 24v | 10 A fuse for 9–24 VDC installations |
| Protection | Reverse polarity and transient voltage protection per ISO 7637-2 |
| Fuse Over 24v | 5 A fuse for > 24 VDC installations |
| Input Voltage | 9–36 VDC steady state (requires in-line fuse for vehicle installations) |
| Consumption Idle | Idle: 14 W |
| Consumption Heavy | Heavy: 23 W |
| Consumption Sleep | Sleep: 0.07 W |
| Consumption Typical | Typical: 21 W |
| Consumption Test Condition | R1900-5GB + RX30, 12 V input, 25 °C (77 °F) ambient; minimum PoE draw, can rise up to an additional 60 W with attached PoE devices |
| Mpn | TAA-MB-RX30-POE |
| Upc | 840292700192 |
| Brand | Cradlepoint (Ericsson) |

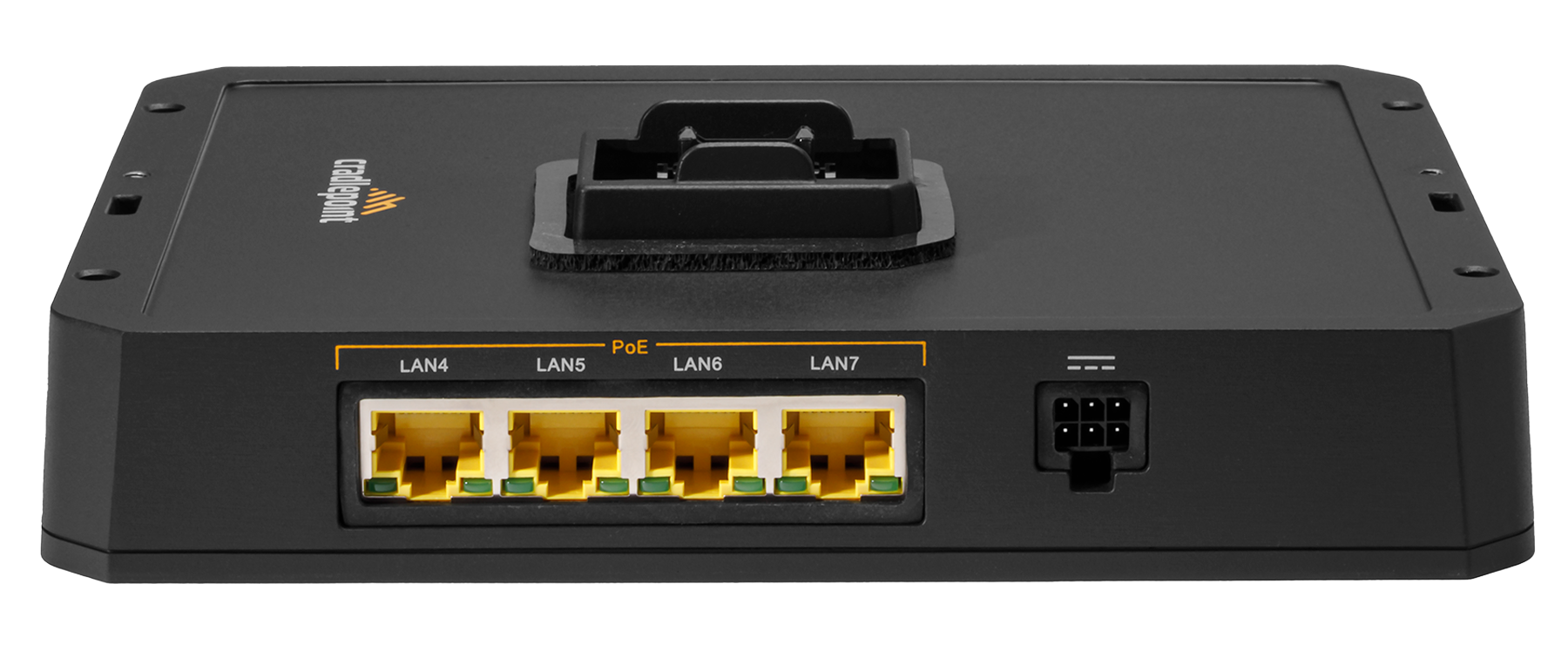

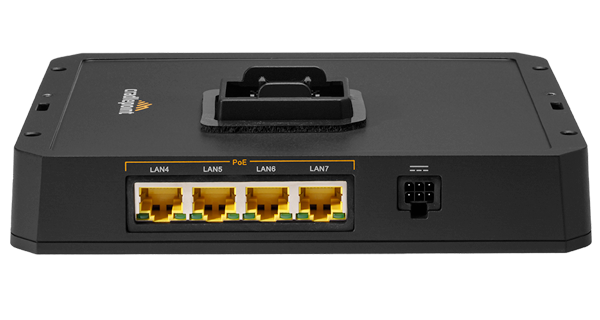

| Model | RX30-PoE Managed Accessory — PoE Switch |
| Taa Compliant | TAA-compliant |
| Accessory Family | Modular |
| Base Part Number | TAA-compliant version of MB-RX30-POE |
| Region Availability | North America, Europe, Asia-Pacific |
| Ethernet | 4 x GbE RJ45 (LAN/WAN switchable) |
| Poe Ports | 4 x PoE 802.3bt Type 3 (up to 60 W per port) |
| Poe Budget | 60 W total PoE power budget |
| Contents | Managed Accessory — PoE Switch; GPIO & power cable, 2x3, 3 m, 18AWG (170858-000); small accessories kit; mounting template |
| Shipping Weight | 3.07 lb (shipping) |
| Optional Accessories | Power Supply, 12V, Small, 2x3 (170870-000, C13 line cord not included); Rail Safe GPIO Cable, Small 2x3, Black, 3 m, 18AWG (170872-000) |
| Size | 173 x 152 x 30 mm (6.81 x 5.98 x 1.18 in) |
| Weight | 0.84 kg (1 lb 13.5 oz) |
| Gpio | 1 x 6-pin GPIO connector, 2x3 Molex Micro-Fit (3 mm locking type) |
| Mtbf | 1,231,708 hours (Telcordia SR332 at 25 °C) |
| Supported Routers | Ericsson Cradlepoint R1900 |
| Licensing Requirement | Requires an R1900 licensed to an Ericsson NetCloud service plan |
| Storage Humidity | 5% to 95% |
| Ingress Protection | IP64 (dust tight and splashing water) |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Rail | EN 50121-3-2 (Power Surge 0.5 & 1 kV Criteria A; 1.5 kV Criteria C); EN 50155 Class S1 |
| Safety | UL/cUL; CB Scheme; EN 60950-1; EN 62368-1 |
| Vehicle | E-Mark |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Shock Vibration Humidity | MIL STD 810G; SAE J1455 |
Business account holders on PoE Switches typically save 13% vs. retail pricing. Create a free account to see your price.
Each of the four ports supports 802.3bt Type 3 at up to 60 W, drawn from a 60 W total PoE power budget shared across all ports.

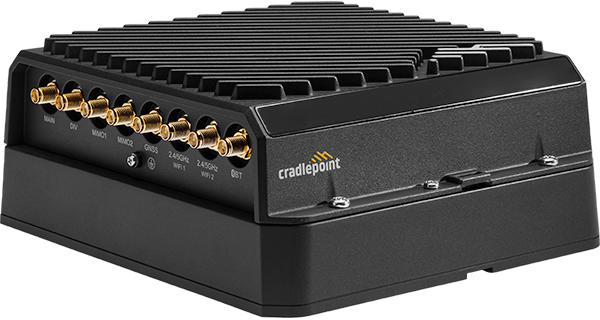

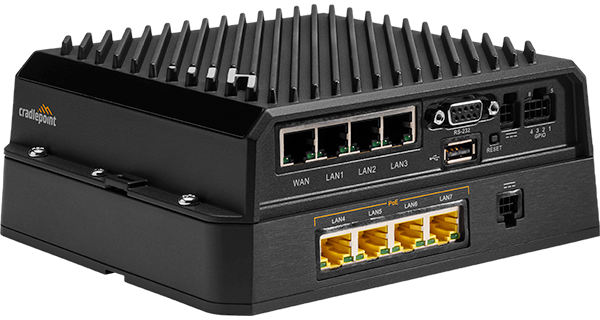

The RX30-PoE is designed for the Ericsson Cradlepoint R1900. Activation requires an R1900 licensed to an Ericsson NetCloud service plan.
Yes. The four GbE RJ45 ports are LAN/WAN switchable.
It accepts 9–36 VDC through a 6-pin (2x3) Molex Micro-Fit connector and has ISO 7637-2 reverse polarity and transient protection. Vehicle installations require an in-line fuse: 10 A for 9–24 VDC, 5 A above 24 VDC.
Cradlepoint hardware is covered by a limited lifetime warranty for as long as it has a subscription license to an active Ericsson NetCloud service plan.
