Create Free Business Account| Input | 100–240 VAC, 2.3 A |
| Output | 54 VDC, 3.34 A |
| Consumption | 17 W idle / 19 W typical / 24 W heavy |
| Power Supply | External power supply included |
| Mpn | Part number BF03-30005GB-GN |
| Taa | Non-TAA SKU |
| Upc | UPC 810007806143 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint E3000 |
| Region | U.S. & Canada |
| Fips Model | Standard (non-FIPS) model |
| Package Plan | 3-Year NetCloud Enterprise Branch Essentials Plan |
| Subscription Term | 3 years |
| Hardware Configuration | 5GB modem with Wi-Fi |
| Sim | Dual 2FF SIM slots |
| Sms | SMS supported |
| Gnss | Passive GNSS via DIV/MIMO2 ports |
| Mimo | 4x4 MIMO |
| Three G | WCDMA/UMTS/HSPA+ |
| Antennas | 4 x included 600 MHz–6 GHz paddle antennas, SMA female |
| Modulation | Up to 256 QAM DL/UL |
| Regulatory | FCC, IC, CE, RCM |
| Technology | 5G FR1 NSA/SA, LTE Advanced Pro Cat 20, 3GPP Rel. 15 |
| Peak Uplink | Up to 660 Mbps (based on 2 layers LTE + TDD, 100 MHz BW, 256 QAM, SISO) |
| Lte Fdd Bands | FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71 |
| Lte Tdd Bands | TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48 |
| Peak Downlink | Up to 4.14 Gbps (based on 20 layers LTE + TDD, 100 MHz BW, 256 QAM, 4x4) |
| Three G Bands | 1, 2, 3, 4, 5, 6, 8, 9, 19 |
| Transmit Power | 5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; HPUE 25 dBm ± 1 (B41 SA) (typical conducted) |
| Five G Nr Bands | n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900) |
| Carrier Aggregation | LTE: 7 CA DL / 2 CA UL; ENDC: 1 CA DL / 1 CA UL |
| Private Cellular Network | Private cellular incl. CBRS Band 48 |
| Network Operator Standards | PTCRB, GCF |
| Public Safety Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified |
| Network Operator Certifications | AT&T, EE, T-Mobile, Verizon |
| Weight | 1.98 kg (4 lb 6 oz) |

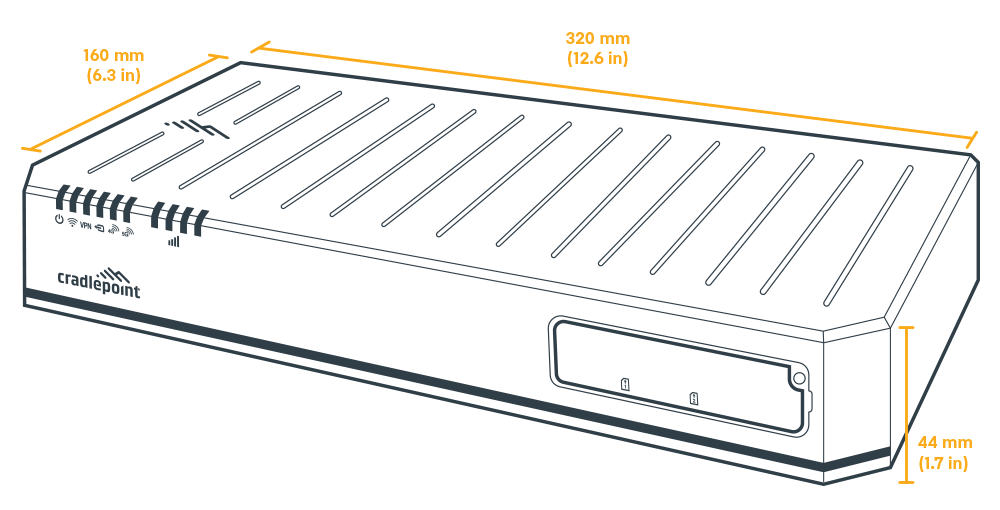

| Dimensions | 160 x 320 x 44 mm (6.3 x 12.6 x 1.7 in) |
| Shipping Weight | 7.70 lb shipping weight |
| Poe | 4 x 802.3bt PoE Type 3/4, up to 90 W per port, 140 W total |
| Usb | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W) |
| Wifi | Dual-band concurrent 4x4 MU-MIMO Wi-Fi 6 with DFS, external antennas |
| Modem | Embedded 5GB modem, 4 x SMA; optional MC400 second modem |
| Console | 1 x RJ45 console |

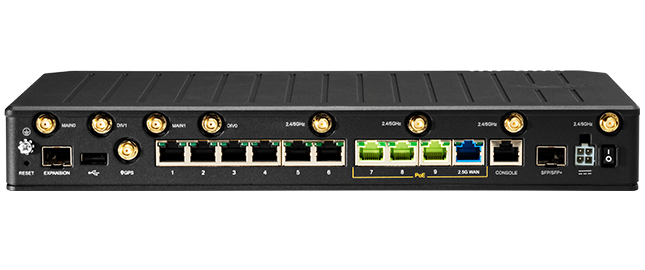

| Ethernet | 9 x GbE, 1 x 2.5GbE, 1 x 10GbE SFP+ (all LAN/WAN switchable) |
| Modem Slot | 1 x MC400 modular modem slot (1 Gbps peak) |
| Wifi Security | WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; 802.11k/v |
| Expansion Slot | 1 x expansion slot; MC20BT Bluetooth LE module |
| Gnss Connector | SMA GNSS connector on C18B modem models only |
| Wifi Data Rates | 1,148 Mbps (2.4 GHz) and 2,400 Mbps (5 GHz) |
| Supported Sfp Modules | SFP: Finisar FTLF8519P3BNL, FTLF1318P3BTL |
| Supported Sfp Plus Modules | SFP+: Finisar FTLX8574D3BCL, FTLX1475D3BCL, FCBG110SD1Cxx |
| Ic | 26.22 / 21.70 / 28.65 dBm conducted |
| Fcc | 26.22 / 28.63 / 28.65 dBm conducted |
| Vlans | Up to 64 Layer 2 / Layer 3 VLANs |
| Stateful Firewall | 2 Gbps |
| Typical Client Count | 100 |
| Concurrent Vpn Tunnels | 20 |
| Concurrent Tcp Sessions | 130,000 |
| Point To Point Ipsec Vpn | 400 Mbps |
| Sase Secure Connect Sd Wan | IPsec 400 Mbps; Microtunnel 600 Mbps |
| Ips Application Aware Client Analytics | 1.5 Gbps |
| Mtbf | E3000-5GB: 997,468 hours (Telcordia SR332 at 25 °C) |
| Storage Humidity | 5% to 95% |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -20 °C to 85 °C (-4 °F to 185 °F) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Safety | UL/cUL, CB Scheme, EN 62368-1 |
| Security | FIPS 140-3 Level 1 in process (FIPS models only; this SKU is a standard model) |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Support | 24x7 support for the subscription term |
| Warranty | Limited lifetime warranty with active subscription |
| Service Plan | NetCloud Service for Enterprise Branch |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Software and firmware updates for the term |
| Device Management | NetCloud Manager |
| Poe | Yes |
| Wifi | Dual-band, dual-concurrent Wi-Fi 6 |
| Category | Branch |
| Gps Gnss | Passive |
| Usb Ports | 1 |
| Throughput | 2 Gbps (firewall) |
| Form Factor | Metal enclosure |
| Vpn Tunnels | 20 |
| Five G Status | 5G embedded or LTE options |
| Ethernet Ports | 9 x GbE, 1 x 2.5 GbE, 1 x SFP+ (LAN/WAN switchable) |
| Cloud Management | Cloud managed |
| Special Features | 5G embedded or paired with W-Series Adapters, dual modem, FirstNet Ready, private cellular, NetCloud Exchange, PoE+, 2.5 GbE, SFP+, WPA3 |
| Dual Modem Support | Yes |
| Subscription Terms | Available in 1, 3 & 5 year terms |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Wireless Connectivity | 5G or LTE |
| Private Cellular Network | Yes — CBRS, 4G LTE, 5G |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cloud & Licensing typically save 10% vs. retail pricing. Create a free account to see your price.
An E3000 router with the embedded 5GB modem and Wi-Fi, four cellular paddle antennas, the external power supply, and a 3-year NetCloud Enterprise Branch Essentials plan for the U.S. and Canada.
No. Cradlepoint sells the E3000 only as part of NetCloud Service Branch packages. The package includes cloud management, software updates, support and warranty coverage.
Cradlepoint hardware carries a limited lifetime warranty for as long as it has an active NetCloud Service Plan subscription. This package includes three years.
Yes. The E3000 has an MC400 modular modem slot, with up to 1 Gbps peak throughput, for dual-modem connectivity. It also has dual 2FF SIM slots on the embedded modem.
Yes. A NetCloud Enterprise Branch Advanced plan can be added to the Essentials package at any time. NetCloud Exchange is also available as an add-on.
