| 3g | WCDMA/HSPA+ |
| Sms | Yes |
| Gnss | Passive GNSS: GPS, GLONASS, BeiDou, Galileo |
| Mimo | 4x4 MIMO |
| 3g Bands | 1, 2, 4, 5, 8, 19 |
| Antennas | 4 external 600 MHz–6 GHz antennas, N-type female (included) |
| Tx Power | 5G NR/LTE 23 dBm ±2; HPUE 26 dBm ±2 (typical conducted) |
| Lte Bands | FDD B1†/2/3†/4/5/7†/8†/12/13/14/17/18/19/20/25/26/28†/29/30/32/66/71; TDD B34/38†/39/40/41†/42/43/46/48 |
| Modulation | 256 QAM downlink and uplink |
| Regulatory | FCC, IC, UKCA, RCM |
| Technology | 5G FR1 NSA/SA, LTE Cat 19 fallback, dual 4FF SIM, 3GPP Release 16 |
| 5g Nr Bands | NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n13 (700), n14 (700), n18 (850), n20 (800), n25 (1900), n26 (850), n28 (700), n29 (700), n30 (2300), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n70 (2000), n71 (600), n75 (1500), n76 (1500), n77 (3700), n78 (3500)†, n79 (4900)† |
| Private Lte | Yes, CBRS Band 48 (FCC Part 96) |
| Peak Rates Sa | Up to 2.4 Gbps down / 450 Mbps up (SA) |
| Peak Rates Lte | Up to 1.6 Gbps down / 200 Mbps up (LTE) |
| Peak Rates Nsa | Up to 3.4 Gbps down / 550 Mbps up (NSA) |
| Carrier Aggregation | NR: 2 CA DL / 1 CA UL; EN-DC: 4+1 CA DL / 2+2 CA UL; LTE: 5 CA DL / 2 CA UL |
| Network Operator Standards | PTCRB, GCF |
| Public Safety Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified |
| Network Operator Certifications | AT&T, T-Mobile, Verizon |
| Required | 802.3at PoE+ (30 W), injector included |
| Consumption | 802.3at Class 4 PD (30 W) |
| Injector Output | 30 W, 56 VDC, 0.536 A |
| Mpn | TAA-170900-016 |
| Upc | 840292709652 |
| Brand | Cradlepoint (Ericsson) |
| Region | North America |
| Product Name | 5G Captive Modem Accessory, Outdoor, W1855-5GC (3.4 Gbps Modem), North America |
| Base Part Number | 170900-016 (non-TAA equivalent) |
| Trade Compliance | TAA-compliant |
| Listed With Routers | Listed in E300, E3000, IBR1700 and R1900 data sheet accessory tables |
| Manufacturer Status | Active |
| Contents | W1855 adapter, PoE injector with line cord, 4 external cellular antennas |
| Documents | Cradlepoint W1855 datasheet |
| Weight | 1.3 kg (2 lb 13.8 oz) |

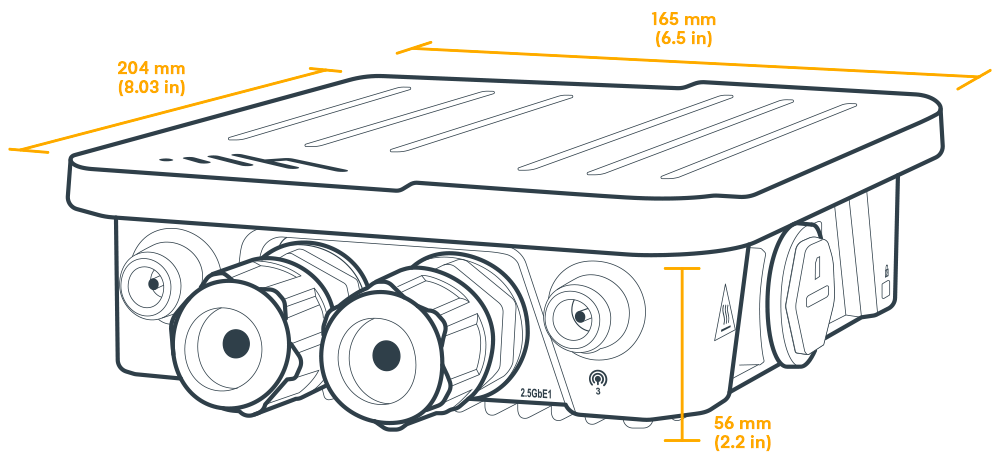

| Dimensions | 204 x 165 x 56 mm (8.03 x 6.5 x 2.2 in) |
| Wifi | N/A |
| Modem | Embedded 5G FR1 NSA/SA Rel. 16 and LTE Cat 19 modem |
| Ethernet | 2 x 2.5 GbE RJ45 (LAN/WAN switchable) |
| Standard Nat Mode | 2.0 Gbps |
| Captive Modem Mode | 2.0 Gbps |
| Ip Passthrough Mode | 2.0 Gbps |
| Mtbf | 376,671 hours (Telcordia SR332 at 25 °C) |
| Emc | EN 61000-4-2/-3/-4/-5/-6; Class B emissions |
| Humidity | Operating 10% to 90%; storage 5% to 95% |
| Wind Lightning | 135 MPH sustained wind, ITU-T K.21 lightning protection |
| Ingress Protection | IP67 (dust tight, immersion up to 1 m), IEC60068-2-11 salt mist, IEC60068-2-32 free fall |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Safety | UL/cUL, CB Scheme, EN 60950-22, EN 62368-1 |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Support | Support included for the full subscription term |
| Warranty | Limited lifetime warranty with an active NetCloud Service plan |
| Service Plans | NetCloud Service for Branch 5G Adapter |
| Service Add Ons | NetCloud Exchange, NetCloud Advanced |
| Software Updates | Via NetCloud Manager |
| Device Management | NetCloud Manager |
| Poe | 802.3at |
| Wifi | N/A |
| Category | Branch |
| Gps Gnss | Passive |
| 5g Status | 5G Embedded |
| Usb Ports | 0 |
| Throughput | 2 Gbps (passthrough) |
| Form Factor | Metal |
| Vpn Tunnels | N/A |
| Capabilities | 5G built in, eSIM |
| Serial Ports | 0 |
| Ethernet Ports | 2 x 2.5 GbE (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | Outdoor form factor, low- and mid-band, 802.3at PoE |
| Dual Modem Support | No |
| Subscription Terms | 1, 3 or 5 years |
| Wireless Connectivity | Dual Connectivity, 5G low/mid-band and Cat 19 LTE |
| Public Safety Networks | FirstNet, T-Mobile Connecting Heroes, Verizon Frontline |
| Private Cellular Network | Yes, CBRS, 4G LTE, 5G |
| Certified Carriers Product Page | AT&T |
Business account holders on Cellular Gateways typically save 13% vs. retail pricing. Create a free account to see your price.
TAA-170900-016 is listed in the accessory tables of the Ericsson Cradlepoint E300, E3000, IBR1700 and R1900 data sheets. The router acts as the controller, and the W1855 is managed with it as a single entity in NetCloud.

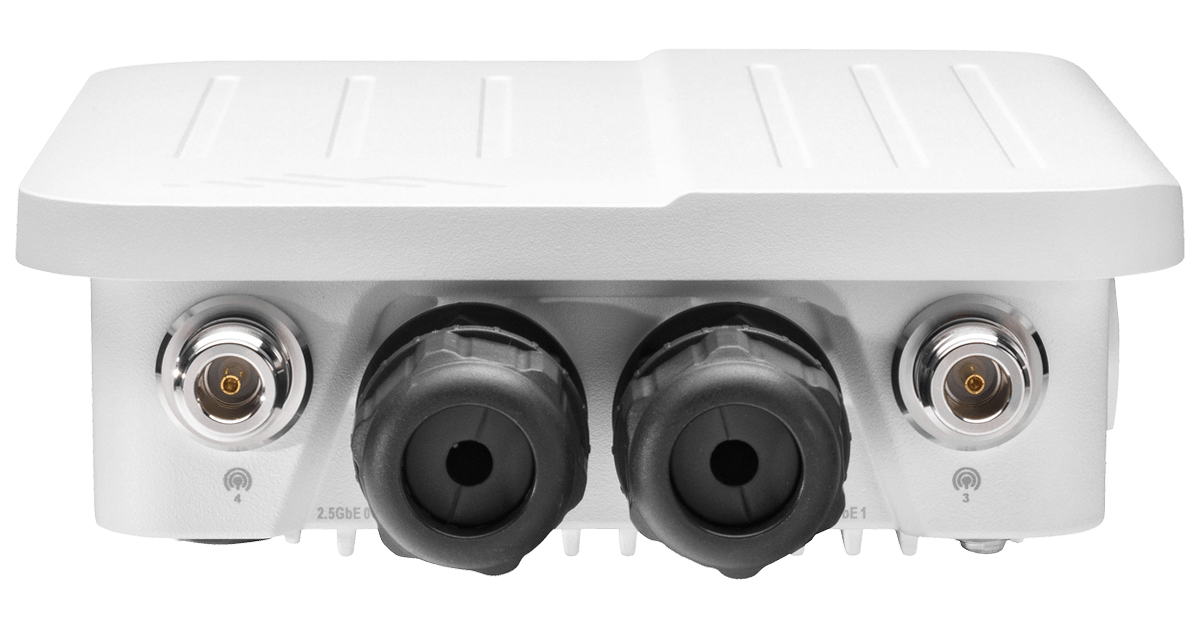

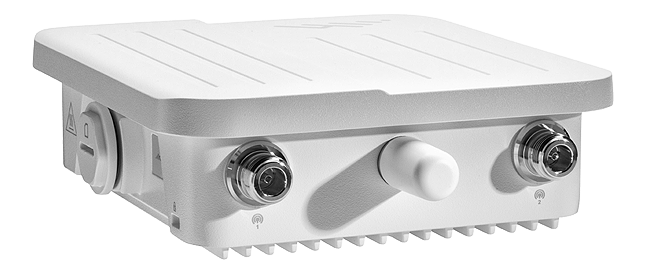

The W1855 adapter, a PoE injector with line cord and four external 600 MHz–6 GHz cellular antennas with N-type connectors.
Peak rates are up to 3.4 Gbps downlink and 550 Mbps uplink in 5G NSA, and up to 2.4 Gbps and 450 Mbps in SA. Captive modem mode throughput is rated at 2.0 Gbps.
It runs on 802.3at PoE+ (30 W) from the included injector, so a single Ethernet cable carries both data and power. It has two 2.5 GbE RJ45 ports that can be set as LAN or WAN.
Yes. It is rated IP67 and tested for salt-mist corrosion and free fall. It is rated for 135 MPH sustained winds, has ITU-T K.21 lightning protection and operates from -30 °C to 70 °C.
