Create Free Business Account| Qam | Up to 64 QAM |
| Sms | Yes |
| Mimo | 2x2 MIMO |
| Umts 3g | WCDMA/UMTS/HSPA+ |
| Antennas | SMA female connectors; 2 external 600 MHz–6 GHz cellular paddle antennas included; external multi-band 2x2 MIMO antenna system |
| Gnss Gps | Passive GNSS (multiplex with DIV antenna port) |
| Lte Bands | LTE FDD: B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B66 (1700), B71 (600); LTE TDD: B41 (2500), B42 (3500), B43 (3700), B48 (3500) |
| Regulatory | FCC (U.S.); IC (Canada); CE (EU) |
| Technology | Cat 7 LTE; dual 4FF SIM slots; SIM-based auto-carrier selection; 3GPP Release 11 |
| Umts Bands | 2, 4, 5 |
| Peak Uplink | LTE 150 Mbps; WCDMA 5.76 Mbps |
| Private Lte | Yes, includes FCC Part 96 (CBRS Band 48) |
| Peak Downlink | LTE 300 Mbps; WCDMA 42.2 Mbps |
| Transmit Power | LTE 22.5 dBm ± 1; DC-HSPA+ 23 dBm ± 1 |
| Carrier Aggregation | Downlink Cat 7, 2CA, 64 QAM = 300 Mbps; Uplink Cat 13, 2CA, 64 QAM = 150 Mbps |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (Worldwide) |
| Lte Bands International Model | Datasheet international L950 model: LTE FDD B1 (2100), B3 (1800), B7 (2600), B8 (900), B20 (800), B28 (700), B32 (1500); LTE TDD B38 (2600), B40 (2300), B41 (2500), B42 (3500), B43 (3700) |
| Umts Bands International Model | Datasheet international L950 model: 1, 5, 8 |
| Network Operator Certifications | AT&T; T-Mobile; Verizon (per manufacturer note) |
| Public Safety Network Certifications | FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline |
| Required | PoE; PoE power injector optional; 802.3af PSE Type 1 (15 W) |
| Consumption | 802.3af Class 3 PD (15 W) |
| Mpn | TAA-BBA5-0950C7A-NC |
| Upc | 810007809144 |
| Brand | Cradlepoint (Ericsson Cradlepoint) |
| Model | Cradlepoint L950 |
| Region | United States Federal Government |
| Support | 24x7 support (phone 24-hour weekdays with weekend emergency response; web 24x7; chat 24x5) |
| Package Plan | 5-Year NetCloud Branch LTE Adapter Essentials + Advanced Plans |
| Taa Compliant | Yes |
| Product Status | Active |
| Shipping Weight | 1.80 lb |
| Subscription Term | 5 years |
| Hardware Configuration | Cat 7 (300 Mbps) with 4FF SIM, PoE Injector & Line Cord |

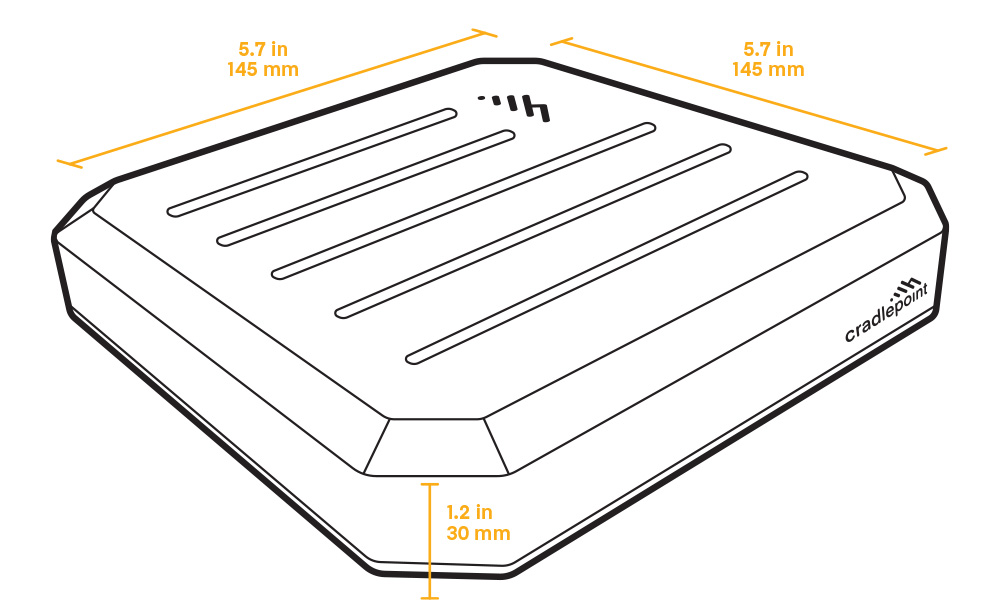

| Size | 145 x 145 x 30 mm (5.7 x 5.7 x 1.2 in) |
| Weight | 0.39 kg (13.9 oz) |
| Wifi | N/A |
| Modem | Embedded Cat 7 modem; 2 x SMA cellular antenna connectors |
| Ethernet | 2 x GbE RJ45 (LAN/WAN switchable); LAN1 pre-configured in IP NAT LAN mode; LAN2 pre-configured in IP Passthrough LAN mode |
| Gnss Gps | Passive GNSS (multiplex with DIV antenna port) |
| Standard Nat Mode | 940 Mbps |
| Captive Modem Mode | 940 Mbps |
| Ip Passthrough Mode | 940 Mbps |
| Calculated Mtbf | 613,536 hours (Telcordia SR332 at 25 °C) |
| Storage Humidity | 5% to 95% |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Safety | UL/cUL; CB Scheme; EN 60950-1; EN 62368-1 |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Support | Ericsson NetCloud packages include support for the full subscription term |
| Warranty | Limited lifetime warranty for as long as the device has an active Ericsson NetCloud Service subscription |
| Service Plans | Ericsson NetCloud Service for Adapter |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Poe | 802.3af |
| Wifi | No |
| Category | Branch |
| Gps Gnss | Passive |
| Usb Ports | 1 |
| Throughput | 940 Mbps (Passthrough) |
| Form Factor | Stylized Plastic |
| Vpn Tunnels | N/A |
| Serial Ports | Supports up to 8 serial ports with an optional USB-to-serial hub |
| Five G Status | None |
| Ethernet Ports | 2 x GbE RJ45 (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | PoE powered, dual SIM/mini 4FF, Advanced Out-of-Band Management |
| Dual Modem Support | No |
| Subscription Terms | 1, 3, 5 years |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Wireless Connectivity | LTE |
| Private Cellular Network | Yes — CBRS, 4G LTE |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cloud & Licensing typically save 10% vs. retail pricing. Create a free account to see your price.

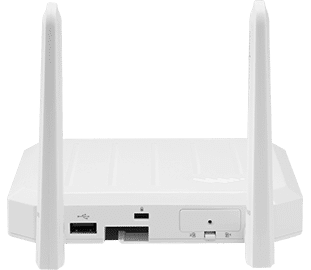

The Cradlepoint L950 LTE adapter in its Cat 7 with 4FF SIM configuration, a PoE injector and line cord, two external paddle antennas, and a 5-year NetCloud Branch LTE Adapter Essentials + Advanced subscription.
The Cat 7 LTE modem supports peak rates of 300 Mbps downlink and 150 Mbps uplink. The Ethernet ports handle up to 940 Mbps in passthrough, NAT and captive modem modes.
Yes. The L950 is designed to deploy within any existing networking or SD-WAN environment and brings up LTE based on your established failover policies.
NetCloud Essentials + Advanced includes 24x7 support for the full 5-year term: phone 24 hours on weekdays with weekend emergency response, web 24x7 and chat 24x5. Hardware is covered by a limited lifetime warranty while the NetCloud subscription remains active.
Yes. Cradlepoint lists private LTE support including FCC Part 96 CBRS Band 48.
