Create Free Business Account| Features | Reverse polarity and transient voltage protection (ISO 7637-2); ignition sensing (automatic ON and time-delay OFF) |
| Required | 9-33 VDC steady state input |
| Consumption | Idle: 9 W; Typical: 13 W; Heavy: 14.5 W |
| Mpn | TB05-0700C4D-NN |
| Upc | 840292705623 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint S700 |
| Region | North America: U.S. & Canada |
| Service Plan | 5-Year NetCloud IoT Essentials Plan |
| Product Status | Active |
| Subscription Term | 5 years |
| Hardware Configuration | Cat 4 (150 Mbps) with Wi-Fi, AC power supply and antennas |

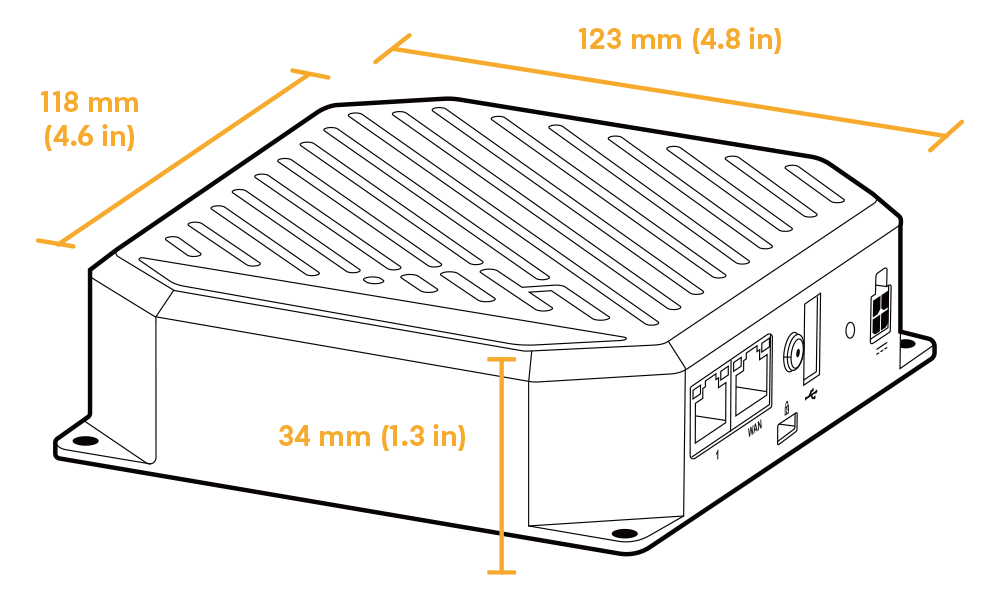

| Size | 123 x 118 x 34 mm (4.8 x 4.6 x 1.3 in) |
| Weight | 516 g (18.2 oz) |
| Construction | Aluminum housing |
| Shipping Weight | 1.60 lb shipping weight |
| Wifi | Dual-radio, dual-band concurrent 2x2 MIMO Wi-Fi 6; 574 Mbps (2.4 GHz) / 1.2 Gbps (5 GHz); 2 x RP-SMA; WPA/WPA2/WPA3 Personal, WPA2/WPA3 Enterprise, Open; Wi-Fi Alliance Certified |
| Modem | Embedded Cat 4 LTE modem; 2 x SMA cellular antenna connectors |
| Ethernet | 2 x 1 GbE RJ45 (LAN/WAN switchable) |
| Gnss Gps | 1 x SMA GNSS antenna connector |
| Expansion | 1 x USB 2.0 Type A (5 V, 500 mA, 2.5 W output) |
| Fcc | 2.4 GHz: 35.66 dBm; 5150–5250 MHz: 26.59 dBm; 5250–5350 MHz: 25.33 dBm; 5470–5725 MHz: 25.15 dBm; 5750–5825 MHz: 26.22 dBm EIRP |
| Rest Of World | 2.4 GHz: 19.99 dBm; 5180–5240 MHz: 22.38 dBm; 5260–5320 MHz: 22.32 dBm; 5500–5700 MHz: 27.45 dBm EIRP |
| Vlans | Up to 64 Layer 2 / Layer 3 VLANs |
| Stateful Firewall | 480 Mbps |
| Concurrent Sessions | 100,000 (TPC) |
| Typical Client Count | 20 |
| Concurrent Vpn Tunnels | 10 |
| Ipsec Vpn Point To Point | 50 Mbps point-to-point IPsec VPN |
| Ips App Aware Client Analytics | 480 Mbps (IPS / application aware services / client analytics) |
| Calculated Mtbf | S700-C4D: 428,000 hours (Telcordia SR332 at 25 °C) |
| Humidity | Operating: 10% to 90%; Storage: 5% to 95% |
| Temperature | Operating: -20 °C to 60 °C (-4 °F to 140 °F); Storage: -40 °C to 85 °C (-40 °F to 185 °F) |
| Ingress Protection | IP30 |
| 3g | WCDMA/UMTS/HSPA+ |
| Sms | Yes |
| Mimo | 2x2 MIMO |
| 3g Bands | 2, 4, 5 |
| Antennas | SMA female connectors; 2 x external 600 MHz - 6 GHz cellular paddle antennas (included only with certain packages) |
| Gnss Gps | Active GNSS: GPS, GLONASS, BeiDou, Galileo |
| Lte Bands | LTE FDD: B2, B4, B5, B12, B13, B14, B66, B71 |
| Modulation | Up to 16 QAM |
| Peak Rates | LTE: 150 Mbps down / 50 Mbps up; WCDMA: 42.2 Mbps down / 5.76 Mbps up |
| Regulatory | FCC (U.S.); IC (Canada) |
| Technology | Cat 4 LTE (3GPP Rel. 11), DC-HSPA+; dual 4FF SIM slots; SIM-based auto-carrier selection |
| Transmit Power | LTE 23 dBm ± 2; DC-HSPA+ 23 dBm ± 1 (typical conducted) |
| Carrier Aggregation | N/A |
| Gcf Global Operators | GCF members directory (globalcertificationforum.org) |
| Private Cellular Network | N/A |
| Network Operator Standards | PTCRB (U.S., Canada) |
| Public Safety Certifications | FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline |
| Ptcrb North America Operators | PTCRB (ptcrb.com) |
| Network Operator Certifications | AT&T; T-Mobile; Verizon |
| Rail | EN 61373 Category 1, Class B (railway rolling stock) |
| Safety | UL/cUL; CB Scheme; EN 62368-1 |
| Vehicle | SAE J1455-2006 Operating Sinusoidal Vibe, Category 2 Section 4.10.4.1 |
| Security | FIPS 140-3 Level 1 Module in Process (S700 and S705 FIPS models only) |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Shock Vibration Humidity | EN 61373 Category 2 (vibration); MIL-STD-810H Method 514.8, Annex C-1, Category 4 (vibration); MIL-STD-810H Method 516.8, Procedures 1 and V (shock); MIL-STD-810H Method 516.8 4.6.6, Procedure V |
| Support | Ericsson NetCloud packages include support for the full subscription term |
| Warranty | Limited lifetime warranty for as long as the hardware has an active Ericsson NetCloud Service subscription |
| Service Plans | Ericsson NetCloud Service for IoT |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Poe | No |
| Wifi | Dual-band, dual-concurrent 802.11ax (Wi-Fi 6) |
| Gps Gnss | Active |
| 5g Status | None |
| Usb Ports | 1 |
| Throughput | 480 Mbps (Firewall) |
| Form Factor | Metal |
| Vpn Tunnels | 5 |
| Serial Ports | 0 |
| Ethernet Ports | 2 GbE |
| Cloud Management | Yes |
| Special Features | Active GNSS/GPS, locking USB RS232 adapter connection, IP30 rated aluminum housing |
| Dual Modem Support | No |
| Subscription Terms | 3 or 5 years (relevant for IoT products only) |
| Operating Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Wireless Connectivity | LTE |
| Private Cellular Network | Yes — 4G LTE (No CBRS) |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cloud & Licensing typically save 10% vs. retail pricing. Create a free account to see your price.
No. The S700 uses an embedded Cat 4 LTE modem with peak rates of 150 Mbps down and 50 Mbps up, and falls back to DC-HSPA+.
The package includes the S700 Cat 4 router with Wi-Fi, an AC power supply, antennas and a 5-year NetCloud IoT Essentials plan. The plan covers NetCloud Manager, software updates, 24x7 support and a limited lifetime warranty during the term.
The North American modem is certified on AT&T, T-Mobile and Verizon. It also holds FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline public safety certifications.
Yes. It accepts 9-33 VDC input with reverse polarity and ISO 7637-2 transient protection. Ignition sensing turns it on automatically and powers it off after a delay. It also meets SAE J1455 vehicle vibration and MIL-STD-810H shock and vibration standards.
Yes. A NetCloud IoT Advanced plan can be added to the Essentials package at any time, and NetCloud Exchange is also available as an add-on.
