Create Free Business Account| Qam | Up to 64 QAM |
| Sms | Yes |
| Mimo | 2x2 MIMO |
| Three G | WCDMA/UMTS/HSPA+ |

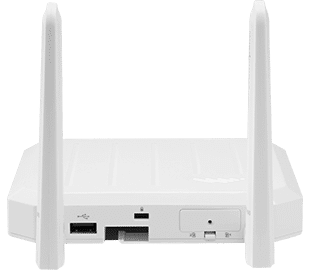

| Antennas | SMA female connectors; external 600 MHz - 6 GHz cellular paddle antennas (qty 2, included); external multi-band 2x2 MIMO antenna system (LTE) |
| Gnss Gps | Passive GNSS (multiplexed with DIV antenna port) |
| Regulatory | FCC (U.S.), IC (Canada), CE (EU) |
| Technology | Cat 7 LTE; dual 4FF SIM slots; SIM-based auto-carrier selection; 3GPP Release 11 |
| Peak Uplink | LTE 150 Mbps; WCDMA 5.76 Mbps |
| Private Lte | Yes, includes FCC Part 96 (CBRS Band 48) |
| Lte Bands Fdd | LTE FDD: B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B66 (1700), B71 (600) |
| Lte Bands Tdd | LTE TDD: B41 (2500), B42 (3500), B43 (3700), B48 (3500) |
| Peak Downlink | LTE 300 Mbps; WCDMA 42.2 Mbps |
| Three G Bands | 2, 4, 5 (alternate datasheet variant: 1, 5, 8) |
| Transmit Power | LTE 22.5 dBm ± 1, DC-HSPA+ 23 dBm ± 1 |
| Carrier Aggregation | Downlink Cat 7 with 2 CA, 64 QAM = 300 Mbps; Uplink Cat 13 with 2 CA, 64 QAM = 150 Mbps |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (worldwide) |
| Lte Bands Alternate Variant | Alternate datasheet variant: LTE FDD B1 (2100), B3 (1800), B7 (2600), B8 (900), B20 (800), B28 (700), B32 (1500); LTE TDD B38 (2600), B40 (2300), B41 (2500), B42 (3500), B43 (3700) |
| Network Operator Certifications | AT&T, T-Mobile, Verizon (per manufacturer note) |
| Public Safety Network Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Required | PoE; 802.3af PSE Type 1 (15 W); PoE injector included in this kit |
| Consumption | 802.3af Class 3 PD (15 W) |
| Mpn | BB05-0950C7A-NC |
| Upc | 810007808789 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint L950 |
| Region | North America (U.S. & Canada) |
| Package Plan | 5-Year NetCloud Branch LTE Adapter Essentials Plan |
| Product Status | Active |
| Subscription Term | 5 years |
| Hardware Configuration | Cat 7 (300 Mbps) with 4FF SIM, PoE injector and line cord |
| Contents | L950 LTE adapter, PoE injector, line cord, 2 cellular paddle antennas, 5-year NetCloud Essentials Plan |

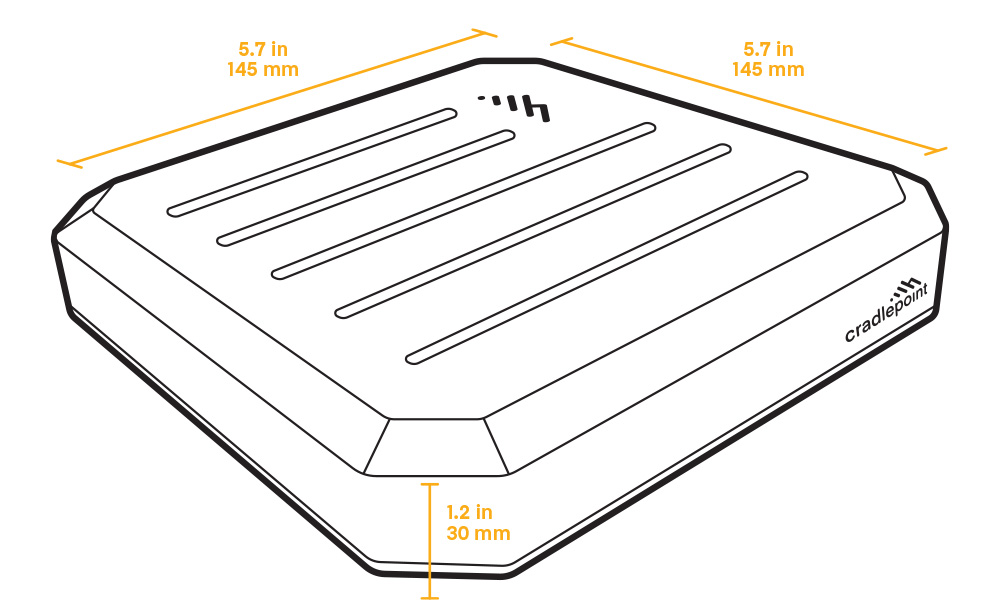

| Size | 145 x 145 x 30 mm (5.7 x 5.7 x 1.2 in) |
| Weight | 0.39 kg (13.9 oz) |
| Shipping Weight | 1.80 lb (shipping) |
| Wifi | N/A |
| Modem | Embedded Cat 7 modem; 2 x SMA cellular antenna connectors |
| Ethernet | 2 x GbE RJ45 (LAN/WAN switchable); LAN1 pre-configured in IP NAT LAN mode; LAN2 pre-configured in IP Passthrough |
| Gnss Gps | Passive GNSS (multiplexed with DIV antenna port) |
| Standard Nat Mode | 940 Mbps |
| Captive Modem Mode | 940 Mbps |
| Ip Passthrough Mode | 940 Mbps |
| Calculated Mtbf | 613,536 hours (Telcordia SR332 at 25 °C) |
| Storage Humidity | 5% to 95% |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Safety | UL/cUL, CB Scheme, EN 60950-1, EN 62368-1 |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Support | Support included for the full subscription term |
| Warranty | Limited lifetime warranty for as long as an active Ericsson NetCloud Service plan is in place |
| Service Plans | Ericsson NetCloud Service for Adapter |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | Via NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Poe | 802.3af |
| Wifi | No |
| Category | Branch |
| Gps Gnss | Passive |
| Usb Ports | 1 |
| Throughput | 940 Mbps (passthrough) |
| Form Factor | Stylized plastic |
| Vpn Tunnels | N/A |
| Serial Ports | Supports up to 8 serial ports with an optional USB-to-serial hub |
| Five G Status | None |
| Ethernet Ports | 2 x GbE RJ45 (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | PoE powered, dual SIM (4FF), Advanced Out-of-Band Management |
| Dual Modem Support | No |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Wireless Connectivity | LTE |
| Private Cellular Network | Yes (CBRS, 4G LTE) |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
| Subscription Terms Offered | 1, 3 or 5 years |
Business account holders on Cloud & Licensing typically save 10% vs. retail pricing. Create a free account to see your price.
No. The L950 is an LTE adapter that works alongside your existing router or SD-WAN appliance. It supplies a cellular WAN link for failover, day-1 connectivity or bandwidth augmentation.
It is powered over Ethernet using 802.3af PoE (Class 3, 15 W). This kit includes a PoE injector and line cord, so you can power it from a standard outlet or from a PoE switch.
No. It uses an embedded Cat 7 LTE modem rated at up to 300 Mbps downlink and 150 Mbps uplink. The manufacturer lists its 5G status as none.
The plan provides NetCloud Manager device management, software updates and support for the full five-year term. The hardware is covered by a limited lifetime warranty for as long as an active NetCloud subscription is in place.
Yes. It has dual 4FF SIM slots with SIM-based auto-carrier selection, so it can connect to up to two carriers.
