Create Free Business Account| 3g | WCDMA/UMTS/HSPA+ |
| Qam | Up to 64 QAM |
| Sms | Yes |
| Mimo | 2x2 MIMO |
| Power | LTE 22.5 dBm ± 1, DC-HSPA+ 23 dBm ± 1 |
| 3g Bands | 2, 4, 5 |
| Antennas | SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included); external multi-band 2x2 MIMO antenna system |
| Gnss Gps | Passive GNSS (multiplex with DIV antenna port) |
| Lte Bands | LTE FDD: B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B66 (1700), B71 (600); LTE TDD: B41 (2500), B42 (3500), B43 (3700), B48 (3500) |
| Regulatory | FCC (U.S.); IC (Canada); CE (EU) |
| Technology | Cat 7 LTE; Dual SIM slots, 4FF form factor; SIM-based auto-carrier selection; 3GPP Release 11 |
| Private Lte | Yes, includes FCC Part 96 (CBRS Band 48) |
| Peak Uplink Rates | LTE: 150 Mbps; WCDMA: 5.76 Mbps |
| Carrier Aggregation | Downlink Cat 7 with 2 CA with 64 QAM = 300 Mbps; Uplink Cat 13 with 2 CA 64 QAM = 150 Mbps |
| Peak Downlink Rates | LTE: 300 Mbps; WCDMA: 42.2 Mbps |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (Worldwide) |
| Network Operator Certifications | AT&T; T-Mobile; Verizon |
| Public Safety Network Certifications | FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline |
| Required | PoE; PoE power injector optional (included in this package); 802.3af PSE Type 1 (15 W) |
| Consumption | 802.3af Class 3 PD (15 W) |
| Mpn | BBA5-0950C7A-NC |
| Upc | UPC 810007808758 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint L950 LTE Adapter |
| Region | North America (U.S. & Canada) |
| Package Plan | 5-Year NetCloud Branch LTE Adapter Essentials + Advanced Plans |
| Shipping Weight | 1.80 lb shipping weight |
| Subscription Term | 5 years |
| Hardware Configuration | Cat 7 (300 Mbps) with 4FF SIM, PoE Injector & Line Cord |

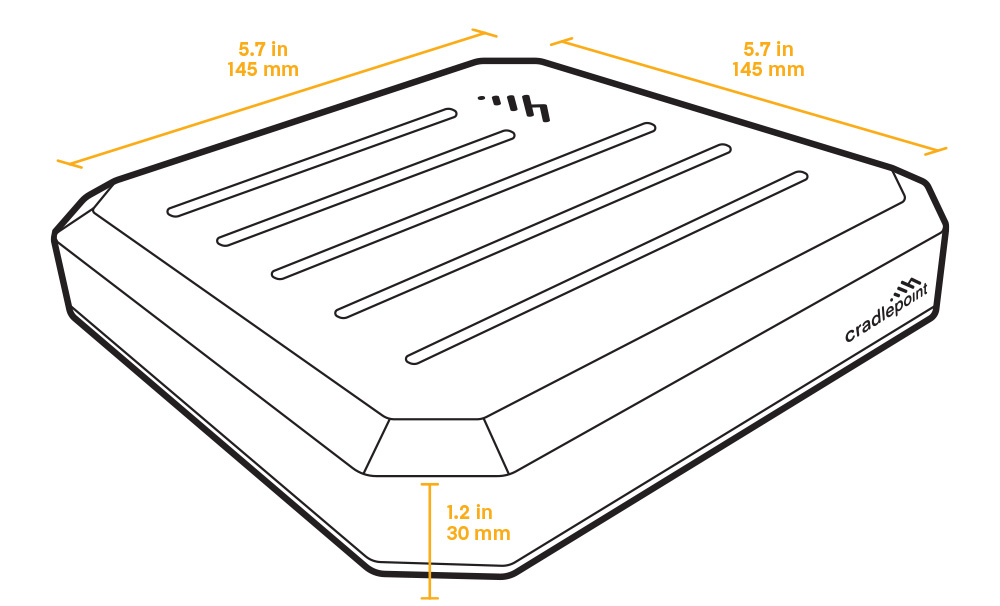

| Size | 145 x 145 x 30 mm (5.7 x 5.7 x 1.2 in) |
| Weight | 0.39 kg (13.9 oz) |
| Modem | Embedded Cat 7 modem; 2 x SMA cellular antenna connectors |
| Wi Fi | N/A |
| Ethernet | 2 x GbE RJ45 (LAN/WAN switchable); LAN1 pre-configured in IP NAT LAN mode; LAN2 pre-configured in IP Passthrough LAN mode |
| Gnss Gps | Passive GNSS (multiplex with DIV antenna port) |
| Standard Nat Mode | 940 Mbps |
| Captive Modem Mode | 940 Mbps |
| Ip Passthrough Mode | 940 Mbps |
| Calculated Mtbf | 613,536 hours (Telcordia SR332 at 25 °C) |
| Humidity | 10% to 90% operating; 5% to 95% storage |
| Temperature | 0 °C to 50 °C (32 °F to 122 °F) operating; -40 °C to 85 °C (-40 °F to 185 °F) storage |
| Safety | UL/cUL; CB Scheme; EN 60950-1; EN 62368-1 |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Support | Ericsson NetCloud packages include support for the full subscription term |
| Warranty | Limited lifetime warranty for as long as an active Ericsson NetCloud Service plan subscription is in place |
| Service Plans | Ericsson NetCloud Service for Adapter |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Poe | 802.3af |
| Wi Fi | No |
| Category | Branch |
| Gps Gnss | Passive |
| 5g Status | None |
| Usb Ports | 1 |
| Throughput | 940 Mbps (Passthrough) |
| Form Factor | Stylized Plastic |
| Vpn Tunnels | N/A |
| Serial Ports | Supports up to 8 serial ports with an optional USB-to-serial hub |
| Ethernet Ports | 2 x GbE RJ45 (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | PoE powered, dual SIM/mini 4FF, Advanced Out-of-Band Management |
| Dual Modem Support | No |
| Subscription Terms | 1, 3, 5 years |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Wireless Connectivity | LTE |
| Private Cellular Network | Yes — CBRS, 4G LTE |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cloud & Licensing typically save 10% vs. retail pricing. Create a free account to see your price.
No. The L950 is an LTE adapter that works alongside an existing router or SD-WAN device, providing a cellular WAN connection based on your failover policies. NetCloud can manage the Cradlepoint router and L950 together as one entity.
It is powered by 802.3af PoE. This package includes a PoE injector and line cord, so a single Ethernet run carries both power and data.
No. The L950 has an embedded Cat 7 LTE modem with peak rates of 300 Mbps downlink and 150 Mbps uplink. It does not include a 5G modem.
The package includes NetCloud management and software updates for the full 5-year term, 24x7 support (phone 24 hours on weekdays with weekend emergency response, web 24x7, chat 24x5), and a limited lifetime hardware warranty while the NetCloud subscription remains active.
This part number is the North America configuration for the U.S. and Canada, with LTE bands including B2, B4, B5, B12, B13, B14, B66, B71 and CBRS Band 48.
