Create Free Business Account| Qam | Up to 64 QAM |
| Sms | Yes |
| Mimo | 2x2 MIMO |
| Umts 3g | WCDMA/UMTS/HSPA+ |
| Antennas | SMA female connectors; 2 external 600 MHz–6 GHz cellular paddle antennas included; external multi-band 2x2 MIMO antenna system |
| Gnss Gps | Passive GNSS (multiplex with DIV antenna port) |
| Lte Bands | LTE FDD: B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B66 (1700), B71 (600); LTE TDD: B41 (2500), B42 (3500), B43 (3700), B48 (3500) |
| Regulatory | FCC (U.S.); IC (Canada); CE (EU) |
| Technology | Cat 7 LTE; dual 4FF SIM slots; SIM-based auto-carrier selection; 3GPP Release 11 |
| Umts Bands | 2, 4, 5 |
| Peak Uplink | LTE 150 Mbps; WCDMA 5.76 Mbps |
| Private Lte | Yes, includes FCC Part 96 (CBRS Band 48) |
| Peak Downlink | LTE 300 Mbps; WCDMA 42.2 Mbps |
| Transmit Power | LTE 22.5 dBm ± 1; DC-HSPA+ 23 dBm ± 1 |
| Carrier Aggregation | Downlink Cat 7, 2CA, 64 QAM = 300 Mbps; Uplink Cat 13, 2CA, 64 QAM = 150 Mbps |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (Worldwide) |
| Lte Bands International Model | Datasheet international L950 model: LTE FDD B1 (2100), B3 (1800), B7 (2600), B8 (900), B20 (800), B28 (700), B32 (1500); LTE TDD B38 (2600), B40 (2300), B41 (2500), B42 (3500), B43 (3700) |
| Umts Bands International Model | Datasheet international L950 model: 1, 5, 8 |
| Network Operator Certifications | AT&T; T-Mobile; Verizon (per manufacturer note) |
| Public Safety Network Certifications | FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline |
| Required | PoE; PoE power injector optional; 802.3af PSE Type 1 (15 W) |
| Consumption | 802.3af Class 3 PD (15 W) |
| Mpn | TAA-BBA3-0950C7A-NC |
| Upc | 810007809137 |
| Brand | Cradlepoint (Ericsson Cradlepoint) |

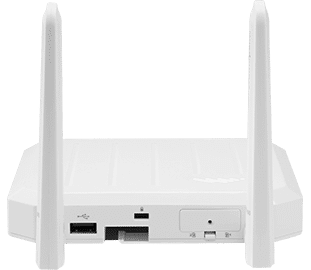

| Model | Cradlepoint L950 |
| Region | United States Federal Government |
| Support | 24x7 support (phone 24-hour weekdays with weekend emergency response; web 24x7; chat 24x5) |
| Package Plan | 3-Year NetCloud Branch LTE Adapter Essentials + Advanced Plans |
| Taa Compliant | Yes |
| Product Status | Active |
| Shipping Weight | 1.80 lb |
| Subscription Term | 3 years |
| Hardware Configuration | Cat 7 (300 Mbps) with 4FF SIM, PoE Injector & Line Cord |

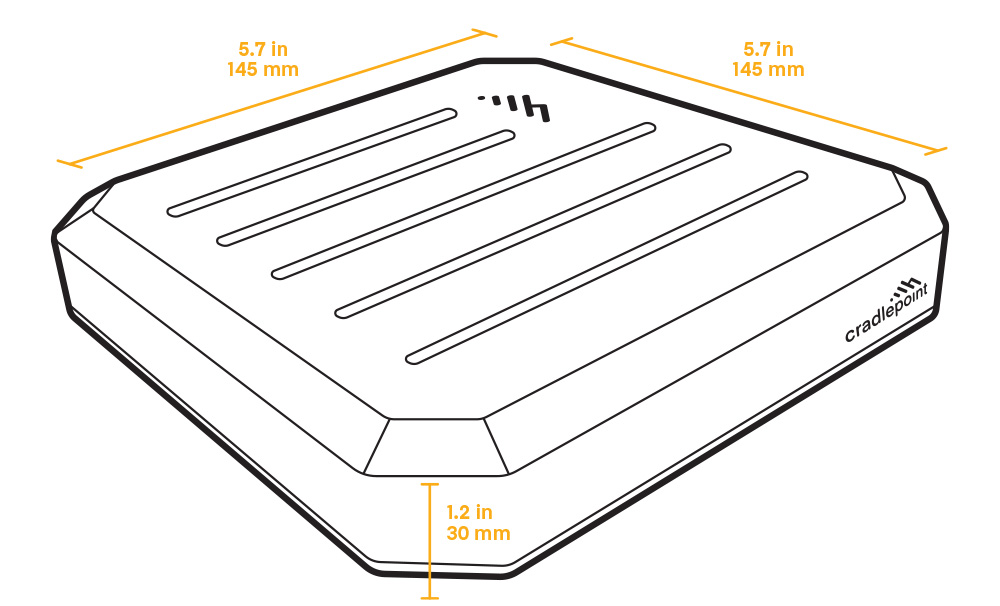

| Size | 145 x 145 x 30 mm (5.7 x 5.7 x 1.2 in) |
| Weight | 0.39 kg (13.9 oz) |
| Wifi | N/A |
| Modem | Embedded Cat 7 modem; 2 x SMA cellular antenna connectors |
| Ethernet | 2 x GbE RJ45 (LAN/WAN switchable); LAN1 pre-configured in IP NAT LAN mode; LAN2 pre-configured in IP Passthrough LAN mode |
| Gnss Gps | Passive GNSS (multiplex with DIV antenna port) |
| Standard Nat Mode | 940 Mbps |
| Captive Modem Mode | 940 Mbps |
| Ip Passthrough Mode | 940 Mbps |
| Calculated Mtbf | 613,536 hours (Telcordia SR332 at 25 °C) |
| Storage Humidity | 5% to 95% |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Safety | UL/cUL; CB Scheme; EN 60950-1; EN 62368-1 |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Support | Ericsson NetCloud packages include support for the full subscription term |
| Warranty | Limited lifetime warranty for as long as the device has an active Ericsson NetCloud Service subscription |
| Service Plans | Ericsson NetCloud Service for Adapter |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Poe | 802.3af |
| Wifi | No |
| Category | Branch |
| Gps Gnss | Passive |
| Usb Ports | 1 |
| Throughput | 940 Mbps (Passthrough) |
| Form Factor | Stylized Plastic |
| Vpn Tunnels | N/A |
| Serial Ports | Supports up to 8 serial ports with an optional USB-to-serial hub |
| Five G Status | None |
| Ethernet Ports | 2 x GbE RJ45 (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | PoE powered, dual SIM/mini 4FF, Advanced Out-of-Band Management |
| Dual Modem Support | No |
| Subscription Terms | 1, 3, 5 years |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Wireless Connectivity | LTE |
| Private Cellular Network | Yes — CBRS, 4G LTE |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cloud & Licensing typically save 10% vs. retail pricing. Create a free account to see your price.
No. The L950 uses an embedded Cat 7 LTE modem with peak rates of 300 Mbps downlink and 150 Mbps uplink. Cradlepoint lists its 5G status as none.
Yes. The TAA-BBA3-0950C7A-NC configuration includes a PoE injector and line cord. The L950 is powered by 802.3af PoE.
No. It works alongside an existing router or SD-WAN, providing an LTE WAN link for failover, day-1 connectivity or bandwidth augmentation. It can be managed together with a Cradlepoint router as one entity in NetCloud.
It covers NetCloud Manager device management and software updates for the full term, plus 24x7 support: phone 24 hours on weekdays with weekend emergency response, web 24x7 and chat 24x5. Cradlepoint hardware carries a limited lifetime warranty while an active NetCloud subscription is maintained.
Yes. The L950 has dual 4FF SIM slots with SIM-based auto-carrier selection, so it can connect to up to two carriers.
