Create Free Business Account| 3g | WCDMA/UMTS/HSPA+ |
| Qam | Up to 64 QAM |
| Sms | Yes |
| Mimo | 2x2 MIMO |
| Antennas | SMA female; 2 x external 600 MHz to 6 GHz paddle antennas included; external multi-band 2x2 MIMO antenna system |
| Gnss Gps | Passive GNSS (multiplexed with DIV antenna port) |
| Regulatory | FCC (U.S.); IC (Canada); CE (EU) |
| Technology | Cat 7 LTE; dual 4FF SIM slots; SIM-based auto-carrier selection; 3GPP Release 11 |
| Peak Uplink | LTE 150 Mbps; WCDMA 5.76 Mbps |
| Private Lte | Yes, FCC Part 96 (CBRS Band 48) |
| Wcdma Bands | 3G bands 2, 4, 5 |
| Lte Fdd Bands | B2, B4, B5, B7, B12, B13, B14, B25, B26, B66, B71 |
| Lte Tdd Bands | B41, B42, B43, B48 |
| Peak Downlink | LTE 300 Mbps; WCDMA 42.2 Mbps |
| Transmit Power | LTE 22.5 dBm ± 1; DC-HSPA+ 23 dBm ± 1 |
| Carrier Aggregation | DL Cat 7, 2CA, 64 QAM = 300 Mbps; UL Cat 13, 2CA, 64 QAM = 150 Mbps |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (Worldwide) |
| Network Operator Certifications | AT&T; T-Mobile; Verizon |
| Public Safety Network Certifications | FirstNet Trusted; T-Mobile Connecting Heroes; Verizon Frontline |
| Required | PoE; 802.3af PSE Type 1 (15 W) |
| Consumption | 802.3af Class 3 PD (15 W) |
| Poe Injector | PoE injector and line cord included in this kit |
| Mpn | BBA3-0950C7A-NC |
| Upc | 810007808734 |
| Plan | NetCloud Branch LTE Adapter Essentials + Advanced |
| Brand | Ericsson Cradlepoint |
| Model | Cradlepoint L950 LTE Adapter |
| Region | North America (U.S. & Canada) |
| Product Status | Active |
| Subscription Term | 3-year subscription |
| Hardware Configuration | Cat 7 (300 Mbps) with 4FF SIM, PoE Injector & Line Cord |
| Contents | L950 adapter, PoE injector, line cord, 2 paddle antennas, 3-year NetCloud Essentials + Advanced |
| Shipping Weight | 1.80 lb (shipping) |

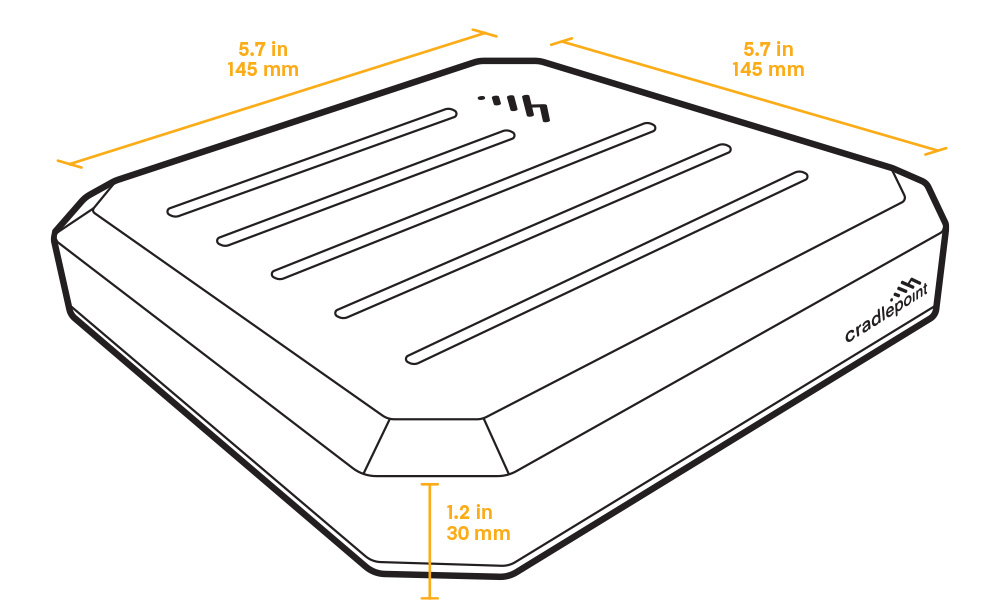

| Size | 145 x 145 x 30 mm (5.7 x 5.7 x 1.2 in) |
| Weight | 0.39 kg (13.9 oz) |
| Wifi | N/A |
| Modem | Embedded Cat 7 modem; 2 x SMA cellular antenna connectors |
| Ethernet | 2 x GbE RJ45 (LAN/WAN switchable); LAN1 IP NAT LAN mode, LAN2 IP Passthrough LAN mode by default |
| Gnss Gps | Passive GNSS (multiplexed with DIV antenna port) |
| Standard Nat Mode | 940 Mbps (Standard NAT mode) |
| Captive Modem Mode | 940 Mbps (Captive Modem mode) |
| Ip Passthrough Mode | 940 Mbps (IP Passthrough mode) |
| Calculated Mtbf | 613,536 hours (Telcordia SR332 at 25 °C) |
| Storage Humidity | 5% to 95% storage |
| Operating Humidity | 10% to 90% operating |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) storage |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) operating |
| Safety | UL/cUL; CB Scheme; EN 60950-1; EN 62368-1 |
| Substance Compliance | WEEE; RoHS; REACH; California Prop 65 |
| Support | Ericsson NetCloud packages include support for the full subscription term |
| Warranty | Limited lifetime warranty with an active NetCloud Service subscription |
| Service Plans | Ericsson NetCloud Service for Adapter |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | Via NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Poe | 802.3af |
| Wifi | No |
| Category | Branch |
| Gps Gnss | Passive |
| 5g Status | None |
| Usb Ports | 1 |
| Throughput | 940 Mbps (Passthrough) |
| Form Factor | Stylized plastic |
| Vpn Tunnels | N/A |
| Serial Ports | Up to 8 serial ports with optional USB-to-serial hub |
| Ethernet Ports | 2 x GbE RJ45 (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | PoE powered, dual SIM/mini 4FF, Advanced Out-of-Band Management |
| Dual Modem Support | No |
| Subscription Terms | 1, 3, 5 years available |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Wireless Connectivity | LTE |
| Private Cellular Network | Yes: CBRS, 4G LTE |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
Business account holders on Cloud & Licensing typically save 10% vs. retail pricing. Create a free account to see your price.
Both include the L950 adapter and a 3-year NetCloud Essentials + Advanced subscription for North America. The -NC kit adds a PoE injector and line cord, so you can power the adapter without a PoE switch.
Yes. The included PoE injector supplies 802.3af power over the Ethernet cable, so the L950 can run from a standard outlet near your router.
Yes. It has dual 4FF SIM slots with SIM-based auto-carrier selection, so it can connect to up to two carriers.
No. It uses a Cat 7 LTE modem with up to 300 Mbps downlink and 150 Mbps uplink. The manufacturer lists its 5G status as none.
It covers NetCloud Manager for deployment, management and software updates, plus advanced Out-of-Band Management and support for the full 3-year term. The hardware has a limited lifetime warranty while the subscription is active.
