Create Free Business Account| Qam | Up to 64 QAM |
| Sms | Yes |
| Mimo | 2x2 MIMO |
| Three G | WCDMA/UMTS/HSPA+ |
| Antennas | SMA female connectors; external 600 MHz - 6 GHz cellular paddle antennas (qty 2, included); external multi-band 2x2 MIMO antenna system (LTE) |
| Gnss Gps | Passive GNSS (multiplexed with DIV antenna port) |
| Regulatory | FCC (U.S.), IC (Canada), CE (EU) |
| Technology | Cat 7 LTE; dual 4FF SIM slots; SIM-based auto-carrier selection; 3GPP Release 11 |
| Peak Uplink | LTE 150 Mbps; WCDMA 5.76 Mbps |
| Private Lte | Yes, includes FCC Part 96 (CBRS Band 48) |
| Lte Bands Fdd | LTE FDD: B2 (1900), B4 (1700), B5 (850), B7 (2600), B12 (700), B13 (700), B14 (700), B25 (1900), B26 (850), B66 (1700), B71 (600) |
| Lte Bands Tdd | LTE TDD: B41 (2500), B42 (3500), B43 (3700), B48 (3500) |
| Peak Downlink | LTE 300 Mbps; WCDMA 42.2 Mbps |
| Three G Bands | 2, 4, 5 (alternate datasheet variant: 1, 5, 8) |
| Transmit Power | LTE 22.5 dBm ± 1, DC-HSPA+ 23 dBm ± 1 |
| Carrier Aggregation | Downlink Cat 7 with 2 CA, 64 QAM = 300 Mbps; Uplink Cat 13 with 2 CA, 64 QAM = 150 Mbps |
| Network Operator Standards | PTCRB (U.S., Canada); GCF (worldwide) |
| Lte Bands Alternate Variant | Alternate datasheet variant: LTE FDD B1 (2100), B3 (1800), B7 (2600), B8 (900), B20 (800), B28 (700), B32 (1500); LTE TDD B38 (2600), B40 (2300), B41 (2500), B42 (3500), B43 (3700) |
| Network Operator Certifications | AT&T, T-Mobile, Verizon (per manufacturer note) |
| Public Safety Network Certifications | FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline |
| Required | PoE; 802.3af PSE Type 1 (15 W); PoE injector included in this kit |
| Consumption | 802.3af Class 3 PD (15 W) |
| Mpn | BBA1-0950C7A-NC |
| Upc | 810007808741 |
| Brand | Cradlepoint (Ericsson Enterprise Wireless) |
| Model | Cradlepoint L950 |
| Region | North America (U.S. & Canada) |
| Package Plan | 1-Year NetCloud Branch LTE Adapter Essentials + Advanced Plans |
| Product Status | Active |
| Subscription Term | 1 year |
| Hardware Configuration | Cat 7 (300 Mbps) with 4FF SIM, PoE injector and line cord |
| Contents | L950 LTE adapter, PoE injector, line cord, 2 cellular paddle antennas, 1-year NetCloud Essentials + Advanced Plans |

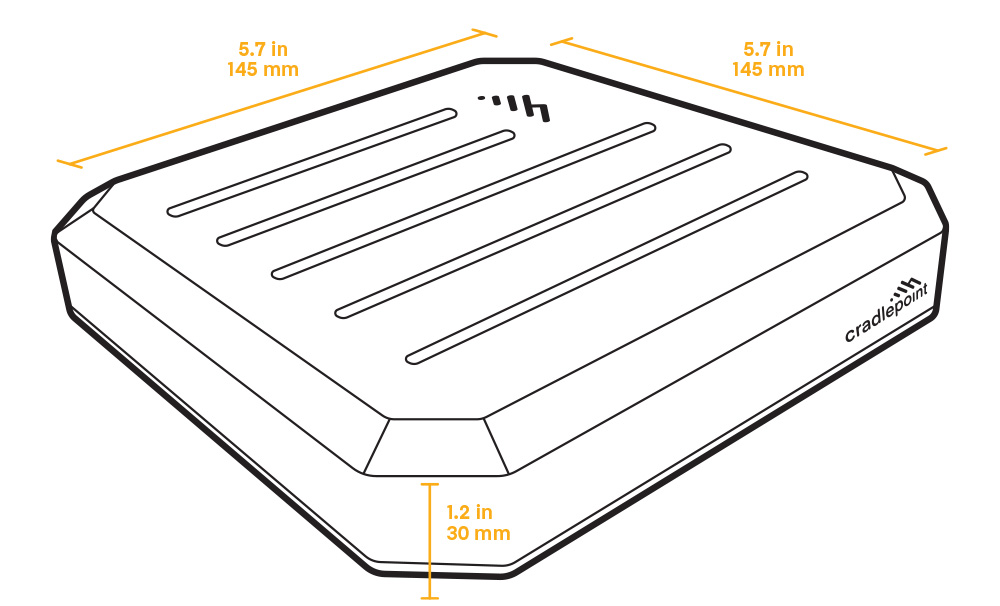

| Size | 145 x 145 x 30 mm (5.7 x 5.7 x 1.2 in) |
| Weight | 0.39 kg (13.9 oz) |
| Shipping Weight | 1.80 lb (shipping) |
| Wifi | N/A |
| Modem | Embedded Cat 7 modem; 2 x SMA cellular antenna connectors |
| Ethernet | 2 x GbE RJ45 (LAN/WAN switchable); LAN1 pre-configured in IP NAT LAN mode; LAN2 pre-configured in IP Passthrough |
| Gnss Gps | Passive GNSS (multiplexed with DIV antenna port) |
| Standard Nat Mode | 940 Mbps |
| Captive Modem Mode | 940 Mbps |
| Ip Passthrough Mode | 940 Mbps |
| Calculated Mtbf | 613,536 hours (Telcordia SR332 at 25 °C) |
| Storage Humidity | 5% to 95% |
| Operating Humidity | 10% to 90% |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Safety | UL/cUL, CB Scheme, EN 60950-1, EN 62368-1 |
| Substance Compliance | WEEE, RoHS, REACH, California Prop 65 |
| Support | 24x7 support: phone 24-hour weekdays with weekend emergency response, web 24x7, chat 24x5 |
| Warranty | Limited lifetime warranty for as long as an active Ericsson NetCloud Service plan is in place |
| Service Plans | Ericsson NetCloud Service for Adapter |
| Service Add Ons | NetCloud Exchange, Ericsson NetCloud Advanced |
| Software Updates | Via NetCloud Manager for the full subscription term |
| Device Management | NetCloud Manager for the full subscription term |
| Poe | 802.3af |
| Wifi | No |
| Category | Branch |
| Gps Gnss | Passive |
| Usb Ports | 1 |
| Throughput | 940 Mbps (passthrough) |
| Form Factor | Stylized plastic |
| Vpn Tunnels | N/A |
| Serial Ports | Supports up to 8 serial ports with an optional USB-to-serial hub |
| Five G Status | None |
| Ethernet Ports | 2 x GbE RJ45 (LAN/WAN switchable) |
| Cloud Management | Yes |
| Special Features | PoE powered, dual SIM (4FF), Advanced Out-of-Band Management |
| Dual Modem Support | No |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Wireless Connectivity | LTE |
| Private Cellular Network | Yes (CBRS, 4G LTE) |
| Network Operator Standards | PTCRB (U.S.), GCF (global) |
| Subscription Terms Offered | 1, 3 or 5 years |
Business account holders on Cloud & Licensing typically save 10% vs. retail pricing. Create a free account to see your price.
The kit includes the Cradlepoint L950 LTE adapter, a PoE injector, a line cord and two cellular paddle antennas. It also includes 1-year NetCloud Branch LTE Adapter Essentials + Advanced Plans.
No. The L950 is a wired adapter with two Gigabit Ethernet ports. It connects to your existing router or SD-WAN appliance, which serves the local network.
The Essentials + Advanced package includes 24x7 support: 24-hour weekday phone support with weekend emergency response, 24x7 web support and 24x5 chat. It also includes a limited lifetime warranty while the subscription is active.
Yes. The NetCloud Verify mobile app guides installation for optimal LTE reception. It then produces a report with installation pictures, speed test results and modem health metrics.
Yes. The manufacturer lists private cellular support on CBRS, including FCC Part 96 Band 48.
